AR2564 Overview

Wide Band Low Power Amplifier, 20MHz Min, 2500MHz Max, TO-8B, 4 PIN

AR2564 Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	TO-8B, 4 PIN
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	17.5 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	2500 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.8

Preview

Download Datasheet

View All

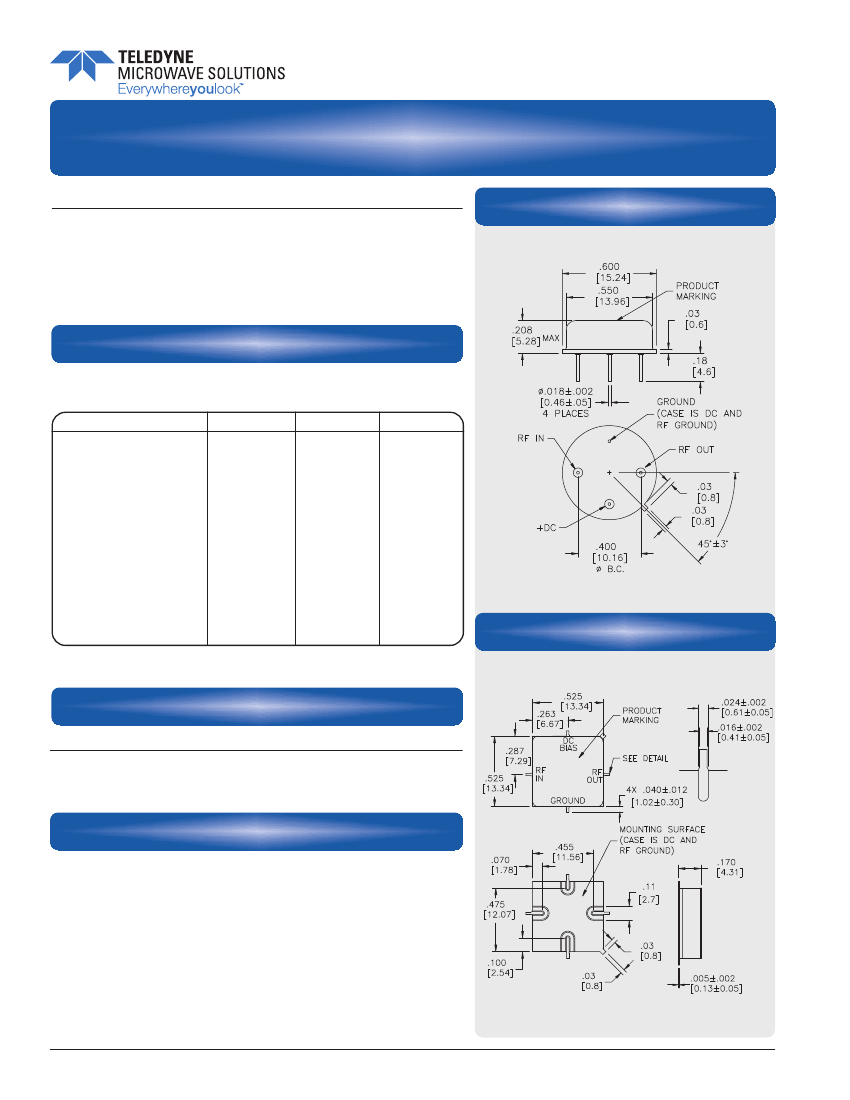

Rev. 5/10

AR2564

Typical Values

20 TO 2500 MHz

TO-8B CASCADABLE AMPLIFIER

AR2564

19.0 dB

3.5 dB

+16.5 dBm

35 dB

High Gain

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Low Noise Figure

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Medium Output Level

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Reverse Isolation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Performance Thin Film

Standard Size TO-8B Package

AR2564

TO-8B Package for Amplifiers

SPECIFICATIONS

Parameter

Frequency (Min.)

Small Signal Gain (Min.)

Typical

20-2600 MHz

19.0 dB

Guaranteed

0 to 50 °C

-55 to +85 °C

20-2500 MHz

18.0 dB

20-2500 MHz

17.5 dB

Gain Flatness (Max.)

Noise Figure (Max.)

200-2500 MHz

SWR (Max.)

Input/Output

±0.4 dB

±0.6 dB

±0.7 dB

3.5 dB

1.4:1

4.0 dB

1.7:1

4.5 dB

1.8:1

Power Output (Min.)

@ 1dB comp.

Reverse Isolation

DC Current (Max.)

+16.5 dBm

35.0 dB

50 mA

+15.5 dBm

—

54 mA

+15.0 dBm

—

58 mA

ARS2564

* Measured in a 50-ohm system at +15 Vdc unless otherwise specified.

SMTO-8B Package for Amplifiers

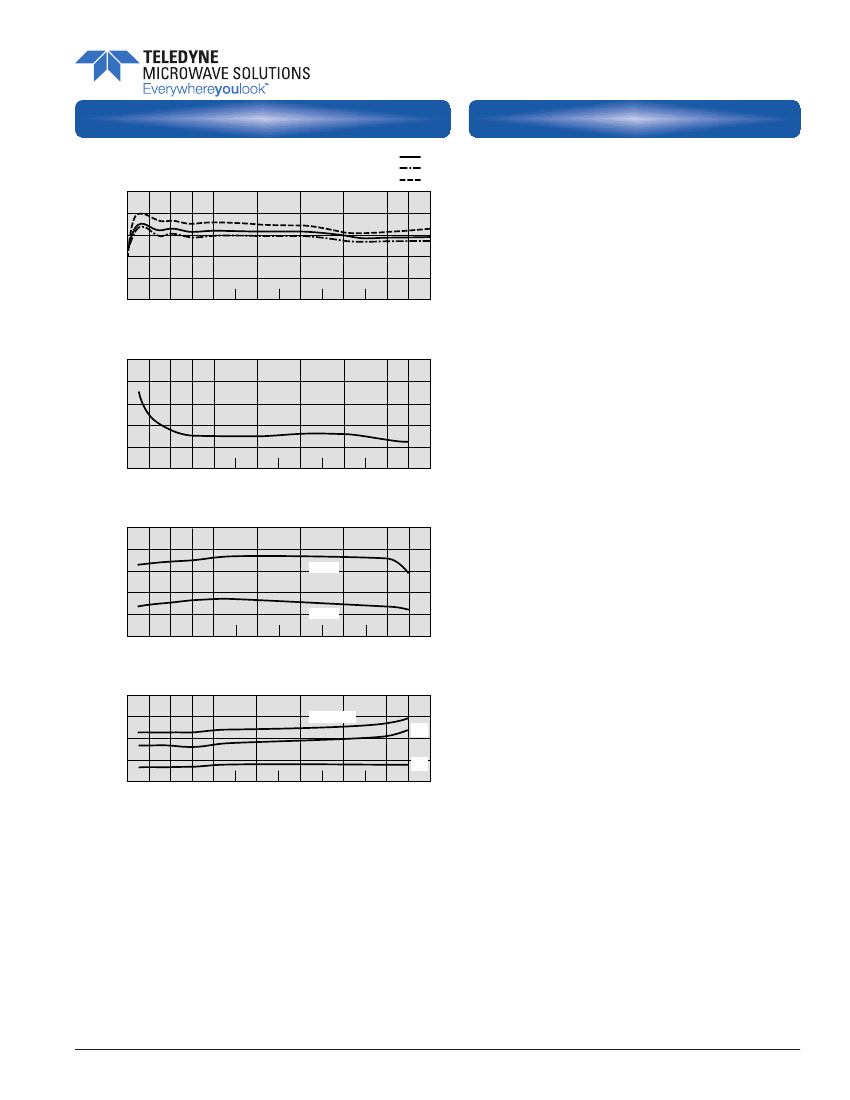

INTERMODULATION PERFORMANCE

Typical @ 25 °C; 1000 MHz

AR2564

+45 dBm

+39 dBm

+27 dBm

Second Order Harmonic Intercept Point.

. . . . . . . . . . . . . .

Second Order Two Tone Intercept Point

. . . . . . . . . . . . . . .

Third Order Two Tone Intercept Point

. . . . . . . . . . . . . . . . .

ABSOLUTE MAXIMUM RATINGS

Storage Temperature

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to +125 °C

Maximum Case Temperature

. . . . . . . . . . . . . . . . . . . . . . . .

+125 °C

Maximum DC Voltage

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+17 Volts

Maximum Continuous RF Input Power

. . . . . . . . . . . . . . . .

+20 dBm

Maximum Short Term Input Power

(1 Minute Max.) . . . . . . . 250 Milliwatts

Maximum Peak Power

(3 µsec Max.) . . . . . . . . . . . . . . . . . .

0.5 Watt

Burn-in Temperature

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+125 °C

(θjc)

Thermal Resistance

..........................

+20 °C/Watt

Junction Temperature Rise Above Case

(Tjc) . . . . . . . . . . .

+24.8 °C

Thermal resistance is based on total power dissipation.

DIMENSIONS ARE IN INCHES [MILLIMETERS]

650-691-9800 • Fax: 650-962-6845 • Updates: www.teledynemicrowave.com • microwave@teledyne.com

AR2564 Related Products

	AR2564	ARS2564
Description	Wide Band Low Power Amplifier, 20MHz Min, 2500MHz Max, TO-8B, 4 PIN	Wide Band Low Power Amplifier, 20MHz Min, 2500MHz Max, SMTO-8B, 4 PIN
Reach Compliance Code	compliant	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω	50 Ω
structure	COMPONENT	COMPONENT
Gain	17.5 dB	17.5 dB
Maximum input power (CW)	20 dBm	20 dBm
Maximum operating frequency	2500 MHz	2500 MHz
Minimum operating frequency	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.8	1.8
