PN2484 / MMBT2484
PN2484
MMBT2484
C
E
C
B
TO-92
E
SOT-23
Mark: 1U
B
NPN General Purpose Amplifier
This device is designed for low noise, high gain, general purpose
amplifier applications at collector currents from 1µ to 50 mA.
Sourced from Process 07. See 2N5088 for characteristics.
Absolute Maximum Ratings*
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
stg
Collector-Base Voltage
Emitter-Base Voltage
Collector Current - Continuous
TA = 25°C unless otherwise noted
Parameter
Collector-Emitter Voltage
Value
60
60
5.0
100
-55 to +150
Units
V
V
V
mA
°C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θJC
R
θJA
TA = 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
PN2484
625
5.0
83.3
200
Max
*MMBT2484
350
2.8
357
Units
mW
mW/°C
°C/W
°C/W
*
Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
2000 Fairchild Semiconductor International
PN2484/MMBT2484, Rev B
PN2484 / MMBT2484
NPN General Purpose Amplifier
(continued)
Electrical Characteristics
Symbol
Parameter
TA = 25°C unless otherwise noted
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown
Voltage*
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
I
C
= 10
µA,
I
B
= 0
I
C
= 10 mA, I
E
= 0
I
C
= 10
µA,
I
E
= 0
V
CB
= 45 V, I
E
= 0
V
CB
= 45 V, I
E
= 0, T
A
= 150°C
V
EB
= 5.0 V, I
C
= 0
60
60
6.0
10
10
10
V
V
V
nA
µA
nA
ON CHARACTERISTICS
h
FE
DC Current Gain
I
C
= 1.0
µA,
V
CE
= 5.0 V
I
C
= 10
µA,
V
CE
= 5.0 V
I
C
= 100
µA,
V
CE
= 5.0 V
I
C
= 100
µA,
V
CE
= 5.0 V
T
A
= -55°C
I
C
= 500
µA,
V
CE
= 5.0 V
I
C
= 1.0 mA, V
CE
= 5.0 V
I
C
= 10 mA, V
CE
= 5.0 V*
I
C
= 1.0 mA, I
B
= 0.1 mA
I
C
= 100
µA,
V
CE
= 5.0 V
30
100
175
20
200
250
800
0.35
0.5
0.7
V
V
500
V
CE(
sat
)
V
BE(
on
)
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
SMALL SIGNAL CHARACTERISTICS
C
obo
C
ibo
NF
Output Capacitance
Input Capacitance
Noise Figure
V
CB
=5.0 V, f = 140 kHz
V
EB
= 0.5 V, f = 140 kHz
I
C
= 10
µA,
V
CE
= 5.0 V,
R
S
= 10k,f = 1.0 kHz,BW =200 Hz
6.0
6.0
3.0
pF
pF
dB
*
Pulse Test: Pulse Width
≤
300
µs,
Duty Cycle
≤
3.0%
TO-92 Tape and Reel Data
TO-92 Packaging
Configuration:
Figure 1.0
TAPE and REEL OPTION
FSCINT Label sample
FAIRCHILD SEMICONDUCTOR CORPORATION
LOT:
CBVK741B019
HTB:B
QTY:
10000
See Fig 2.0 for various
Reeling Styles
NSID:
PN2222N
SPEC:
D/C1:
D9842
SPEC REV:
QA REV:
B2
FSCINT
Label
(FSCINT)
5 Reels per
Intermediate Box
F63TNR
Label
Customized
Label
375mm x 267mm x 375mm
Intermediate Box
F63TNR Label sample
LOT: CBVK741B019
FSID: PN222N
D/C1: D9842
D/C2:
QTY1:
QTY2:
QTY: 2000
SPEC:
SPEC REV:
CPN:
N/F: F
Customized
Label
(F63TNR)3
TO-92 TNR/AMMO PACKING INFROMATION
Packing
Reel
Style
A
E
Ammo
M
P
Quantity
2,000
2,000
2,000
2,000
EOL code
D26Z
D27Z
D74Z
D75Z
AMMO PACK OPTION
See Fig 3.0 for 2 Ammo
Pack Options
Unit weight
= 0.22 gm
Reel weight with components
= 1.04 kg
Ammo weight with components = 1.02 kg
Max quantity per intermediate box = 10,000 units
FSCINT
Label
327mm x 158mm x 135mm
Immediate Box
Customized
Label
5 Ammo boxes per
Intermediate Box
F63TNR
Label
333mm x 231mm x 183mm
Intermediate Box
Customized
Label
(TO-92) BULK PACKING INFORMATION
EOL
CODE
J18Z
J05Z
NO EOL
CODE
DESCRIPTION
TO-18 OPTION STD
TO-5 OPTION STD
TO-92 STANDARD
STRAIGHT FOR: PKG 92,
94 (NON PROELECTRON
SERIES), 96
TO-92 STANDARD
STRAIGHT FOR: PKG 94
(PROELECTRON SERIES
BCXXX, BFXXX, BSRXXX),
97, 98
LEADCLIP
DIMENSION
NO LEAD CLIP
NO LEAD CLIP
NO LEADCLIP
QUANTITY
2.0 K / BOX
1.5 K / BOX
2.0 K / BOX
BULK OPTION
See Bulk Packing
Information table
Anti-static
Bubble Sheets
FSCINT Label
L34Z
NO LEADCLIP
2.0 K / BOX
2000 units per
EO70 box for
std option
114mm x 102mm x 51mm
Immediate Box
5 EO70 boxes per
intermediate Box
530mm x 130mm x 83mm
Intermediate box
Customized
Label
FSCINT Label
10,000 units maximum
per intermediate box
for std option
©2001 Fairchild Semiconductor Corporation
March 2001, Rev. B1
TO-92 Tape and Reel Data and Package Dimensions, continued
TO-92 Reeling Style
Configuration:
Figure 2.0

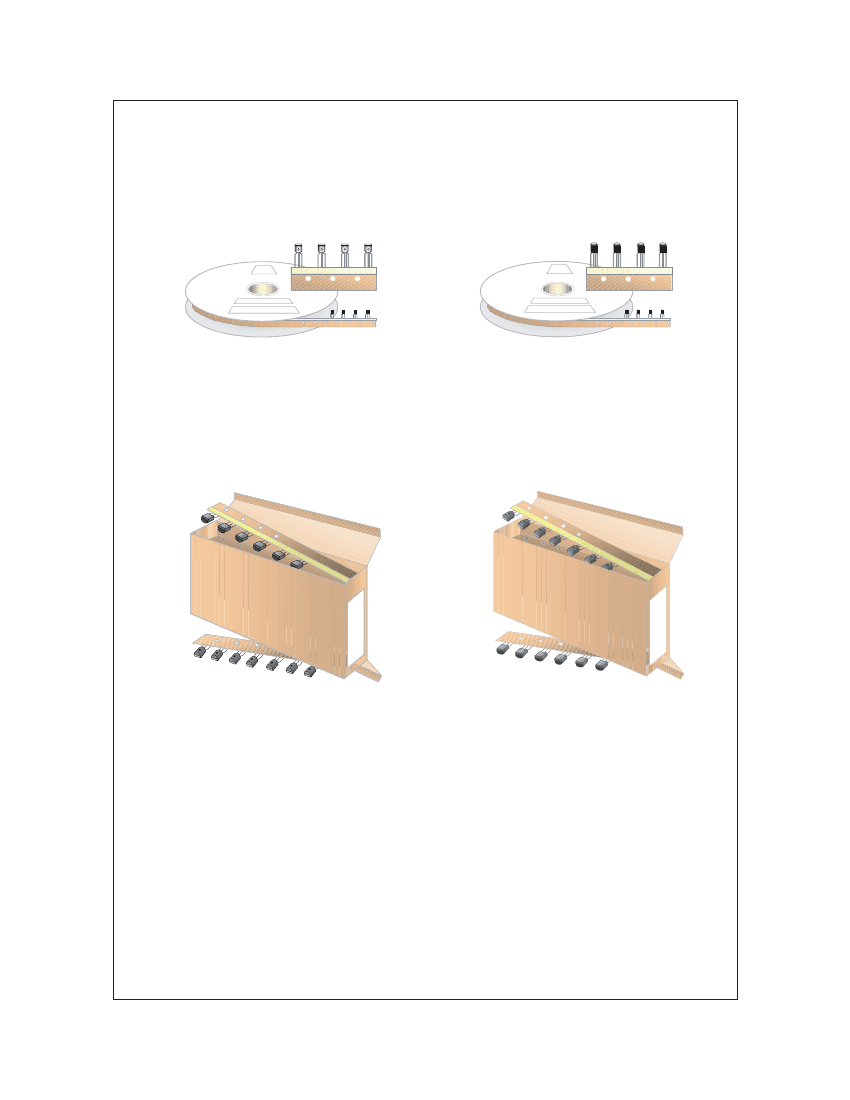

Machine Option “A” (H)
Machine Option “E” (J)
Style “A”, D26Z, D70Z (s/h)
Style “E”, D27Z, D71Z (s/h)
TO-92 Radial Ammo Packaging
Configuration:
Figure 3.0
FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP
FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
ORDER STYLE
D74Z (M)
ORDER STYLE
D75Z (P)
FIRST WIRE OFF IS EMITTER (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
FIRST WIRE OFF IS COLLECTOR (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP
September 1999, Rev. B
