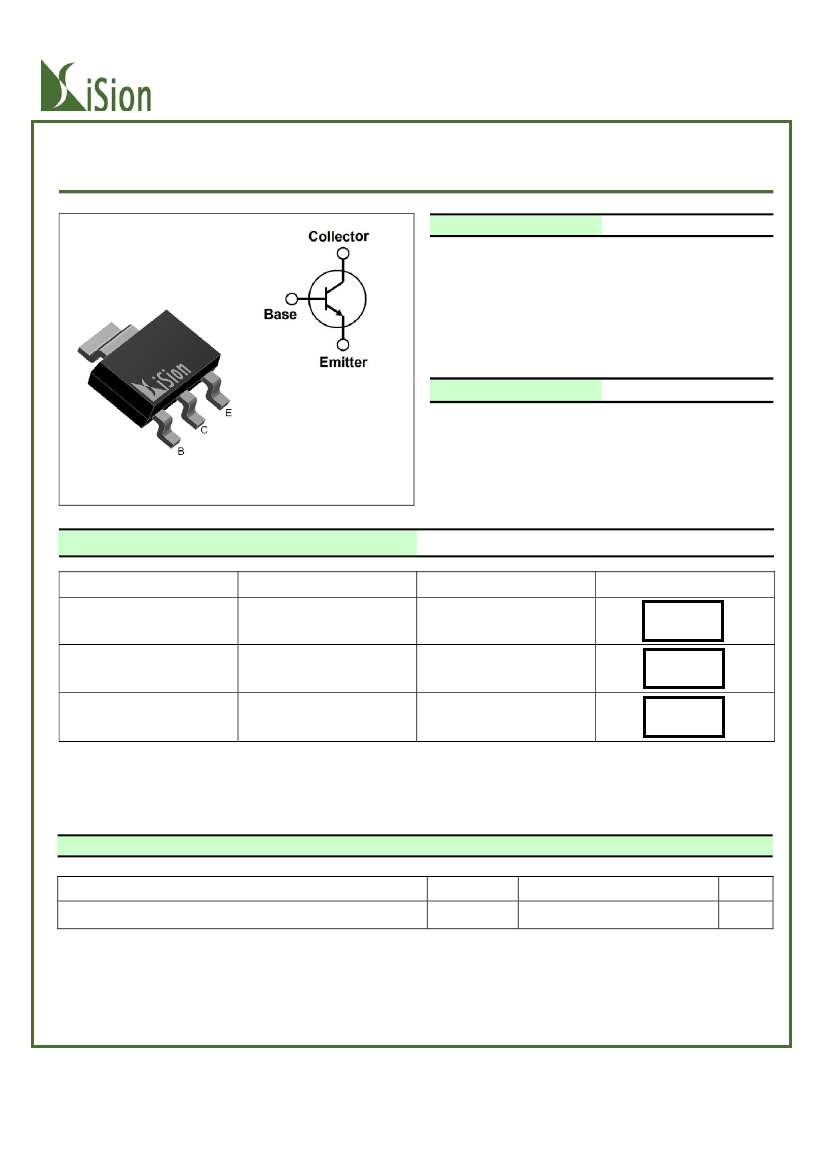

DATA SHEET
BCP54/BCP55/BCP56
GENERAL PURPOSE TRANSISTORS
NPN Silicon
FEATURES
For AF Driver And Output Stages
High Collector Current
Low Collector-Emitter Saturation Voltage
MECHANICAL DATA
Available in SOT-223 Package
Solderability：MIL-STD-202, Method 208
Full RoHS Compliance
ORDERING INFORMATION
Part Number
BCP54□-
△
-T43
Package
SOT-223
Shipping
Tape Reel
Marking Code
BCP54
LSYWW
BCP55
LSYWW
BCP56
LSYWW
BCP55□-
△
-T43
SOT-223
Tape Reel
BCP56□-
△
-T43
SOT-223
Tape Reel
Note:
1.
□:
none is for Lead Free package;
“G” is for Halogen Free package.
2.
△:
Rank Of h
FE
; See Classification Of h
FE
3. Marking Code: yww: y: Year code; ww: Week code.
THERMAL DATA
PARAMETER
Thermal Resistance, Junction-to-Ambient
4.
SYMBOL
R
θ
JA
VALUES
83
UNIT
°C/W
Notes:
R
θ
JA
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is
2
defined as the solder mounting surface of the drain pins. The value of R
θ
JA
is measured with device mounted on 1 in FR-4
board with 2 oz copper.
STAD_A
PAGE.1
DATA SHEET
ABSOLUTE MAXIMUM RATINGS
T
A
= 25°C, unless otherwise specified.
(Note 1)
BCP54/BCP55/BCP56
PARAMETER
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current (Continuous)
Collector Dissipation
Junction Temperature
Storage Temperature Range
SYMBOL
V
CEO
V
CBO
V
EBO
I
C
P
C
T
J
T
stg
BCP54
45
45
BCP55
60
60
5.0
1.0
1.5
150
- 65 ~ +150
BCP56
80
100
UNIT
V
V
V
A
W
°C
°C
Note:
1. These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
ELECTRICAL CHARACTERISTICS
T
A
= 25°C, unless otherwise noted.
PARAMETER
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
SYMBOL
TEST CONDITIONS
BCP54
I
C
= 10mA, I
B
= 0 BCP55
BCP56
BCP54
I
C
= 0.1mA, I
E
= 0 BCP55
BCP56
I
E
= 10μA, I
C
= 0
V
CB
= 30V, I
E
= 0
V
CE
= 2V, I
C
= 5mA
V
CE
= 2V, I
C
= 150mA
V
CE
= 2V, I
C
= 500mA
I
C
= 500mA, I
B
= 50mA
V
CE
= 2V, I
C
= 500mA
V
CE
= 10V, I
C
= 50mA, f = 100MHz
MIN
45
60
80
45
60
100
5
TYP
MAX UNIT
V
(BR)CEO
V
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
ON CHARACTERISTICS
Dc Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Voltage
SMALL−SIGNAL CHARACTERISTICS
Transition Frequency
V
(BR)CBO
V
(BR)EBO
I
CBO
h
FE(1)
h
FE(2)
h
FE(3)
V
CE(sat)
V
BE
f
T
V
V
100
nA
25
63
25
250
0.5
1.0
-
V
V
MHz
100
CLASSIFICATION OF h
FE(2)
RANK
h
FE(2)
RANGE
10
63~160
16
100~250
STAD_A
PAGE.2
DATA SHEET

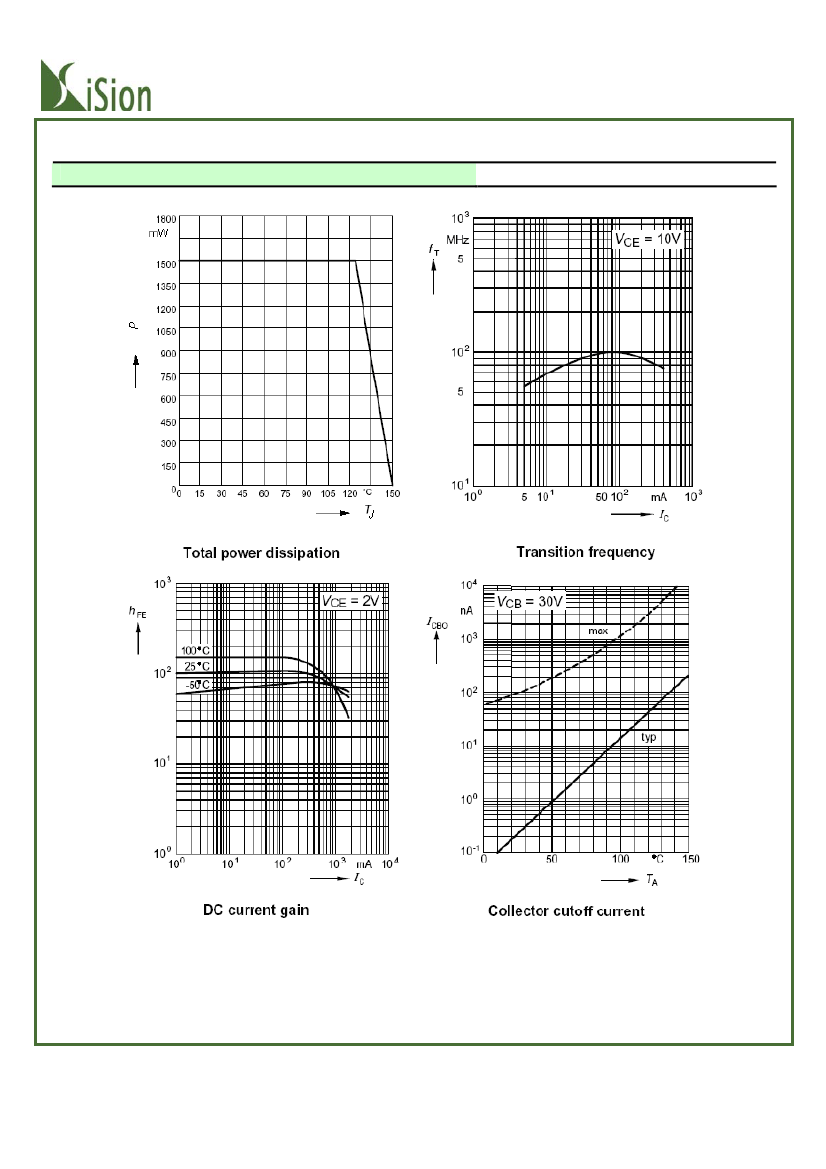

ELECTRICAL CHARACTERISTICS CURVES
BCP54/BCP55/BCP56
STAD_A
PAGE.3
DATA SHEET

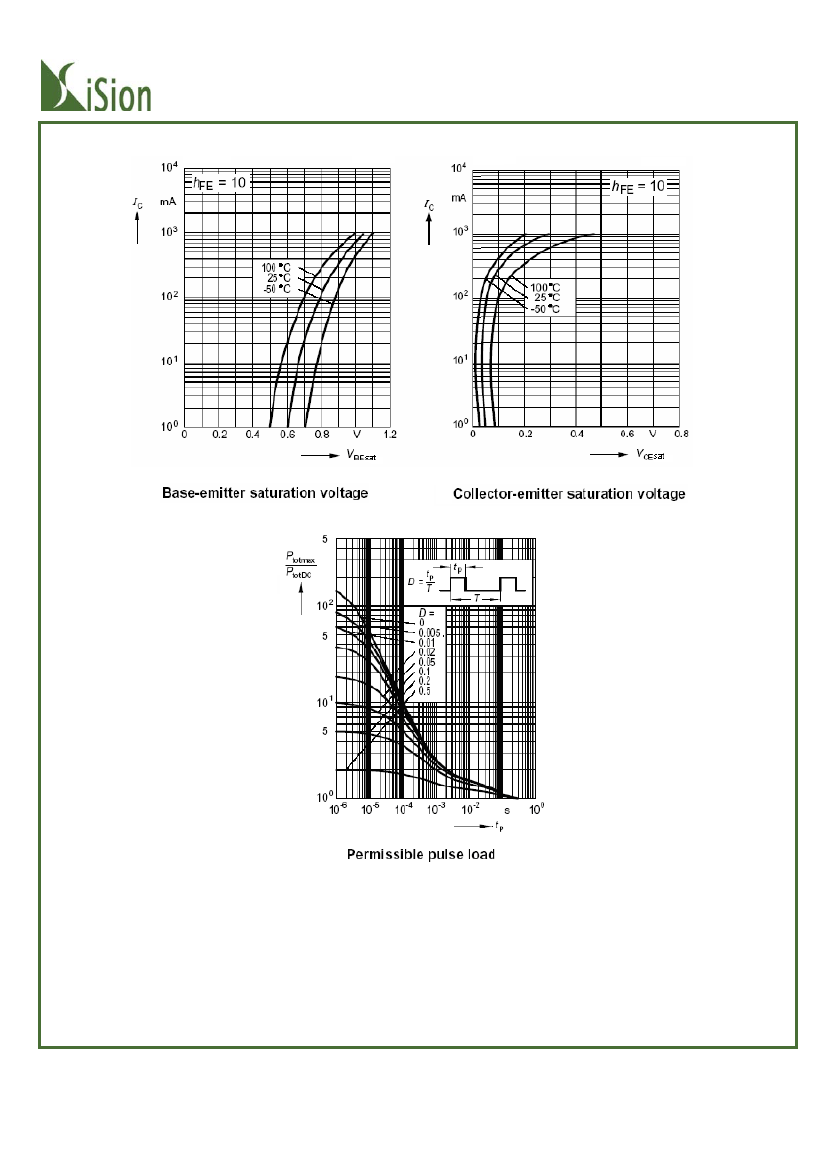

BCP54/BCP55/BCP56
STAD_A
PAGE.4
DATA SHEET

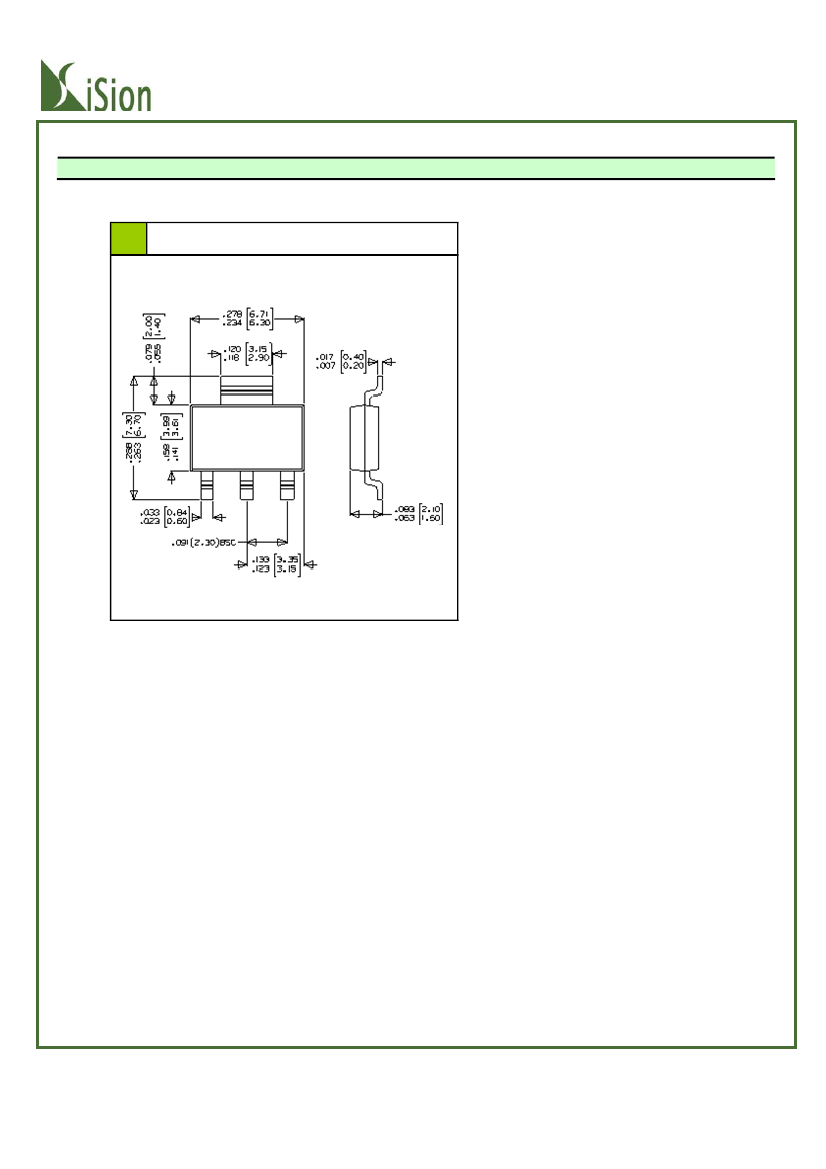

PHYSICAL DIMENSION
Unit：Inch (Millimeter)
BCP54/BCP55/BCP56
SOT-223
STAD_A
PAGE.5
