GSAA01B-Q01: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 6A, 120VDC, 30.5mm, Connector Terminal, Top Pin Plunger Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size160KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

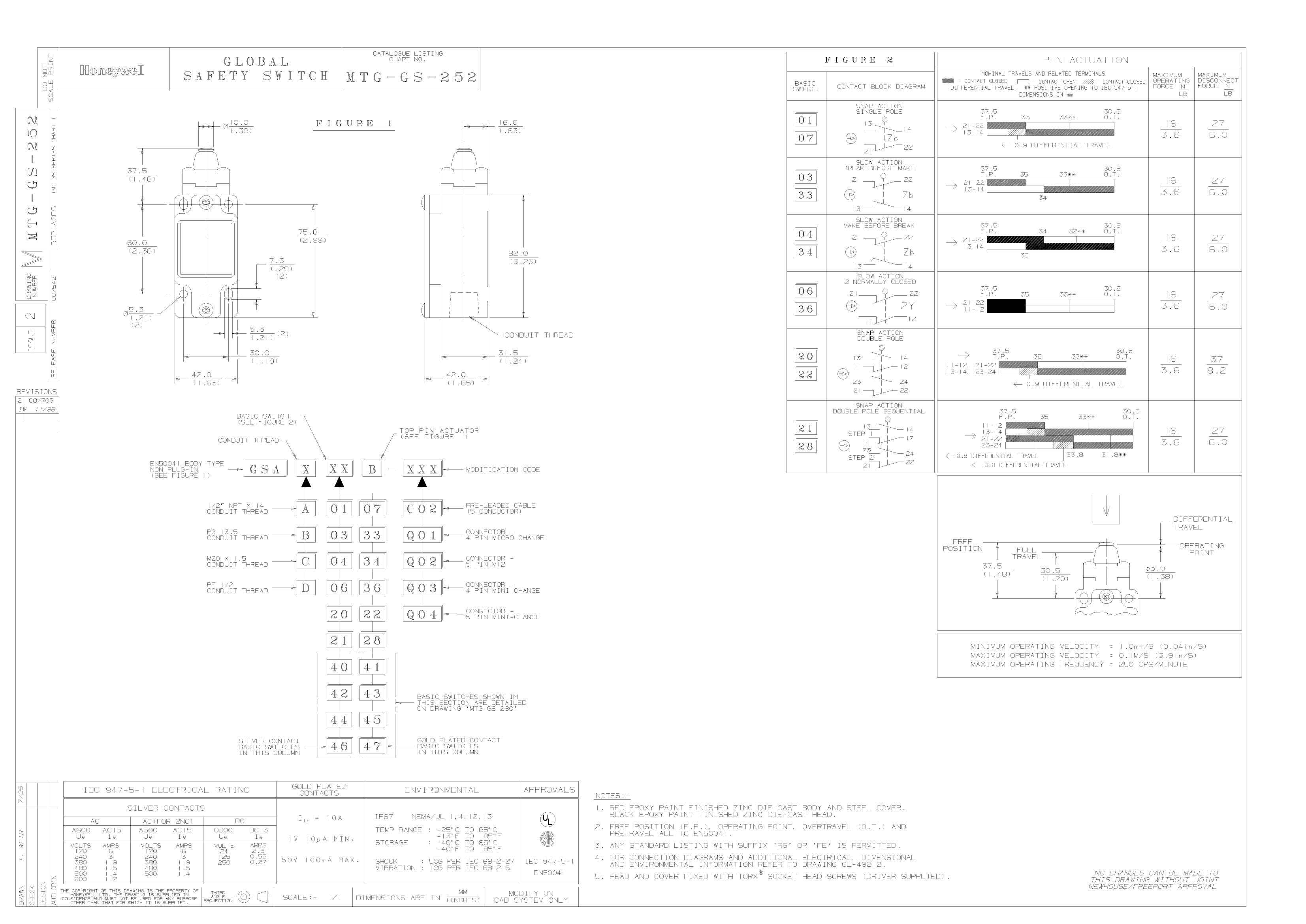

GSAA01B-Q01 Overview

Snap Acting/Limit Switch, SPDT, Momentary, 6A, 120VDC, 30.5mm, Connector Terminal, Top Pin Plunger Actuator, Panel Mount

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	30.5 mm
Actuator type	TOP PIN PLUNGER
body width	42 mm
body height	82 mm
Body length or diameter	42 mm
Contact (AC) maximum rated R load	2.8A@24VAC
Maximum contact current (AC)	2.8 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@120VDC
Maximum contact voltage (AC)	24 V
Maximum contact voltage (DC)	120 V
Manufacturer's serial number	GSA
Installation features	PANEL MOUNT
Maximum operating force	16 N
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	CONNECTOR
