MS-24-140-Y: DescriptionBarrier Strip Terminal Block, 15A, 2 Row(s), 1 Deck(s),; CategoryThe connector terminals; File Size56KB，3 Pages; ManufacturerCinch Connectivity Solutions; Environmental Compliance

Download Datasheet Parametric View All

MS-24-140-Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS-24-140-Y	-	-	View	Buy Now

MS-24-140-Y Overview

Barrier Strip Terminal Block, 15A, 2 Row(s), 1 Deck(s),

MS-24-140-Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Fastening method	SOLDER
Number of layers	1
Rows	2
Number of channels	24
Rated current	15 A
Rated voltage	250 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	16 AWG
Base Number Matches	1

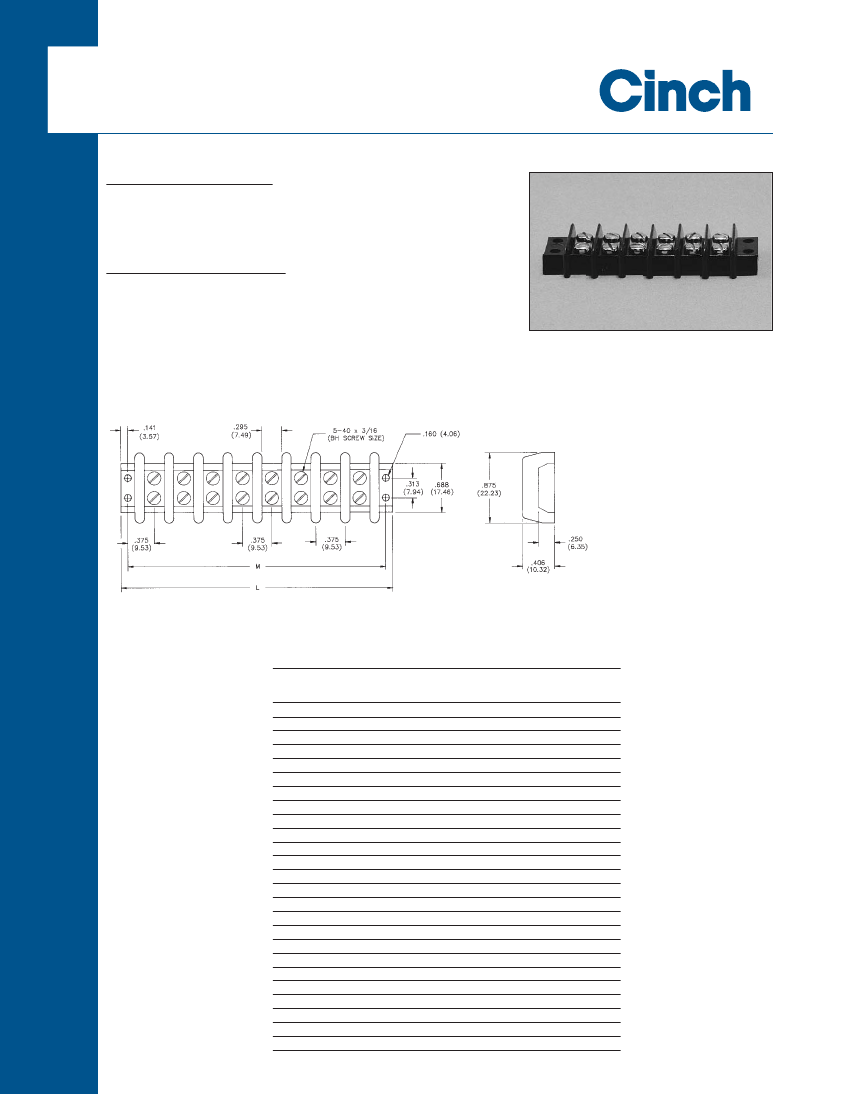

Preview

Download Datasheet

View All

Barrier Blocks

Series 140

.375 Density, 5-40 x 3/16"

BH Screw, Open Bottom,

Double Row

Electrical Characteristics

Voltage Rating:

250 VAC RMS maximum

Current Rating:

15 Amps maximum

Maximum Watts Per Terminal:

3750

Mechanical Characteristics

Maximum Wire Size:

#16 AWG

Recommended Tightening Torque:

9 lb.-in.

Dimensions

Ordering Information

No. of

Standard Screw

Terminals

Catalog No.

1-140

2-140

3-140

4-140

5-140

6-140

7-140

8-140

9-140

10-140

11-140

12-140

13-140

14-140

15-140

16-140

17-140

18-140

19-140

20-140

21-140

22-140

23-140

24-140

25-140

“M”

Dim.

.750

1.125

1.500

1.875

2.250

2.625

3.000

3.375

3.750

4.125

4.500

4.875

5.250

5.625

6.000

6.375

6.750

7.125

7.500

7.875

8.250

8.625

9.000

9.375

9.750

“L”

Dim.

1.032

1.407

1.782

2.157

2.532

2.907

3.282

3.657

4.032

4.407

4.782

5.157

5.532

5.907

6.282

6.657

7.032

7.407

7.782

8.157

8.532

8.907

9.282

9.657

10.032

Marketed exclusively through distribution.

Call Toll Free: 1 (800) 323-9612

2-4
