P140CH05DM0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> P140CH05DM0

P140CH05DM0: DescriptionSilicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,500V V(DRM),354A I(T),TO-200AB; CategoryAnalog mixed-signal IC Trigger device; File Size288KB，4 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

P140CH05DM0 Overview

Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,500V V(DRM),354A I(T),TO-200AB

P140CH05DM0 Parametric

Parameter Name	Attribute value
Maker	IXYS
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	600 mA
Maximum leakage current	30 mA
On-state non-repetitive peak current	3200 A
Maximum on-state current	354000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-30 °C
Off-state repetitive peak voltage	500 V
surface mount	NO
Trigger device type	SCR

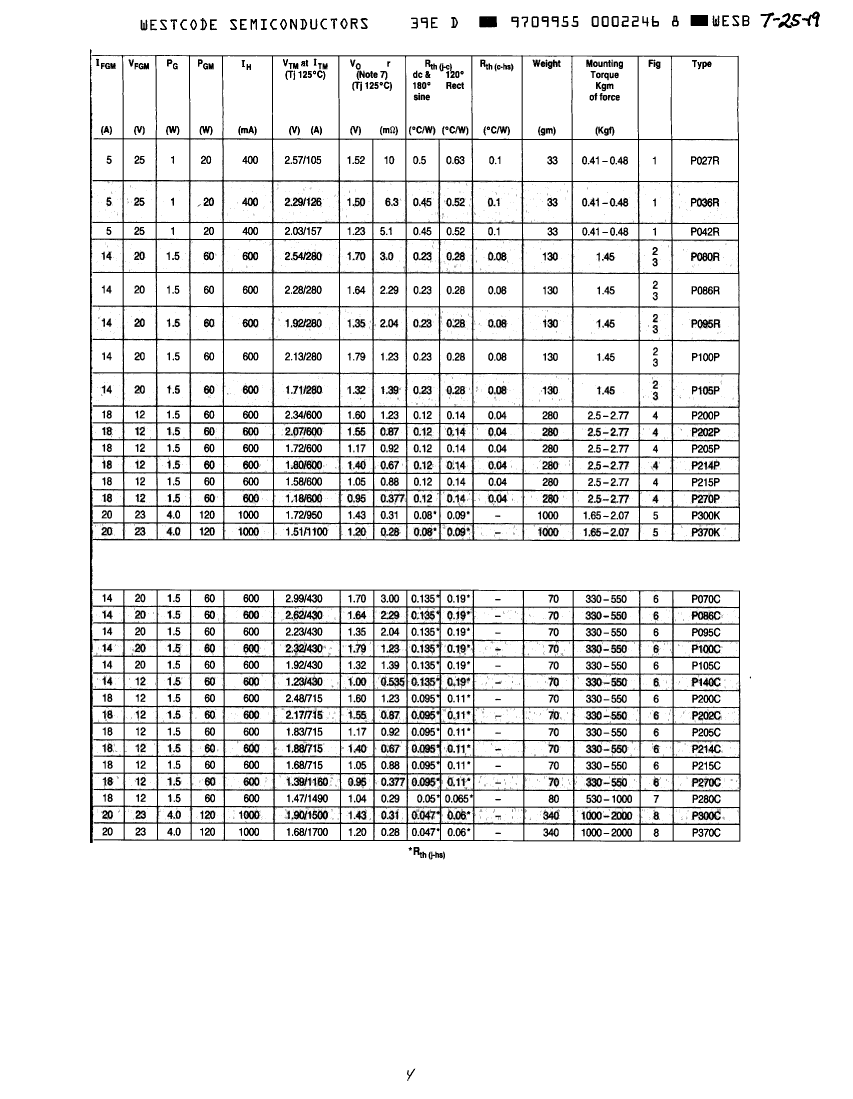

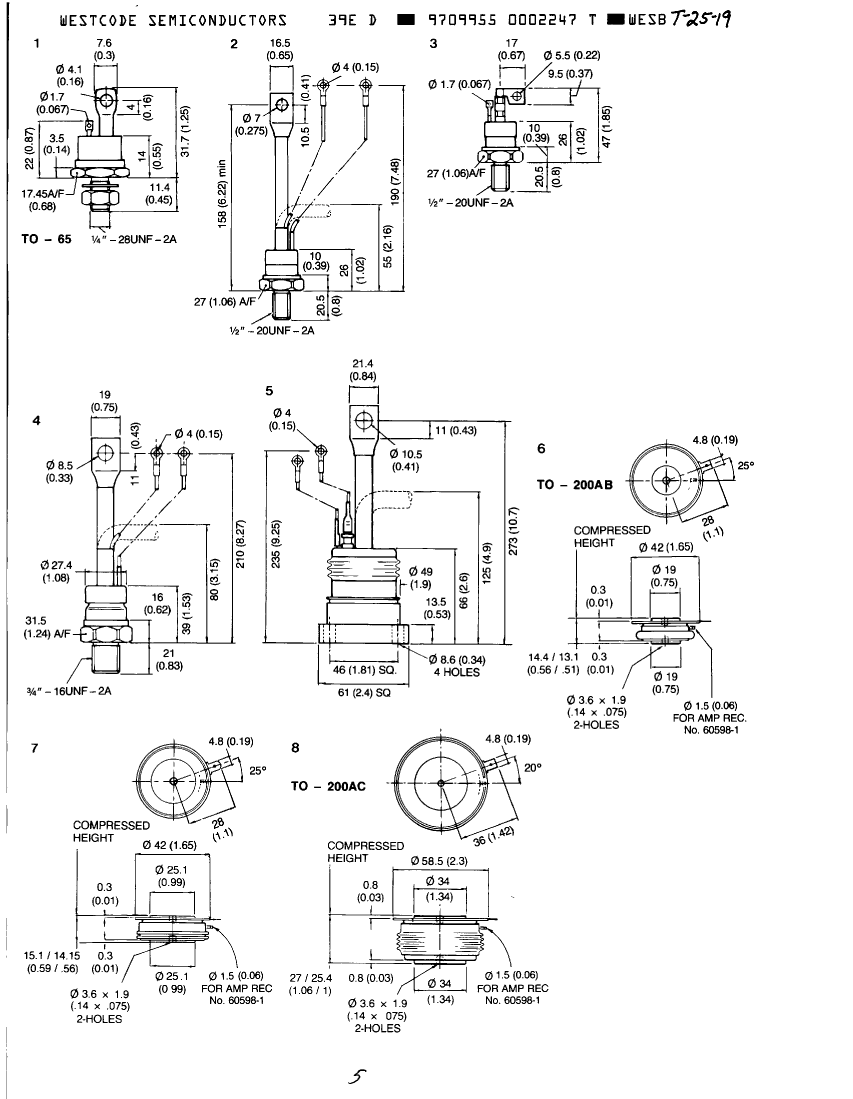

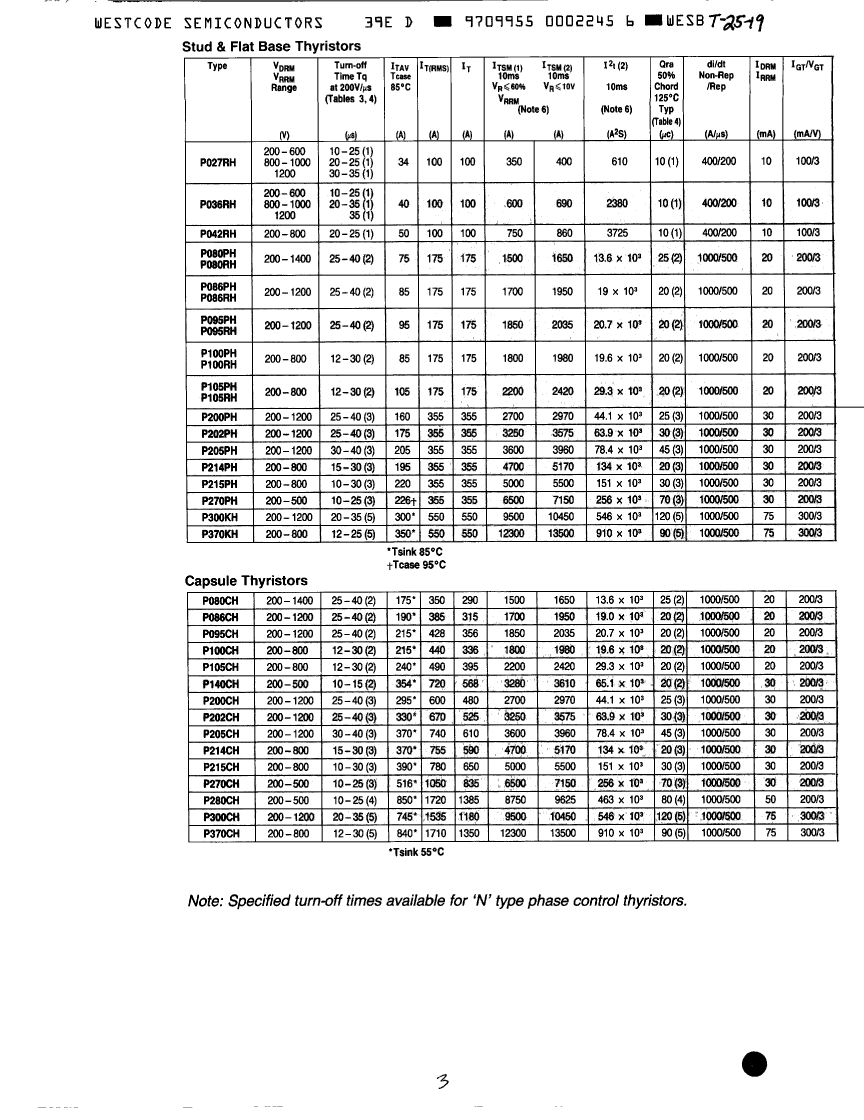

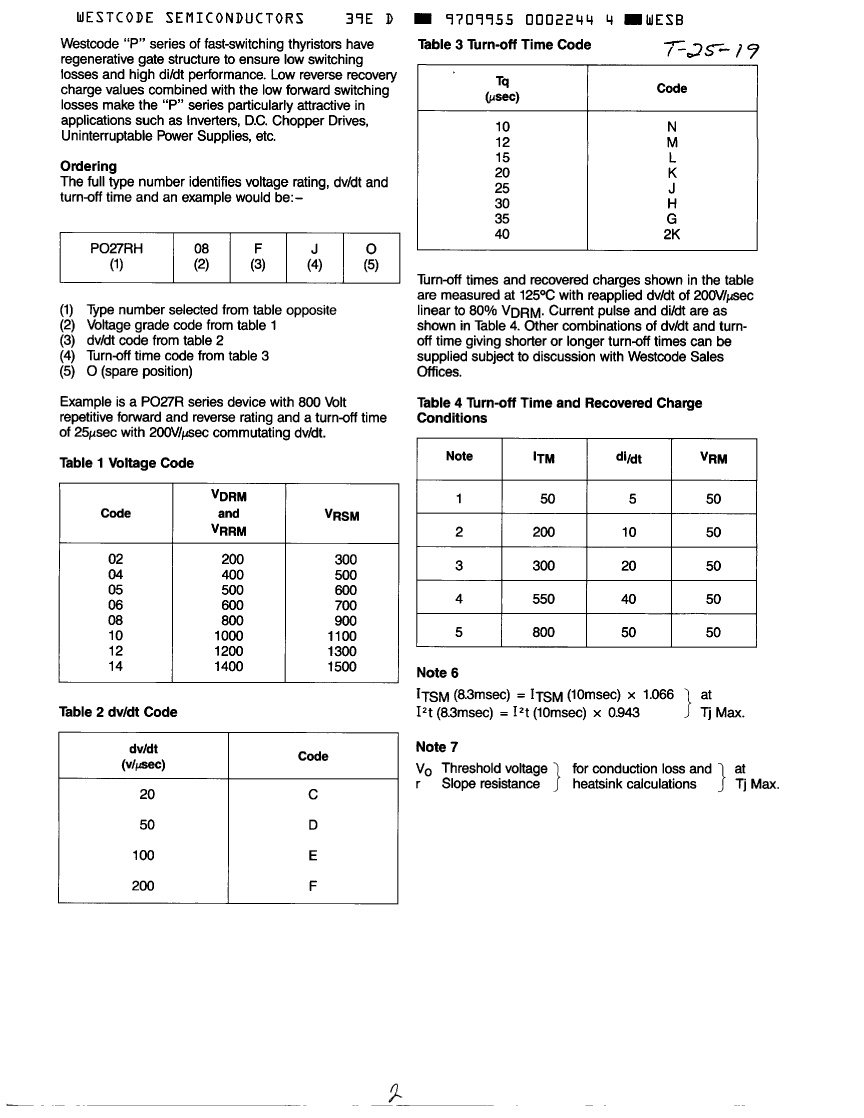

Preview

Download Datasheet

View All

P140CH05DM0 Related Products

	P140CH05DM0	P105RH06FJ0	P105RH06FK0	P105PH02CL0	P105RH06FL0	P140CH05CM0	P105RH06CL0	P105RH04FJ0	P105RH06EJ0
Description	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,500V V(DRM),354A I(T),TO-200AB	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,600V V(DRM),175A I(T),TO-208VAR1/2	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,600V V(DRM),175A I(T),TO-208VAR1/2	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,200V V(DRM),175A I(T),TO-209AC	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,600V V(DRM),175A I(T),TO-208VAR1/2	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,500V V(DRM),354A I(T),TO-200AB	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,600V V(DRM),175A I(T),TO-208VAR1/2	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,400V V(DRM),175A I(T),TO-208VAR1/2	Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,600V V(DRM),175A I(T),TO-208VAR1/2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Critical rise rate of minimum off-state voltage	50 V/us	200 V/us	200 V/us	20 V/us	200 V/us	20 V/us	20 V/us	200 V/us	100 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Maximum holding current	600 mA	600 mA	600 mA	600 mA	600 mA	600 mA	600 mA	600 mA	600 mA
Maximum leakage current	30 mA	20 mA	20 mA	20 mA	20 mA	30 mA	20 mA	20 mA	20 mA
On-state non-repetitive peak current	3200 A	2200 A	2200 A	2200 A	2200 A	3200 A	2200 A	2200 A	2200 A
Maximum on-state current	354000 A	175000 A	175000 A	175000 A	175000 A	354000 A	175000 A	175000 A	175000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-30 °C	-40 °C	-40 °C	-40 °C	-40 °C	-30 °C	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	500 V	600 V	600 V	200 V	600 V	500 V	600 V	400 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Maker	IXYS	-	-	-	-	IXYS	IXYS	IXYS	IXYS
Nominal circuit commutation break time	-	25 µs	20 µs	15 µs	15 µs	-	15 µs	25 µs	25 µs
