1mm-pitch, two-row, low-profile cable connector for multi-contact boards
DF20 series
Low-profile design
Fig.
Slim connector external
dimensions
sFeatures

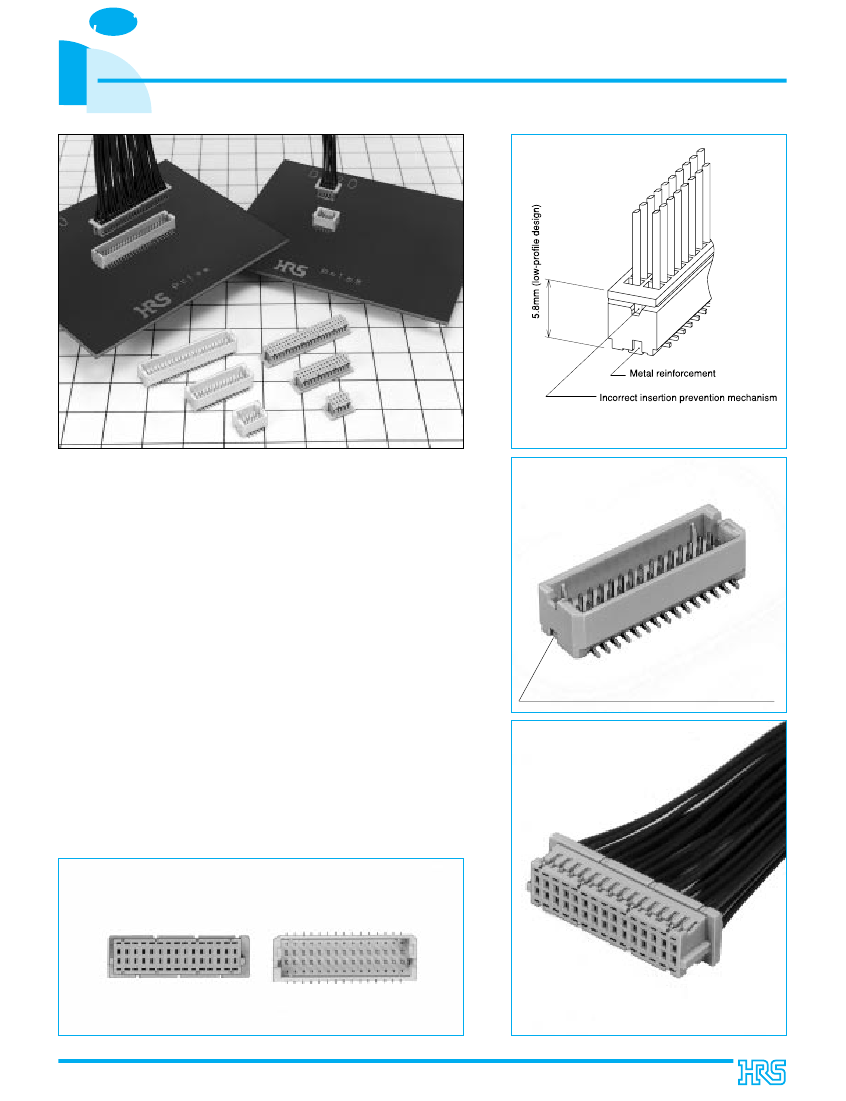

1. Fine-pitch, low-profile design
This connector features a 1.0mm-pitch and 5.8mm mating
height above the board. (See Fig..)
2. Slim outline
.New-design thin metal reinforcement decreases connector
external dimension. (See Fig..)
3. Absorption cap
Header has a 5.4 x 4.6mm cap to allow a standard nozzle for
absorption.
New-design thin metal reinforcement
decreases connector external dimensions.
4. Outstanding variety of products
(1) Number of contacts: 10, 20, 30, 40, and 50
(2) Pin header: With and without a positioning guide post
Cable side connector
sApplications
Notebook-type PCs, small office machines, small consumer
products
1mm-pitch 2-row
2000.3
1
sProduct
standard
Rating
Rated current AWG#28 : 1A
Operating temperature range
AWG#30 : 0.5A
AC100V
Rated voltage
Operating humidity range
Standard
500Mø or more
No flashover or breakdown
30Mø or less
MIN 0.3N(30gf), MAX 2N(200gf)
No electrical discontinuity for 1µs or more
Contact resistance 30mø or less, insulation resistance 100Mø or more
Contact resistance 30mø or less, insulation resistance 500Mø or more
Contact resistance 30mø
No melting of resin portion, which affects performance
Measure at DC100V.
300V AC, applied for one minute.
Measure at 100mA.
Measure with a steel pin with thickness of 0.2±0.005.
Frequency: 10Hz to 55Hz, amplitude of 0.75mm in 3 directions, 2h
Temperature of 40±2ç, humidity of 90% to 95%, duration 96h
(-55ç:30min -> 5ç to 30ç: 2 to 3min -> 85ç:30min -> 5ç to 35ç:2 to 3min ) 5 cycles
50 mechanical-operation cycles
Reflow: At the recommended temperature profile, manual soldering: iron temperature 300ç for 3s
-35~85ç(Note
1)
-35~85ç(Note
2)
-20~80%
Storage temperature range -10~60ç(Note 2)
Storage humidity range
Condition
-40~70%
Item
1.Insulation resistance
2.Voltage proof
3.Contact resistance
4.Unit mechanical force
5.Vibration
6.Damp heat
7.Rapid change of temperature
8.Mechanical operation
9.Resistance to soldering heat
Note1: Includes the temperature rise from current flow.
Note2: The term storage refers to an unused product prior to board mounting that is being kept for a long period.
The operating temperature and humidity rage are suited to the non-conducting condition following board assembly.
The operating temperature and humidity ranges are also applicable to those mounted on a board before use.
Note3: The aforementioned specifications are representative of this series. For information on specific parts, confirm with Sales Office.
sMaterial
Product
Crimp socket
Crimp-type terminal for socket
Pin header
Part
Insulation
Terminal
Insulation
Terminal
Metal
Material
Polyamide resin
Phosphor bronze
Polyamide resin
Phosphor bronze
Brass
Color / Finish
Beige
Gold plating
Beige
Gold plating
Solder plating
UL standard
UL94V-0
----------
UL94V-0
----------
----------
sProduct
number composition
The type name represents a specific product specification.
To order a product, specify the type from pages 3 to 4.
qConnector
DF 20 # -
V
DS - 1 C
1
2
3
4
5
6
7
1
Series name : DF
2
Series No. : 20
3
Profile symbol :
sPin
header
sNone
: With guide post
sA
: Without guide post
sCrimp
socket
sA
: Profile change symbol
4
Number of contacts : 10,20,30,40,50
5
Connector type
DS : Double row socket
DP : Double row pin header
6
Contact pitch
7
Wiring type / terminal profile
C : Crimp case
V : Straight SMT header
qTerminal
DF20
B
- 2830 SCF A (VV)
1
1
Symbol
B : Profile change symbol
2
Appropriate wire size
2830 : AWG#28~30
2
3
4
5
5
Specification
None : 10,000 pieces per reel
41 : 20,000 pieces per reel
3
Type / Packaging
SFC : Socket contact reel
4
Plating
A : Gold
2
sDouble
row socket

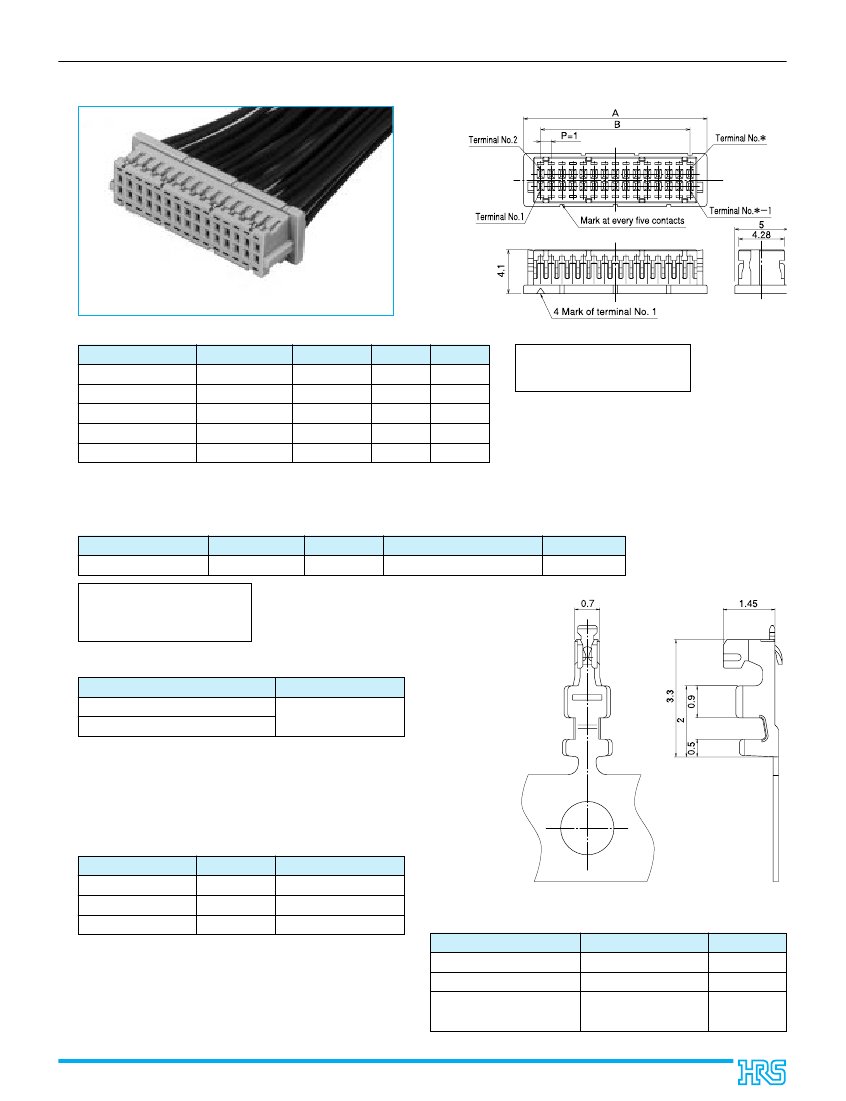

Socket connected with cables
Unit: mm
B
14.0
19.0
14.0
19.0
24.0
Insertion connector
DF20A-10DS-1C
DF20A-20DS-1C
DF20A-30DS-1C
DF20A-40DS-1C
DF20A-50DS-1C
HRS No.
686-0020-3
686-0021-6
686-0022-9
686-0023-1
686-0024-4
Number of contacts
10
20
30
40
50
A
17.2
12.2
17.2
22.2
27.2
[Specification No.]-V,(VV)
None: 1 package, 100 pieces
(Note) Sockets are sold in bulk packages of (100 pieces). Specify the number of packages.
sCrimp-type
terminal for socket
Insertion connector
DF20B-2830SCFA(VV)
HRS No.
Type
Quantity
Color / Finish
686-0025-7-VV Reel terminal See the column of specification No. Gold plating
[Specification No.]-V,(VV)
None: 1 reel, 10 000 pieces
41: 1 reel, 20 000 pieces
qApplicable
wire (tinned soft conductor)
Applicable wire size (core composition)
AW ... (7 pieces/0.127mm)
AW ... (7 pieces/0.1mm)
Sheath diameter
Ø0.5~Ø0.6mm
qRecommended
wire
qUL1571
qLength
of strip
q1.2~1.9mm
(Note) Please contact us when you use wires other than
those specified in the Table.
qApplicable
crimping tools
Type
Applicator
Press
HRS No.
Insertion connector
CL901-4572-6 AP105-DF20-2830S
CL901-0005-4 CM-105
Manual crimping tool CL550-0283-4 HT302/DF20B-2830S
Note1: Product is not guaranteed when non-specified tools
are used.
Note2: Terminals are cut for manual crimping tool use.
Note3: The press and applicator for the DF13 series must
have the blade changed for the DF20 series.
sList
of replacement parts
Type
Insulation crimper
Wire crimper
Insertion connector
AP105-DF20-2830S(61)
AP105-DF20-2830S(62)
HRS No.
901-4572-6-61
901-4572-6-62
901-4572-6-63
Insulation anvil and wire anvil AP105-DF20-2830S(63)
3
s

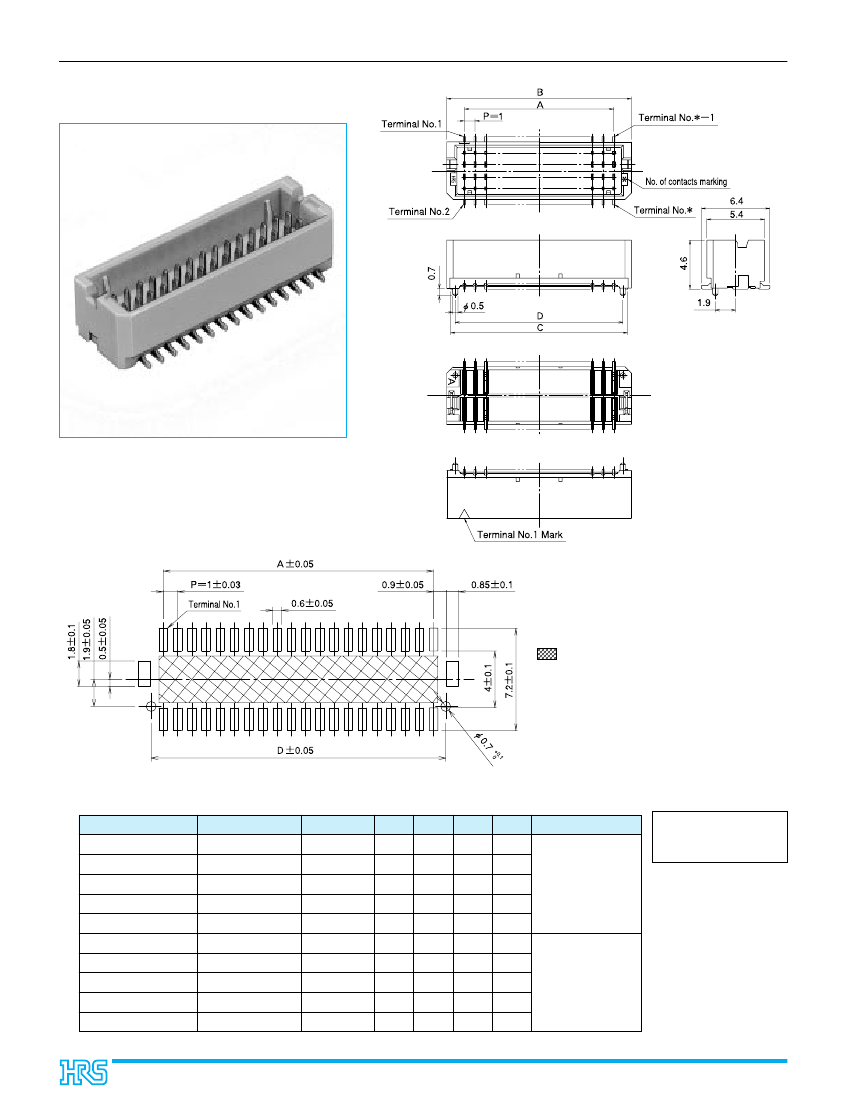

Double row straight pin header
s
Recommended board pattern
(Note 1)
Keep-out area (hatched). Pattern in this
area must be protected by resist.
(Note 2)
The positioning hole is not required for
sockets without a guide post.
Insertion connector
DF20A-10DP-1V(VV)
DF20A-20DP-1V(VV)
DF20A-30DP-1V(VV)
DF20A-40DP-1V(VV)
DF20A-50DP-1V(VV)
DF20A-10DP-1V(VV)
DF20A-20DP-1V(VV)
DF20A-30DP-1V(VV)
DF20A-40DP-1V(VV)
DF20A-50DP-1V(VV)
HRS No.
Number of contacts
10
20
30
40
50
10
20
30
40
50
A
14.0
19.0
14.0
19.0
24.0
14.0
19.0
14.0
19.0
24.0
B
17.3
12.3
17.3
22.3
27.3
17.3
12.3
17.3
22.3
27.3
C
16.6
11.6
16.6
21.6
26.6
16.6
11.6
16.6
21.6
26.6
D
15.7
10.7
15.7
20.7
25.7
15.7
10.7
15.7
20.7
25.7
Unit: mm
Remarks
CL686-0013-8-VV
CL686-0014-0-VV
CL686-0015-3-VV
CL686-0016-6-VV
CL686-0017-9-VV
CL686-0008-8-VV
CL686-0009-0-VV
CL686-0010-0-VV
CL686-0011-2-VV
CL686-0012-5-VV
[Specification No.]-V,(VV)
(59) Gold plating, embossed-
tape packaging
(Note 1)
Specify the number of
reels to order emboss
packaged parts (1 reel:
1000 pieces).
(Note 2)
Embossed-type-
packaged parts include
an absorption cap
Guide post: Yes
Guide post: No
4

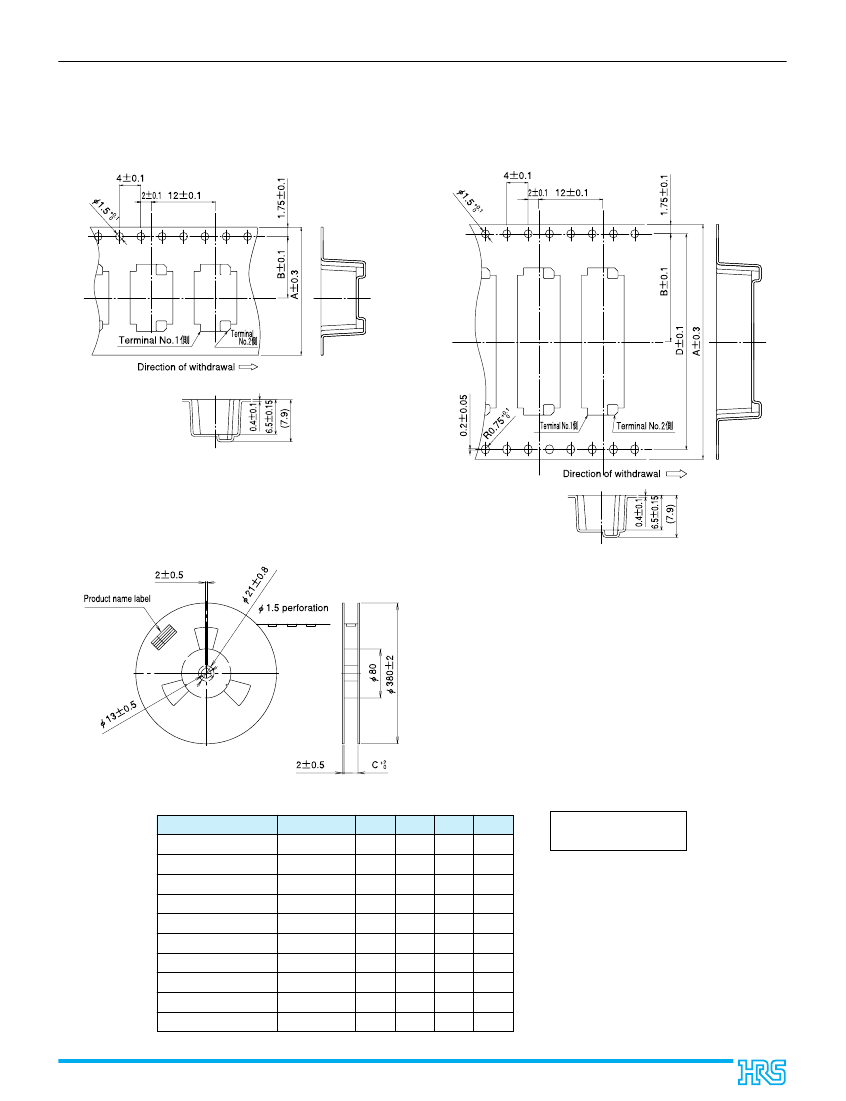

sEmbossed
tape carrier dimension drawing (as per JIS-C-0806)
q10
and 20 contacts
q30,
40 and 50 contacts
qReel
condition drawing
Insertion connector Number of contacts
DF20A-10DP-1V(VV)
10
DF20A-20DP-1V(VV)
20
DF20A-30DP-1V(VV)
DF20A-40DP-1V(VV)
DF20A-50DP-1V(VV)
DF20A-10DP-1V(VV)
DF20A-20DP-1V(VV)
DF20A-30DP-1V(VV)
DF20A-40DP-1V(VV)
DF20A-50DP-1V(VV)
30
40
50
10
20
30
40
50
A
16
24
32
44
44
16
24
32
44
44
B
17.5
11.5
14.2
20.2
20.2
17.5
11.5
14.2
20.2
20.2
Unit: mm
C
D
16.4
24.4
32.4
44.4
44.4
16.4
24.4
32.4
44.4
44.4
--------
--------
28.4
40.4
40.4
--------
--------
28.4
40.4
40.4
[Specification No.]-V,(VV)
(01) Gold-plated product
(Note) The products of the (59)
specification are those of (01)
specification in embossed-tape
pack-age. The Product of (01)
specifi-cation is not avail-able.
5
