FN3110HV-50/40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN3110HV-50/40

FN3110HV-50/40: DescriptionThree Phase EMI Filter, 480V; CategoryAnalog mixed-signal IC filter; File Size116KB，2 Pages; ManufacturerSchaffner

Download Datasheet Parametric View All

FN3110HV-50/40 Overview

Three Phase EMI Filter, 480V

FN3110HV-50/40 Parametric

Parameter Name	Attribute value
Maker	Schaffner
Reach Compliance Code	unknown
Certification	UL; CSA; EN
filter type	THREE PHASE EMI FILTER
high	185 mm
high potential	2100 V
Maximum leakage current	66.1 mA
length	329 mm
Manufacturer's serial number	FN3110
Installation type	PANEL MOUNT
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L329XB80XH185 (mm)
Rated current	50 A
Rated voltage	480 V
width	80 mm

Preview

Download Datasheet

View All

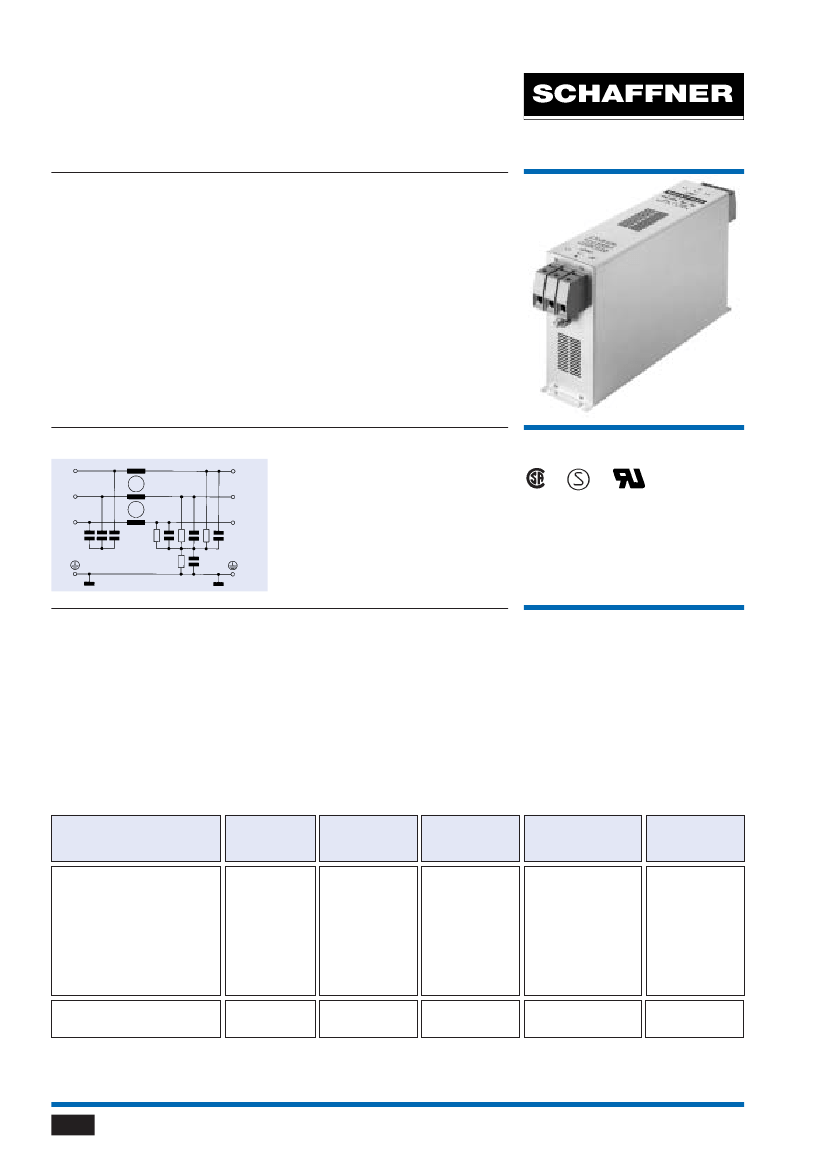

RFI-Filter for Regeneration Units

•

35 to 300A current ratings

Exceptional attenuation from 150kHz to 30MHz

Excellent saturation resistance

Suitable for regeneration of returning power (via line reactor)

Nennströme von 35 bis 300A

Hervorragende Einfügungsdämpfung von 150kHz bis 30MHz

Sehr hohe Sättigungsfestigkeit

Geeignet für Rückspeisebetrieb ins Netz (via Netzdrossel)

Courants de service de 35 à 300A

Excellente atténuation de 150kHz à 30MHz

Seuil de saturation élevé

Convient pour la récupération d’énergie (à travers une self de ligne)

FN 3100/FN 3110

Electrical schematic

L1’

L2’

L3’

LINE

LOAD

Approvals

EN 133’200

IEC 60’939

FN 3100 up to 150A

Technical specifications

Max. operating voltage:

Operating frequency:

High potential test voltage (factory test):

Protection category:

Overload:

Temperature range:

Flammability corresponding to:

Design corresponding to:

Filter

FN 3100-series

520VAC @ 50°C

DC to 60Hz @ 50°C

⇒

E 3000VDC for 2 sec

⇒

P 2900VDC for 2 sec

IP20

4 times rated current at switch on, 1.5 times

rated current for 1 minute, once per hour

–25°C to +100°C

UL 94V-2

UL 1283, CSA22.2 No. 8 1986, EN 133200

Current rating

Leakage current

†

Power loss

FN 3110-series

480VAC @ 50°C

DC to 60Hz @ 50°C

⇒

E 2700VDC for 2 sec

⇒

P 2100VDC for 2 sec

IP20

4 times rated current at switch on, 1.5 times

rated current for 1 minute, once per hour

–25°C to +100°C

UL 94V-2

UL 1283, CSA22.2 No. 8 1986, EN 133200

I/O connections

Weight

@ 50°C (40°C)

3100

–

110

150

200

230

300

–

35 (39.5)

50 (56.5)

80 (90.4)

110 (124.3)

150 (169.5)

200 (226)

230 (230)

300 (335)

50 (55)

80 (88)

400VAC/50Hz

48.9

66.1

71.5

66.1

71.5

11.8

25.9

32.7

50.6

36.5

19.5

36.5

2.3

3.4

5.3

5.4

8.5

9.1

9.2

11.8

2.7

4.4

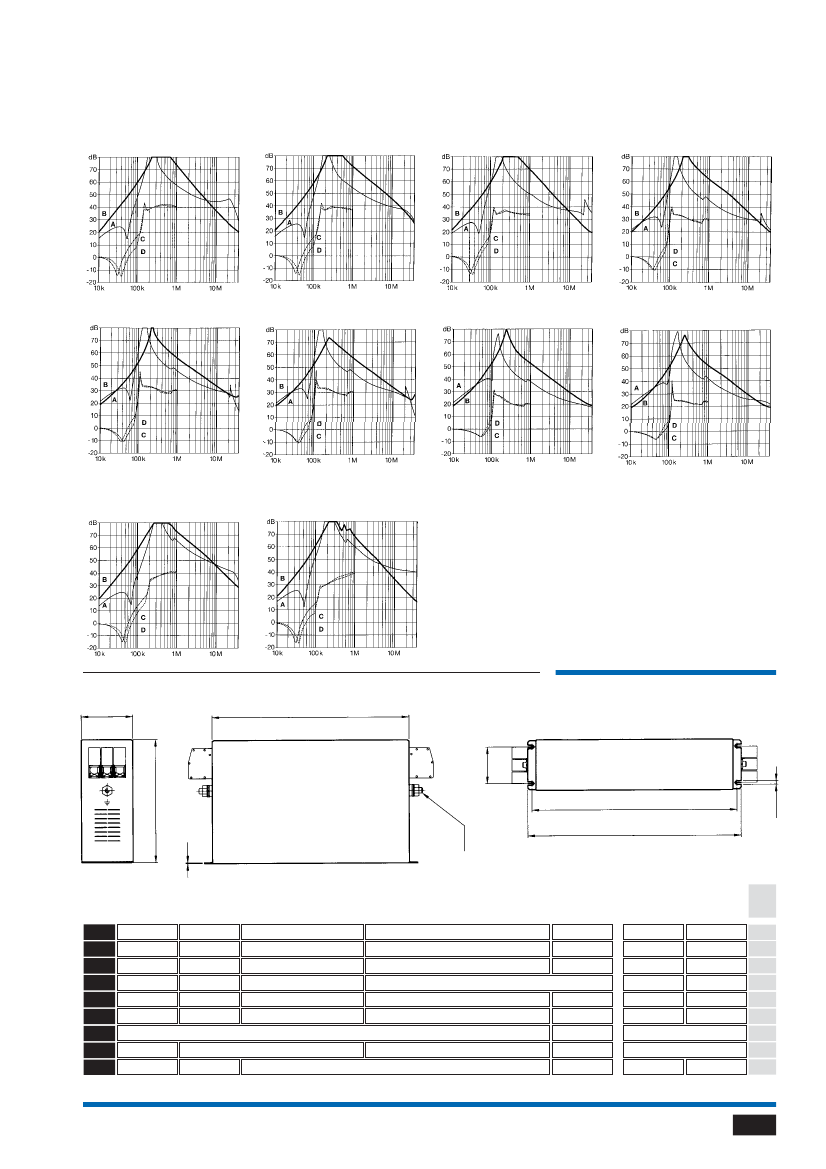

FN 3110 –

†

Max. leakage under normal working conditions. Note: if two phases are interrupted, worst case leakage could reach 5.3 times higher levels.

210
