Customer Name
System
FMD Part Number
Standard Specification
AMPS-Tx
FAR-F5CP-836M50-D22F
FUJITSU MEDIA DEVICES LIMITED
DATE
Version 1.0
Oct.31, 2002
Preliminary
Table 1 Electrical Specification
Passband : 824 ~ 849 MHz
Item
Insertion Loss
Condition
(MHz)
824 ~ 849
Specification
Min.
-
-
35
44
40
35
32
27
-
Typ.
2.3
1.0
41
48
45
42
37
33
1.7
50 / 50
Max.
2.9
1.6
-
-
-
-
-
-
2.1
Unit
dB
dB
dB
dB
dB
dB
dB
dB
-
ohm
o
Remark
Ripple
Absolute attenuation
824 ~ 849
DC ~ 800
869 ~ 894
894 ~ 1050
1050 ~ 1210
1570 ~ 1580
1580 ~ 2000
VSWR
Input/Output
Impedance
824 ~ 849
Unbalanced
Operating temperature
Device size
-30 ~ +85
2.5typ. x 2.0typ. x 1.0max.
C
mm
Customer Name
System
FMD Part Number
Standard Specification
AMPS-Tx
FAR-F5CP-836M50-D22F
FUJITSU MEDIA DEVICES LIMITED
DATE
Version 1.0
Oct.31, 2002
Preliminary
Dimensions
Device size: 2.5typ. x 2.0typ. x 1.0max.
0.63 ± 0.10
0.90 ± 0.10
0.88 ± 0.10
2.50 ± 0.10
Unit : mm
0.5min.
3
(C 0.30)
INDEX
4
2.00 ± 0.10
4-R0.18
2
1 to 4 : Pin No.
1
0.5min.
Index
Unit : mm
Pin Configuration
Pin No.
1
2
3
4
Symbol
IN
GND
OUT
GND
Function
Input
Ground
Output
Ground
Evaluation Circuit
Unbalanced
Input
(50ohm)
1
2,4
3
Unbalanced
Output
(50ohm)
1 ~ 4 : Pin No.
GND
Customer Name
System
FMD Part Number
Standard Specification
AMPS-Tx
FAR-F5CP-836M50-D22F
FUJITSU MEDIA DEVICES LIMITED
DATE
Version 1.0
Oct.31, 2002
Preliminary

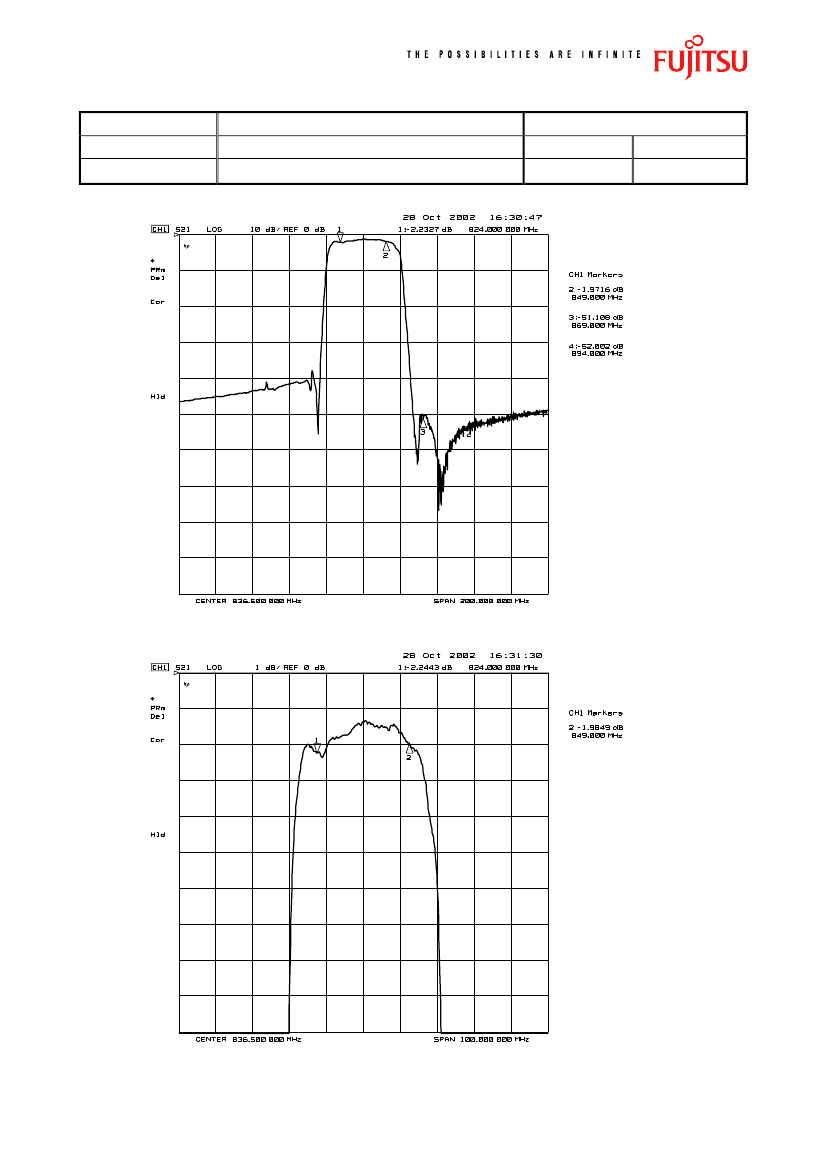

Fig.1 Pass-band Characteristics
Fig.2 In-band Characteristics
Customer Name
System
FMD Part Number
Standard Specification
AMPS-Tx
FAR-F5CP-836M50-D22F
FUJITSU MEDIA DEVICES LIMITED
DATE
Version 1.0
Oct.31, 2002
Preliminary

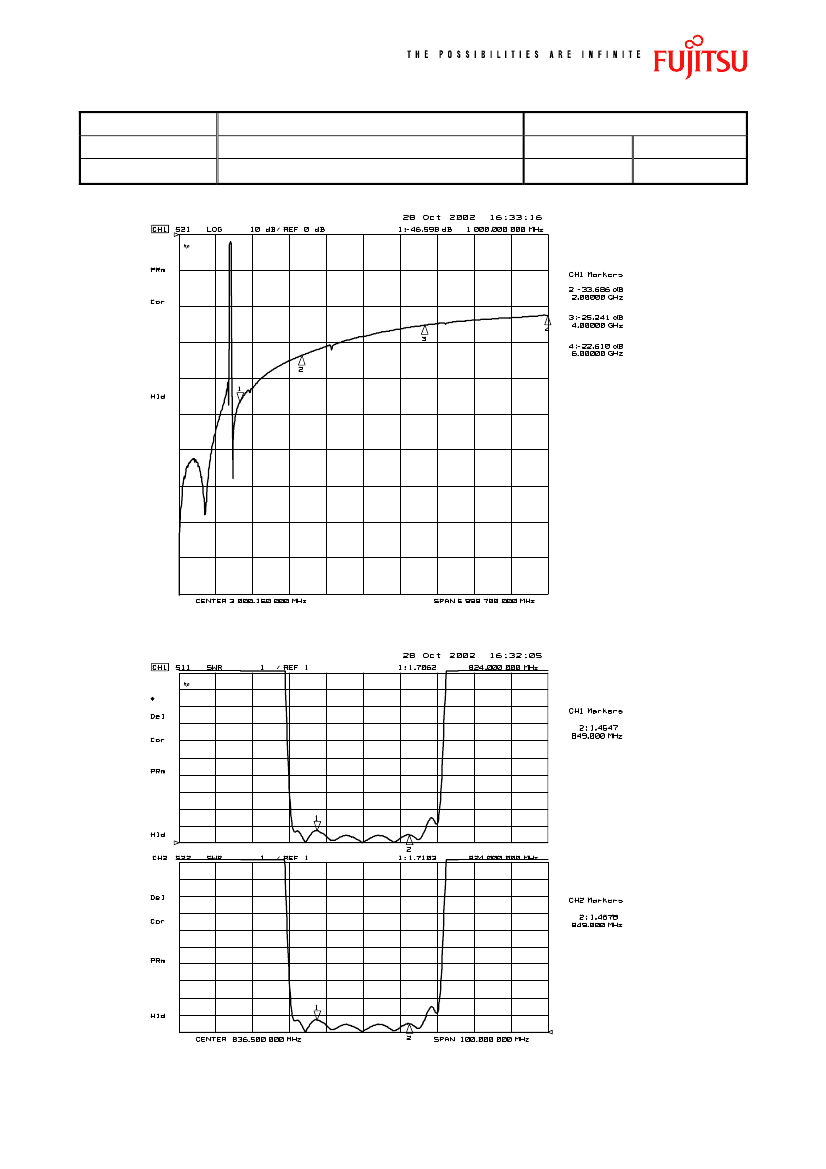

Fig.3 Wide-band Characteristics
Fig.4 VSWR(S11,S22)
Customer Name
System
FMD Part Number
Standard Specification
AMPS-Tx
FAR-F5CP-836M50-D22F
FUJITSU MEDIA DEVICES LIMITED
DATE
Version 1.0
Oct.31, 2002
Preliminary

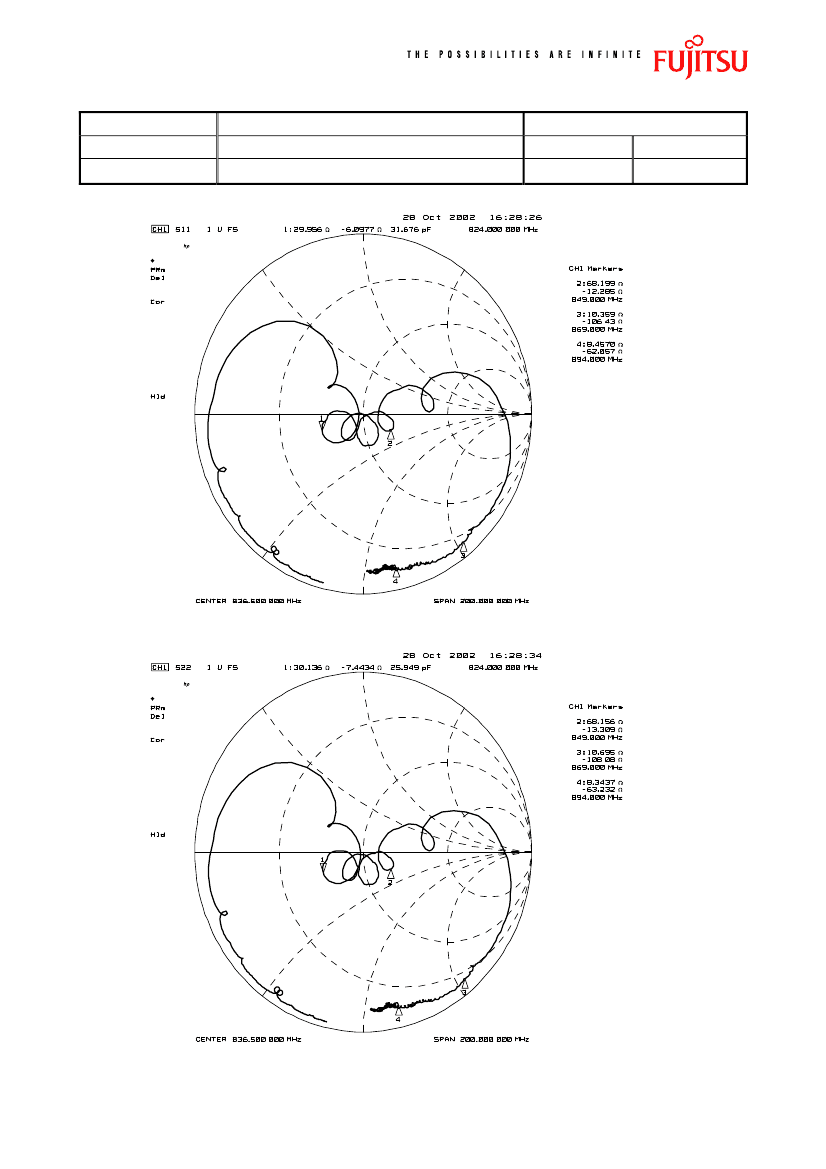

Fig.5 Impedance (S11)
Fig.6 Impedance (S22)
