95003-5865 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 95003-5865

95003-5865: DescriptionTelecom and Datacom Connector, 6 Contact(s), Female, Straight, Surface Mount Terminal, Jack; CategoryThe connector The connector; File Size540KB，9 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

95003-5865 Overview

Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Surface Mount Terminal, Jack

95003-5865 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	95003
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE46
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Industry compatible

Automatic placement on PC boards possible

Foot patterns identical to industry standard jacks

High reliability, square contact

Low Proﬁle 12.70mm (0.5")

Reference Information

Product Speciﬁcation: PS-95003-E

Packaging: Tube

UL File No.: 89082

Mates With: FCC 68 plugs

Designed In: Millimeters

Electrical

Voltage: 125V

Current: 1.5A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1000V

Insulation Resistance: 500 M

Ω

min.

Physical

Housing: Black polyamide, UL 94V-0

Contact: Phosphor Bronze

Plating: Post plate 1.27 to 1.52

m (50 to 60

") Gold

in contact area, 1.90

m (75

") min. (90/10)

Tin/Lead in tail area both over Nickel overall

Operating Temperature: -40 to +80˚C

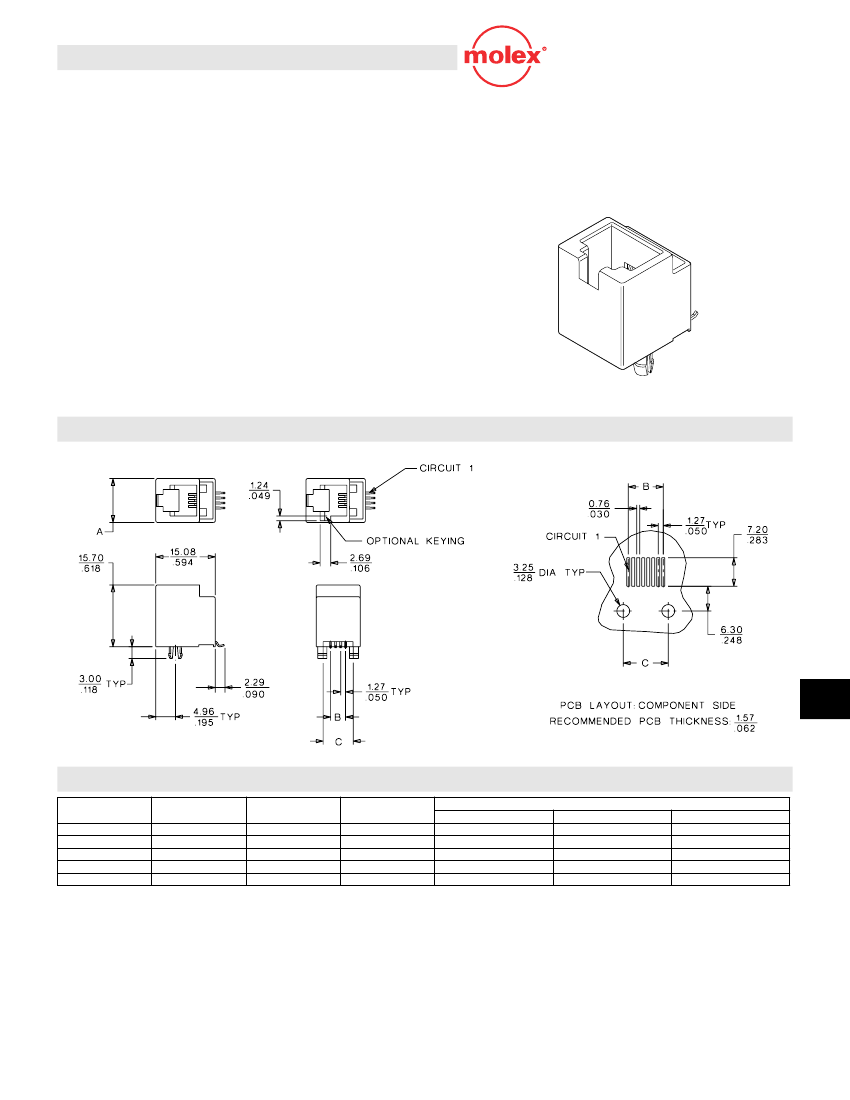

Modular Jack

95003

SMT, Vertical

Standard Profile with Small

Panel Cutout

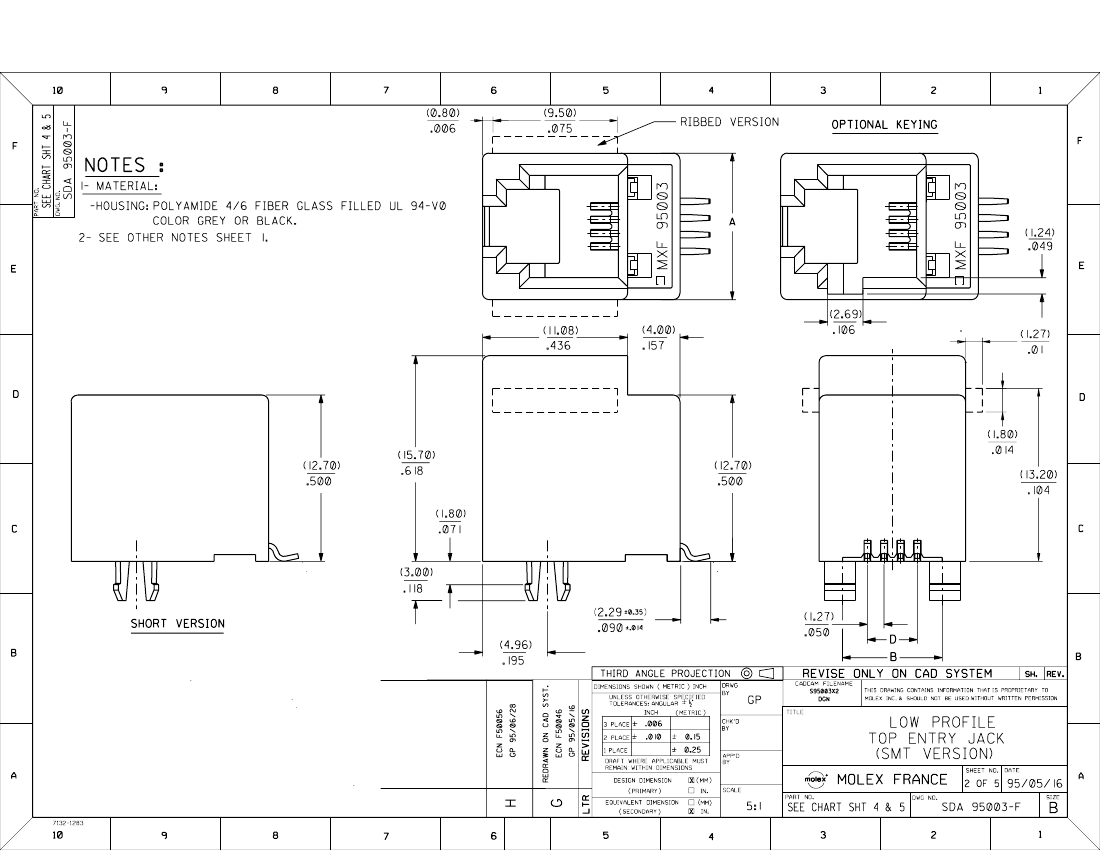

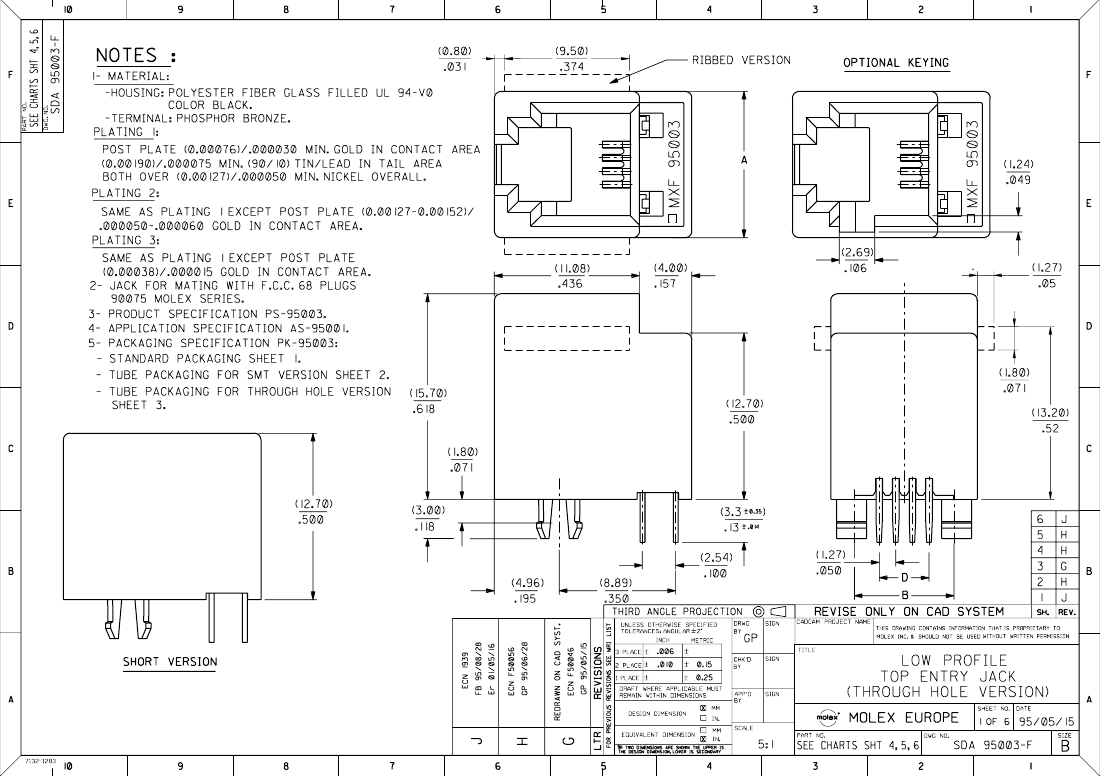

CATALOG DRAWING (FOR REFERENCE ONLY)

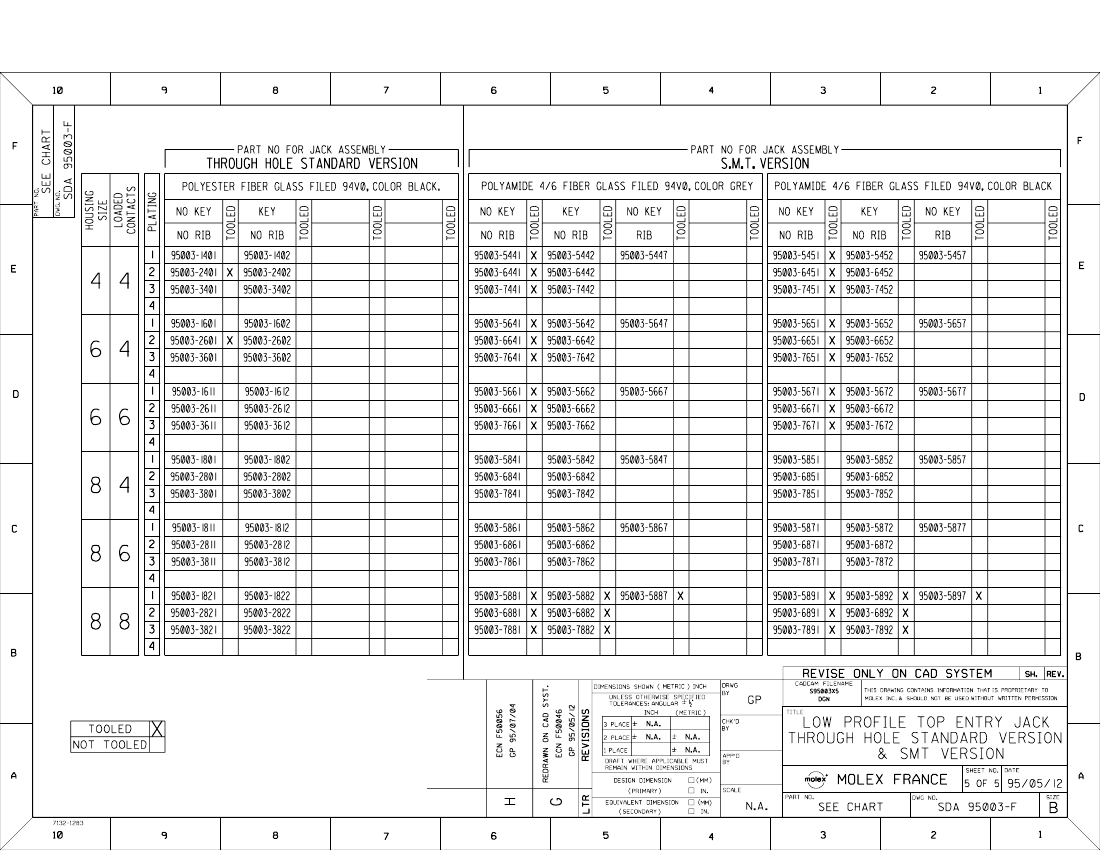

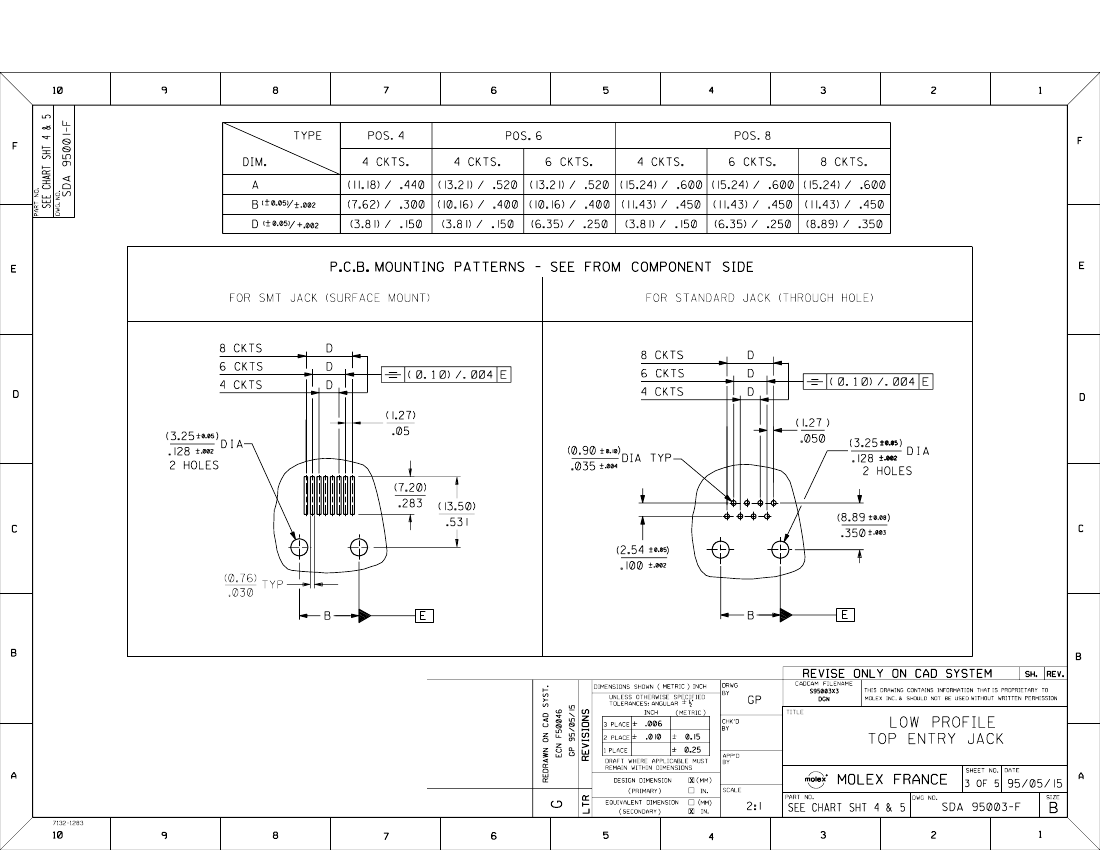

ORDERING INFORMATION AND DIMENSIONS

Circuits

Loaded Contacts

Order No.

• 95003-6441

• 95003-6641

• 95003-6661

• 95003-6881

95003-6884

Low Proﬁle

Yes

11.18

13.21

15.24

(.440)

(.520)

(.600)

Dimension

3.81 (.150)

6.35 (.250)

8.89 (.350)

(.300)

(.400)

(.450)

7.62

10.16

11.43

• US Standard Product, available through Molex franchised distributors

MX01

O-53

Modular Plugs and Jacks
