614-44-322-31-012000: DescriptionIC Socket, DIP22, 22 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size182KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

614-44-322-31-012000 Overview

IC Socket, DIP22, 22 Contact(s), ROHS COMPLIANT

614-44-322-31-012000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	TIN (200)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP22
JESD-609 code	e3
Number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

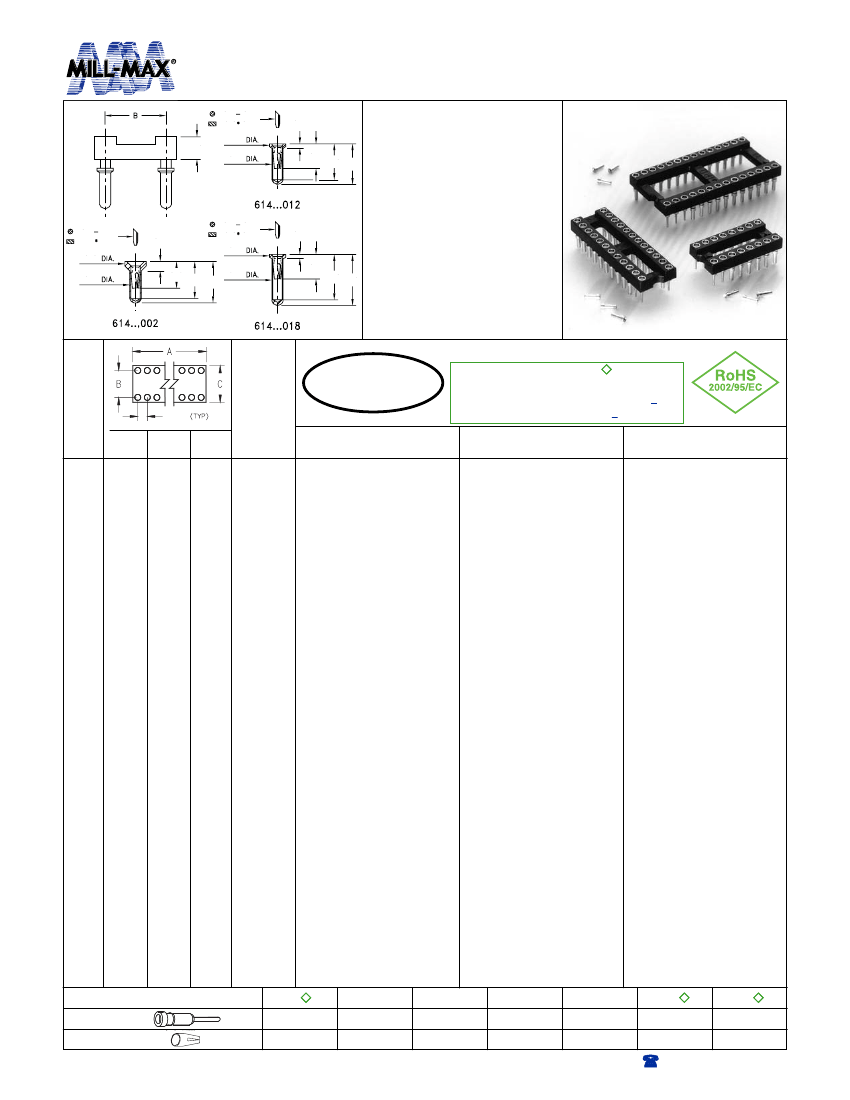

DUAL-IN-LINE SOCKETS

Carrier Type

Ultra Low Profile

0,38 0,53

0,25 0,46

1,4

2,79

0,97

2,11

3,05 3,45

0,46

Series 614

0,38 0,53

0,25 0,46

1,78

0,97

0,79

0,38 0,53

0,25 0,46

1,4

2,29

3,10 3,45

0,97

0,46

•

Ultra low profile receptacles

sit only 0,46 to 0,79 high

above the board.

•

Removable plastic carriers

can be returned for reload

-ing.

•

Hi-Rel, 3-finger #11 BeCu

contact is rated at 3 amps.

See page 206 for details.

•

Uses M-M #0552-1, 0552

-2 or 0442-0 receptacles.

See pages 126 & 127 for

details.

2,11

3,81 4,32

Total number

of pins

Ordering Information

Quantity

per tube

XX=Plating Code

See Below

Length = 3,45

(1,0 Min. Mounting Hole)

2,54

For RoHS compliance, select plating code.

For the all gold option (XX=13) also change

part number from 614-XX-XXX-31-0XX000

to 614-13-XXX-31-0XX100

A

12,6

5,0

7,6

10,1

12,6

17,7

20,3

22,8

25,3

27,8

30,4

35,5

25,4

27,8

30,4

35,5

40,6

30,5

35,5

40,6

45,7

50,8

53,3

60,9

63,5

66,0

B

C

40

102

67

50

40

28

25

22

20

18

16

14

20

18

16

14

12

16

14

12

11

10

9

8

7

8

7

6

13

Length = 3,45

(1,0 Min. Mounting Hole)

Length = 4,32

(1,0 Min. Mounting Hole)

10

4

6

8

10

14

16

18

20

22

24

28

20

22

24

28

32

24

28

32

36

40

42

48

50

52

50

52

64

5,08 7,6

7,62

10,16

15,24

10,1

12,7

17,7

614-XX-210-31-012000

614-XX-304-31-012000

614-XX-306-31-012000

614-XX-308-31-012000

614-XX-310-31-012000

614-XX-314-31-012000

614-XX-316-31-012000

614-XX-318-31-012000

614-XX-320-31-012000

614-XX-322-31-012000

614-XX-324-31-012000

614-XX-328-31-012000

614-XX-420-31-012000

614-XX-422-31-012000

614-XX-424-31-012000

614-XX-428-31-012000

614-XX-432-31-012000

614-XX-624-31-012000

614-XX-628-31-012000

614-XX-632-31-012000

614-XX-636-31-012000

614-XX-640-31-012000

614-XX-642-31-012000

614-XX-648-31-012000

614-XX-650-31-012000

614-XX-652-31-012000

614-XX-950-31-012000

614-XX-952-31-012000

614-XX-964-31-012000

91

10µ” Au

93

0,25µm Au

0,76µm Au

614-XX-210-31-002000

614-XX-304-31-002000

614-XX-306-31-002000

614-XX-308-31-002000

614-XX-310-31-002000

614-XX-314-31-002000

614-XX-316-31-002000

614-XX-318-31-002000

614-XX-320-31-002000

614-XX-322-31-002000

614-XX-324-31-002000

614-XX-328-31-002000

614-XX-420-31-002000

614-XX-422-31-002000

614-XX-424-31-002000

614-XX-428-31-002000

614-XX-432-31-002000

614-XX-624-31-002000

614-XX-628-31-002000

614-XX-632-31-002000

614-XX-636-31-002000

614-XX-640-31-002000

614-XX-642-31-002000

614-XX-648-31-002000

614-XX-650-31-002000

614-XX-652-31-002000

614-XX-950-31-002000

614-XX-952-31-002000

614-XX-964-31-002000

99

5,08µm Sn/Pb

41

200µ” Sn

10µ” Au

614-XX-210-31-018000

614-XX-304-31-018000

614-XX-306-31-018000

614-XX-308-31-018000

614-XX-310-31-018000

614-XX-314-31-018000

614-XX-316-31-018000

614-XX-318-31-018000

614-XX-320-31-018000

614-XX-322-31-018000

614-XX-324-31-018000

614-XX-328-31-018000

614-XX-420-31-018000

614-XX-422-31-018000

614-XX-424-31-018000

614-XX-428-31-018000

614-XX-432-31-018000

614-XX-624-31-018000

614-XX-628-31-018000

614-XX-632-31-018000

614-XX-636-31-018000

614-XX-640-31-018000

614-XX-642-31-018000

614-XX-648-31-018000

614-XX-650-31-018000

614-XX-652-31-018000

614-XX-950-31-018000

614-XX-952-31-018000

614-XX-964-31-018000

43

5,08µm Sn

0,76µm Au

44

5,08µm Sn

63,5 22.86 25,3

66,0 22.86 25,3

81,2 22.86 25,3

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb

5,08µm Sn/Pb 5,08µm Sn/Pb

0,76µm Au

w w w. m i l l - m a x . c o m

35

516-922-6000
