FM-H15O672MBPF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FM-H15O672MBPF

Preview

FM-H15O672MBPF: DescriptionThree Phase EMI Filter, 415V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size83KB，1 Pages; ManufacturerHitachi Metals; Websitehttp://www.hitachi-metals.co.jp/e/

Download Datasheet Parametric Compare View All

FM-H15O672MBPF Overview

Three Phase EMI Filter, 415V, 50/60HzHz,

FM-H15O672MBPF Parametric

Parameter Name	Attribute value
Maker	Hitachi Metals
Reach Compliance Code	unknown
Other features	INDUCTANCE 6.7 MILLI HENRY
Certification	UL; CSA; IEC
diameter	85 mm
filter type	THREE PHASE EMI FILTER
high	52 mm
Minimum insulation resistance	100 MΩ
Manufacturer's serial number	FM-H
Installation type	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
physical size	D85.0XH52.0 (mm)/D3.346XH2.047 (inch)
Rated current	15 A
Rated voltage	415 V

Preview

Download Datasheet

View All

Common Mode Chokes

For three-phase AC power lines

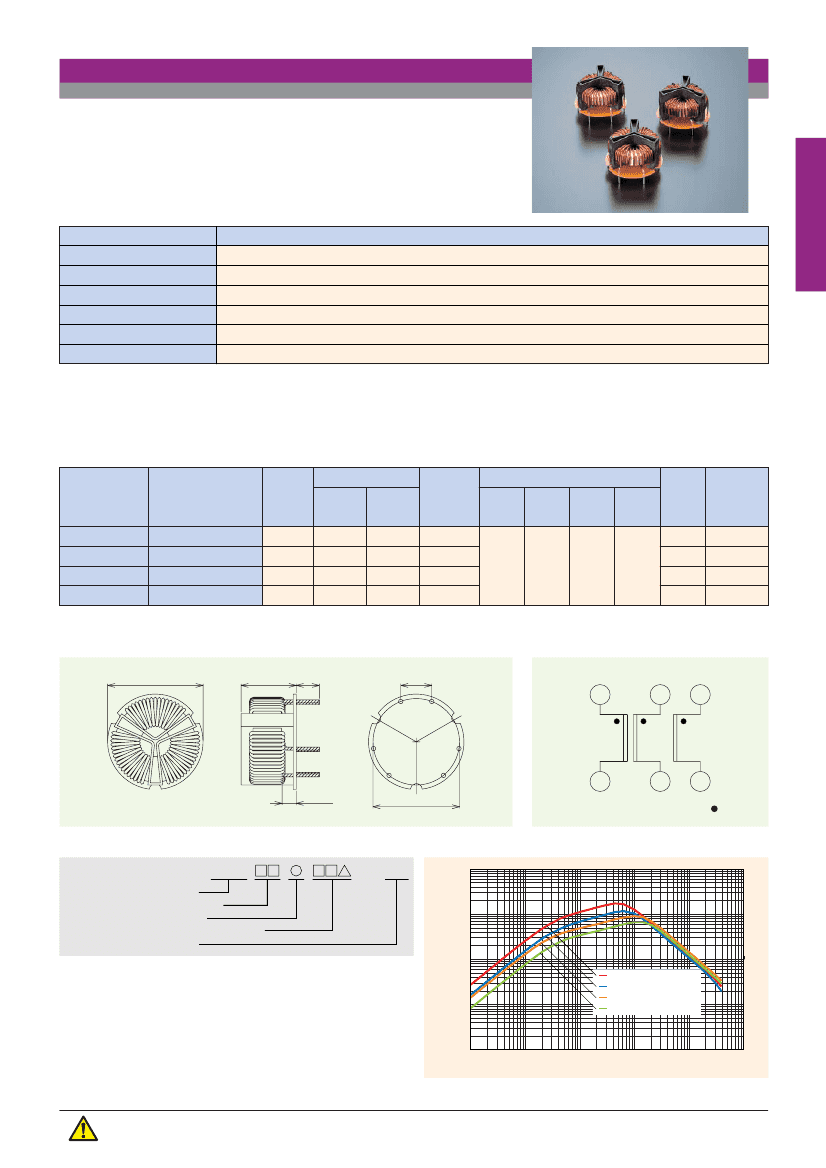

FM-H coils are compact common mode chokes having excellent

noise suppression properties for three-phase AC 400V power lines.

Table 11. Standard Specifications

Item

Rated voltage

Insulation voltage rating

Insulation resistance

Insulation grade

Temperature rise

Operating temperature range

AC415V

AC2kV for 1min. or AC2.4kV for 3 sec. (line-line)

Over 100MΩafter applying DC500V for 1min. (line-line)

Class B (130℃)

*60℃

-40℃– +130℃ (including temperature rise of core)

Specification

・The above specifications are in accordance with Electrical Appliance and Material Control Law, UL, CSA and IEC standards.

・No Ozone Layer Depleting Chemicals are used in these products or in their manufacturing process.

* Note 1: The temperature rise in the above table is a projected value based on temperature rise by the heat of the coil when the rated current (DC or 50/60Hz) in

the table below is conducted.

* Note 2: The temperature rise is affected by the mounting condition on the circuit board and the amount of harmonic distortion on the load current. Please make

sure the temperature of the coil and the terminals not to exceed the operating temperature range.

Table 12. Product code, part name and specifications

Rated

Product code

P/N

current

(A)

F1AH0884

F1AH0885

F1AH0886

F1AH0887

FM-H15O672MBPF

FM-H20O472MBPF

FM-H25O302MBPF

FM-H30O232MBPF

15

20

25

30

L (mH)

10kHz

MIN.

24.1

16.8

10.7

8.2

100kHz

MIN.

6.7

4.7

3.0

2.3

Wire

diameter

(mm)

1.8

2.2

2.4

2.8

85

52

75

40

Finished dimensions (mm)

A

MAX.

B

MAX.

F

REF.

G

REF.

Weight

(g)

TYP.

370

410

440

DC

resistance

(mΩ)

MAX.

17.0

9.5

6.5

4.5

・ UL94 V-0 certified resin is used for these cores and base plates.

・ Lead-free solder is used for the winding coils.

・ Custom made products are available.

A

②

①

B

15±5

①

②

③

⑥

④

⑤

8MAX.

①

G

②

１

３

５

③

⑤

⑥

④

⑥

⑤

F

④

③

２

４

６

Polarity

Figure 40. FM-H□□□□□□PF

Figure 41. Circuit diagram

100

FM-H

Designation of

part name

Coil name

Rated current(A)

Inductance : □□×10

△

μH

Lead-free

Core shape

MB PF

10

Impedance (kΩ)

1

FM-H15O672MBPF

FM-H20O472MBPF

FM-H25O302MBPF

FM-H30O232MBPF

0.1

0.01

1

10

100

1000

Frequency (kHz)

10000

100000

Figure 42. Frequency dependence of impedance

For safety and the proper usage, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

This catalog and its contents are subject to change without notice.

15

Three-phase FM-H coils

●Three-phase

FM-H coils

FM-H15O672MBPF Related Products

	FM-H15O672MBPF	FM-H20O472MBPF	FM-H25O302MBPF	FM-H30O232MBPF
Description	Three Phase EMI Filter, 415V, 50/60HzHz,	Three Phase EMI Filter, 415V, 50/60HzHz,	Three Phase EMI Filter, 415V, 50/60HzHz,	Three Phase EMI Filter, 415V, 50/60HzHz,
Maker	Hitachi Metals	Hitachi Metals	Hitachi Metals	Hitachi Metals
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	INDUCTANCE 6.7 MILLI HENRY	INDUCTANCE 4.7 MILLI HENRY	INDUCTANCE 3 MILLI HENRY	INDUCTANCE 2.3 MILLI HENRY
Certification	UL; CSA; IEC	UL; CSA; IEC	UL; CSA; IEC	UL; CSA; IEC
diameter	85 mm	85 mm	85 mm	85 mm
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	52 mm	52 mm	52 mm	52 mm
Minimum insulation resistance	100 MΩ	100 MΩ	100 MΩ	100 MΩ
Manufacturer's serial number	FM-H	FM-H	FM-H	FM-H
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
physical size	D85.0XH52.0 (mm)/D3.346XH2.047 (inch)	D85.0XH52.0 (mm)/D3.346XH2.047 (inch)	D85.0XH52.0 (mm)/D3.346XH2.047 (inch)	D85.0XH52.0 (mm)/D3.346XH2.047 (inch)
Rated current	15 A	20 A	25 A	30 A
Rated voltage	415 V	415 V	415 V	415 V
