F.LL.D4.016A.DN.R1 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> F.LL.D4.016A.DN.R1

F.LL.D4.016A.DN.R1: DescriptionThree Phase EMI Filter, 520V, 50/60HzHz; CategoryAnalog mixed-signal IC filter; File Size356KB，2 Pages; ManufacturerNissei Electric Co.,Ltd.

Download Datasheet Parametric Compare View All

F.LL.D4.016A.DN.R1 Overview

Three Phase EMI Filter, 520V, 50/60HzHz

F.LL.D4.016A.DN.R1 Parametric

Parameter Name	Attribute value
Maker	Nissei Electric Co.,Ltd.
Reach Compliance Code	unknown
Certification	UL; CSA; VDE
filter type	THREE PHASE EMI FILTER
high potential	3470 V
Manufacturer's serial number	F.LL.D4
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
Rated current	16 A
Rated voltage	520 V

Preview

Download Datasheet

View All

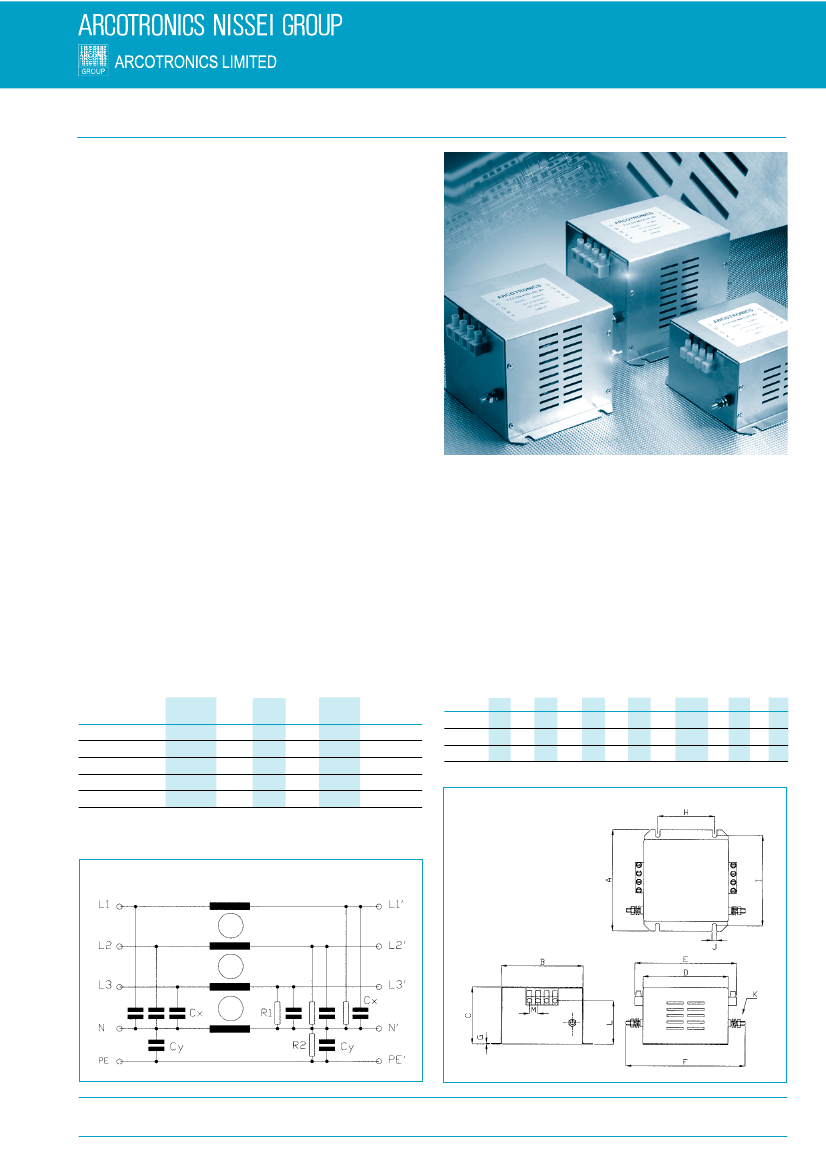

Chassis Mount Filters

Three phase and neutral – low earth-leakage

This range of compact lightweight, three phase and neutral filters

offer a very economic design solution for many OEM applications

up to 520Vac operating voltage. Due to its lower earth-leakage

current and high attenuation performance, the DN series is

particularly suited for industrial power systems and control

cabinets, switch mode power supplies, process machinery and

medical equipment systems.

F.LL.D4

series -

type

•

Current ratings from 8A to 64A

•

High attenuation performance

•

Low earth-leakage

•

Compact, lightweight contruction

•

Screw terminal for quick and easy installation

Mechanical Specifications

Manufacture:

Aluminium Case

Connections:

Strip terminal block

6mm solid, 4mm flex - 8A, 16A

Electrical Specifications

Rated voltage (V

520V 50/60Hz

Rated current (I

referred to 50 (40)°C

Fault: 25mA

(only one phase remaining)

Leakage current (I

Normal: < 3.4mA

Voltage test (2

.):

Climatic category:

line to ground 3470Vdc

line to line 1700Vdc

HMF (25/100/21):

Temperature range: -25°C to +100°C

16mm solid, 10mm flex - 25A, 36A

25mm solid, 16mm flex - 64A

Filter Range

Code

F.LL.D4.008A.DN.R1

F.LL.D4.016A.DN.R1

F.LL.D4.025A.DN.R1

F.LL.D4.036A.DN.R1

F.LL.D4.064A.DN.R1

(A)

(9.1)

16 (18.1)

25 (28.3)

36 (40.8)

64 (72.6)

(mH)

(µF)

2x0.1

3x1.5M

1x0.68M

Dimensions

Code

8A, 16A

25A, 36A

64A

143 115 80

120 144 163 1

127.5 6.5 M6 64 12

137.5 6.5 M6 94 14.5

4x1.78 6x2.2

4x1.14 6x2.2

4x1.57 6x4.7

4x1.1

4x1

6x4.7

153 125 115 130 159 173 1

153 125 125 140 178 184 1.5

100 137.5 6.5 M6 104 14.5

3x0.82M 1x0.68M

Dimensions (mm) and connections

Circuit diagram

Approvals

Made in accordance to VDE, UL and CSA requirements

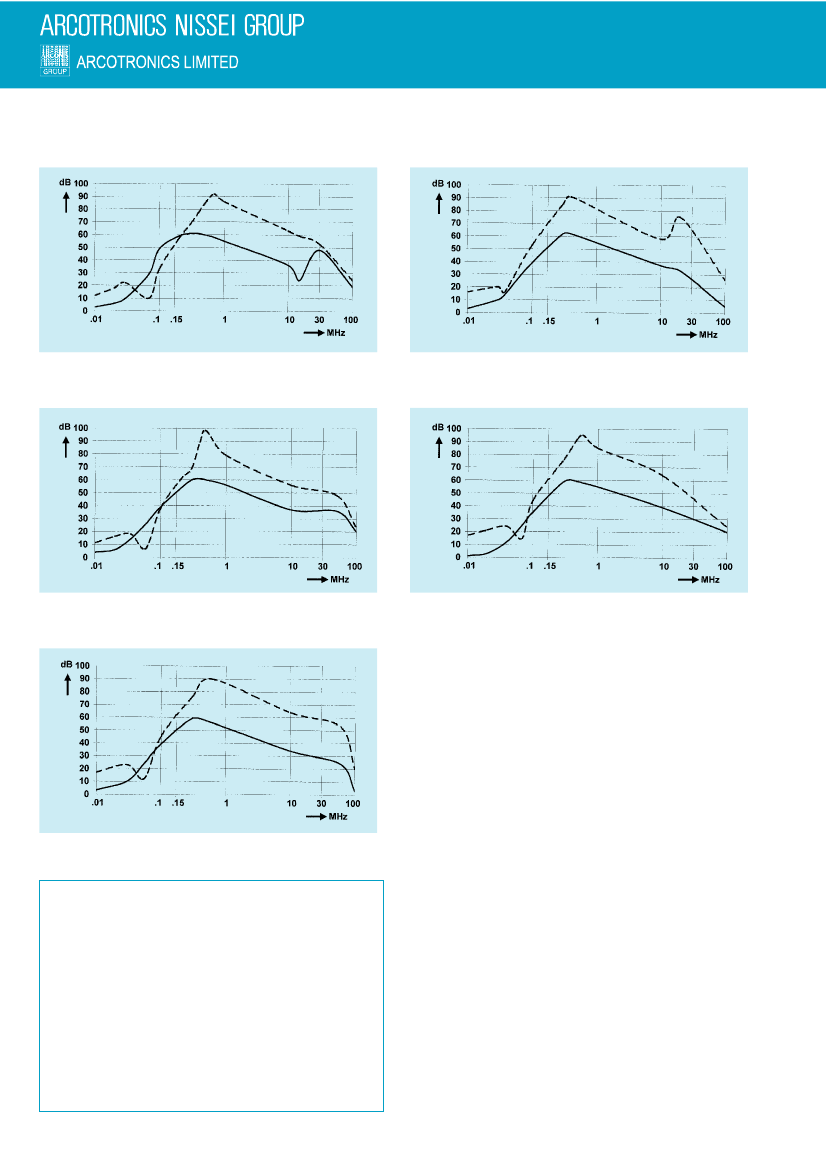

F.LL.D4.016A.DN.R1 Related Products

	F.LL.D4.016A.DN.R1	F.LL.D4.064A.DN.R1	F.LL.D4.036A.DN.R1	F.LL.D4.008A.DN.R1	F.LL.D4.025A.DN.R1
Description	Three Phase EMI Filter, 520V, 50/60HzHz	Three Phase EMI Filter, 520V, 50/60HzHz	Three Phase EMI Filter, 520V, 50/60HzHz	Three Phase EMI Filter, 520V, 50/60HzHz	Three Phase EMI Filter, 520V, 50/60HzHz
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Certification	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high potential	3470 V	3470 V	3470 V	3470 V	3470 V
Manufacturer's serial number	F.LL.D4	F.LL.D4	F.LL.D4	F.LL.D4	F.LL.D4
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Rated current	16 A	64 A	36 A	8 A	25 A
Rated voltage	520 V	520 V	520 V	520 V	520 V
Maker	Nissei Electric Co.,Ltd.	-	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.
