Model HS52 Explosion Proof
Hollow Shaft Incremental Encoder
BEI Sensors

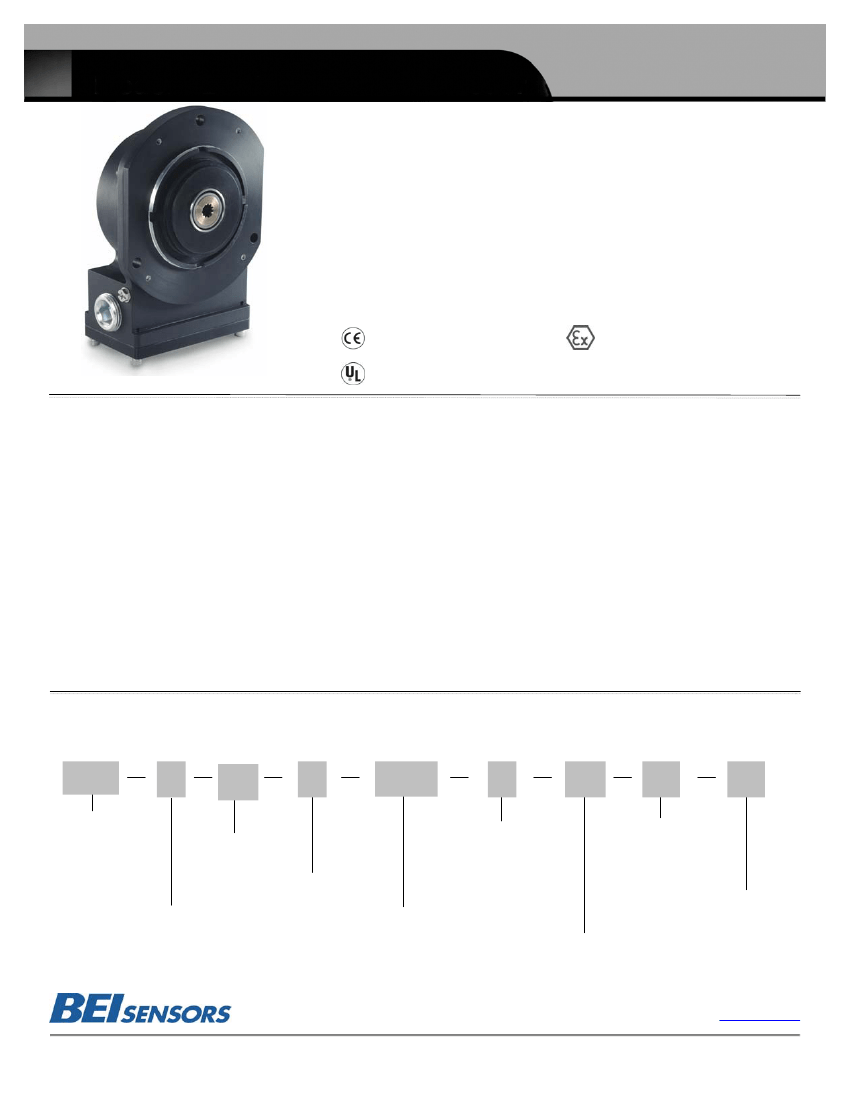

The HS52 is the industry’s first UL and ATEX rated explosion proof hollow shaft
encoder. Capable of operating directly in Division 1 or Zone 1 environments, the
HS52 does not need an Intrinsic Safety barrier. This provides a simpler, more
streamlined feedback system in explosion proof environments worldwide. Fitted with
a flex shaft in the bore, the HS52 housing can be rigidly mounted, preventing stress to
encoder bearings and providing a more secure attachment for the required hazardous
area conduit fittings. Additionally, the compact hollow shaft design provides
engineers space saving advantages over traditional shafted encoders.
The HS52 is the ideal position sensing solution for use in oil and gas industries,
solvent refining operations, spray painting applications, and explosive environments
where space is limited and operating conditions are extreme.
EN 55011 and EN 61000-6-2
CENELEC/ATEX : Ex d IIB T4 Gb
IECEx UL 11.0009X
Pictured with hard anodized finish special feature
UL: Class I, Div 1, Group C & D
Allowable Misalignment:
SP11 Flex Shaft is designed
to accommodate up to 0.04” T.I.R radial and ±0.02 axial;
Consult factory for other shaft options
Starting Torque at 25°C:
Blind shaft version (BS) = 10
in-oz (max)
Bearings:
52100 high carbon steel.
Shaft Material:
416 stainless steel
Bearing Housing:
Die cast and machined aluminum
with dichromate finish standard. Hard anodized finish
available.
Cover:
Die cast and machined aluminum.
Bearing Life:
7.5 X 10
9
revs (50,000 hrs at 2500 RPM)
Maximum RPM:
6,000 MAX. (Temp. Derated 5ºC/1,000
RPM above 2,000 RPM for continuous operation)
Moment of Inertia:
Blind Shaft = 8.6 x 10
-3
oz-in-sec
2
*
*with spline flex shaft option
Weight:
Approx. 3.3 lbs or 1.5 kg
Mechanical Specifications
Electrical Specifications
Code:
Incremental (Absolute option available)
Output Format:
2 channels in quadrature, 1/2 cycle
index gated with negative B channel
Cycles Per Shaft Turn:
1 to 80,000 (see table 1) For
resolutions above 5,000 see BEI for interpolation options
Supply Voltage:
5 to 28 VDC available
Current Requirements:
100 mA typical +output load,
250 mA (max)
Voltage/Output:
(see note 3)
28V/V: Line Driver, 5–28 VDC in, Vout = Vin
28V/5: Line Driver, 5–28 VDC in, Vout = 5 VDC
28V/OC: Open Collector, 5–28 VDC in, OCout
Protection Level:
Reverse, overvoltage and output short
circuit
Frequency Response:
100 kHz, up to 1MHz with
interpolation option (see note 5)
Output Terminations:
Side conduit
Note:
Consult factory for other electrical options
Environmental Specifications
Enclosure Rating:
IP66
Hazardous Area Rating:
Class I, Div 1, Groups C and D
CENELEC/ATEX Gas Groups
IECEx certified
Temperature:
Operating, 0 to 70ºC; extended
temperature testing available (see note 6); 80ºC max;
storage -25 to 90ºC.
Shock:
50 g’s for 11 msec duration
Vibration:
5 to 2000 Hz @ 20 g’s
Humidity:
100% RH without condensation
NOTES & TABLES:
All notes and tables referred to in the
text can be found on the back of this page.
HS52 Incremental Ordering Options
for assistance, call 800.350.2727
Use this diagram, working from left to right to construct your model number (example:
HS52-SP11-BS-1024-ABZC-28V/V-SC-CEN)
All notes and tables referred to can be found on the back of this page.
HS52
TYPE
:
HS = Hollow Shaft
52 = 5.2”Dia.
BS
ABZC
VOLTAGE / OUTPUT:
SC
CERTIFICATION:
SHAFT
CONFIGURATION:
BS = Blind Shaft
CYCLES PER TURN:
28V/V = 5-28 Vin/out
28V/5 = 5-28 Vin/5Vout
28V/OC = 5-28Vin/OCout
See Table 1, next page
FLEX SHAFT BORE:
CEN = UL Class I Div 1 and
CENELEC/ATEX
EXD = CENELEC/ATEX only
Blank = not certified
SPECIAL FEATURES:
SP11 = 11 tooth spline bore
ABZC = Dual Quad w/ Index
and complements
NO. OF CHANNELS:
OUTPUT
TERMINATION:
SC = dual ¾” – 14 NPT in sides of term. box
S = Special
features specified
on purchase order
(consult factory)
Tel: 805-968-0782 /800-350-2727 | Fax: 805-968-3154 /800-960-2726 | 7230 Hollister Ave., Goleta, CA 93117-2807 |
www.beisensors.com
These commodities, technology or software if exported from the United States must be in accordance with the Bureau of Industry, and Security, Export Administration regulations. Diversion contrary to U.S. law is prohibited.
Model HS52 Explosion Proof
Hollow Shaft Incremental Encoder
BEI Sensors
All measurements in inches

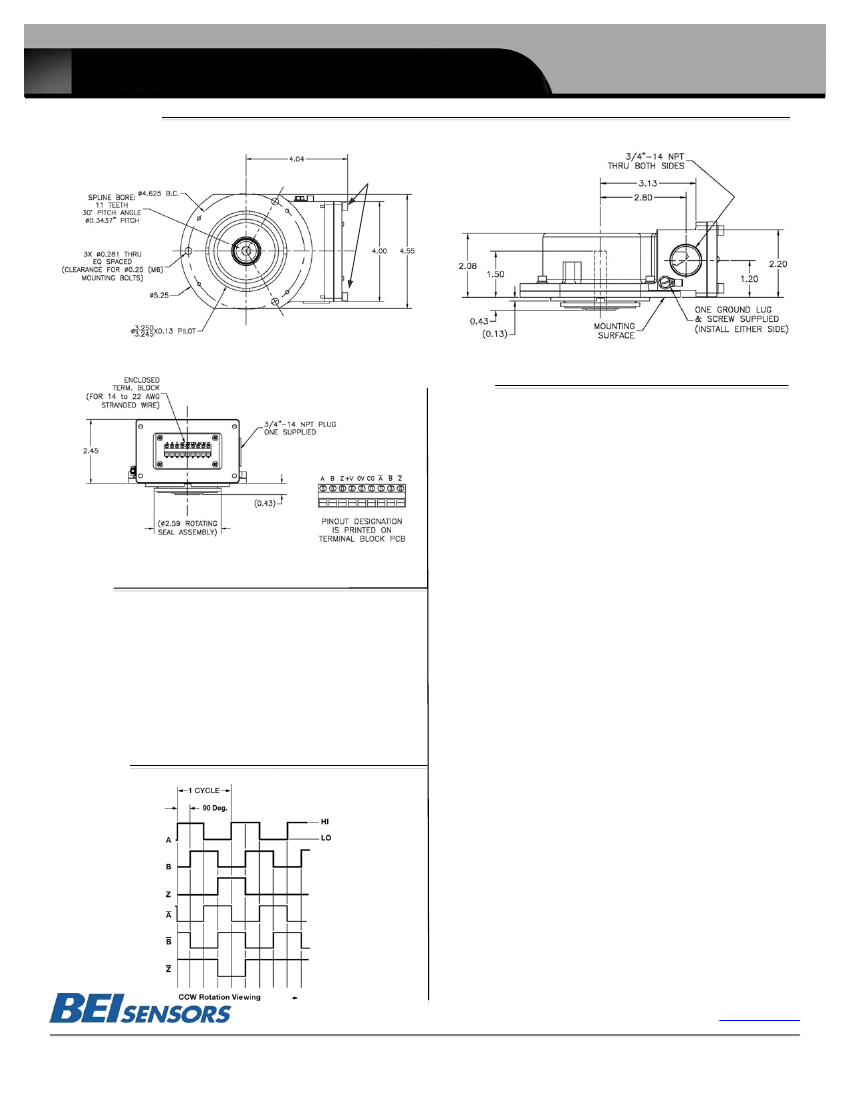

Dimensions
(M5x18 screws)
Notes
1.
Non-standard index widths and multiple indices are available by special order. Consult
factory.
2.
Complementary outputs are recommended for use with line driver type (source/sink)
outputs. When used with differential receivers, this combination provides a high degree of
noise immunity.
3.
Output IC’s: Output IC's are available as either Line Driver (LD) or NPN Open Collector
(OC) types. Open Collectors require pull-up resistors, resulting in higher output source
impedance (sink impedance is similar to that of line drivers). In general, use of a Line Driver
style output is recommended. Line Drivers source or sink current and their lower impedance
mean better noise immunity and faster switching times. Warning: Do not connect any line
driver outputs directly to circuit common/OV, which may damage the driver. Unused outputs
should be isolated and left floating. Our applications specialists would be pleased to discuss
your system requirements and the compatibility of your receiving electronics with Line
Driver type outputs.
28V/V:
Multi-voltage Line Driver (7272*): 100 mA source/sink. Input voltage 5 to 28 VDC +/-
5% standard (Note: Vout = Vin). This driver is TTL compatible when used with 5 volt supply.
Supply lines are protected against overvoltage to 60 volts and reverse voltage. Outputs are
short circuit protected for one minute. Supply current is 120 mA typical (plus load current).
This is the recommended replacement for 3904R and 7406R open collector outputs with
internal pullup resistors. It is also a direct replacement for any 4469, 88C30, 8830 or
26LS31 line driver
28V/5:
Multi-voltage Line Driver (7272*): 100 mA source/sink. Input voltage 5 to 28 VDC +/-
5% standard, internally regulated with 5V (TTL compatible) logic out. Supply lines are
protected against overvoltage to 60 volts and reverse voltage. Outputs are short circuit
protected for one minute. Supply current is 90 mA typical (plus load current).
15V/V:
Multi-voltage Line Driver (4469*): 100 mA source/sink. Input voltage 5 to 15 VDC +/-
5% standard (Note: Vout = Vin). TTL compatible when used with 5 volt supply. Supply lines
are protected against overvoltage to 60 volts and reverse voltage. Outputs are short circuit
protected for one minute. Supply current is 90 mA typical (plus load current). This is a direct
replacement for the 4469 Line Driver.
28V/OC:
NPN Open Collector (3904*, 7273*). Current sink of 80 mA max. Current sourced
by external pull- up resistor. Output can be pulled up to voltage other than supply voltage
(30 V max). Input voltage 5 to 28 VDC +/- 5% standard. Supply current is 120 mA typical.
This replaces prior IC's with designations of 3904, 7406, 3302, 681 and 689.
5V/OCR, 15V/OCR, 24V/OCR:
Open Collector (3904R*, 7406R*, 7273R*): Current sink of
70 mA max. Includes internal pull-ups sized at approximately 100 ohms/volt. Max current
source is 10 mA. Supply current is 100 mA typical, 120 mA with internal pull-ups. The
5V/OCR, 15V/OCR and 24V/OCR are often replaced by the 28V/V in system upgrades.
4.
Special –S at the end of the model number is used to define a variety of non-standard
features such as special shaft lengths, voltage options, or special testing. Please consult
the factory to discuss your special requirements.
5.
Higher frequency response may be available. Please consult with the factory.
6.
Extended temperature ratings are available in the following ranges: -40 to 70ºC or -40 to
80ºC. Max temp extremes above 80°C to +105°C are available but will not be UL or
Cenelec certified. Extended temperature ranges can affect other performance factors.
Consult with factory for more specific information.
Encoder Installation
See specification no. 02131-002
Maintenance and Service
There are no user serviceable parts inside. Encoder must be returned to factory for service.
Tables
TABLE 1: Disc Resolutions
32
100
250
360
420
500
512
600
720
1000
1024 1200
1500
1650
1800
2000 2100
2048
2500
2881
3600 3600
3710
4096
5000
For interpolation please specify the multiplied output (up to 80,000) in the
model number, i.e. 80,000-T16.
Figure 1
Output Waveform
Flange
Tel: 805-968-0782 /800-350-2727 | Fax: 805-968-3154 /800-960-2726 | 7230 Hollister Ave., Goleta, CA 93117-2807 |
www.beisensors.com
These commodities, technology or software if exported from the United States must be in accordance with the Bureau of Industry, and Security, Export Administration regulations. Diversion contrary to U.S. law is prohibited.
Specification No. 02131-001 Rev 09-11
