2.2mm pitcth/Disconnectable Crimp style connectors(Wire-to-board/Wire-to-wire)
JFA
CONNECTOR J1000
SERIES
Specifications –––––––––––––––––––
•Current rating: Refer to the following matrix table.
•Voltage rating: 125V AC, DC
•Temperature range: -55°C to +105°C
(including temperature rise in applying
electrical current)
•Applicable wire: AWG #28 to #18 (0.08 to 0.82mm
2
)
•Applicable wire:
(Tin-plated annealed copper wire [stranded wire])
•Applicable wire:
(Insulation O.D./0.85 to 2.1mm)
•Applicable PC board thickness: 1.6mm
*Contact JST for details.
*Compliant with RoHS.

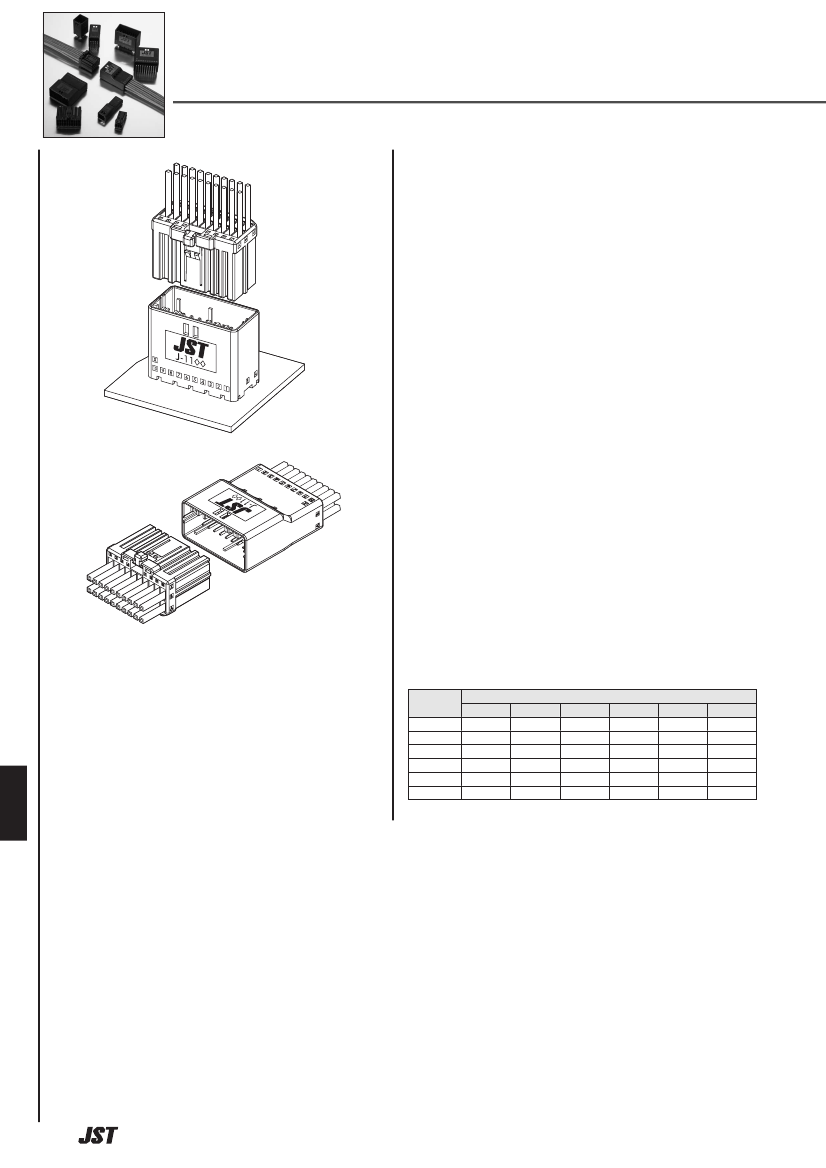

It is a high reliability connector
corresponding to demand of the
miniaturization of electronic equipment
and the wire size of AWG#18.
• Double-spring construction
• Housing lance
• Clear "click feeling"
Current rating
Circuits
1
(Note)
3
6
8
12
20
#18
6.8
6.2
5.5
5.5
4.7
3.9
#20
5.9
5.2
4.6
4.6
3.9
3.3
Wire size (AWG)
#24
#22
4.2
5.0
3.6
4.6
3.0
4.0
3.0
4.0
2.6
3.4
2.2
2.9
#26
3.2
3.1
2.5
2.4
2.1
1.8
Unit: A
#28
2.5
2.5
2.1
2.0
1.7
1.6
Note: Current rating value when applying only to 1-circuit of 3-circuit connector.
430
JFA CONNECTOR/J1000 SERIES
Receptacle contact
Tin-plated
Strip contact Model No.
SF1F-002 (*) -P0.6
SF1F-21 (*) -P0.6
Applicable wire
Nominal
mm
2
AWG#
M
L
0.08∼0.22
0.30∼0.82
28∼24
22∼18
Insulation O.D. Q’ty / reel
(mm)
0.85∼1.43
1.60∼2.10
−
5,000
Material and Finish
(12.8)
(7)
(4.3)
(2)
Copper alloy, tin-plated, gold-plated
RoHS compliance
Note: Finish(*):T ......Tin-plated
GC ...Gold-plated
J 1
L
Series name
Wire range mark
Gold-plated
(12.8)
(7)
(4.3)
(2)
J 1
L
Series name
Wire range mark
Tab contact
Strip contact Model No.
SF1M-002 (*) -M0.6A
SF1M-21 (*) -M0.6A
Applicable wire
Nominal
mm
2
AWG#
M
L
0.08∼0.22
0.30∼0.82
28∼24
22∼18
Insulation O.D. Q’ty / reel
(mm)
0.85∼1.43
1.60∼2.10
−
5,000
Material and Finish
Copper alloy, tin-plated, gold-plated
(20.9)
(4.3)
(2)
(10.8)
RoHS compliance
Note: Finish(*):T ......Tin-plated
GC ...Gold-plated
J 1
L
Series name
Wire range mark
Crimping machine, Applicator
Strip contact Model No. Crimping
machine
(*) -P0.6
SF1F-002
AP-K2N
SF1M-002 (*) -M0.6A
SF1F-21 (*) -P0.6
AP-K2N
SF1M-21 (*) -M0.6A
Crimp
applicator
MKS-L
−
MKS-L
−
Dies
Crimp applicator Hand crimp
tools
with dies
−
−
Refer to
page 576, 577.
Refer to
page 576, 577.
MK/SF1F/M002-06 APLMK SF1F/M002-06
−
−
MK/SF1F/M21-06 APLMK SF1F/M21-06
• Extraction tool for J1000 series: EJ-JFAJ1100
• Hand crimp tool uses the YRK series and refer to page 576, 577 for details
Note 1. Contact JST for fully automatic crimping applicator.
2. Finish(*):T ......Tin-plated
GC ...Gold-plated
431
J1000 SERIES/J1100

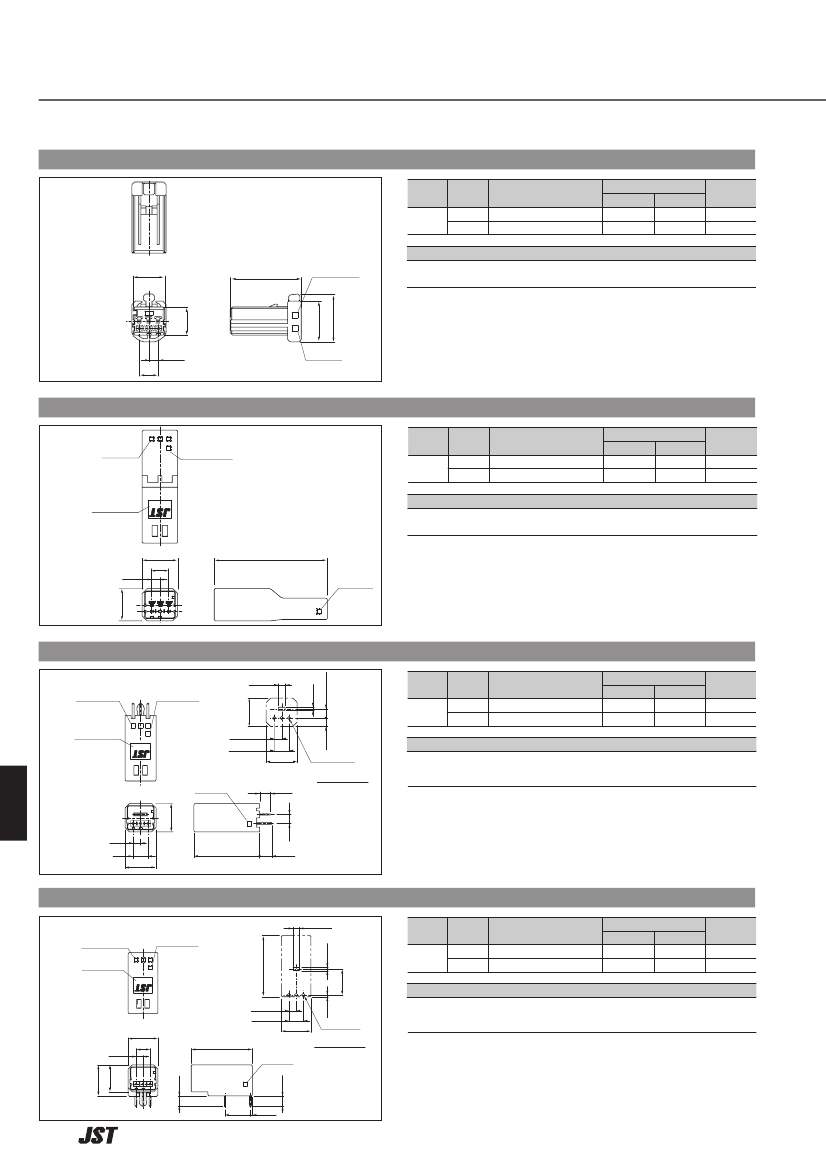

Receptacle housing
Single-row type
Circuits
3
Keying
X
Y
Model No.
J11SF-03V-KX
J11SF-03V-KY
Material
Dimensions (mm)
A
B
4.4
4.4
7.4
7.4
Q’ty / box
1,200
1,200
B
16.7
Keying No.
Glass-filled PBT, UL94V-0, black
RoHS compliance
6.6
U-A
A
2.2
A
Line No.
Tab housing
Circuit No.
X
3
2
1
Single-row type
9.6
X
(11.3)
Circuits
Keying No.
3
Keying
X
Y
Model No.
J11SFM-03V-KX
J11SFM-03V-KY
Material
Dimensions (mm)
A
B
4.4
4.4
9.2
9.2
Q’ty / box
500
500
Series name
2.2
8.4
Header Top entry type (Center locking type)
2.7
±
0.05
Single-row type
Circuit No.
A
Keying No.
(8.4)
1
±
0.1
A
±
0.05
(B)
(2.5)
Series name
8.4
A
2.2
A
B
19.5
3.6
Header Side entry type (Center locking type)
Single-row type
Circuit No.
X
2.7
1
±
0.1
(19)
Series name
8
±
0.05
A
±
0.05
(B)
B
A
2.2
19
(0.6)
9.6
8.4
3.1
A
8
(0.6)
432
3.3
J-1100
Glass-filled PBT, UL94V-0, black
RoHS compliance
B
A
29.3
Line No.
2
±
0.05
Circuits
3
Keying
X
Y
Model No.
B03B-J11SK-(*)XR
B03B-J11SK-(*)YR
Dimensions (mm)
A
B
4.4
4.4
9.2
9.2
Q’ty / box
625
625
3
J-1100
X
3
J-1100
2
2
1
1
2.2
±
0.05
Material and Finish
Post: Copper alloy, tin-plated, gold-plated
Housing: Glass-filled PBT, UL94V-0, black
Reinforcing metal fixture: Copper alloy, tin-plated
3-
φ
1
±
0.05
PC board layout
(viewed from component side)
Line No.
3.2
RoHS compliance
Gold-plated product displays (LF) on a label.
Note: Finish(*):T .......Tin-plated
GW ...Gold-plated
2
±
0.05
Circuits
3
Keying
X
Y
Model No.
S03B-J11SK-(*)XR
S03B-J11SK-(*)YR
Keying No.
Dimensions (mm)
A
B
4.4
4.4
9.2
9.2
Q’ty / box
600
600
Material and Finish
Post: Copper alloy, tin-plated, gold-plated
Housing: Glass-filled PBT, UL94V-0, black
Reinforcing metal fixture: Copper alloy, tin-plated
2.2
±
0.05
φ
N- 1
±
0.05
PC board layout
(viewed from component side)
Line No.
RoHS compliance
Gold-plated product displays (LF) on a label.
Note: Finish(*):T .......Tin-plated
GW ...Gold-plated
J1000 SERIES/J1100
Receptacle housing
Double-row type
Circuits Keying
6
8
12
20
10.5
(15.2)
U-A
Model No.
J11DF-06V-KX
J11DF-06V-KY
J11DF-08V-KX
J11DF-08V-KY
J11DF-12V-KX
J11DF-12V-KY
J11DF-20V-KX
J11DF-20V-KY
J11DF-22V-KX
J11DF-22V-KY
J11DF-26V-KX
J11DF-26V-KY
J11DF-30V-KX
J11DF-30V-KY
Material
Dimensions (mm)
A
B
4.4
4.4
6.6
6.6
11.0
11.0
19.8
19.8
22.0
22.0
26.4
26.4
30.8
30.8
8.0
8.0
10.2
10.2
14.6
14.6
23.4
23.4
25.6
25.6
30.0
30.0
34.4
34.4
Q’ty / box
800
800
500
500
400
400
250
250
—
—
—
—
—
—
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
B
16.7
Keying No.
3.9
X
B
A
22
26
30
2.2
A
Line No.
Glass-filled PBT, UL94V-0, black
RoHS compliance
Tab housing
Circuits Keying
Keying No.
Series name
Model No.
J11DFM-06V-KX
J11DFM-08V-KX
J11DFM-12V-KX
J11DFM-20V-KX
Material
B
A
2.2
12.3
3.9
A
B
X
Circuit No.
Dimensions (mm)
A
B
4.4
6.6
11.0
19.8
9.2
11.4
15.8
24.6
Q’ty / box
400
300
200
150
10
9
8
J-1100
7
6
5
4
3
2
1
6
8
12
20
X
X
X
X
29.3
Line No.
Glass-filled PBT, UL94V-0, black
RoHS compliance
433
J1000 SERIES/J1100
Header Top entry type (Center locking type)
2.7
±0.05
C
±0.05
Circuits Keying
2
±0.05
Model No.
B06B-J11DK-(*)XR
B06B-J11DK-(*)YR
B08B-J11DK-(*)XR
B08B-J11DK-(*)YR
B12B-J11DK-(*)XR
B12B-J11DK-(*)YR
B20B-J11DK-(*)XR
B20B-J11DK-(*)YR
B22B-J11DK-(*)XR
B22B-J11DK-(*)YR
B26B-J11DK-(*)XR
B26B-J11DK-(*)YR
B30B-J11DK-(*)XR
B30B-J11DK-(*)YR
Dimensions (mm)
A
C
B
4.4
4.4
6.6
6.6
11.0
11.0
19.8
19.8
22.0
22.0
26.4
26.4
30.8
30.8
9.2
9.2
11.4
11.4
15.8
15.8
24.6
24.6
26.8
26.8
31.2
31.2
35.6
35.6
—
—
4.4
4.4
8.8
8.8
17.6
17.6
19.8
19.8
24.2
24.2
28.6
28.6
Q’ty / box
500
500
400
400
280
280
180
180
—
—
—
—
—
—
Circuit No.
10
9
8
7
6
5
4
3
2
1
Keying No.
6
1
±0.1
(12.3)
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
Series name
3.9
±0.05
(2.5)
B
C
3.9
2.7
12.3
A
B
3.9
2.2
A
19.5
3.6
Header Side entry type (Center locking type)
C
±0.05
10
9
8
7
6
5
4
3
2
1
Circuit No.
Series name
±0.05
(21.2)
1
±0.1
8
2.2
(0.6)
±0.05
B
A
2.2
13.5
12.3
3.9
21.2
3.1
A
3.3
C
434
X
X
J-1100
J-1100
2.2
±0.05
A
±0.05
(B)
Line No.
3.2
Keying No.
N-
±0.05
φ1
8
12
20
22
26
30
N-
±0.05
φ1
PC board layout
(viewed from component side)
Material and Finish
Post: Copper alloy, tin-plated, gold-plated
Housing: Glass-filled PBT, UL94V-0, black
Reinforcing metal fixture: Copper alloy, tin-plated
RoHS compliance
Gold-plated product displays (LF) on a label.
Note: Finish(*):T .......Tin-plated
GW ...Gold-plated
Circuits Keying
2
±0.05
Model No.
S06B-J11DK-(*)XR
S06B-J11DK-(*)YR
S08B-J11DK-(*)XR
S08B-J11DK-(*)YR
S12B-J11DK-(*)XR
S12B-J11DK-(*)YR
S20B-J11DK-(*)XR
S20B-J11DK-(*)YR
Dimensions (mm)
A
C
B
4.4
4.4
6.6
6.6
11.0
11.0
19.8
19.8
9.2
9.2
11.4
11.4
15.8
15.8
24.6
24.6
—
—
—
—
8.8
8.8
17.6
17.6
Q’ty / box
375
375
300
300
225
225
135
135
6
8
12
20
X
Y
X
Y
X
Y
X
Y
2.2
±0.05
A
±0.05
(B)
PC board layout
(viewed from component side)
Line No.
B
Material and Finish
Post: Copper alloy, tin-plated, gold-plated
Housing: Glass-filled PBT, UL94V-0, black
Reinforcing metal fixture: Copper alloy, tin-plated
8
(0.6)
2.2
RoHS compliance
Gold-plated product displays (LF) on a label.
Note: Finish(*):T .......Tin-plated
GW ...Gold-plated
