Euro-Style Low Noise
High Stability OCXO

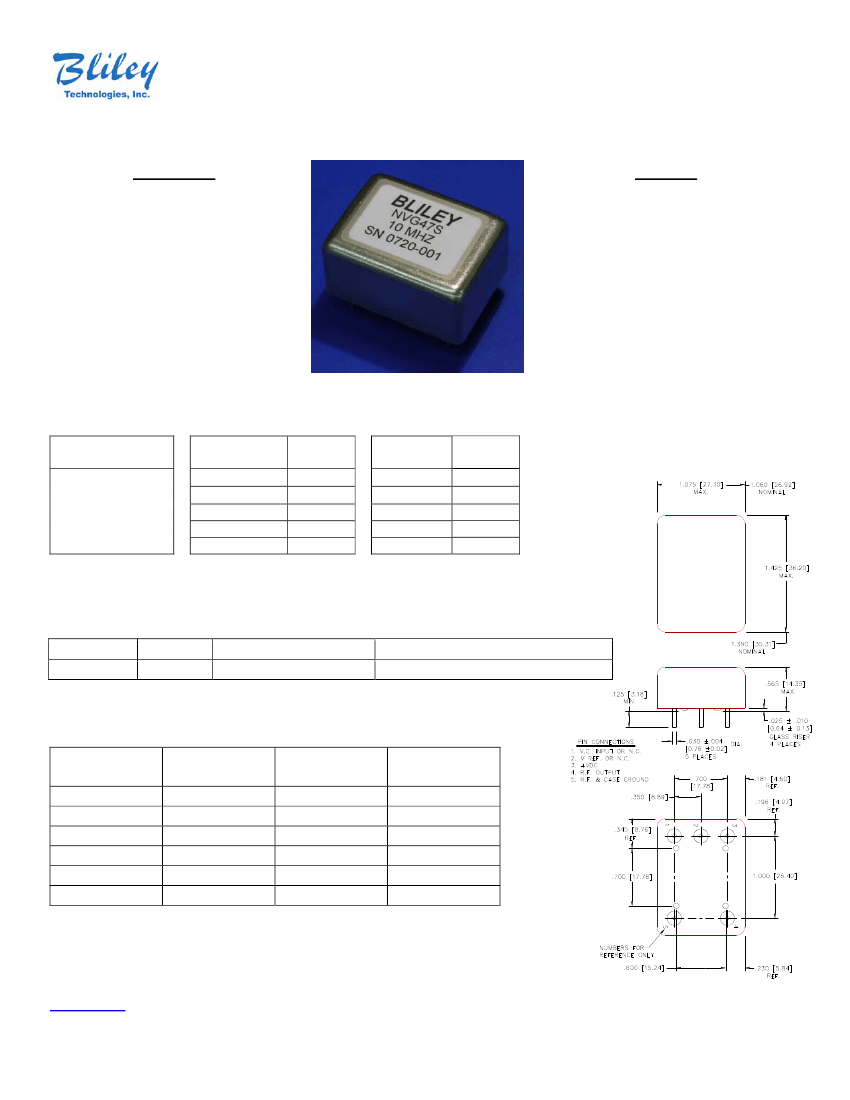

Description:
Description
The NVG47S Ovenized
Oscillator Series products
provide a low noise highly stable
frequency reference for base
stations, test equipment,
synthesizers, and digital
switching applications.
•
•
•
•
•
NVG47S Series
Features:
Available in frequencies from 5 to 13
MHz
CMOS and Sine Wave output available
RoHS-6 / Lead-free complaint available
5V and 12V available
Phase Noise Options
Frequency Range, Operating Temperature, and Frequency Stability:
Frequency
Range
Operating
Temperature
-20 to +70° C
-40 to +85° C
Product
Code
C
D
Frequency
Stability
+/- 5 ppb
+/- 10 ppb
+/- 20 ppb
+/- 30 ppb
Product
Code
A
B
C
D
5 to 13 MHz
* +/-5ppb is not available with -40 to +85
°
C operating temperature range.
** For tighter frequency stabilities consult Bliley Sales.
Aging:
(typical at 10 MHz after 30 days continuous operation)
Frequency
10 MHz
Timeframe
1 Year
Aging
Less than +/- 50 ppb
Product Code
N/A
Phase Noise:
Frequency
Offset
1 Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
Option A
Square Wave
-80 dBc/Hz
-115 dBc/Hz
-145 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-155 dBc/Hz
Option B
Sine Wave
-90 dBc/Hz
-120 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-160 dBc/Hz
Option C
Sine Wave
-95 dBc/Hz
-125 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-165 dBc/Hz
-165 dBc/Hz
Options B and C are not available with square wave out.
Option C not available with +5VDC supply voltage
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel
(814) 838-3571
Rev 1.2
Euro-Style Low Noise
High Stability OCXO
Supply Voltage & Power Consumption:
Supply Voltage
Power Consumption
Product Code
5V +/-5%
3.5W turn on power
1.5 steady state power
A
12V +/-5%
3.5W turn on power
1.5 steady state power
B
NVG47S Series
Environmental:
Storage Temperature
-55 to +125° C
Output Waveform:
HCMOS
Waveform Description
Output Level
Sine Wave
Waveform
Output Level
Description
Output Power
8 dBm typ.
Harmonics
-30 dBc
Spurious
-75 dBc
Option B
HCMOS Output Levels (15pf load)
“0” < 0.5V; “1” > 4.5V
Rise / Fall Time
< 10ns (10% to 90%)
Duty Cycle
45% to 55% @ 50% Logic 1
Option A
Pulling Range:
Turning Range (0V to 4V on
Vcontrol)
Product Code
Ordering Options:
Type
Lead-
free/
Leaded
G for
ROHS/
blank
for
Non-
ROHS
Packag
e Style
Operating
Temp
C
D
47S
Frequency
Stability
A
B
C
D
Phase
Noise
A
B
C
Supply
Voltage
A
B
None
Option A
+/- 0.5 ppm min.
Option B
+/- 1 ppm min.
Option C
Output
Waveform
A
B
Pulling
Range
A
B
C
Operating
Frequency
NV
xx.xxxxMHz
NV G 47S
C A A B A C 10.0000MHz
This example part number has the following specs:
RoHS compliant, -20 to +70C, +/- 5 ppb frequency stability, Option A phase noise, 12 volt supply
HCMOS output, +/- 1 ppm pull range, and operating frequency of 10MHz
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 4
Tel
(814) 838-3571
Rev 1.2
