DFLN1553-2: DescriptionPulse Transformer, GENERAL PURPOSE Application(s), 1.4CT:1CT; 2CT:1CT,; CategoryPower management transformer; File Size116KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

DFLN1553-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DFLN1553-2	-	-	View	Buy Now

DFLN1553-2 Overview

Pulse Transformer, GENERAL PURPOSE Application(s), 1.4CT:1CT; 2CT:1CT,

DFLN1553-2 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
high	3.94 mm
Insulation voltage	100 V
length	23.62 mm
Installation features	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L23.62XB16.0XH3.94 (mm)
surface mount	YES
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1.4CT:1CT; 2CT:1CT
width	16 mm

Preview

Download Datasheet

View All

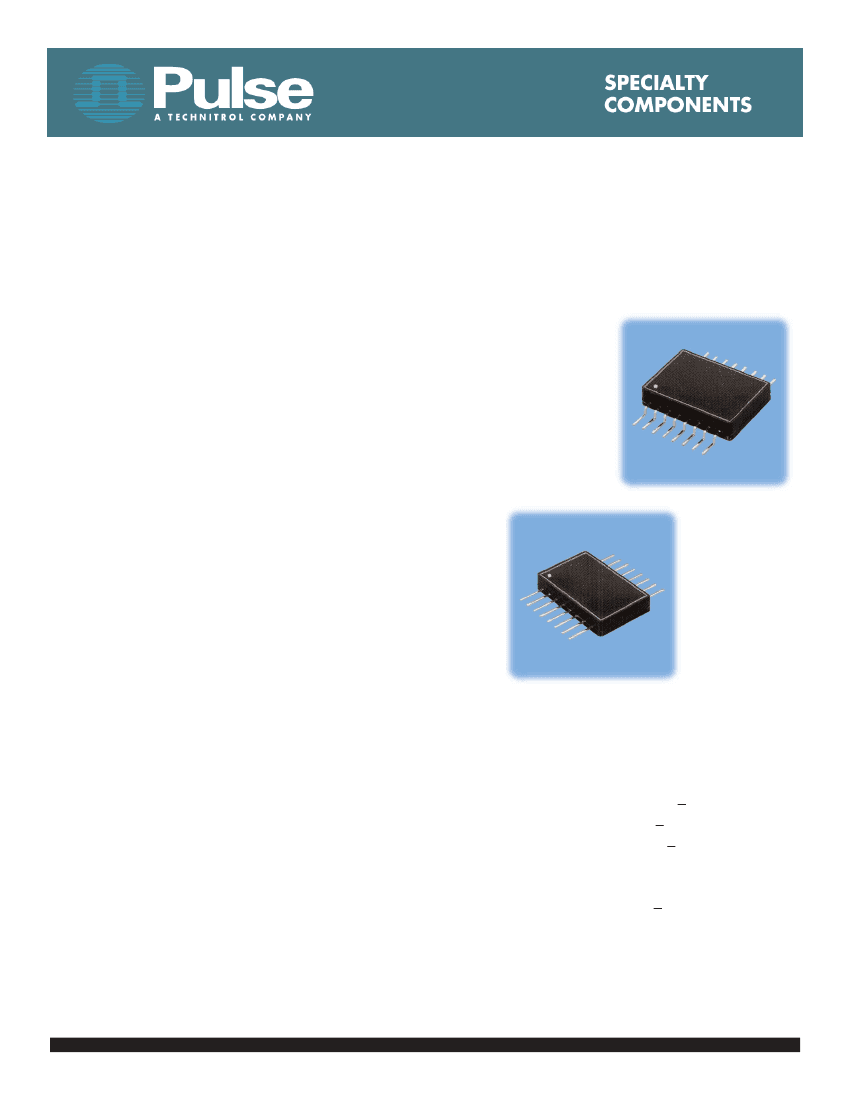

Industrial-grade surface mount

dual low profile MIL-PRF-21038

Interface Transformers (-40

to +85

These non-QPL interface transformers conform to all electrical

and physical parameters of MIL-PRF-21038/27 and provide

performance as required over -40

to +85

C. Built and tested

in ISO 9002 approved facilities.

for use in MIL-STD-1553 applications

low profile, 0.155 in. height

dual ratio in a single package

performance to MIL-PRF-21038/27 requirements

built in ISO 9002 facility

-40

to +85

C operating temperature

APPLICABLE SPECIFICATIONS

MIL-STD-1553B

MIL-STD-202

MIL-T-10727

MIL-PRF-21038

ISO 9002

SUMMARY PERFORMANCE SPECIFICATIONS

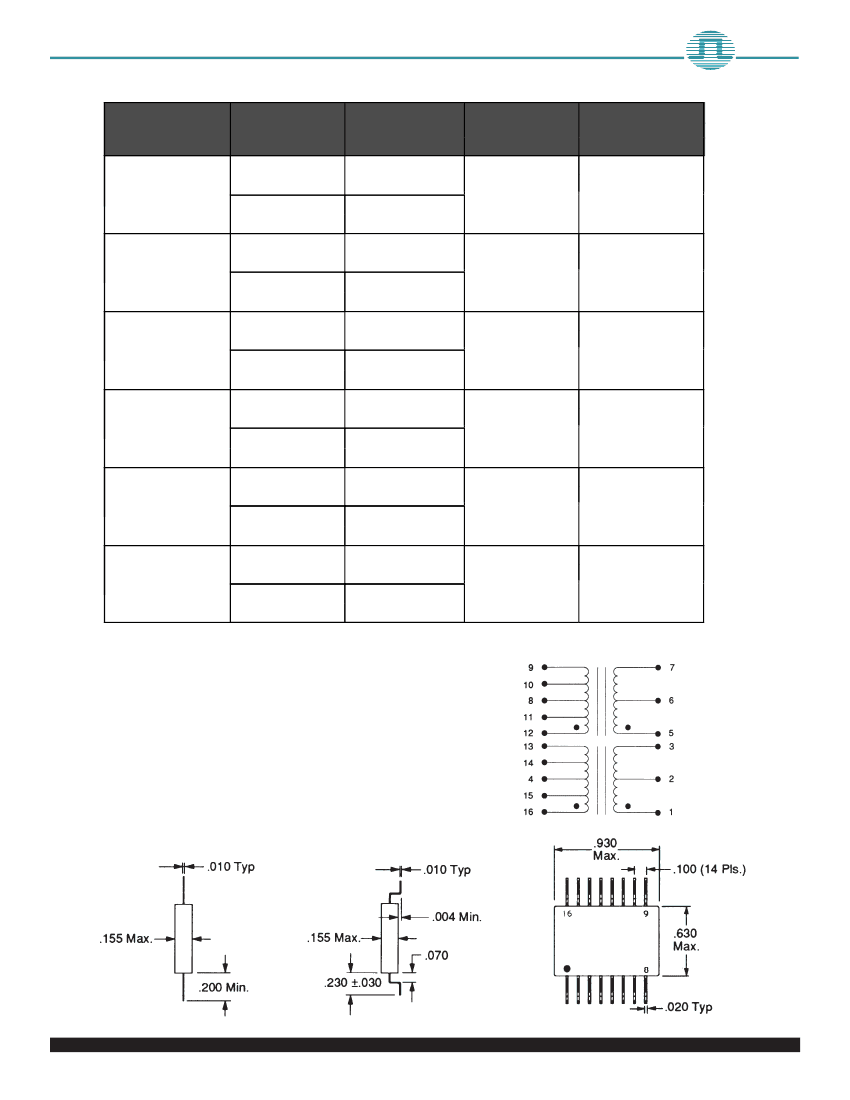

Impedance................................................................................................... see table

Droop..............................................................................................................

20%

Overshoot..................................................................................................

1V max

Common mode rejection (CMR).................................................................

45 dB

Frequency range (no load)............................................................. 75 kHz to 1MHz

Operating temperature range............................................................. -40o to +85oC

Weight.......................................................................................................

5 grams

Insulation resistance (min)........................................... 10K megohms @ 250 Vdc

Dielectric withstanding voltage................................................................ 100 Vrms

TWO PEARL BUCK COURT

BRISTOL, PA 19007-6812

TEL 215-781-6400

FAX 215-781-6403

www.pulsespecialty.com
