Part Number:
Status:
Description:
0026603100
Active
3.96mm (.156") Pitch KK® Solid Header, Right Angle, without Peg, 10 Circuits, Tin (Sn)
Plating
Documents:
3D Model
Packaging Specification (PDF)

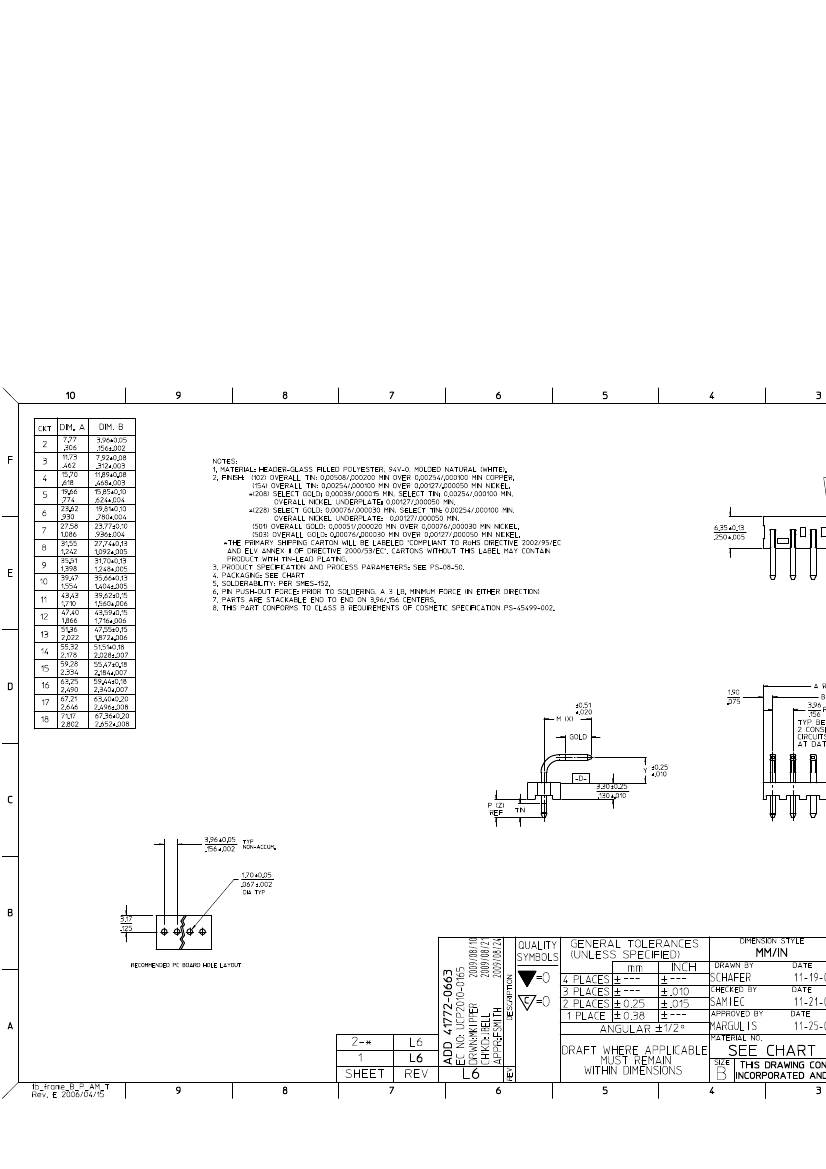

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
41772
Board-to-Board, Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
10
10
Natural
25
94V-0
No
None
Brass
Tin
Tin
Polyester
1
Right Angle
0.140 In
3.56 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
200
5
200
5
Yes
No
Partial
Yes
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
41772S
Mates
3069 ,
41695
Electrical
Current - Maximum per Contact
7A
Voltage - Maximum
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
235
Material Info
Old Part Number
41772-0010
Reference - Drawing Numbers
Sales Drawing
SDA-41772
