DGLC1553-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> DGLC1553-1

DGLC1553-1: DescriptionPulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT; 1CT:0.707CT,; CategoryPower management transformer; File Size114KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

DGLC1553-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DGLC1553-1	-	-	View	Buy Now

DGLC1553-1 Overview

Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT; 1CT:0.707CT,

DGLC1553-1 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO
application	GENERAL PURPOSE
high	3.94 mm
Insulation voltage	100 V
length	23.62 mm
Installation features	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L23.62XB16.0XH3.94 (mm)
surface mount	YES
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1CT:0.707CT
width	16 mm

Preview

Download Datasheet

View All

Value Series surface mount

dual low profile MIL-PRF-21038

Interface Transformers (0

to +70

These non-QPL interface transformers conform to all electrical

and physical parameters of MIL-PRF-21038/27 and provide

performance as required over 0

to +70

C. Built and tested in

ISO 9002 approved facilities.

for use in MIL-STD-1553 applications

low profile, 0.155 in. height

dual ratio in a single package

performance to MIL-PRF-21038/27 requirements

built in ISO 9002 facility

to +70

C operating temperature

APPLICABLE SPECIFICATIONS

MIL-STD-1553B

MIL-STD-202

MIL-T-10727

MIL-PRF-21038

ISO 9002

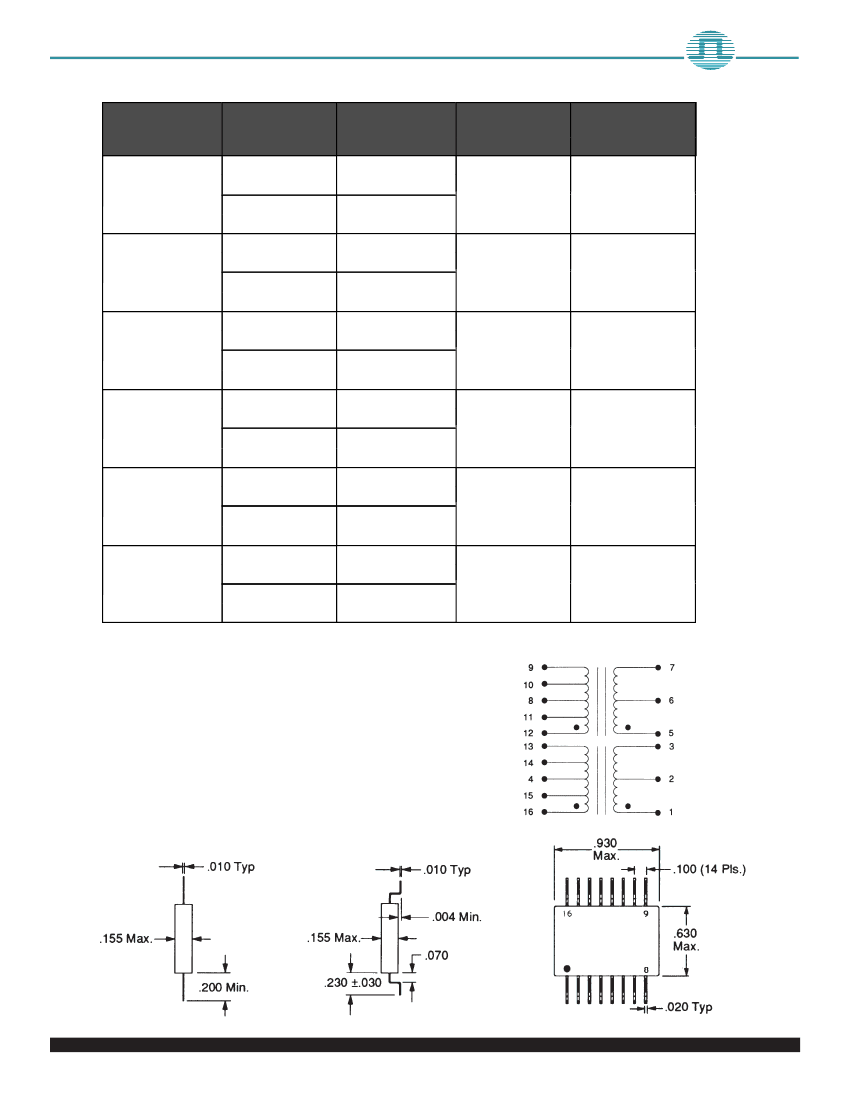

SUMMARY PERFORMANCE SPECIFICATIONS

Impedance................................................................................................... see table

Droop..............................................................................................................

20%

Overshoot..................................................................................................

1V max

Common mode rejection (CMR).................................................................

45 dB

Frequency range (no load)............................................................. 75 kHz to 1MHz

Operating temperature range................................................................ 0o to +70oC

Weight.......................................................................................................

5 grams

Insulation resistance (min)........................................... 10K megohms @ 250 Vdc

Dielectric withstanding voltage................................................................ 100 Vrms

TWO PEARL BUCK COURT

BRISTOL, PA 19007-6812

TEL 215-781-6400

FAX 215-781-6403

www.pulsespecialty.com

DGLC1553-1 Related Products

	DGLC1553-1	DFLC1553-1
Description	Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT; 1CT:0.707CT,	Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT; 1CT:0.707CT,
Maker	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE
high	3.94 mm	3.94 mm
Insulation voltage	100 V	100 V
length	23.62 mm	23.62 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2
Maximum operating temperature	70 °C	70 °C
physical size	L23.62XB16.0XH3.94 (mm)	L23.62XB16.0XH3.94 (mm)
surface mount	YES	YES
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1CT:0.707CT	1CT:1CT; 1CT:0.707CT
width	16 mm	16 mm
