RL-2012-S-150M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RL-2012-S-150M

RL-2012-S-150M: DescriptionGeneral Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size904KB，2 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

RL-2012-S-150M Overview

General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

RL-2012-S-150M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renco Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.14 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	RL-2012-S
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	22 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

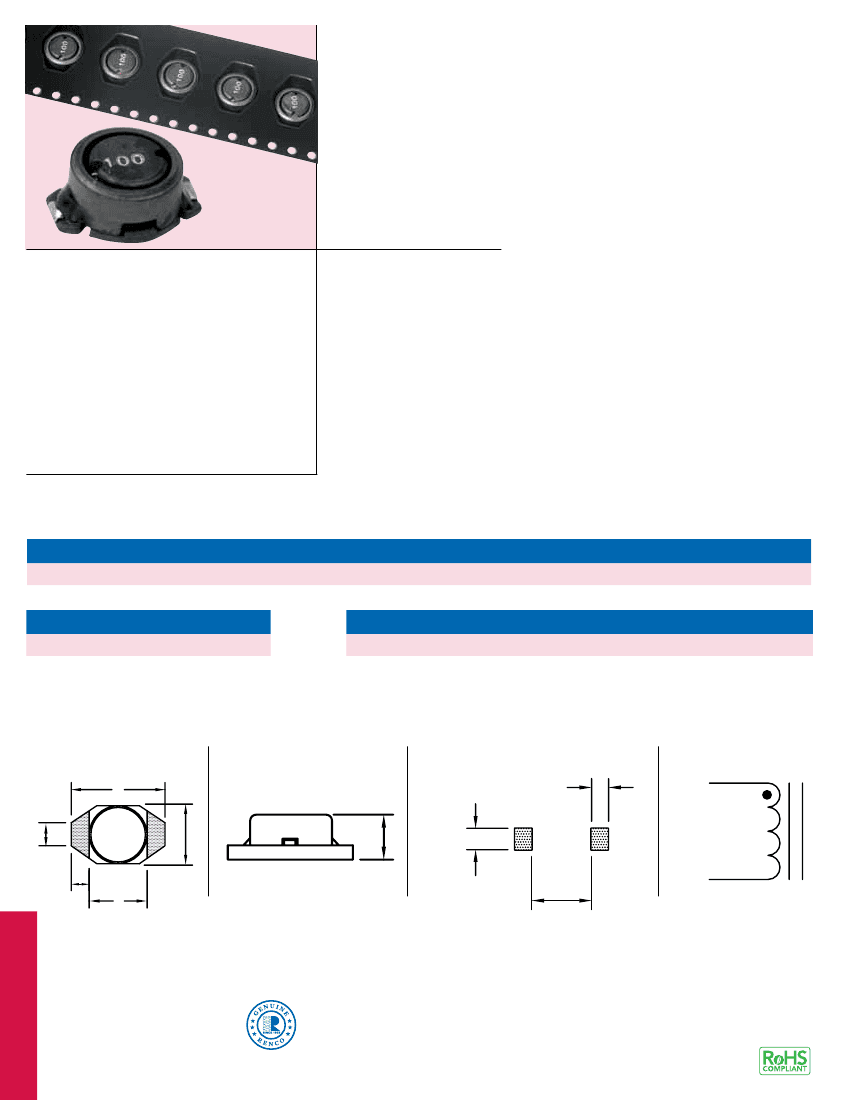

RL-2012-S

DESCRIPTION

• Shielded SMD Power Inductor

SHIELDED SMD POWER INDUCTORS

FEATURES & APPLICATIONS

• Low profile and shielded

• Low-resistance and high-energy storage

• Excellent as DC-DC converter used in notebook computers,

cell phones, step-up or step-down converters, and flash memory

ENVIRONMENTAL DATA

•

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 489

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART NUMBER

RL-2012-S

A (MAX.)

0.41 (10.52)

B ±0.008 (0.2)

0.08 (2.00)

C ±0.008 (0.2)

0.083 (2.10)

D ±0.012 (0.3)

0.24 (6.00)

E (MAX.)

0.32 (8.02)

PART NUMBER

RL-2012-S

PART WEIGHT

1.0g (0.04oz)

F ±0.012 (0.3)

0.20 (5.00)

G (REF.)

0.09 (2.20)

H (REF.)

0.09 (2.40)

I (REF.)

0.22 (5.70)

TOP VIEW

SIDE VIEW

RECOMMENDED LAND PATTERN

SCHEMATIC

SURFACE MOUNTS

RENCO ELECTRONICS INC.

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600

RL-2012-S-150M Related Products

	RL-2012-S-150M	RL-2012-S-3R9M	RL-2012-S-821K	RL-2012-S-151K	RL-2012-S-102K	RL-2012-S-120M	RL-2012-S-681K
Description	General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 3.9uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 820uH, 10%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 150uH, 10%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 1000uH, 10%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 12uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 680uH, 10%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.14 Ω	0.055 Ω	4 Ω	0.9 Ω	5 Ω	0.12 Ω	3.4 Ω
Nominal inductance(L)	15 µH	3.9 µH	820 µH	150 µH	1000 µH	12 µH	680 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	RL-2012-S	RL-2012-S	RL-2012-S	RL-2012-S	RL-2012-S	RL-2012-S	RL-2012-S
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
self resonant frequency	22 MHz	50 MHz	2.5 MHz	6.5 MHz	2.2 MHz	24 MHz	2.8 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	10%	10%	10%	20%	10%
