This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039000066
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit™ Crimp Terminal, Female, Phosphor Bronze, Tin (Sn),
22-28 AWG, Bag
Documents:
Test Summary (PDF)

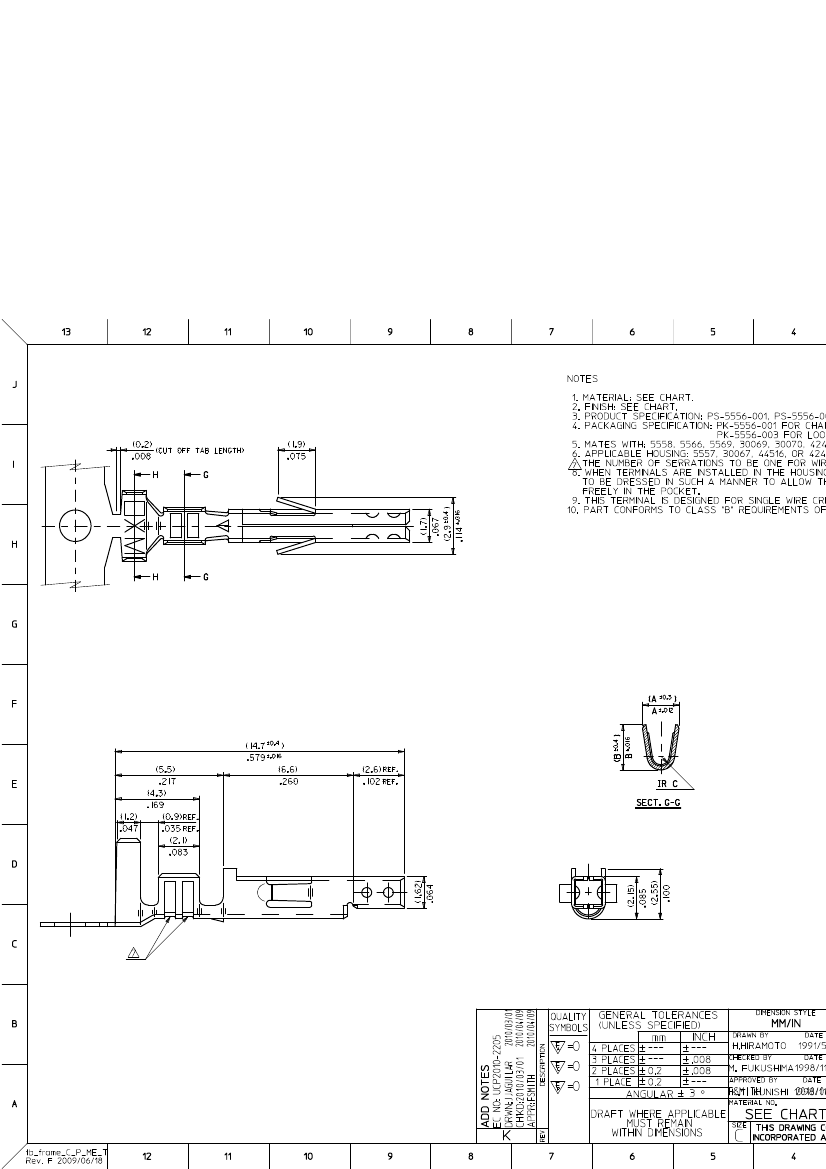

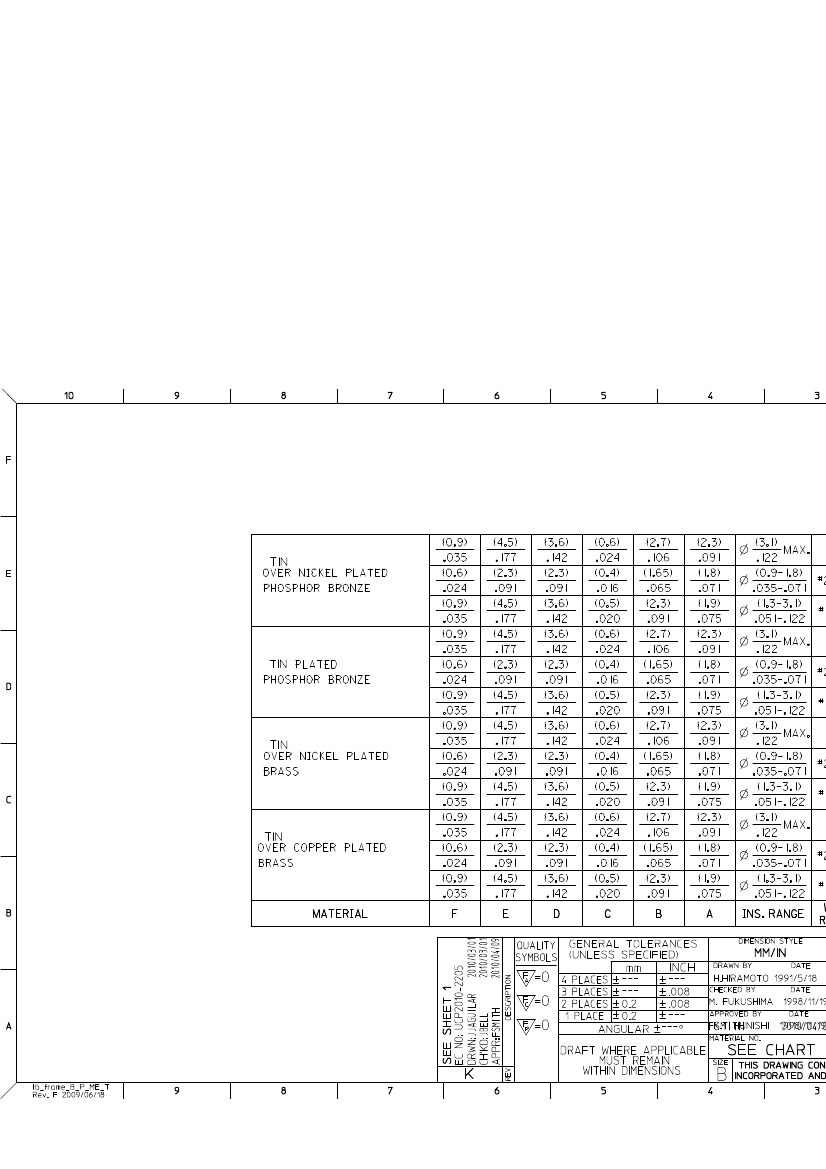

Drawing (PDF)
Product Specification PS-54111-002 (PDF)
Product Specification PS-54452-007 (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification PS-5556-002 (PDF)
Product Specification PS-5556-003 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
5556
Yes
minifit_jr
Mini-Fit®
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
30
Receptacle
Phosphor Bronze
Tin
Tin
Bag
36
0.90
36
0.90
Crimp or Compression
0.90-1.80mm (.035-.071")
22, 24, 26, 28
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
5556Se
Electrical
Current - Maximum per Contact
Voltage - Maximum
9A
600V
Mates
5558 M
Header
Material Info
Old Part Number
5556PBT2L
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-5556-003
PS-54111-002, PS-54452-007, PS-5556-001,
PS-5556-002, PS-5556-003, RPS-54111-004
SD-5556****
TS-5556-002
Use W
5557 M
30067
Mini-Fi
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Hand C
Mini-Fi
Termia
Extract
