DST310S32.768KHZ12.5PF30PPM datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> DST310S32.768KHZ12.5PF30PPM

DST310S32.768KHZ12.5PF30PPM: DescriptionParallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size335KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric View All

DST310S32.768KHZ12.5PF30PPM Overview

Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN

DST310S32.768KHZ12.5PF30PPM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Daishinku Corp.
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	0.2 µW
frequency stability	0.0144%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	12.5 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L3.2XB1.5XH0.75 (mm)/L0.126XB0.059XH0.03 (inch)
Series resistance	80000 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

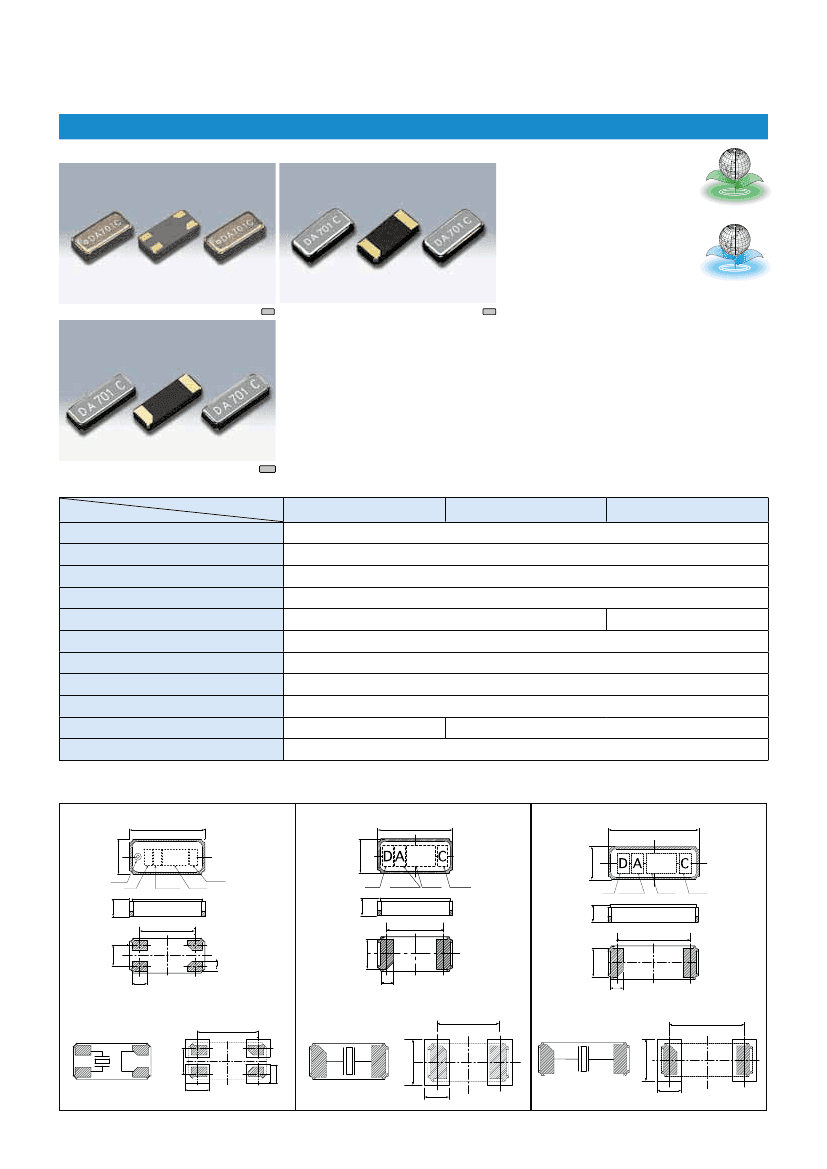

SMD Tuning Fork Crystal Resonators / kHz Band Crystal Resonators

DST311S/DST310S/DST410S

■ Features

●

3215/4115 size miniature and

lightweight SMD tuning

fork crystal resonator with a low

proﬁle of 0.75mm.

●

A ceramic package providing

high precision and reliability.

●

Metal lid connected to GND

terminal to reduce EMI (DST311S).

●

Noise sensitive application

(smart meter etc.) (DST311S).

●

Series Resistance 50kΩ max.

available (DST311S, DST310S).

●

AEC-Q200 Compliant

(DST310S, DST410S)

■ Applications

●

Mobile communications, PDA,

wave clock, digital appliance.

●

Automotive applications such

DST410S

Actual size

Pb-Free

RoHS Compliant

DST311S

Actual size

DST310S

Actual size

■ Standard Speciﬁcation

Item Type

Frequency Range

Load Capacitance

Drive Level

Frequency Tolerance

Series Resistance

Turnover Temperature

Parabolic Coeﬃcient

Operating Temperature Range

Storage Temperature Range

Shunt Capacitance

Packing Unit

0.9pF typ.

DST311S

as multimedia device

(AEC-Q200 Compliant).

DST310S

32.768kHz

9pF, 10pF, 12.5pF

0.2μW（1.0μW max.）

DST410S

±20×10

−6

, ±30×10

−6

, ±50×10

−6

, ±100×10

−6

（at 25℃）

50kΩ max./80kΩ max.

＋25℃±5℃

−0.04×10

−6

/℃

max.

−40 ∼＋85℃

1.3pF typ.

3000pcs./reel（φ180）

Consult our sales representative for other specifications.

80kΩ max.

■ DST311S

■ Dimensions[mm]

3.2±0.1

■ DST310S

■ Dimensions[mm]

3.2±0.1

■ DST410S

■ Dimensions[mm]

4.1±0.1

1.5 ± 0.1

1.5±0.1

1.5 ± 0.1

D A 701 C

Country

Frequency

Lot No.

701

Logo

Frequency

Lot No.

Country

701

Logo

Frequency

Lot No.

Country

INDEX

Logo

0.75 ± 0.1

0.75±0.1

2.35

0.75 ± 0.1

3.3

0.9

1.3

0.65

0.4

0.65

0.6

■ Internal

Connections

＜Top View＞

■ Recommended Land

Pattern [mm]

＜Top View＞

2.5

■ Internal

Connections

＜Top View＞

■ Recommended Land

Pattern [mm]

＜Top View＞

2.5

■ Internal

Connections

＜Top View＞

1.3

■ Recommended Land

Pattern [mm]

＜Top View＞

3.4

1.05

♯1 & ♯4 connected to quartz element

♯2 & ♯3 connected to the cover

1.0

0.75

1.8

1.9

1.1

1.0
