A-41791-0008

Description
8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size289KB,11 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

A-41791-0008 Overview

8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

A-41791-0008 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN (200) OVER COPPER (100)
Contact completed and terminatedTIN (200) OVER COPPER (100)
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number41791
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts8
UL Flammability Code94V-0
This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0026604080
Active
kk
3.96mm (.156") Pitch KK® Solid Header, Vertical, Friction Lock, 8 Circuits, Tin (Sn)
Plating
Documents:
3D Model
Packaging Specification (PDF)

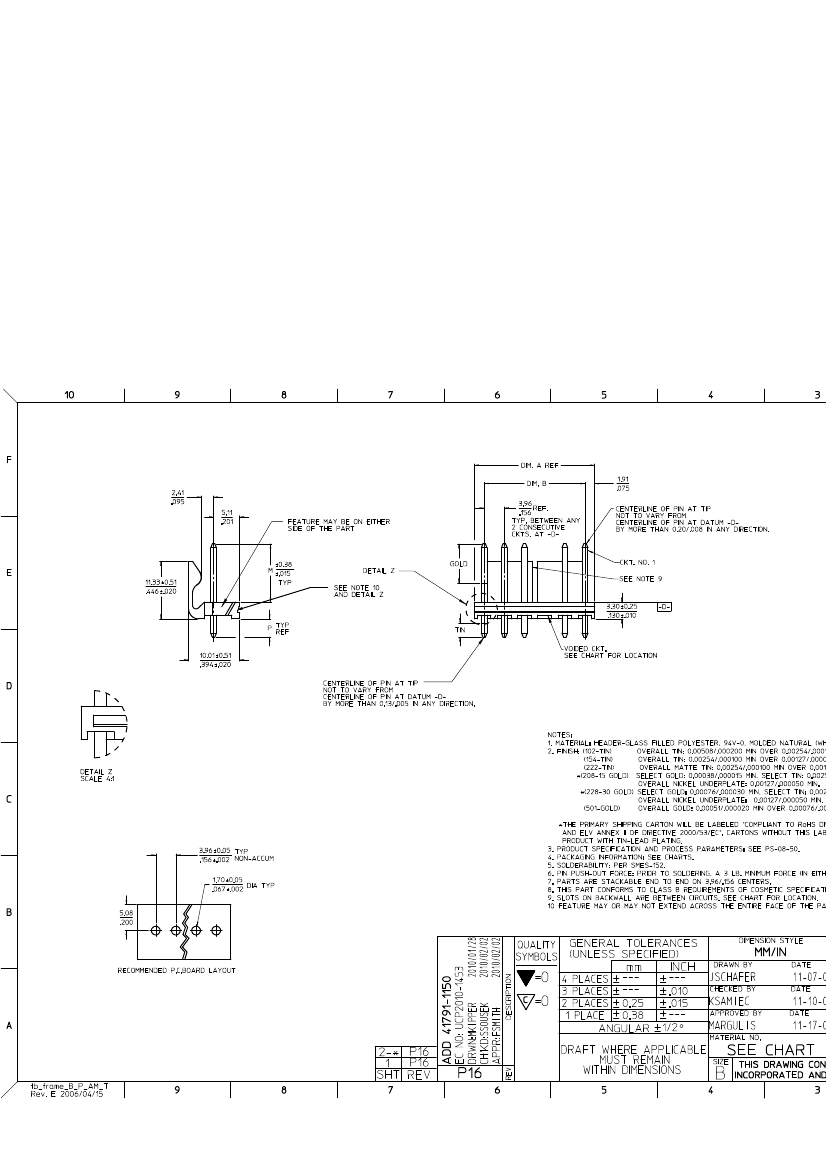

Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
41791
Wire-to-Board
kk
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
8
8
Natural
25
94V-0
No
Yes
Brass
Tin
Tin
Polyester
1
Vertical
0.140 In
3.56 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
200
5
200
5
Yes
No
Partial
Yes
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Halo
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
41791S
Mates
3069 ,
41695
