RC4207GN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> RC4207GN

RC4207GN: DescriptionOperational Amplifier, 2 Func, 150uV Offset-Max, BIPolar, PDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size367KB，8 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

RC4207GN Overview

Operational Amplifier, 2 Func, 150uV Offset-Max, BIPolar, PDIP8,

RC4207GN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.01 µA
Maximum bias current (IIB) at 25C	0.01 µA
Minimum Common Mode Rejection Ratio	94 dB
Nominal Common Mode Rejection Ratio	110 dB
frequency compensation	YES
Maximum input offset voltage	150 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-dissonance	YES
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.1 V/us
Nominal slew rate	0.3 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1500 kHz
Minimum voltage gain	100000

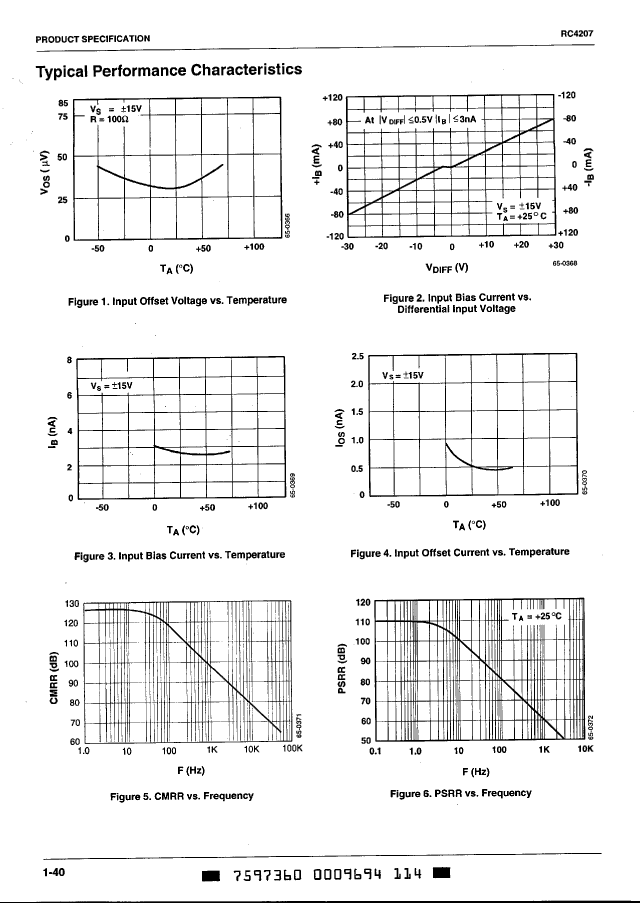

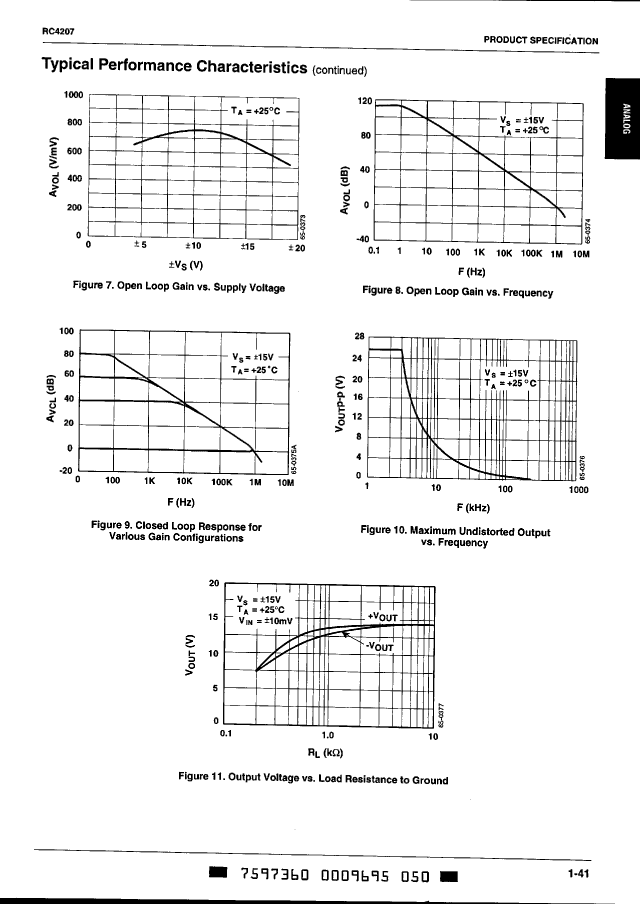

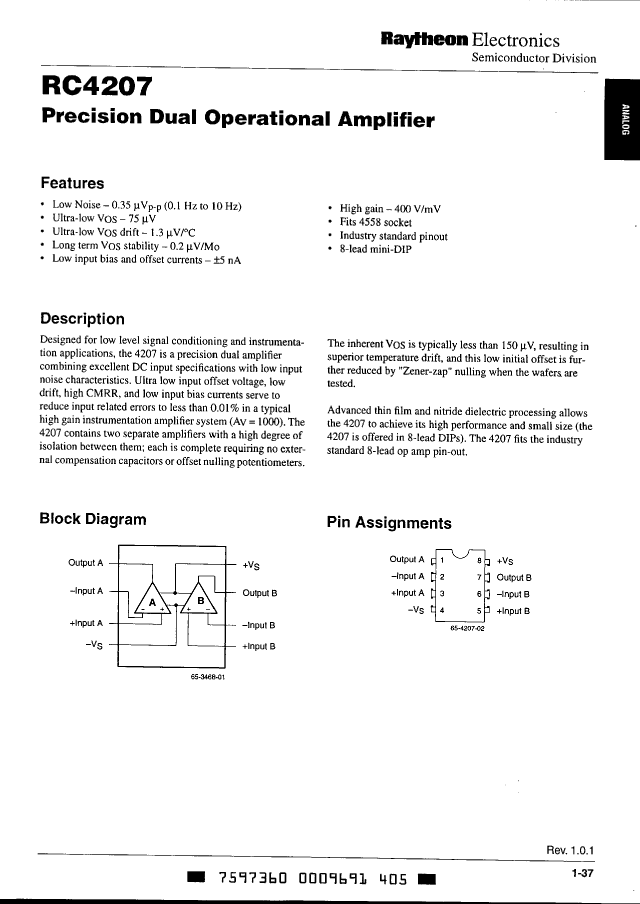

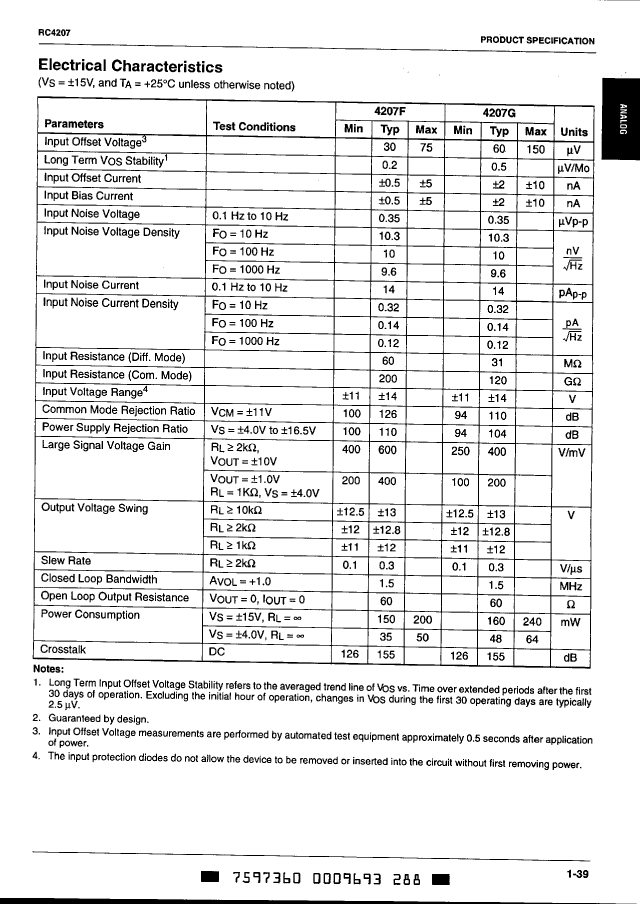

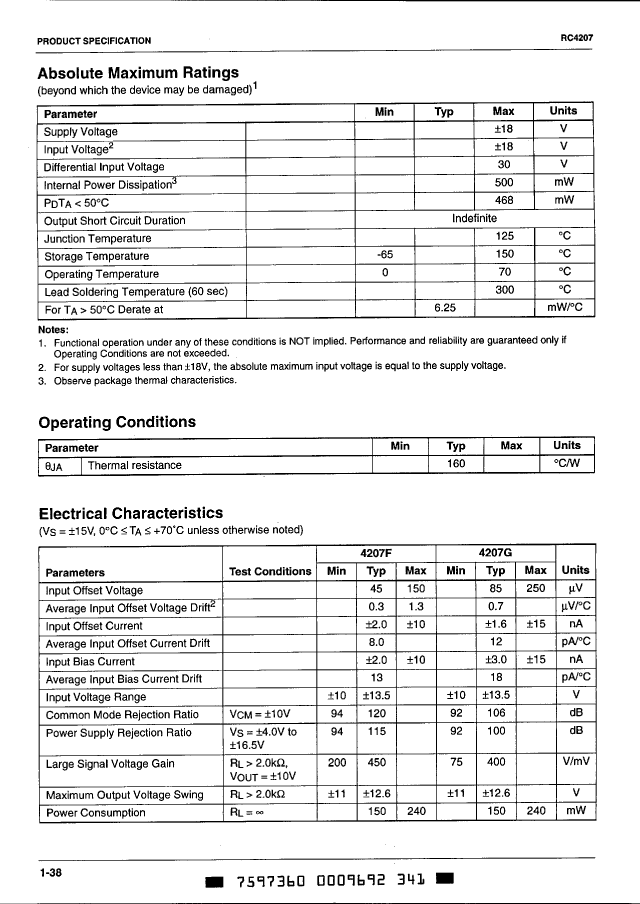

Preview

Download Datasheet

View All

RC4207GN Related Products

	RC4207GN	RC4207FN	RC4207FNB	RC4207GNB	RM4207BDE/883B	RM4207BDE	RC4207GDE
Description	Operational Amplifier, 2 Func, 150uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 2 Func, 75uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 2 Func, 150uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 2 Func, 250uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 2 Func, 200uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 2 Func, 200uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 2 Func, 250uV Offset-Max, BIPolar, CDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.01 µA	0.005 µA	0.01 µA	0.02 µA	0.01 µA	0.01 µA	0.02 µA
frequency compensation	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	150 µV	75 µV	150 µV	250 µV	200 µV	200 µV	250 µV
JESD-30 code	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
low-dissonance	YES	YES	YES	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Minimum voltage gain	100000	200000	100000	75000	100000	100000	75000
Maker	Raytheon Company	Raytheon Company	Raytheon Company	Raytheon Company	Raytheon Company	Raytheon Company	-
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	-	-	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Maximum slew rate	-	-	16 mA	16 mA	16 mA	16 mA	16 mA
