PECLDL-10-40 datasheet, PDF - EEWORLD Datasheet

PECLDL-10-40: DescriptionActive Delay Line, Programmable, 1-Func, 15-Tap, True Output, ECL, 0.250 INCH HEIGHT, DIP-32/9; Categorylogic logic; File Size1MB，3 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

PECLDL-10-40 Overview

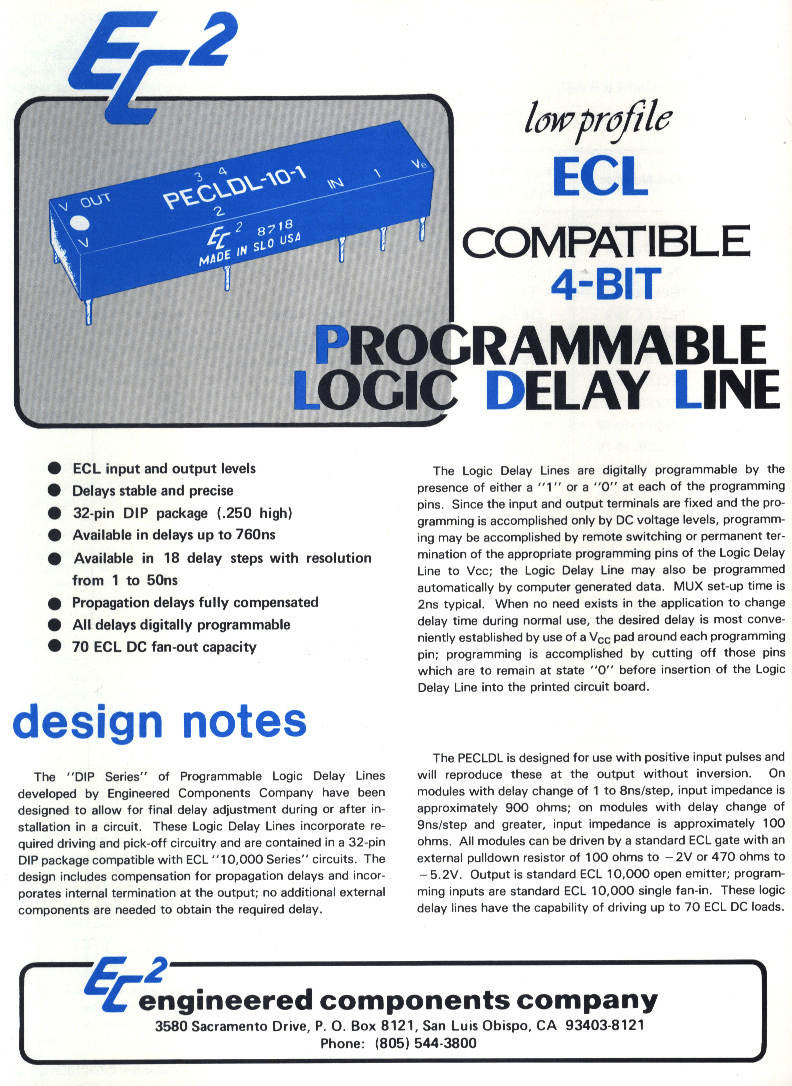

Active Delay Line, Programmable, 1-Func, 15-Tap, True Output, ECL, 0.250 INCH HEIGHT, DIP-32/9

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	DIP, DIP32,.3
Contacts	32/9
Reach Compliance Code	unknown
Other features	CAN BE OPERATED ON +5V VCC
series	10K

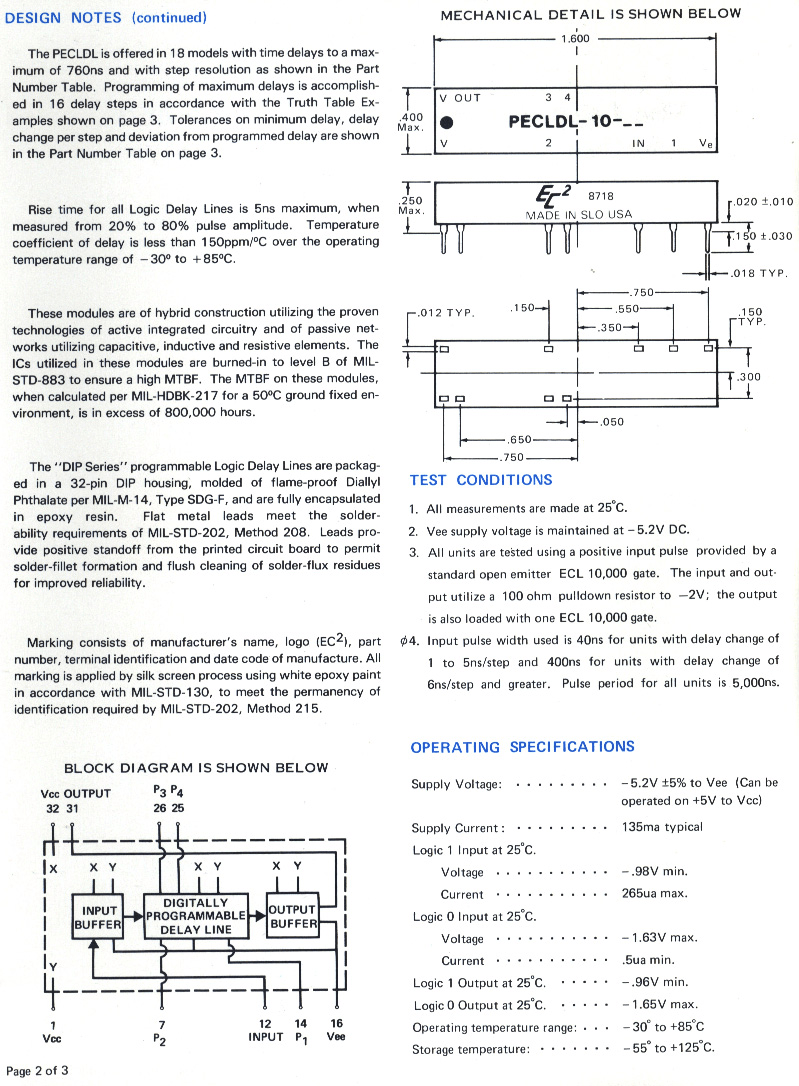

JESD-30 code	R-XDIP-T9
length	40.64 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	15
Number of terminals	9
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
programmable delay line	YES
Prop。Delay @ Nom-Sup	610 ns
Certification status	Not Qualified
Maximum seat height	6.35 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

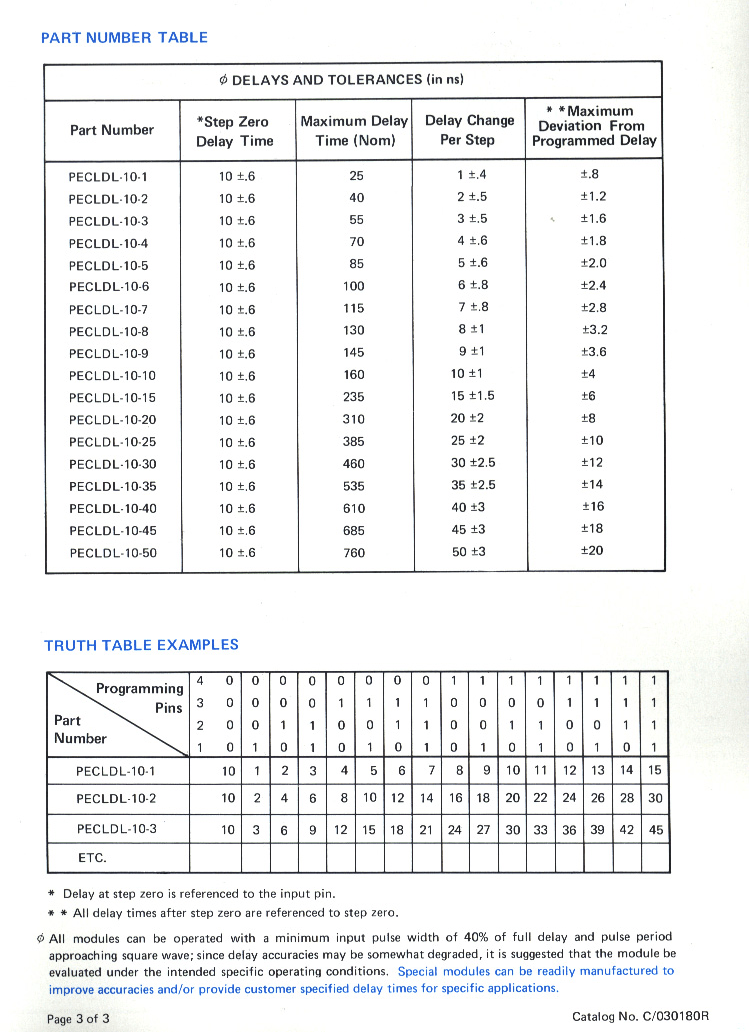

Total delay nominal (td)	610 ns
width	7.62 mm
