M83536/35-024L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> M83536/35-024L

M83536/35-024L: DescriptionPower/Signal Relay, 1 Form C, SPDT, Momentary, 0.064A (Coil), 28VDC (Coil), 1792mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Socket Mount,; CategoryMechanical and electronic products relay; File Size613KB，13 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric Compare View All

M83536/35-024L Overview

Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.064A (Coil), 28VDC (Coil), 1792mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Socket Mount,

M83536/35-024L Parametric

Parameter Name	Attribute value
Maker	Esterline Technologies Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE, TRANSIENT SUPPRESSED DC COIL
body width	10.41 mm
body height	18.8 mm
Body length or diameter	20.57 mm
Maximum coil current (DC)	0.064 A
Coil operating voltage (DC)	13.5 V
Coil power	1792 mW
Coil release voltage (DC)	2.3 V
Coil resistance	440 Ω
Maximum coil voltage (DC)	28 V
Nominal coil voltage	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated load I	8A@115VAC
Contact (AC) maximum rated load M	4A@115VAC
Contact (AC) maximum rated R load	10A@115VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between breaking contacts	1250 Vrms
Electrical life	50000 Cycle(s)
Input switching control type	Random
Insulation resistance	100000000 Ω
Installation features	SOCKET MOUNT
Number of terminals	5
operating hours	7 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
PCB hole count	5
physical size	20.57mm x 10.41mm x 18.8mm
Guideline	MIL-PRF-83536/35
Relay action	MOMENTARY
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	7 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	GOLD OVER NICKEL (150)
Terminal length	0.0043 inch
Termination type	SNAP-ON
weight	16 g

Preview

Download Datasheet

View All

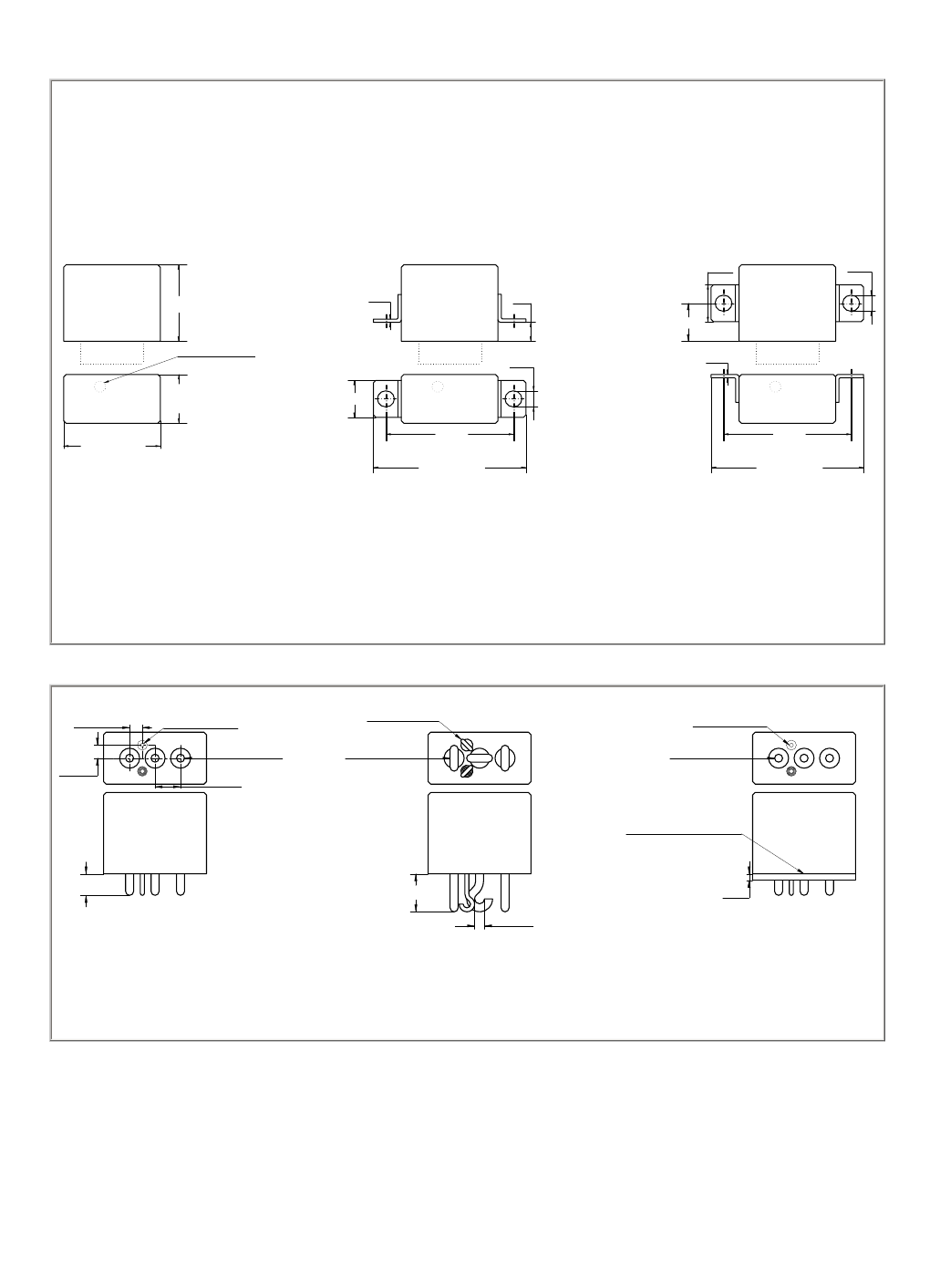

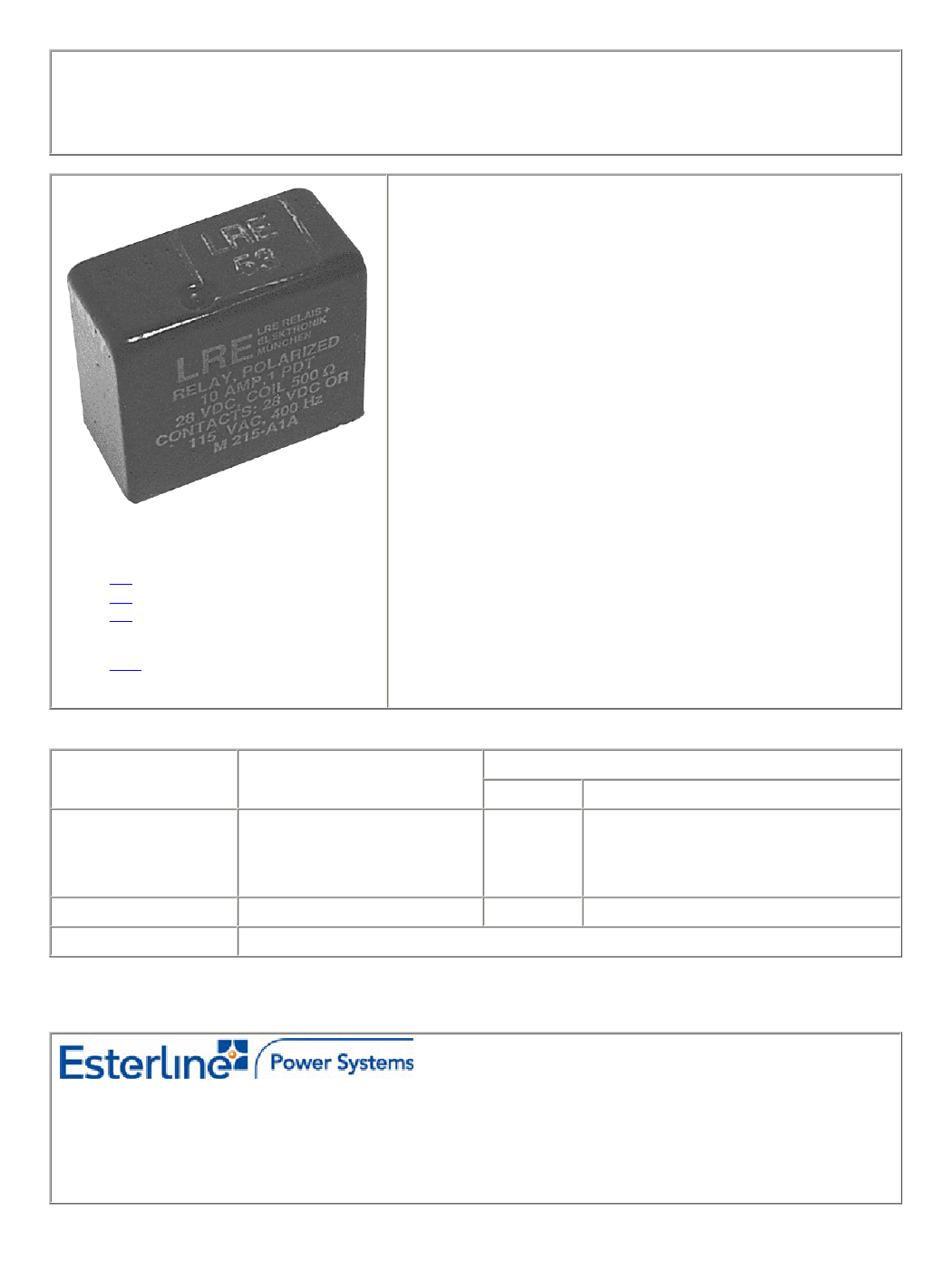

M215

ENGINEERING DATA SHEET

RELAY - NONLATCH

1 PDT, 10 AMP

Polarized, non latching hermetically sealed relay

1 PDT

Contact arrangement

Coil supply

Applicable standard

Direct current

MIL-R-6106

PRINCIPLE TECHNICAL CHARACTERISTICS

Contacts rated at

Weight

Dimensions max.

of case in mm

10 Amps / 28 Vdc or 115 Vac -

400 Hz

16 grams max

20.6 x 20 x 10.4

Hermetically sealed, corrosion resistant metal can.

APPLICATION NOTES:

001

007

023

APPLICABLE SOCKET:

S215

CONTACT ELECTRICAL CHARACTERISTICS

Minimum

operating cycles

50,000 cycles

10,000 cycles

50,000 cycles

50 cycles

200,000 cycles

Contact rating per

pole and load type

resistive load

inductive load (L/R=5ms)

motor load

lamp load

resistive overload

at 25% rated resistive load

Load Current in Amps

@28 Vdc

@115 Vac, 400 Hz

Featuring

LEACH

power and control solutions

www.esterline.com

AMERICAS

6900 Orangethorpe Ave.

P.O. Box 5032

Buena Park, CA 90622

Tel: (01) 714-736-7599

Fax: (01) 714-670-1145

EUROPE

2 Rue Goethe

57430 Sarralbe

France

Tel: (33) 3 87 97 31 01

Fax: (33) 3 87 97 96 86

ASIA

Units 602-603 6/F Lakeside 1

No.8 Science Park West Avenue

Phase Two, Hong Kong Science Park

Pak Shek Kok, Tai Po, N.T.

Hong Kong

Tel: (852) 2 191 3830

Fax: (852) 2 389 5803

Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.

Date of issue: 9/07

- 89 -

Page 1 of 4

M83536/35-024L Related Products

	M83536/35-024L	M215D2N	M83536/35-024M	M83536/35-022L	M83536/35-022M
Description	Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.064A (Coil), 28VDC (Coil), 1792mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Socket Mount,	Power/Signal Relay, SPDT, Momentary, 0.056A (Coil), 28VDC (Coil), 1568mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.064A (Coil), 28VDC (Coil), 1792mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Socket Mount,	Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.064A (Coil), 28VDC (Coil), 1792mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.064A (Coil), 28VDC (Coil), 1792mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount,
Maker	Esterline Technologies Corporation	Esterline Technologies Corporation	Esterline Technologies Corporation	Esterline Technologies Corporation	Esterline Technologies Corporation
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	10.41 mm	10.4 mm	10.41 mm	10.41 mm	10.41 mm
body height	18.8 mm	20 mm	18.8 mm	18.8 mm	18.8 mm
Body length or diameter	20.57 mm	20.6 mm	20.57 mm	20.57 mm	20.57 mm
Maximum coil current (DC)	0.064 A	0.056 A	0.064 A	0.064 A	0.064 A
Coil operating voltage (DC)	13.5 V	18 V	13.5 V	13.5 V	13.5 V
Coil power	1792 mW	1568 mW	1792 mW	1792 mW	1792 mW
Coil release voltage (DC)	2.3 V	1.5 V	2.3 V	2.3 V	2.3 V
Coil resistance	440 Ω	500 Ω	440 Ω	440 Ω	440 Ω
Maximum coil voltage (DC)	28 V	28 V	28 V	28 V	28 V
Coil/Input Power Type	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	10A@115VAC	10A@115VAC	10A@115VAC	10A@115VAC	10A@115VAC
Maximum contact current (AC)	10 A	10 A	10 A	10 A	10 A
Maximum contact current (DC)	10 A	10 A	10 A	10 A	10 A
Contact (DC) maximum rated R load	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC
Maximum contact voltage (AC)	115 V	115 V	115 V	115 V	115 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
Installation features	SOCKET MOUNT	PANEL MOUNT	SOCKET MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms	7 ms	7 ms	7 ms	7 ms
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-70 °C	-65 °C	-70 °C	-70 °C	-70 °C
physical size	20.57mm x 10.41mm x 18.8mm	20.6mm x 10.4mm x 20mm	20.57mm x 10.41mm x 18.8mm	20.57mm x 10.41mm x 18.8mm	20.57mm x 10.41mm x 18.8mm
Guideline	MIL-PRF-83536/35	MIL-R-6106	MIL-PRF-83536/35	MIL-PRF-83536/35	MIL-PRF-83536/35
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPDT	SPDT	SPDT	SPDT	SPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	7 ms	7 ms	7 ms	7 ms	7 ms
seal	HERMETICALLY SEALED	CORROSION PROOF; HERMETICALLY SEALED	HERMETICALLY SEALED	HERMETICALLY SEALED	HERMETICALLY SEALED
surface mount	NO	NO	NO	NO	NO
Termination type	SNAP-ON	SOLDER HOOK	SNAP-ON	SOLDER	SOLDER
Other features	PANEL MOUNTABLE, TRANSIENT SUPPRESSED DC COIL	-	PANEL MOUNTABLE, TRANSIENT SUPPRESSED DC COIL	PANEL MOUNTABLE, TRANSIENT SUPPRESSED DC COIL	PANEL MOUNTABLE, TRANSIENT SUPPRESSED DC COIL
Nominal coil voltage	28 V	-	28 V	28 V	28 V
Contact (AC) maximum rated load I	8A@115VAC	-	8A@115VAC	8A@115VAC	8A@115VAC
Contact (AC) maximum rated load M	4A@115VAC	-	4A@115VAC	4A@115VAC	4A@115VAC
Dielectric strength between breaking contacts	1250 Vrms	-	1250 Vrms	1250 Vrms	1250 Vrms
Input switching control type	Random	-	Random	Random	Random
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω
Number of terminals	5	-	5	5	5
PCB hole count	5	-	5	5	5
Relay style	1 FORM C	-	1 FORM C	1 FORM C	1 FORM C
Terminal surface	GOLD OVER NICKEL (150)	-	GOLD OVER NICKEL (150)	TIN	TIN
Terminal length	0.0043 inch	-	0.0043 inch	0.0043 inch	0.0043 inch
weight	16 g	-	16 g	16 g	16 g
