FSMRA4J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> FSMRA4J

FSMRA4J: DescriptionKEYPAD SWITCH; CategoryMechanical and electronic products switch; File Size284KB，8 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

FSMRA4J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FSMRA4J	-	-	View	Buy Now

FSMRA4J Overview

KEYPAD SWITCH

FSMRA4J Parametric

Parameter Name	Attribute value
Brand Name	Alcoswitch
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	ROUND/EXTENDED TYPE
body width	6.29 mm
body height	8.36 mm
Body length or diameter	7.11 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	FSMRAJ
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switches	1
Maximum operating force	1.57 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
method of packing	BULK
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

Preview

Download Datasheet

View All

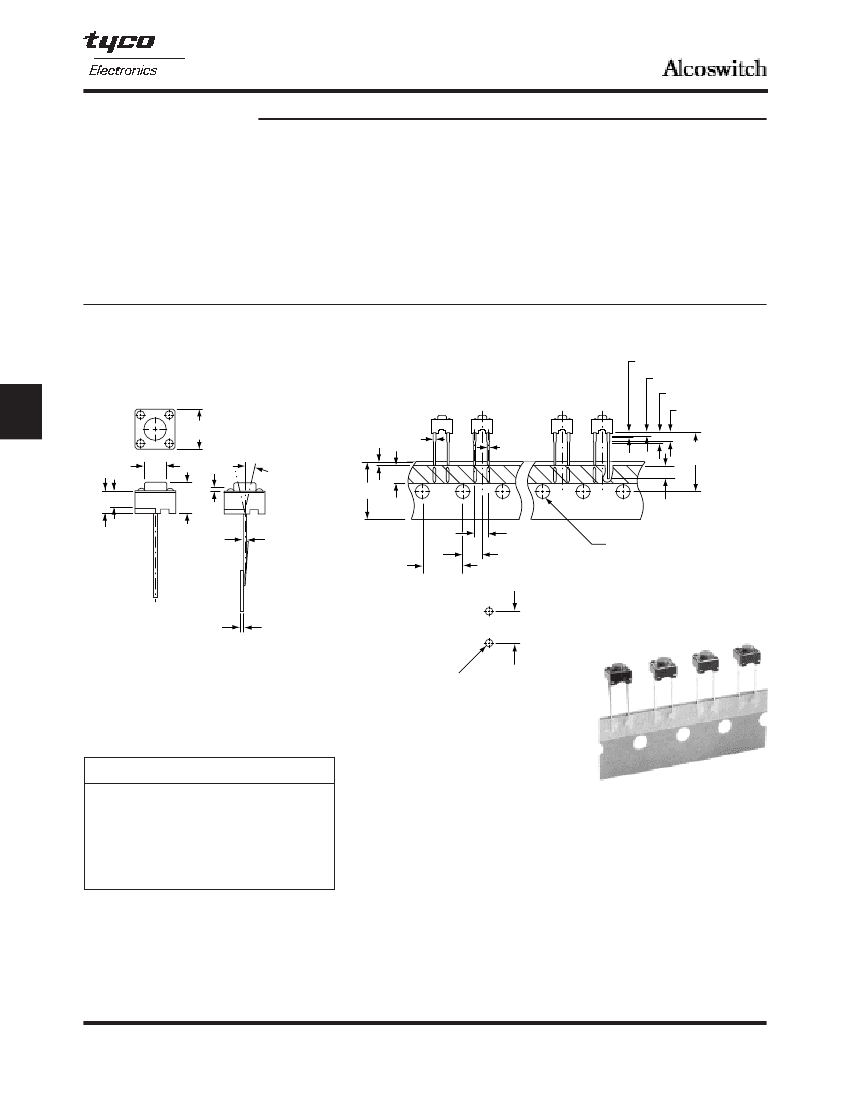

FSM Series

Tactile Switches, .138 [3.5] x .236 [6], Through Hole

MATERIAL SPECIFICATIONS:

Contacts ..................................Stainless/Silver clad plate

Case Material ..........................Nylon

Actuator Material ....................PBT

Terminals/Fixed Contacts........Copper alloy, Silver/Nickel

TYPICAL PERFORMANCE CHARACTERISTICS:

Contact Rating ........................50 mA @ 12 VDC

Initial Contact Resistance ........100 Milliohms max.

Insulation Resistance ..............100 Megohms min. @ 500 VDC

Dielectric Strength ..................500 VAC for 1 minute

Actuation Force ......................130±50 Grams

Actuator Travel.........................010"(.254)

Life Expectancy ......................Up to 20,000 Cycles

ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature............-40°F to +185°F (-40°C to + 85°C)

Storage Temperature................-40°F to +185°F (-40°C to + 85°C)

Solder Heat Resistance ............See Page M3-4

3.5 x 6mm

.236

(6.0)

.060

(1.52)

.118

(2.99)

.138

(3.50)

.059

(1.49)

.256

(6.50)

FSM

FSM Series

.138

(3.50)

.138

(3.50)

.197

(5.0)

.049

(1.24)

.012

(0.30)

.256

(6.50)

.311

(7.89)

.039

(0.99)

Tyco

Electronics

1437565-1

Alcoswitch

FSM

Type

SPST

Off

(On)

(On) indicates momentary position.

3.5 x 6mm

.236

(5.99)

.0315

(0.800)

.138

(3.50)

.118

(2.99)

.059

(1.49)

.256

(6.50)

FSMC

.138

(3.50)

.138

(3.50)

.012

(0.30)

.256

(6.50)

.311

(7.89)

.169

(4.3)

.049

(1.24)

.039

(0.99)

Tyco

Electronics

7-1437565-6

Alcoswitch

FSMC

Type

SPST

Off

(On)

(On) indicates momentary position.

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

FSMRA4J Related Products

	FSMRA4J	FSMRA7J	FSM
Description	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH
Brand Name	Alcoswitch	Alcoswitch	Alcoswitch
Is it Rohs certified?	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown
Actuator type	ROUND/EXTENDED TYPE	ROUND/EXTENDED TYPE	RECTANGULAR/EXTENDED TYPE
body width	6.29 mm	6.29 mm	3.5 mm
body height	8.36 mm	11.86 mm	3.5 mm
Body length or diameter	7.11 mm	7.11 mm	6 mm
Circuit configuration	1X1	1X1	1X1
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC	.05A@12VDC	.05A@12VDC
Maximum contact voltage (DC)	12 V	12 V	12 V
Electrical life	100000 Cycle(s)	100000 Cycle(s)	20000 Cycle(s)
JESD-609 code	e4	e4	e4
Manufacturer's serial number	FSMRAJ	FSMRAJ	FSM
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT
Number of switches	1	1	1
Maximum operating force	1.57 N	1.57 N	1.27 N
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-40 °C
method of packing	BULK	BULK	BULK
surface mount	NO	NO	NO
Switch action	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE
switch function	SPST	SPST	SPST
Switch type	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)
Termination type	SOLDER	SOLDER	SOLDER
ECCN code	EAR99	-	EAR99
