Bantam Plus DSX-1/1C System Patch Cords and
Accessories

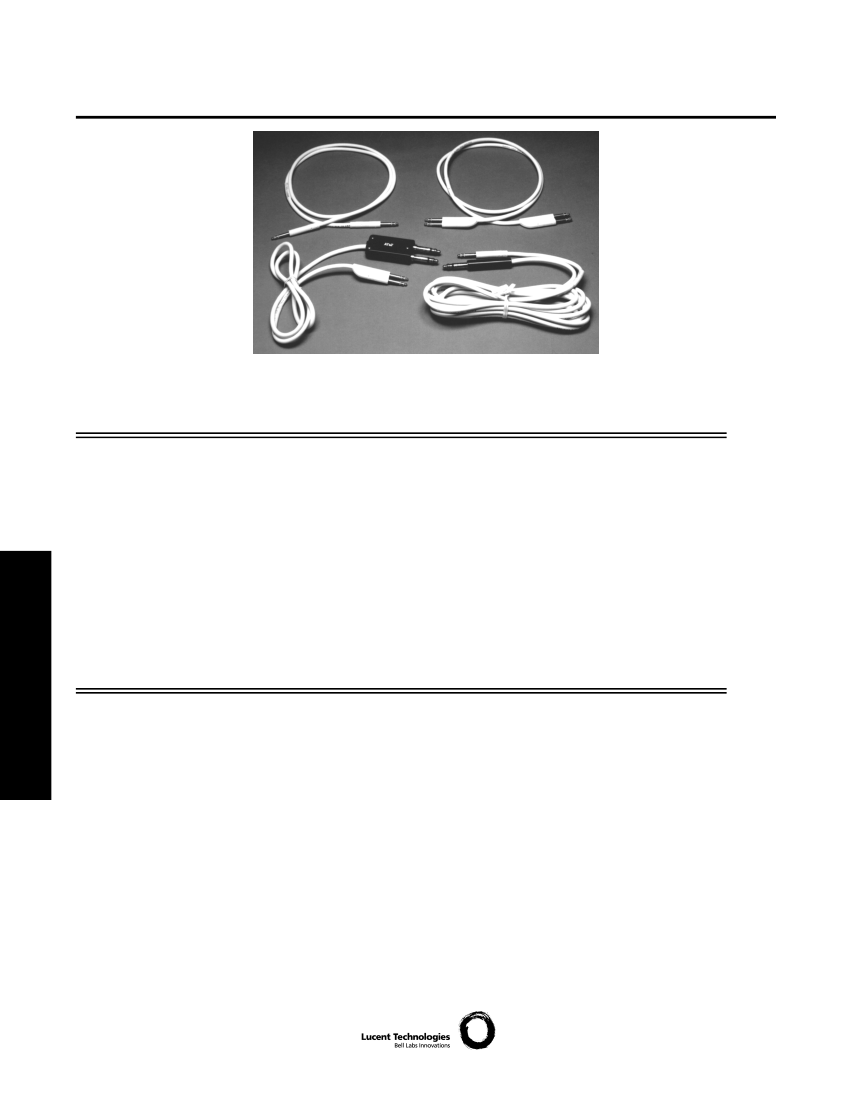

Bantam Plus Simplex and Duplex Standard and Hybrid Patch Cords
Description
The Bantam Plus – Digital Signal Cross-Connect-1/1C (DSX-1/
1C) System patch cords consist of a family of standard and hybrid
offerings. The term standard refers to cords having bantam-type
plugs, either single or duplex, on both ends. The term hybrid refers
to cords having a bantam-type plug on one end and a different
plug, either 800-type or 310-type (long-frame) on the other end.
There is also a new family of cords available called the DS-1
Cross-Connect Regenerator Cords. These cords boost the -20 dB
DS-1 monitor signal level by 20 dB to produce a standard DS-1
signal level. This feature allows DS-1 circuits from DSX
equipment, including Bantam Plus – DSX System, to be bridged to
other DSX equipment while the circuit is in service.
The cord configurations available are as follows:
•
Standard bantam-to-bantam
•
Hybrid bantam-to-800-type
•
Hybrid bantam-to-310 (long-frame)
•
800-type-to-bantam regenerator
•
Bantam-to-800-type regenerator
•
Bantam-to-bantam regenerator.
DS1, CEPT-1, and CEPT2
Patch Cord Specifications
Electrical and Transmission
•
Meets UL requirements for telephone circuits operating at
100 mA or less and a maximum of 56.5 V DC with a ring
voltage not exceed 150 V rms
•
Impedance: 100 ohms
•
Attenuation: 0.025 dB/ft at DS-1 rate
•
Return Loss: equal to or greater than 26 dB for patch cords
(12 feet [3.7 m]) long or less.
Mechanical
•
Bantam-Type Plugs: brass, 0.173 in. (4.4 mm) diameter
•
Conductor: 24 AWG (0.51 mm) solid copper
•
Outer Jacket: White flame-retardant PVC (bantam-to-bantam
and bantam-to-310 configurations)
•
Minimum breaking or connector pull-off strength: 65 Ibs.
(289 N) for the standard bantam-to-bantam configurations
Environmental
•
Operating Temperature: -40×F/C to +185×F (85×C)
•
Humidity: 0 to 95 percent
3-76
ExchangeMAX SCS (Select Code 4346C)
Issue 3, Jun 1999
Standard Bantam-to-Bantam Cords
LENGTH
SIMPLEX BANTAM
SIMPLEX BANTAM
Standard Simplex Bantam Patch Cord
DUPLEX BANTAM
LENGTH
DUPLEX BANTAM
The Bantam Plus - DSX System uses either
simplex or duplex standard cords. These cords
are compatible with other manufacturers' panels
using bantam-type jacks. Cords use three-
conductor plugs with single plug cords using
two-conductor shielded cable and dual (duplex)
plug cords using four-conductor shielded cable
with plug sleeves common. Cords are PVC
jacketed and plugs are overmolded onto cables.
Cable and overmolding color is white on the
bantam-to-bantam cords. The patch cords are
capable of connecting both DS1 and DS1C
signals.
Duplex cords are wired straight ; thus, to connect
the OUT jack of one DSX to the IN jack of
another DSX requires rotating (flipping) the
orientation of the duplex plugs at one end of the
cord relative to the plug at the opposite end.
For other lengths, contact your
Technologies Account Representative.
Lucent
Standard Duplex Bantam Patch Cords
Ordering Information
Apparatus Code
Simplex Patch Cords
DSX1P1A-01-BNP
DSX1P1A-03-BNP
DSX1P1A-06-BNP
DSX1P1A-12-BNP
DSX1P1A-25-BNP
DSX1P1A-50-BNP
Duplex Patch Cords
DSX1P2A-01-BNP
DSX1P2A-03-BNP
DSX1P2A-06-BNP
DSX1P2A-10-BNP
DSX1P2A-12-BNP
DSX1P2A-15-BNP
DSX1P2A-20-BNP
DSX1P2A-25-BNP
DSX1P2A-50-BNP
1-foot (0.3 m) duplex bantam patch cord
3-foot (0.9 m) duplex bantam patch cord
6-foot (1.8 m) duplex bantam patch cord
10-foot (3.0) duplex bantam patch cord
12-foot (3.7 m) duplex bantam patch cord
15-foot (4.6 m) duplex bantam patch cord
20-foot (6.1 m) duplex bantam patch cord
25-foot (7.6 m) duplex bantam patch cord
50-foot (15.2 m) duplex bantam patch cord
106 578 552
106 578 560
106 578 578
108 174 236
106 578 586
108 174 269
108 174 269
106 578 594
106 578 644
1-foot (0.3 m) simplex bantam patch cord
3-foot (0.9 m) simplex bantam patch cord
6-foot (1.8 m) simplex bantam patch cord
12-foot (3.7 m) simplex bantam patch cord
25-foot (7.6 m) simplex bantam patch cord
50-foot (15.2 m) simplex bantam patch cord
106 578 321
106 578 503
106 578 511
106 578 529
Description
Comcode
DS1, CEPT-1, and CEPT2
106 578 537
106 578 545
ExchangeMAX SCS (Select Code 4346C)
Issue 3, Jun 1999
3-77

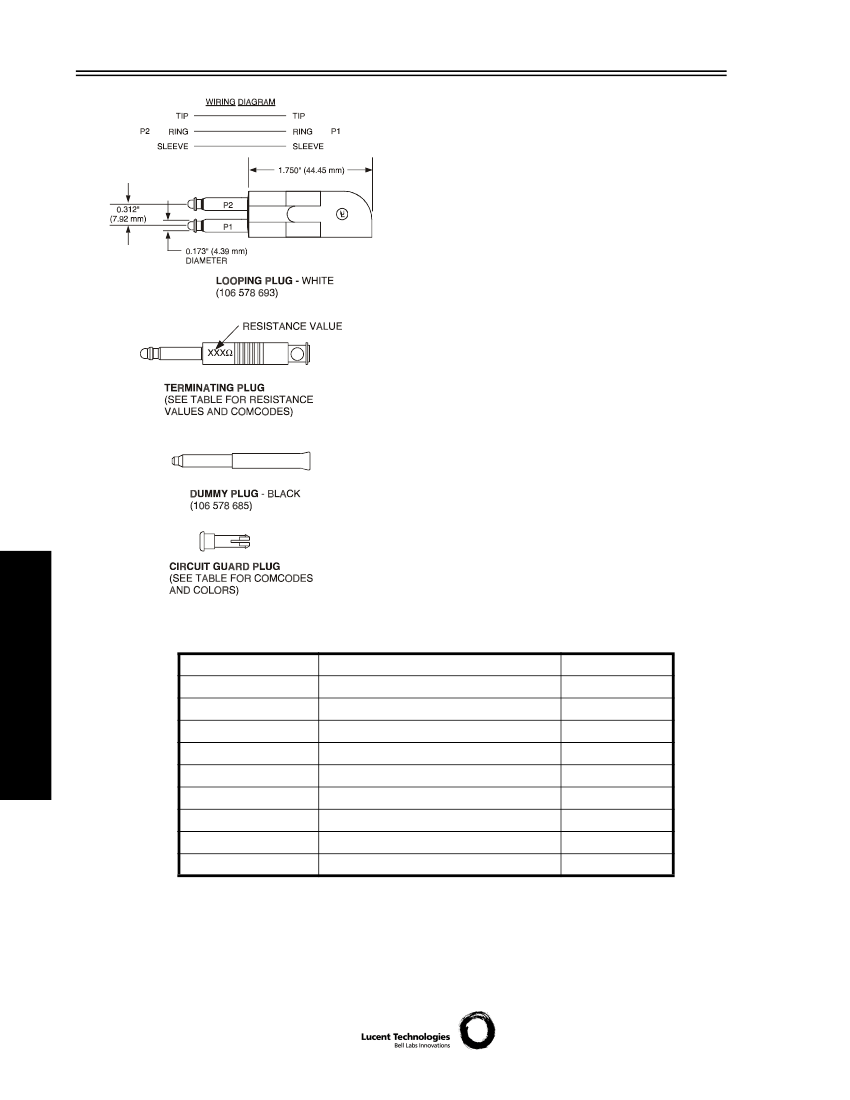

Bantam Plugs
Accessory plugs for the Bantam Plus - DSX System include
terminating, dummy, looping, and circuit guard plugs.
For testing of digital equipment prior to cutover, a looping plug
loops the OUT circuit to the IN.
A terminating plug is used to provide a resistive load on a digital
circuit, typically during testing or maintenance patching. Four
resistor values are available. The 100-ohm terminating plug is
intended to terminate DS1/1C circuits. The 135-ohm, 60-ohm, and
900-ohm terminating plugs are intended for voice-frequency
circuits and are not usually needed with the DSX system.
A dummy plug, when inserted, opens the normally closed contacts
within the bantam jack and is useful during transition procedures
where it is desirable to prerun cross-connects without causing long
Y-splices.
Circuit guard plugs are plastic, snap-in jack caps that block access
to the OUT, IN, or MON circuit jacks. They are used to prevent the
inadvertent interruption of service that could be caused by
inserting a plug into the OUT or IN jack positions. Circuit guard
plugs are available in red, black, or white.
DS1, CEPT-1, and CEPT2
Ordering Information
Code
DSX1TP1-100BNA
DSX1TP1-135BNA
DSX1TP1-600BNA
DSX1TP1-900BNA
DSX1DP1-BLKBNA
DSX1LP1-WHTBNA
DSX1CG1-REDBNA
DSX1CG1-BLKBNA
DSX1CG1-WHTBNA
Description
100-ohm terminating plug
135-ohm terminating plug
600-ohm terminating plug
900-ohm terminating plug
Black Dummy Plugs (Package of ten)
White Looping Plug
Red Circuit Guard Plugs (Package of ten)
Black Circuit Guard Plugs (Package of ten)
White Circuit Guard Plugs (Package of ten)
Comcode
106 578 651
106 588 486
106 588 510
106 588 551
106 578 685
106 578 693
106 578 701
106 588 569
106 588 577
3-78
ExchangeMAX SCS (Select Code 4346C)
Issue 3, Jun 1999
Accessory Plug Coding
DSX1 P 1 A - 03 - BNP
TYPE OF PLUG
*
- BNP = BANTAM
- LFP = 310 (LONG-FRAME)
LENGTH (IN FEET)
DESIGN ITERATION
CORD/CABLE TYPE
- 1 = SIMPLEX
- 2 = DUPLEX
PATCH CORD
SYSTEM TYPE
Type of plug on one
*
- a bantam-type plug. end of patch cord.
Opposite end has
Hybrid Patch Cords—Bantam-to-800-Type
BANTAM-TYPE MALE
BANTAM-TYPE FEMALE
1’ - 0" (.3 m)
800-TYPE MALE
800-TYPE MALE
LENGTH
1-Foot Single Bantam-Type Female to 800-Type
Male Patch Cord (800F/1)
Ordering Information
Bantam-Type Single Male to 800-Type Single Male
Patch Cord (800H/Length)
Patch cords are available to patch between a bantam-type jack and an 800-Series or 900-Series DSX jack or DIXI-1 DSX jack.
Apparatus Code
800/F1
800H/12
Description
1-foot (0.3 m) patch cord, bantam-type single female to 800-type single male
12-foot (3.7 m) patch cord, bantam-type single male to 800-type single male
Comcode
104 366 893
DS1, CEPT-1, and CEPT2
104 366 927
G
LEN
TH
BANTAM-TYPE MALE DUPLEX
WHITE 800-TYPE MALE DUPLEX
800-Type Male Duplex to Bantam-Type Male Duplex
Patch Cord (800HD/Length)
Ordering Information
Ordering information for the 800-Type-to Bantam hybrid duplex patch cords is provided below. See 365-301-120 for information on the
800-Series and 900-Series DSX Systems, or 365-301-121 for the DIXI-1 System
Apparatus Code
800HD/3
800HD/6
Description
3-foot (0.9 m) patch cord, 800-type male duplex to bantam-type male duplex
6-foot (1.8 m) patch cord, 800-type male duplex to bantam-type male duplex
Comcode
105 774 012
105 774 020
ExchangeMAX SCS (Select Code 4346C)
Issue 3, Jun 1999
3-79
Apparatus Code
800HD/12
800HD/25
800HD/50
Description
12-foot (3.7 m) patch cord, 800-type male duplex to bantam-type male duplex
25-foot (7.6 m) patch cord, 800-type male duplex to bantam-type male duplex
50-foot (15.2 m) patch cord, 800-type male duplex to bantam-type male duplex
Comcode
105 774 038
105 774 046
105 774 053
Hybrid Patch Cords—Bantam-to-310 (Long-Frame)
LENGTH
DUPLEX BANTAM
SIMPLEX BANTAM
SIMPLEX 310
LENGTH
DUPLEX 310
12-Foot Bantam-Type Simplex to 310-Type
Simplex Patch Cord
Ordering Information
Bantam-Type Duplex to 310-Type Duplex Patch Cord
Patch cords are available to patch between bantam-type jacks and 310-type jacks (long frame). The 310-type jacks are often found on
obsolete DSX-1/1C panels, such as ED-1C544-30 or ED-2C544-30 panels.
Apparatus Code
DSX1P1A-25-LFP
DSX1P1A-12-LFP
DSX1P2A-03-LFP
DSX1P2A-05-LFP
DSX1P2A-06-LFP
DSX1P2A-10-LFP
DSX1P2A-12-LFP
DSX1P2A-15-LFP
Description
10-foot (3.0 m) bantam-type simplex to 310-type simplex patch cord
12-foot (3.7 m) bantam-type simplex to 310-type simplex patch cord
3-foot (0.9 m) bantam-type duplex to 310-type duplex patch cord
5-foot (1.5 m) bantam-type duplex to 310-type duplex patch cord
6-foot (1.8 m) bantam-type duplex to 310-type duplex patch cord
10-foot (3.0 m) bantam-type duplex to 310-type duplex patch cord
12-foot (3.7 m) bantam-type duplex to 310-type patch cord
15-foot (4.6 m) bantam-type duplex to 310-type patch cord
20-foot (6.1 m) bantam-type duplex to 310-type patch cord
25-foot (7.6 m) bantam-type duplex to 310-type patch cord
30-foot (9.1 m) bantam-type duplex to 310-type patch cord
40-foot (12.2 m) bantam-type duplex to 310-type patch cord
50-foot (15.2 m) bantam-type duplex to 310-type patch cord
75-foot (22.9 m) bantam-type duplex to 310-type patch cord
Comcode
106 678 519
106 700 875
106 700 891
108 174 319
106 700 909
108 174 335
106 700 917
106 991 433
108 174 368
106 991 441
108 178 120
108 174 400
107 041 840
108 174 418
DS1, CEPT-1, and CEPT2
DSX1P2A-20-LFP
DSX1P2A-25-LFP
DSX1P2A-30-LFP
DSX1P2A-40-LFP
DSX1P2A-50-LFP
DSX1P2A-75-LFP
Miscellaneous Accessory Kits
The miscellaneous cord and plug kit (DSX1MAK1-1A-BNA,
Comcode 106 727 860) includes commonly used Bantam Plus -
DSX System patch cords, plugs, and circuit guards. The "soak kit"
(DSX1MAK1-1A-BLP, Comcode 107 995 110) consists of a total
of 29 patch cords, used to assist in a soak test for a DS1-DS3
Ordering Information
Apparatus Code
Comcode
Description
multiplexer.
Note:
Additional kits can be developed upon request. Contact
your local account representative or call 1-800-344-0223,
ext. 3122, for additional information.
Miscllaneous Accessory Kit—DSX1MAK1-1A-BNA—Comcode 106 727 860
DSX1TP1-100BNA
106 578 651
100-ohm Terminating Plug – Qty. four
3-80
ExchangeMAX SCS (Select Code 4346C)
Issue 3, Jun 1999
