860-2G0X-001 Overview

Single Color LED, Green,

860-2G0X-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
color	GREEN
Configuration	SINGLE
Maximum forward current	0.12 A
JESD-609 code	e0
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Maximum operating temperature	55 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	ROUND
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

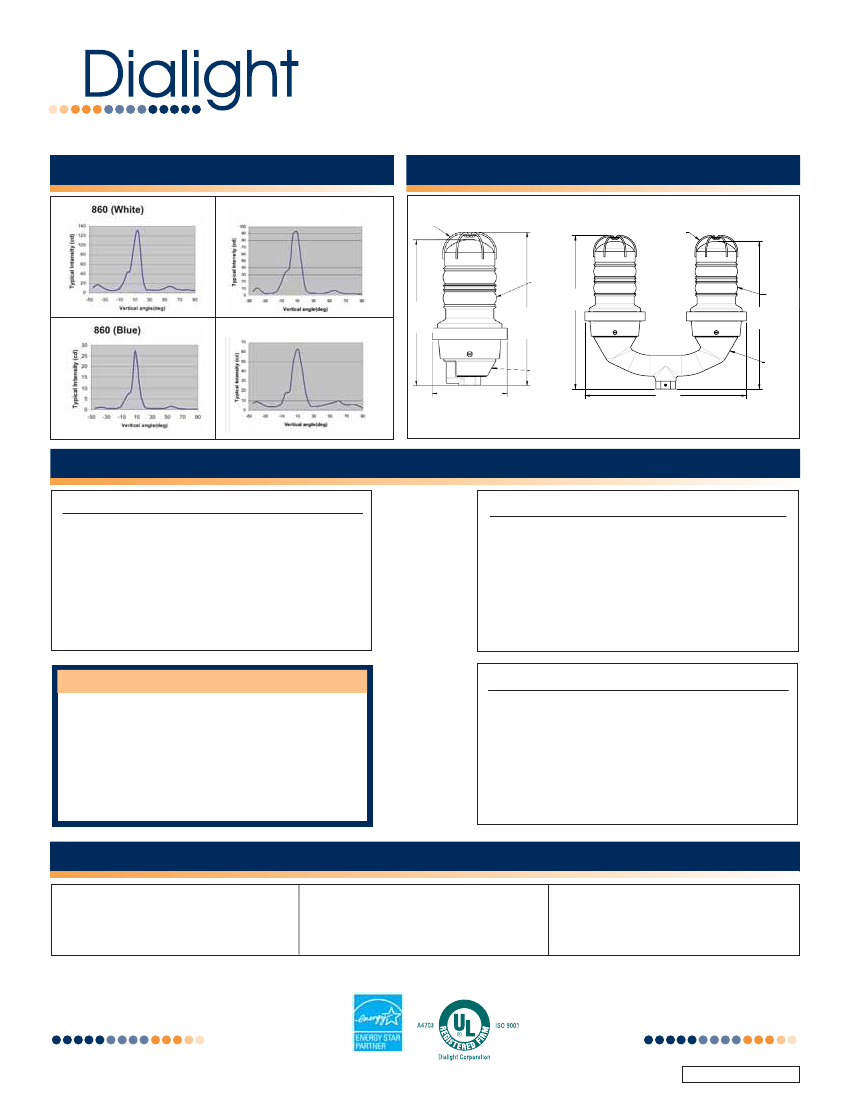

Preview

Download Datasheet

View All

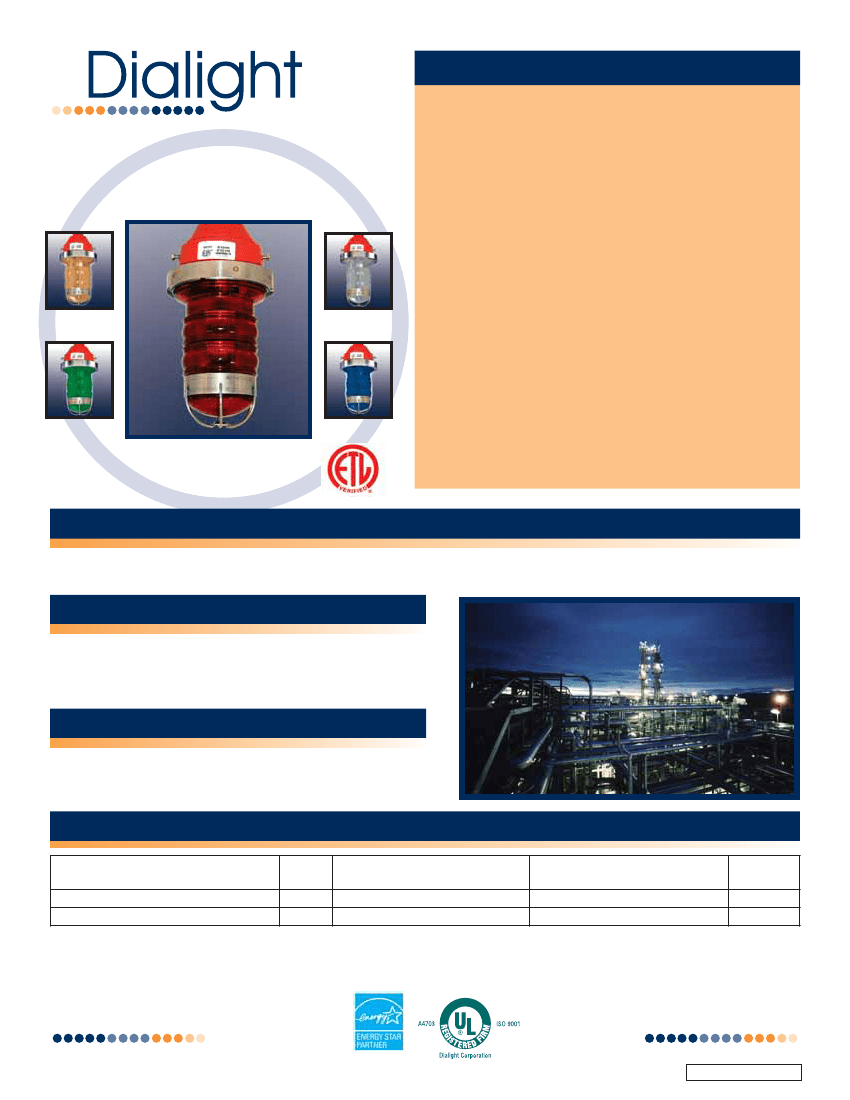

FEATURES / BENEFITS

Inherent safety capability; low electrical/thermal energy

and high light output

CLASS 1, DIV 2

LED VISUAL SIGNAL LIGHT

Suitable for all Class 1, Div 2, Groups A, B, C, D

hazardous environments

Unique optically designed lens to enhance LED

operation and provide 360

visibility

Weather/corrosion resistant lamp assembly and

housing

Self-contained wiring compartment eliminates

additional boxes

Can be operated steady or flashed

(controller not supplied)

Available as a single or dual unit

Resistant to shock and vibration

Threaded 1” and 3/4” bottom hub for mounting

Lasts years longer than an incandescent

5 year warranty

ETL Listed in compliance with

UL1598 and UL844 for use in

Class 1, Div 2 Hazardous Locations

IP 65 rated

APPLICATION

The Dialight Visual Signal Light is an LED BASED Class 1, Division 2 certified fixture. Used for visual indication

in hazardous environments, providing a valuable solution to the petrochemical industry facilities.

OPERATING CONDITIONS

Temperatures ranging from -67

F to +131

F (-55

C to

+55

C). Will withstand wind in excess of 150 mph

(240 kph), salt fog.

MATERIALS / FINISH

Cast aluminum housing and stainless steel hardware.

Electro-statically applied powdercoat of aviation orange paint.

ELECTRICAL SPECIFICATIONS

OPERATING VOLTAGE

Min Nominal

Max

120

132

198

220

265

WATTS (W)

Typ

Max

14.5

17.5

14.5

17.5

120VAC UNITS

220VAC UNITS (60 Hz)

46.5

AMPS

120mA

Dialight Europe Ltd.

Exning Road, Newmarket, England, CB8 0AX

Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735

www.dialight-obstruction-lights.com

A Subsidiary of Dialight PLC

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778

www.dialight.com

MDTF860C1D2004_C
