ECS-FREQ1-S-42-C-D-N-TR: DescriptionSeries - Fundamental Quartz Crystal, 12MHz Min, 19.999MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size112KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-FREQ1-S-42-C-D-N-TR Overview

Series - Fundamental Quartz Crystal, 12MHz Min, 19.999MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

ECS-FREQ1-S-42-C-D-N-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECS
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	300 µW
frequency stability	0.01%
frequency tolerance	10 ppm
Installation features	SURFACE MOUNT
Maximum operating frequency	19.999 MHz
Minimum operating frequency	12 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L4.0XB2.5XH0.8 (mm)/L0.157XB0.098XH0.031 (inch)
Series resistance	60 Ω
surface mount	YES

Preview

Download Datasheet

View All

Low Profile

4.0 x 2.5 mm Footprint

Extended Temp. Range Option

RoHS Compliant

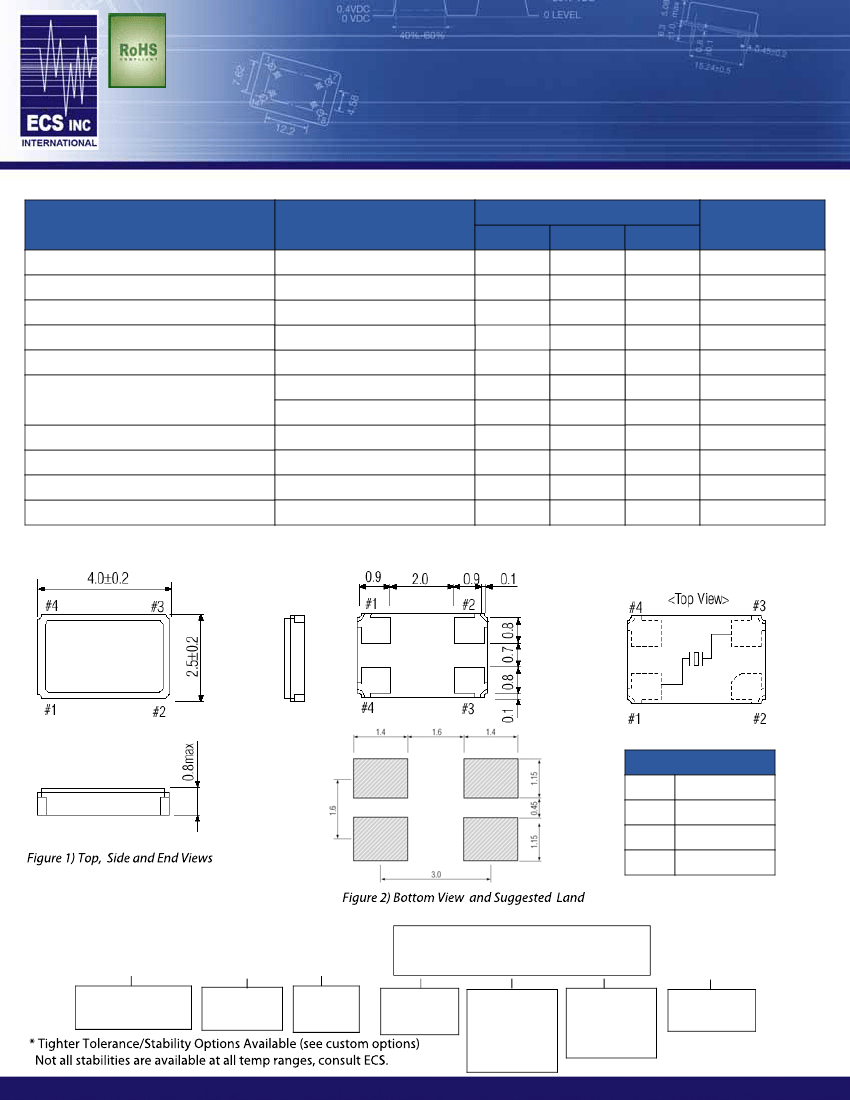

ECX-42

SMD CRYSTAL

The miniature ECX-42 is a compact SMD Crystal. The

4.0 x 2.5 x 0.8 mm ceramic package is ideal for today's

SMD manufacturing environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability (ref @ 25°C)

Shunt Capacitance

Load Capacitance

Equivalent Series Resistance

Fundamental Model

Drive Level

Operating Temperature

Storage Temperature

Aging Characteristics (Per Year)

T

opr

T

stg

@ +25°C ± 3°C

-10

-40

Specify in P/N

12.000 ~ 19.999 MHz

20.000 ~ 32.0000 MHz

12

+25

80

60

300

+70

+85

±5

CONDITIONS

F

O

@ +25°C

-10 ~ +70°C

ECX-42

MIN

12.000

TYP

MAX

32.000

± 30 *

± 50 *

5.0

UNITS

MHz

ppm

pF

Ω

µW

°C

ppm

PACKAGE DIMENSIONS (mm)

Pad Connections

1

2

3

4

In/Out

Gnd

In/Out

Gnd

PART NUMBERING GUIDE: Example ECS-160-12-42-TR

ECS - Frequency Abbreviation - Load -

160 = 16.000 MHz

See P/N Guide for

Std Frequencies

12 = 12.0 pF

S = Series

Custom Options

- Tolerance

Blank= Std

A = ± 25 ppm

C = ± 10 ppm

Package Type

-42 =

ECX-42

-

Stability - Temp Range

Blank= Std

D = ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

K = ± 10 ppm

Blank= Std

L = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40~+105°C

-

Packaging

-TR =

Tape & Reel

1K/Reel

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
