SINGLE-PHASE BRIDGE RECTIFIER
MB3505 THRU MB3510
KBPC35005 THRU KBPC3510
FEATURES
l
Low cost
l
This series is UL recognized under component
index, file number E127707
l
High forward surge current capability
l
Ideal for printed circuit board
l
High isolation voltage from case to leads
l
High temperature soldering guaranteed:
260
o
C/10 second, at 5 lbs. (2.3kg) tension.
MECHANICAL DATA
l
Case: Molded plastic body
l
Terminal: Plated 0.25” (6.35mm) lug.
l
Polarity: Polarity symbols marked on case
l
Mounting: Thru hole for #10 screw, 20 in.-lbs torque max.
l
Weight:1.02 ounce, 29 grams
VOLTAGE RANGE
CURRENT
50 to 1000 Volts
35 Amperes
MB-35
1.14( 28.9)
1.12( 28.4)
0.666( 16.9)
0.626( 15.9)
+
AC
1.14( 28.9) 0.728( 18.5)
1.12( 28.4) 0.688( 17.5)
-
AC
0.666( 16.9)
0.626( 15.9)
0.570( 14.5)
0.530( 13.5)
0.205( 5.2)
DIA
0.197( 5.0)
EXOPY CASE
0.46( 11.7)
0.41( 10.5)
0.472( 12.0)
0.374( 9.5)
0.033( 0.84)
0.028( 0.71)
0.252( 6.4)
0.248( 6.3)
0.252( 6.4)
0.248( 6.3)
0 .0
9(
2
D IA
.3)
Dimensions in inches and (millimeters)

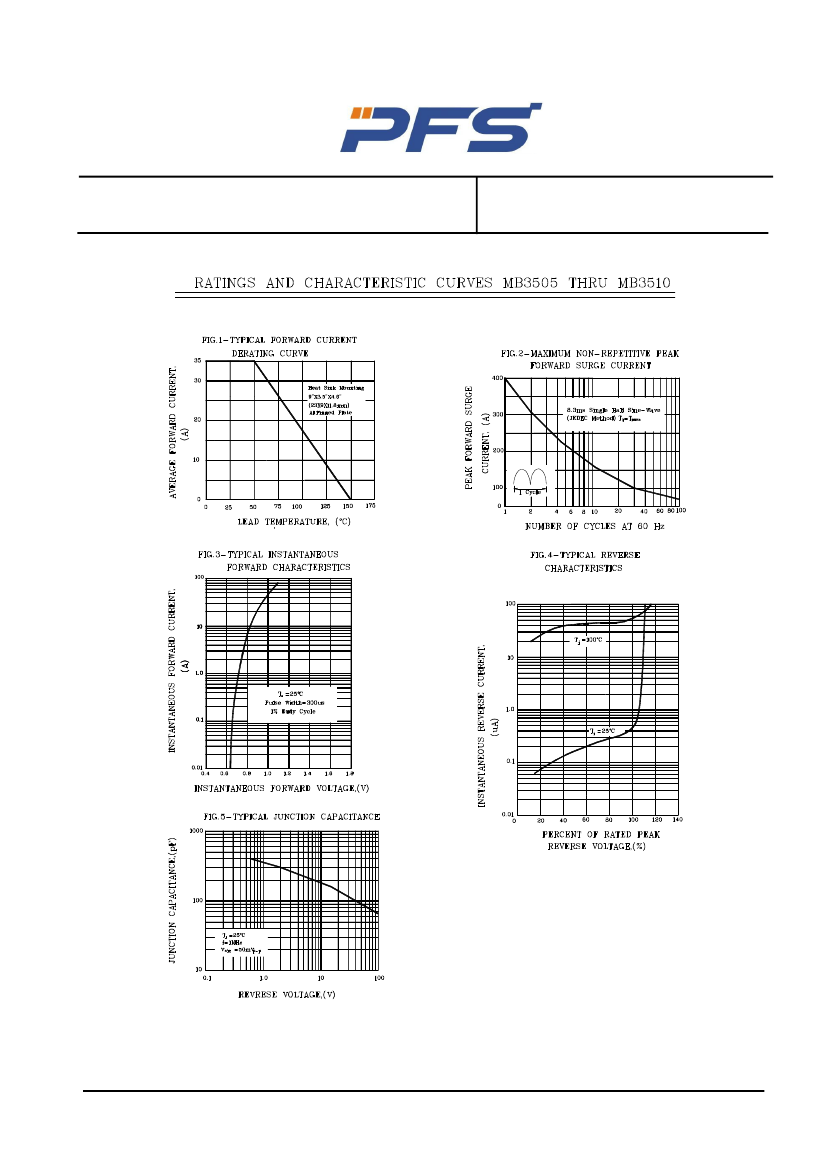

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load derate current by 20%.
SYMBOLS
KBPC35005 KBPC3501 KBPC3502 KBPC3504 KBPC3506
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Output Current, at T
C
=50℃(Note1,2)
Peak Forward Surge Current 8.3ms single half
sine-wave superimposed on rated load (JEDEC
Method)
Rating for Fusing(t<8.3ms)
Maximum Instantaneous Forward Voltage at 17.5A
T
A
=25℃
Maximum DC Reverse Current at
rated DC blocking voltage
T
A
=125℃
Isolation Voltage from case to lugs
Typical Thermal Resistance (Note 1,2)
Operating Temperature Range
Storage Temperature Range
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I
2
T
V
F
I
R
V
ISO
R
θJC
T
J
T
STG
50
35
50
100
70
100
200
140
200
400
280
400
35
400
664
1.1
10
1.0
2500
2.0
-55 to +150
-55 to +150
600
420
600
MB3505
MB351
MB352
MB354
MB356
MB358
KBPC3508
MB3510
KBPC3510
UNITS
Volts
Volts
Volts
Amps
Amps
A
2
S
Volts
µAmps
mAmps
V
AC
℃/W
℃
℃
800
560
800
1000
700
1000
NOTES:
1.
Unit mounted on 9”×3.5”×4.6”(23×9×11.8mm) Al. finned plate.
2.
Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency with #10 screw.
