Commercial
CCT-39
Latching
Multi-Throw Internal Terminations DC-18GHz

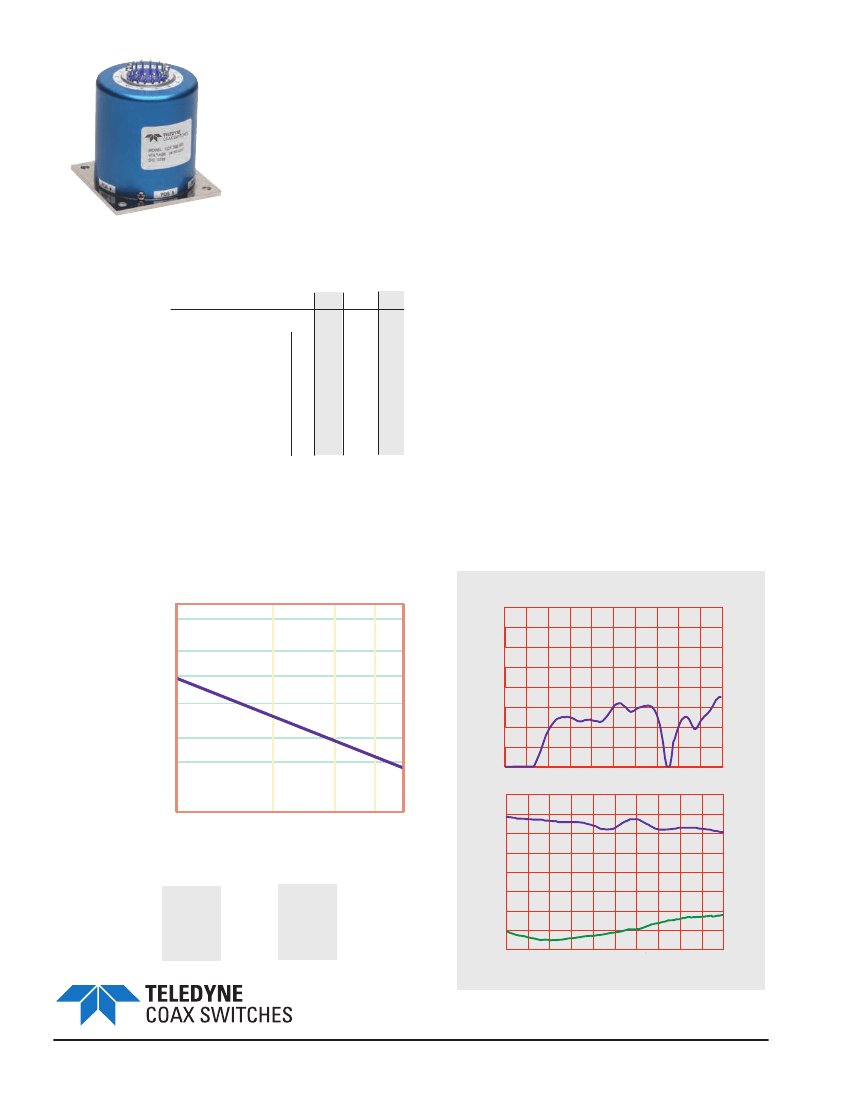

The CCT-39 Switch is a Internally Terminated broadband, multi-throw, electromechanical coaxial
switch designed to switch a microwave signal from a common input to any of 3, 4, 5, or 6 outputs.
The characteristic impedance is 50 Ohms. Internal terminations provide an impedence match for the
unselected ports. The switches are small using the popular connector spacing on a 1.062" dia.
circle. Each position has an individual actuator mechanism allowing random position selection. This
also minimizes switching time.
Specifications
RF Contacts:
Actuator
Break before make
Voltage (VDC) 20
O
C
Latching Current (mA)
Positions
12
255
15
205
28
90
The CCT-39 comes with a latching actuator. The latching switch
remains in the last position selected when the switch is de-energized.
STD dual command requires a reset pulse before a new selected
position. A separate reset circuit allows all positions to be set to an
open position. User must provide both reset (clear) and set (select
new position) commands.
Shock:
MIL-STD-202 Method 213, Condition D (500G
Non Operating)
MIL-STD-202 Method 214, Condition D (10G
RMS Non Operating)
Moisture Seal Available
Reset Current (mA)
3
765
615
270
360
4 1020 820
Vibration:
Humidity:
5 1275 1025 450
6 1530 1230 540
Switching Time:
Terminations:
Connectors:
Weight:
20 msec max
50 Ohm 2 Watts CW max
SMA (f)
6 oz. max
Typical
Contact Life:
5 Million
Cycles
Insertion Loss Repeatability (1 Million Cycles):
DC to 6 GHz: 0.05 dB
DC to 20 GHz: 0.1 dB
Temperature Range:
-40
O
C to +65
O
C (Operating)
RF Power Handling (Non-Terminated)
Typical Performance
3000
800
400
Sta
Power CW (Watts)
nda
r
dS
MA
200
Co
nne
cto
rs
80
40
Return Loss
15
25
0.01
Frequency GHz
18.0
1.0
Frequency GHz
4.0
10
18
0.4
IL dB
Specifications
VSWR (max)
Insertion Loss (max)
Isolation (min)
DC-6 GHz 6-12 GHz 12-18 GHz
1.25:1
0.20 dB
70.0 dB
1.40:1
0.40 dB
60.0 dB
1.50:1
0.50 dB
60.0 dB
0.01
Frequency GHz
18.0
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
Isolation dB
60
70
80
90
10
0.1
0.0
Multi-Throw
Internal Terminations DC-18GHz
Latching
TTL
Commercial
CCT-39
Indicators
Analog
SP3T
SP5T
SP6T
H = 2.25 STD Model
H = 2.50 TTL Model
SP4T

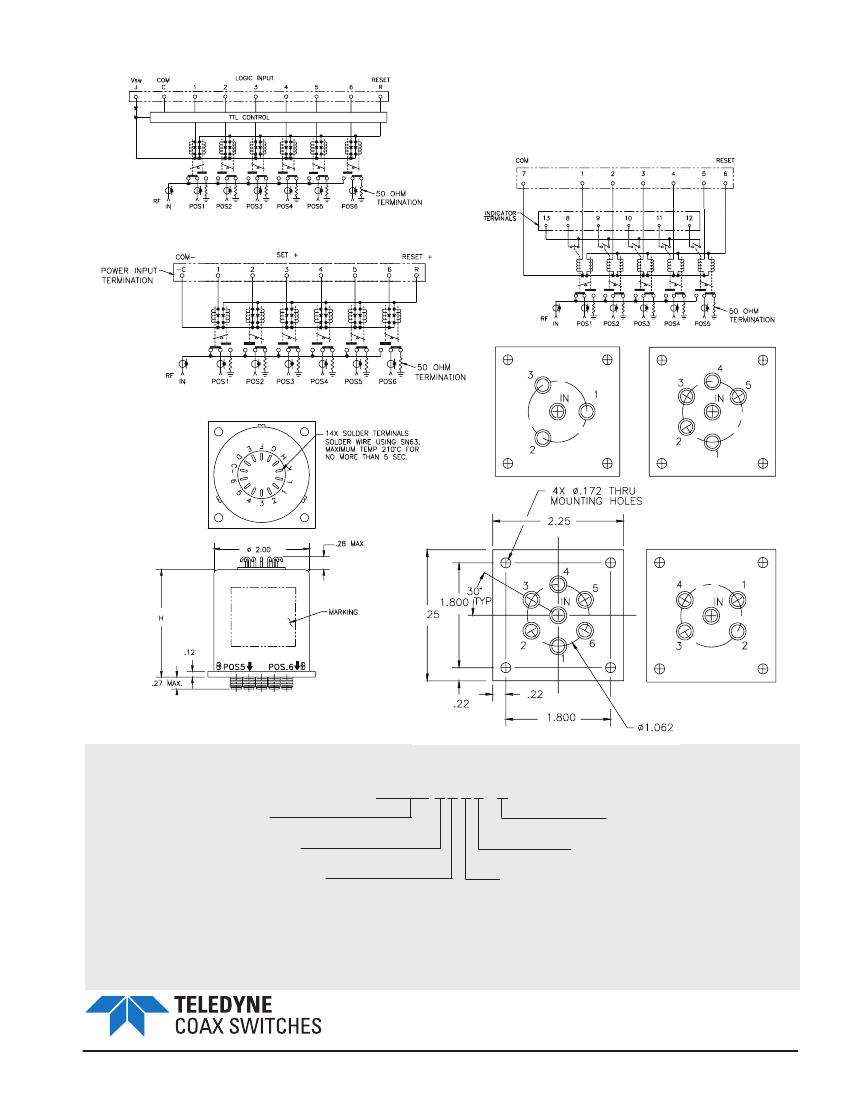

Part Numbering System for CCT-39 (Latching)
CCT-39 S 6 5 O - T
Series
Connectors
Actuator Voltage
Connector
S: SMA Female
Actuator Voltage
6: 28Vdc Latching
7: 15Vdc Latching
8: 12Vdc Latching
Number of
Positions
3: SP3T
4: SP4T
5: SP5T
6: SP6T
Options
Actuator Type
Number of Switch Positions
Actuator Type
O: No Indicator Contacts
C: Indicator Contacts
Options
T: TTL Drivers with Diodes
R: Positive + Common
TD: TTL Driver with Decoder
For other options contact Factory
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
