CCT-58S14C-RM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> CCT-58S14C-RM

CCT-58S14C-RM: DescriptionRF Coaxial Relay; CategoryMechanical and electronic products relay; File Size930KB，14 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric View All

CCT-58S14C-RM Overview

RF Coaxial Relay

CCT-58S14C-RM Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	CCT-58S
Relay type	RF COAXIAL RELAY

Preview

Download Datasheet

View All

COAX SWITCHES

PART NUMBER

CCT-58S

CT-58S

DESCRIPTION

Commercial Normally Open Multi-throw, DC-26.5GHz

Elite Normally Open Multi-throw, DC-26.5GHz

Series CCT-58S/CT-58S

Multi-Throw DC-26.5 GHz

Normally Open Coaxial Switch

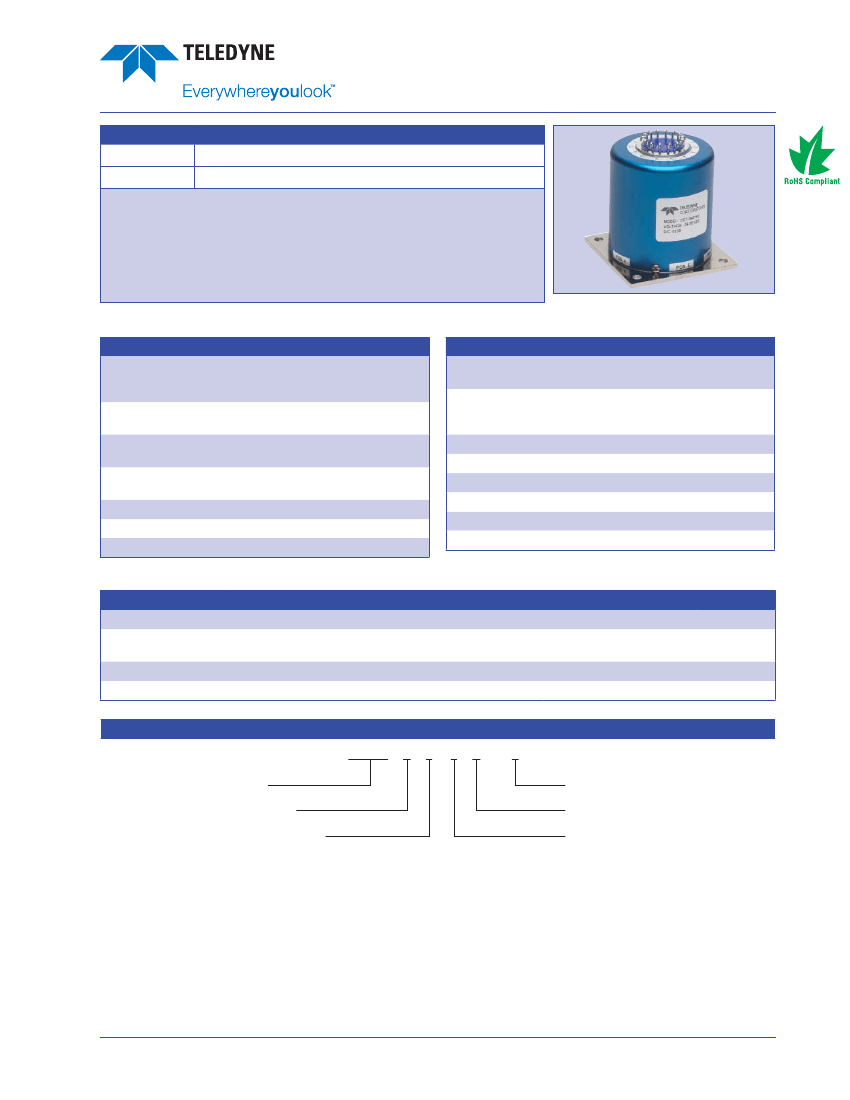

The CCT-58S/CT-58S is an internally terminated, broadband, multi-throw, electromechanical coaxial

switch designed to switch a microwave signal from a common input to any of 3, 4, 5, or 6 outputs.

The characteristic impedance is 50 Ohms. Internal terminations provide an impedance match for the

unselected ports. The switches are small using the popular connector spacing on a 1.062” dia. circle.

Each position has an individual actuator mechanism allowing random position selection. This also

minimizes switching time.

The CCT-58S/CT-58S comes with a normally open actuator. For the normally open actuator, all ports are

terminated in 50 Ohms, except the common input port which is open when the switch is de-energized.

ENVIRONMENTAL AND PHYSICAL CHARACTERISTICS

Operating Temperature

Commercial Model, CCT-58S

Elite Model, CT-58S

Vibration (MIL-STD-202 Method 214,

Condition D, non-operating)

Shock (MIL-STD-202 Method 213,

Condition D, non-operating)

Standard Actuator Life

Actuator Life w/ Additional Features

Connector Type

Humidity (Moisture Seal)

Weight

–40°C to 65°C

–55°C to 85°C

10 g’s RMS

500 g’s

5,000,000 cycles

1,000,000 cycles

SMA

Available

6 oz. (170.1g) (max.)

ELECTRICAL CHARACTERISTICS

Form Factor

Frequency Range

CCT-58S

CT-58S

Characteristic Impedance

Terminations

Operate Time

Release Time

Actuation Voltage Available

Actuation Current, max. @ ambient

Multi-Throw,,

break before make

DC–26.5 GHz

50 Ohms

50Ω, 2 Watts CW max.

15 ms (max.)

28 V

420 350 250 200 mA

PERFORMANCE CHARACTERISTICS

Frequency

Insertion Loss, dB,

max.

Isolation, dB, min.

VSWR , max.

DC–4 GHz

0.1

1.05:1

4–8 GHz

0.2

1.1:1

8–12 GHz

0.2

1.2:1

12–16 GHz

0.3

1.2:1

16-20 GHz

0.3

1.2:1

20-24 GHz

0.4

1.2:1

24-26.5 GHz

0.8

1.7:1

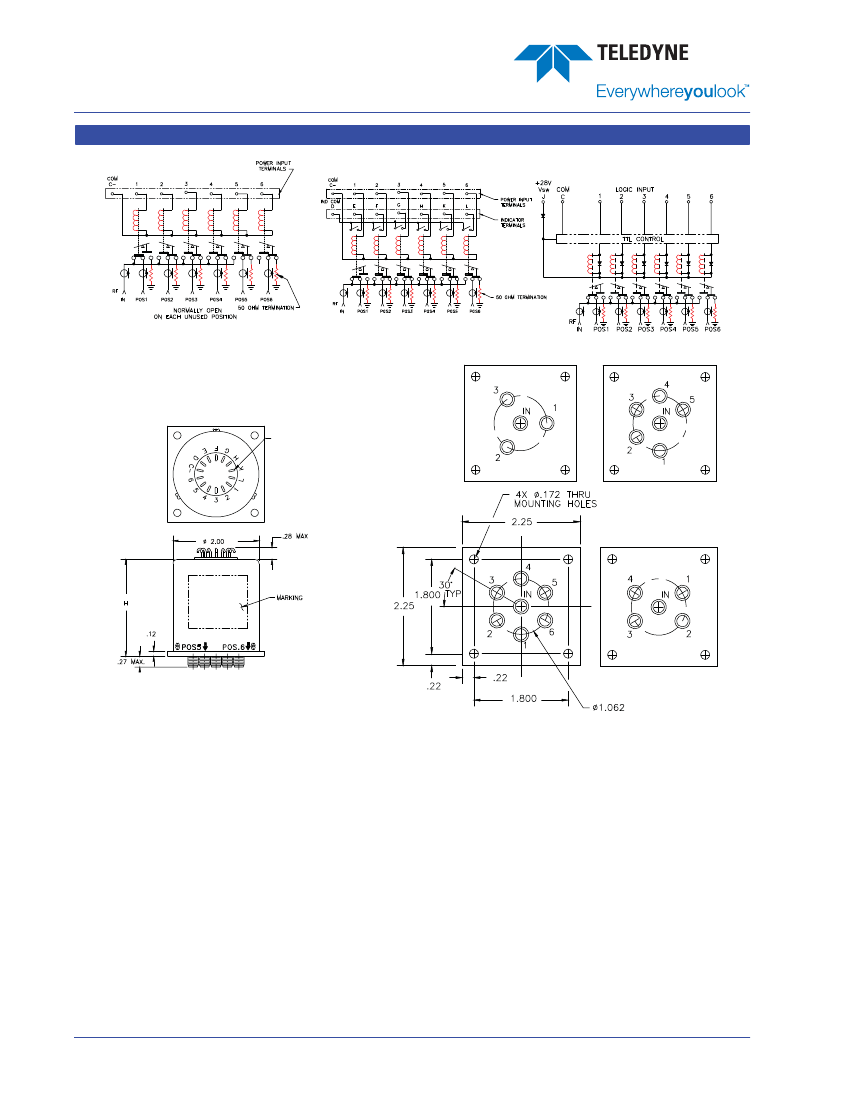

PART NUMBERING SYSTEM

CCT-58

Series

Connectors

Actuator Voltage

CONNECTOR

SMA FEMALE

ACTUATOR VOLTAGE

NUMBER OF POSITIONS

ACTUATOR TYPE

Options

Actuator Type

Number of Positions

OPTIONS

TTL DRIVERS WITH DIODES

COIL TRANSIENT SUPPRESSION DIODES

POSITIVE

1: 28

VDC NORMALLY OPEN

2: 15

VDC NORMALLY OPEN

3: 12

VDC NORMALLY OPEN

4: 24

VDC NORMALLY OPEN

NO INDICATOR CONTACTS

INDICATOR CONTACTS

COMMON

DECODERS AND TTL DRIVERS WITH

DIODES

SEE PARTS LIST ON PAGE

12-14

MOISTURE SEAL

SUB CONNECTOR

For additional options, please contact factory.

(800) 284-7007 • www.teledynecoax.com

* D-Sub Connector may be 9 or 15 pin depending on

number of throws. (See Connector Pinout page)

CCT-58S/CT-58S Page 1

CCT-58S\CT-58S\082013\Q3
