UPD42S16800LV-A80 datasheet, PDF

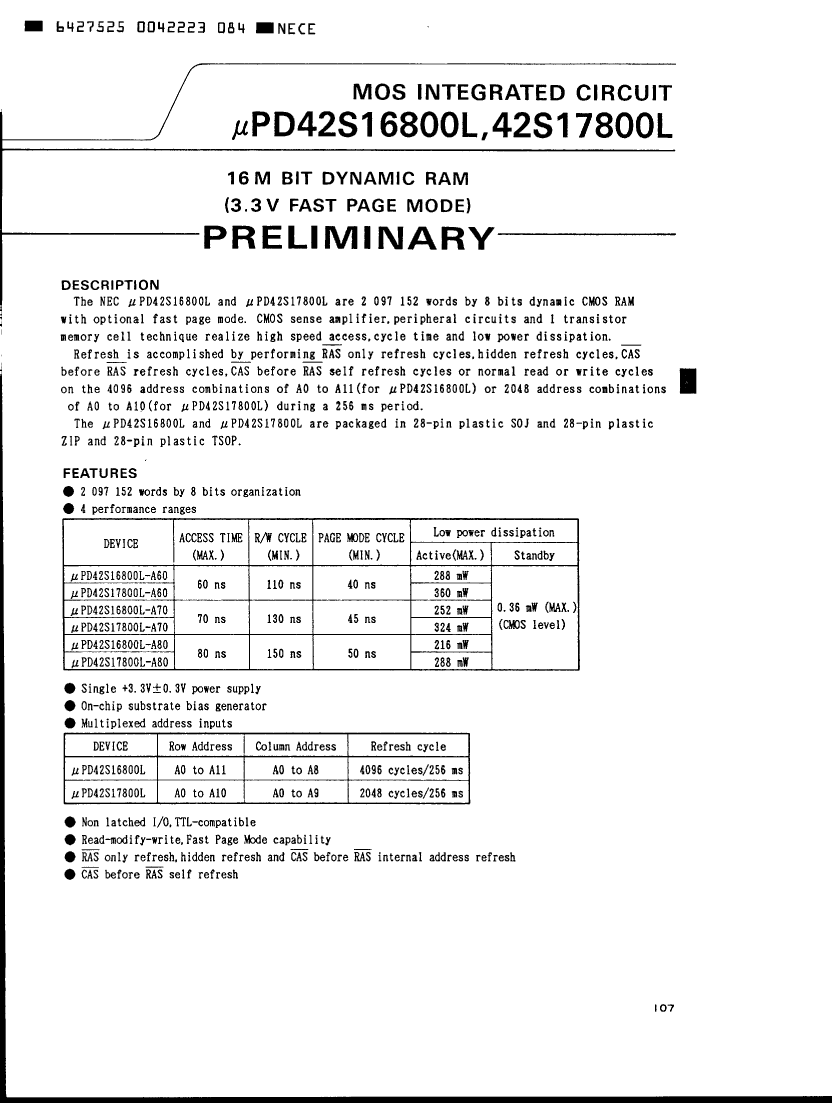

UPD42S16800LV-A80: DescriptionIC,DRAM,FAST PAGE,2MX8,CMOS,ZIP,28PIN,PLASTIC; Categorystorage storage; File Size2MB，40 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

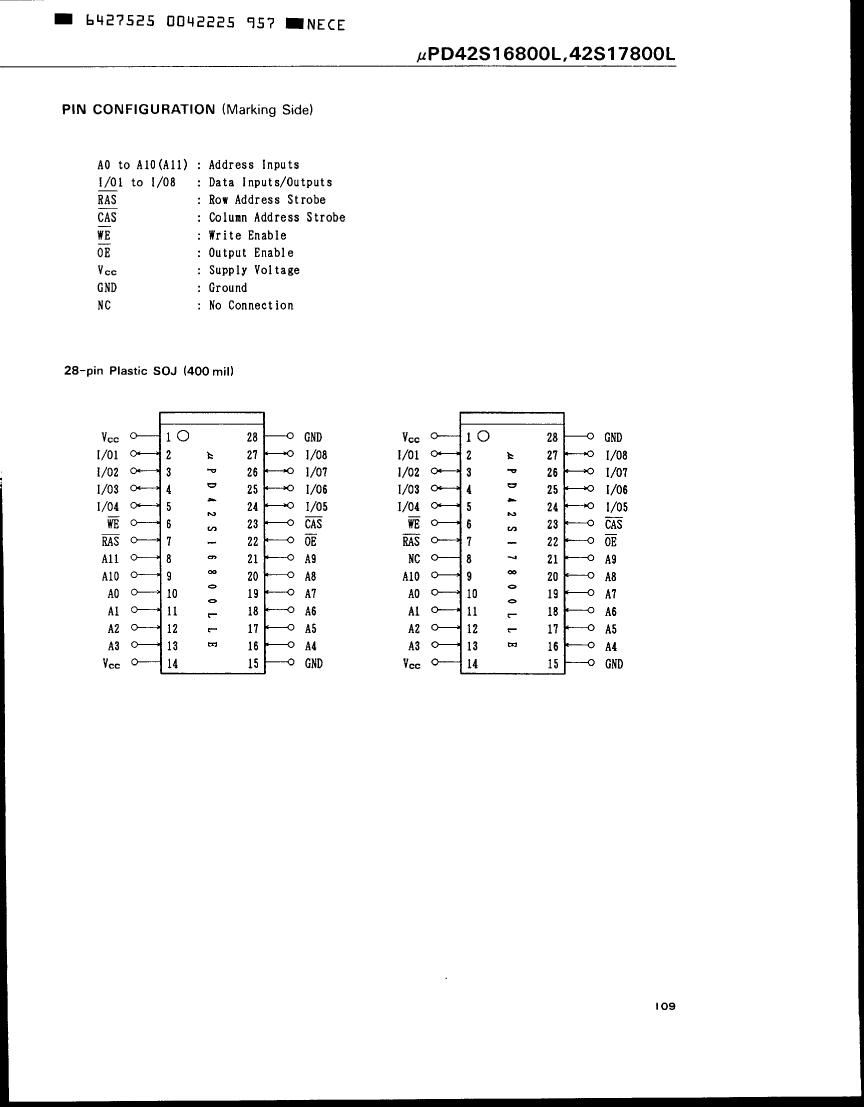

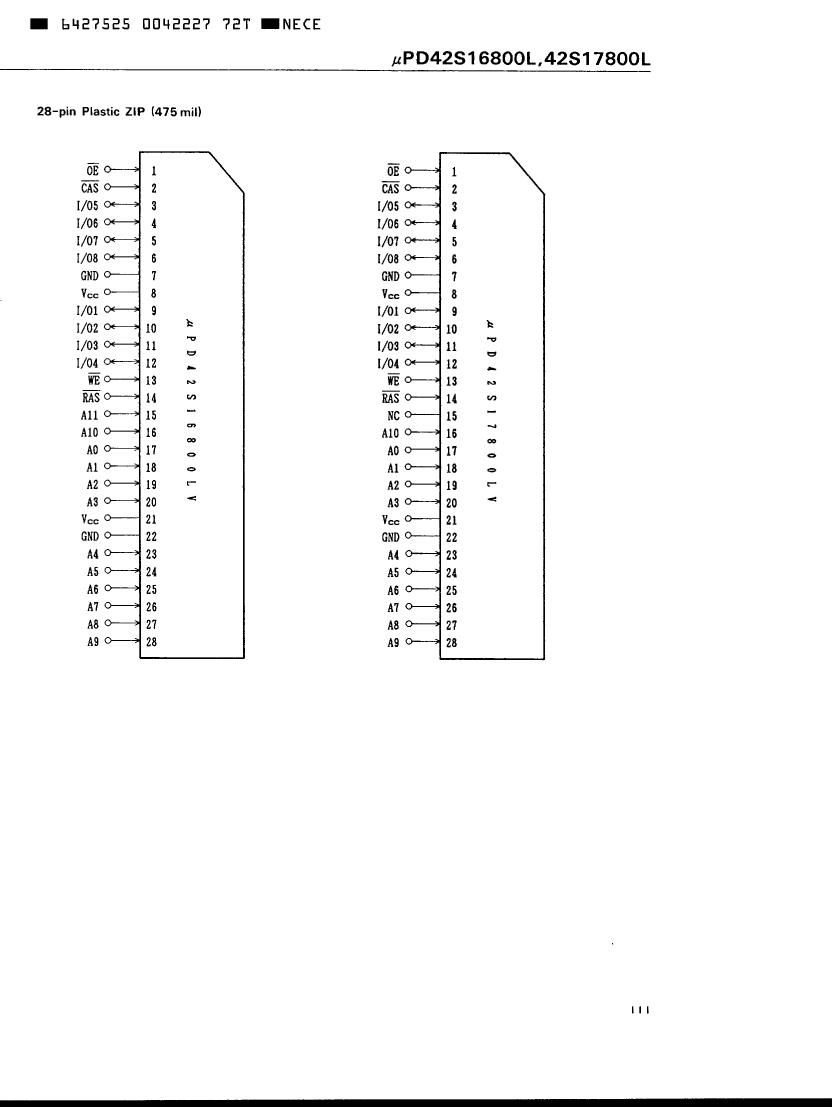

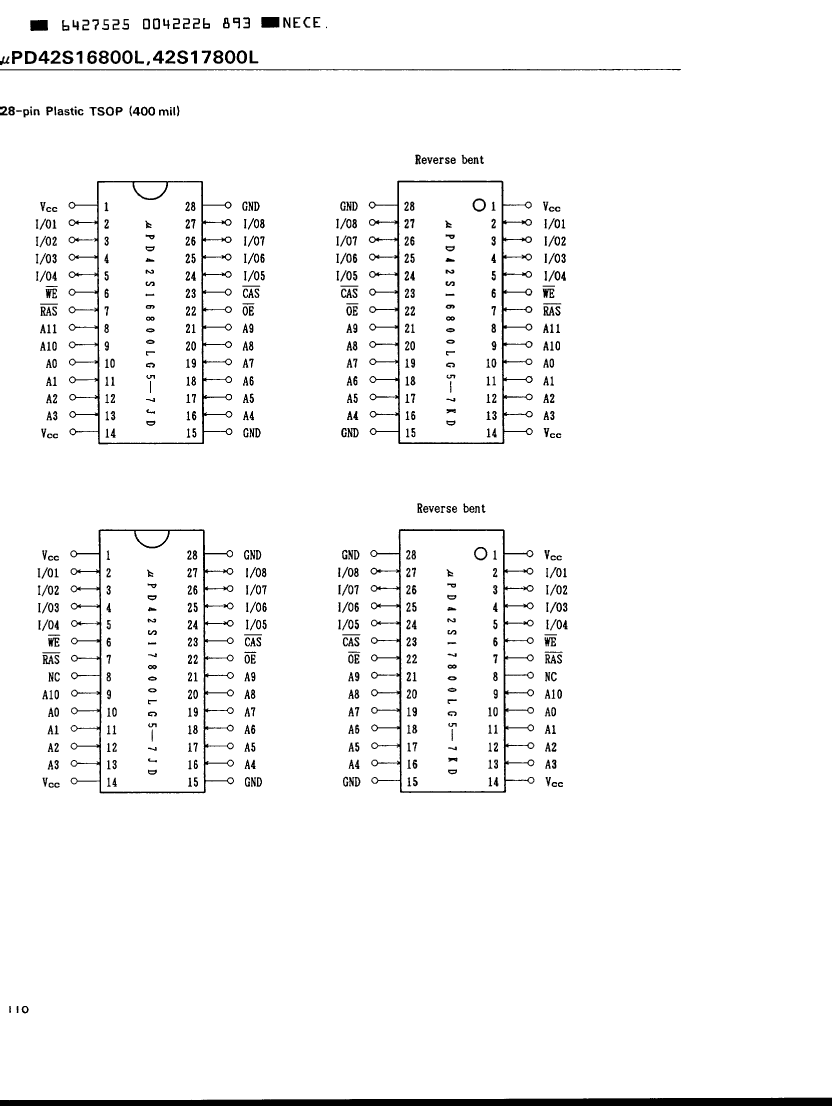

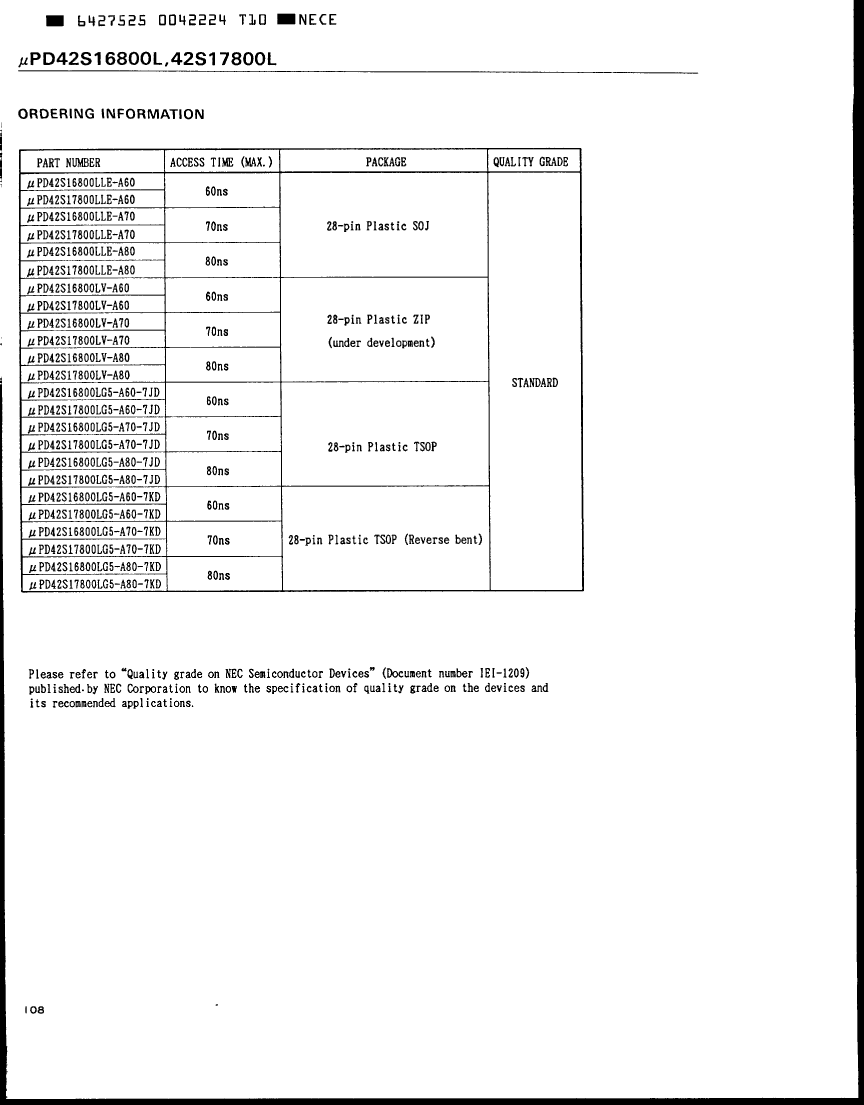

UPD42S16800LV-A80 Overview

IC,DRAM,FAST PAGE,2MX8,CMOS,ZIP,28PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	ZIP, ZIP28,.1
Reach Compliance Code	unknown
Maximum access time	80 ns
I/O type	COMMON
JESD-30 code	R-PZIP-T28
JESD-609 code	e0
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	8
Number of terminals	28
word count	2097152 words
character code	2000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP28,.1
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum standby current	0.0001 A
Maximum slew rate	0.06 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG

	UPD42S16800LV-A80	UPD42S16800LG5A80-7JD	UPD42S16800LG5A70-7JD	UPD42S17800LV-A70	UPD42S17800LV-A80	UPD42S16800LV-A70	UPD42S17800LG5A60-7KD	UPD42S17800LG5A80-7KD
Description	IC,DRAM,FAST PAGE,2MX8,CMOS,ZIP,28PIN,PLASTIC	UPD42S16800LG5A80-7JD	UPD42S16800LG5A70-7JD	IC,DRAM,FAST PAGE,2MX8,CMOS,ZIP,28PIN,PLASTIC	IC,DRAM,FAST PAGE,2MX8,CMOS,ZIP,28PIN,PLASTIC	IC,DRAM,FAST PAGE,2MX8,CMOS,ZIP,28PIN,PLASTIC	UPD42S17800LG5A60-7KD	UPD42S17800LG5A80-7KD
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown	compliant	compliant
