CSM84AC-1M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> CSM84AC-1M

Preview

CSM84AC-1M: DescriptionCable Assembly, 28AWG, Communication Cable, ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size44KB，1 Pages; ManufacturerL-com Global Connectivity; Environmental Compliance

Download Datasheet Parametric Compare View All

CSM84AC-1M Overview

Cable Assembly, 28AWG, Communication Cable, ROHS COMPLIANT

CSM84AC-1M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
conductor material	COPPER
ConnectorSide1	DB25
ConnectorSide2	HPCN36
Connector bracket type	CABLE ASSEMBLY
structure	STRANDED
Jacket material	POLYVINYL CHLORIDE
length	1 mm
shield	YES
Wire gauge	28 AWG
Wire and Cable Names	COMMUNICATION CABLE
Base Number Matches	1

Preview

Download Datasheet

View All

8

7

6

5

4

REV

A

B

.

3

DESCRIPTION

RELEASED FOR PRODUCTION

2

REVISIONS

DATE

1

APPROVED

TJC

.

5/23/01

4/9/02

.

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

CHANED MOLDED HOOD STYLE OF DB25 CONNECTOR (ENC# 1107)

.

D

LENGTH

2X 4-40 THUMBSCREW

2X MOLDED PVC HOOD AND

STRAIN RELIEF, LIGHT GRAY

18

36

D

14

1

B

P1

MALE 25-PIN

D-SUB CONNECTOR

(IEEE 1284-A PLUG)

25

13

1

19

C

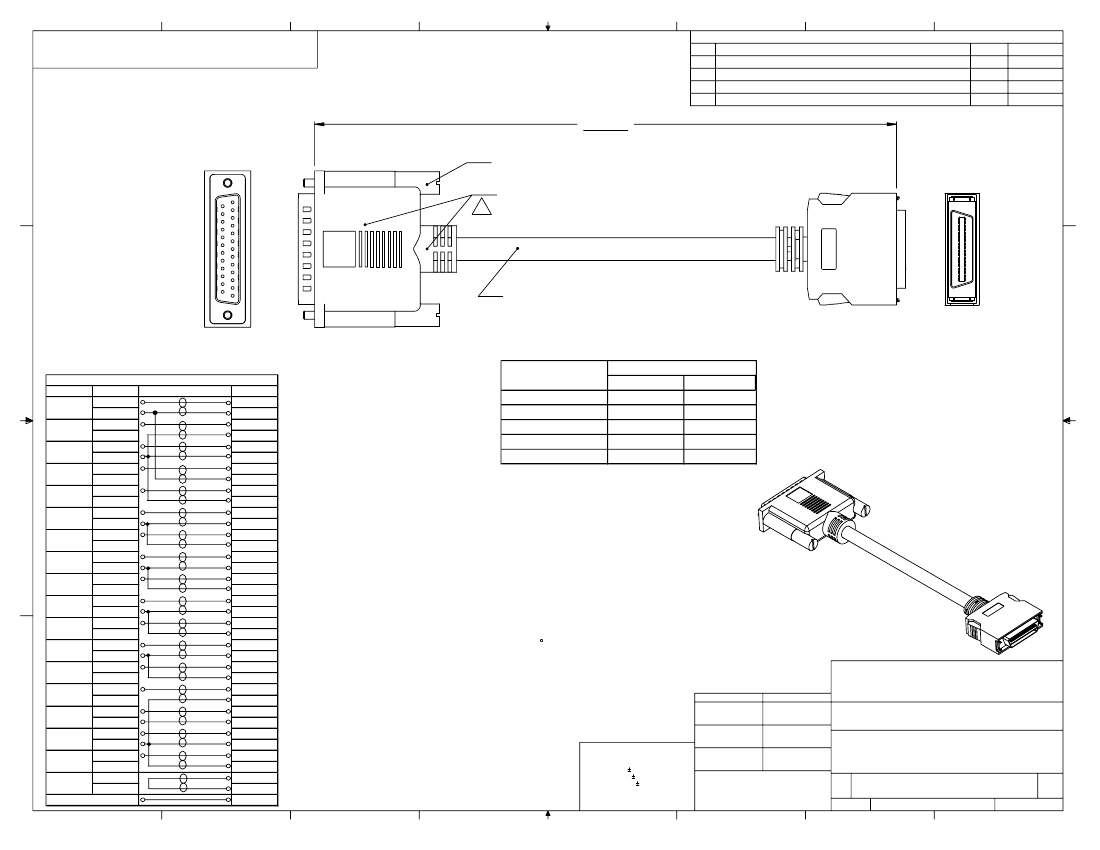

STYLE 2990 18-PAIR CABLE, 28AWG STRANDED

COPPER WIRES, ALUMINZED POLYESTER SHIELD

PLUS 85% COPPER BRAID SHIELD.

PVC JACKET, LIGHT GRAY.

LENGTH

METERS

INCHES

1.0

39.37

2.0

79.74

3.0

118.1

5.0

196.9

10.0

393.7

C

P2

MALE 36-PIN HIGH DENSITY

RIBBON TYPE CONNECTOR

(IEEE 1284-C PLUG)

W IRING TA B LE

P A IR 1

P A IR 2

P A IR 3

P A IR 4

P A IR 5

P1

P IN 11

P IN 23

P IN 13

P IN 10

P IN 24

P IN 15

P IN 12

P IN 2

P IN 19

P IN 3

P IN 4

P IN 20

P IN 5

P IN 6

P IN 21

P IN 7

P IN 8

P IN 22

P IN 9

P IN 16

P IN 1

P IN 18

P IN 17

P IN 25

P IN 14

P2

P IN 1

P IN 19

P IN 2

P IN 20

P IN 3

P IN 21

P IN 4

P IN 22

P IN 5

P IN 23

P IN 6

P IN 24

P IN 7

P IN 25

P IN 8

P IN 26

P IN 9

P IN 27

P IN 10

P IN 28

P IN 11

P IN 29

P IN 12

P IN 30

P IN 13

P IN 31

P IN 14

P IN 32

P IN 15

P IN 33

P IN 16

P IN 34

P IN 17

P IN 35

P IN 18

P IN 36

S HIE LD

MODEL NUMBER

CSM84AC-1M

CSM84AC-2M

CSM84AC-3M

CSM84AC-5M

CSM84AC-10M

B

P A IR 6

P A IR 7

P A IR 8

P A IR 9

P A IR 10

P A IR 11

P A IR 12

P A IR 13

P A IR 14

B

NOTES:

1. CABLE ASSEMBLY COMPLIES WITH THE REQUIREMENTS

OF IEEE-1284 STANDARD.

2. HOOD MOLDINGS HAVE INTERNAL 360 SHIELDS

FASTENED TO THE METAL CONNECTOR FRAMES

AND TO THE CABLE SHIELD.

2. TYPE C CONNECTOR HAS CLIP LATCHES TO ENGAGE

MATING DETAILS ON FEMALE CONNECTORS.

APPROVALS

DRAWN

TJC

CHECKED

DATE

5/17/01

A

L-com

PRODUCT DESCRIPTION

DRAWING TITLE

SIZE

45 BEECHWOOD DRIVE

NORTH ANDOVER, MA

01845

P A IR 15

P A IR 16

P A IR 17

P A IR 18

IEEE1284 A-C CABLE ASSEMBLY

A

S HIE LD

5/21/01

CM

UNLESS OTHERWISE SPECIFIED, APPROVED BY

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

5/23/01

RC

.X .1

.XX .01

CONFIGURATION DETAILS OF

.XXX .005

UNDIMENSIONED FEATURES

CABLE LENGTH TOLERANCE

MAY VARY

<300" ±5% >300" ±2%

OUTLINE DRAWING

SCALE

A

DWG. NO.

CAD FILE:

SHEET 1

1:1

CSM84AC-1M-OD1.SLDDRW

CSM84AC-1M-OD1

1

REV.

OF

B

1

8

7

6

5

4

3

2
