14-60-1240

Description
24 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size152KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

14-60-1240 Overview

24 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

14-60-1240 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresSL
body width0.139 inch
subject depth0.6 inch
body length2.399 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN-PB ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability25 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number70400
Plug contact pitch0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Plating thickness150u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1.8 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts24
UL Flammability Code94V-0
Maximum wire diameter26 AWG
Minimum wire diameter26 AWG
Base Number Matches1
This document was generated on 03/30/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0014601240
Active
2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,
Single Row, Version D, Back Ribs, Wire Size 26, 3.81µm (150µ") Tin/Lead (SnPb), 24
Circuits
Documents:
3D Model

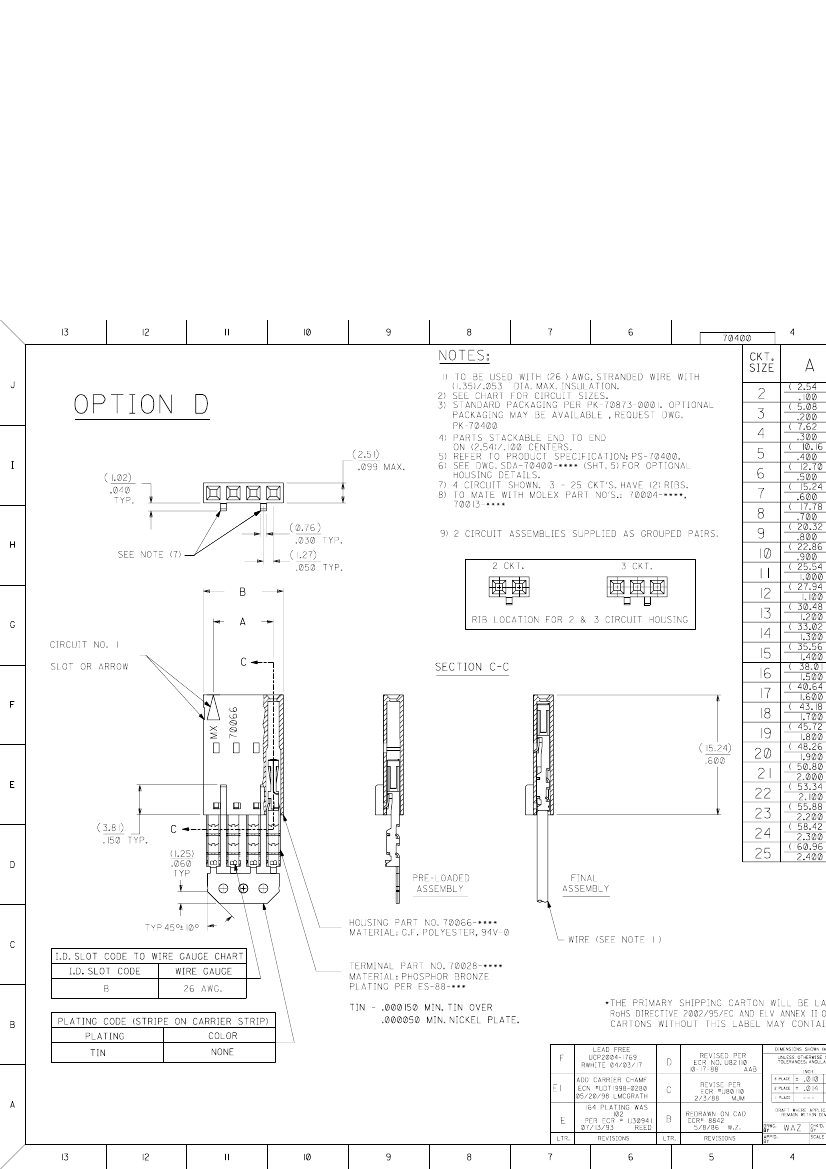

Drawing (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
70400
Terminals Preloaded
Housing
No
SL™
EU RoHS
ELV and
Complia
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
24
Black
25
Vertical
94V-0
None
Phosphor Bronze
Tin
Tin
Polyester Alloy
1
None
Tube
0.100 In
2.54 mm
150
3.75
75
1.875
Yes
Yes
N/A
-40°C to +105°C
IDT or Pierce
1.35mm (.053") max.
26
Discrete Wire, Ribbon Cable
Email pro
For a mu
Complian
Please vi
non-prod
Search
70400S
Mates
70004
Interim
Use W
7307 T
28AWG
Topcoa
8997 T
26AWG
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.8A
250V
Material Info
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Hawk S
Automa
