FCN-365P040-AG datasheet, PDF - EEWORLD Datasheet

FCN-365P040-AG: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug; CategoryThe connector The connector; File Size131KB，2 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

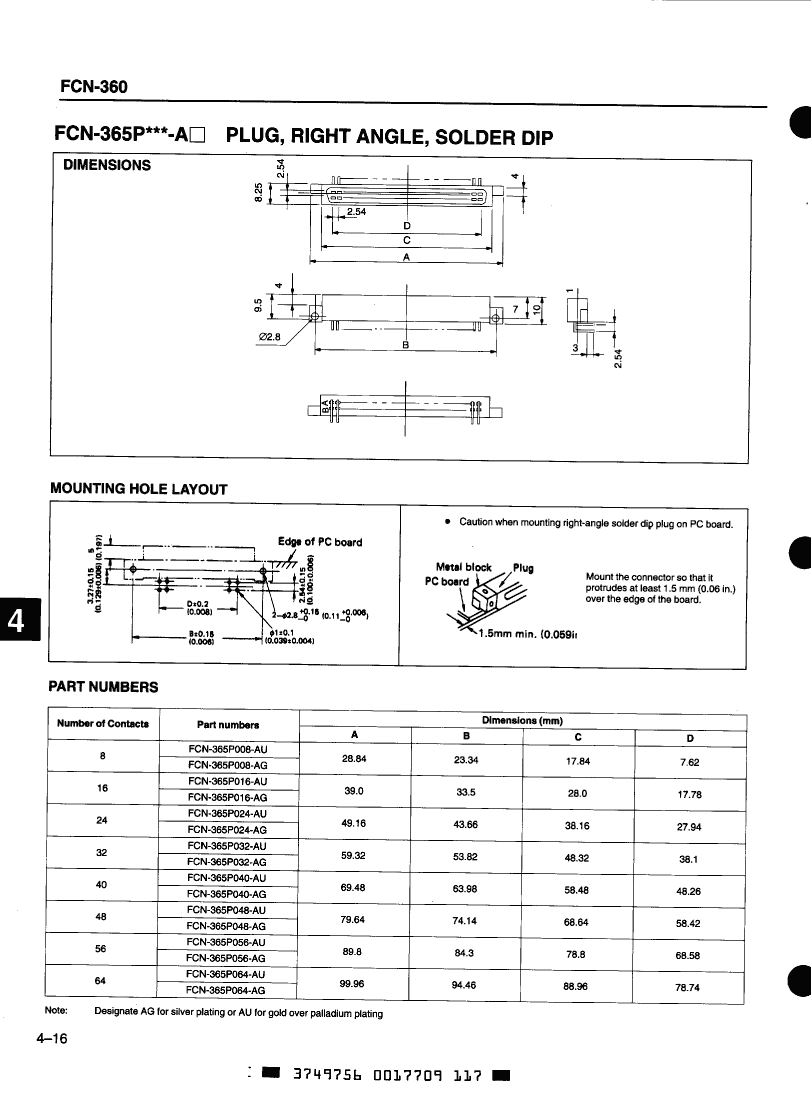

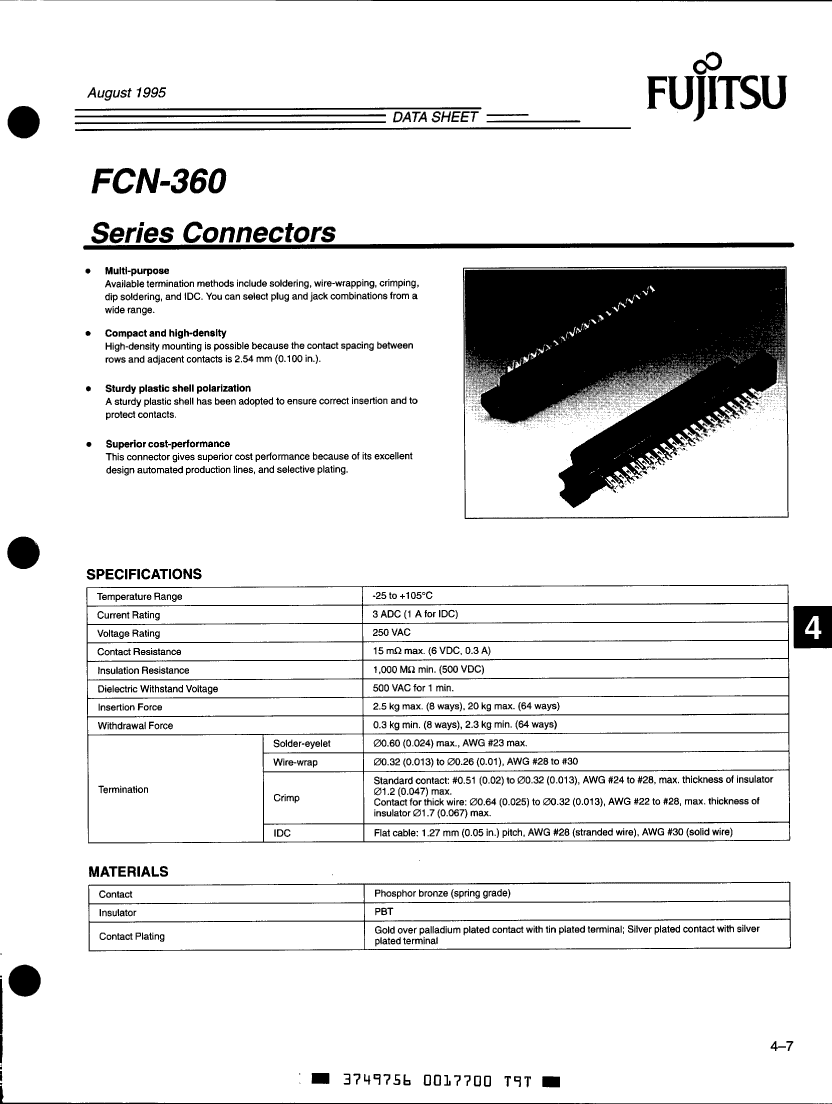

FCN-365P040-AG Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	FCN-365P
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40

	FCN-365P040-AG	FCN-365P016-AG	FCN-365P024-AG	FCN-365P032-AG	FCN-365P056-AG	FCN-365P064-AG
Description	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 56 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	FCN-365P	FCN-365P	FCN-365P	FCN-365P	FCN-365P	FCN-365P
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	40	16	24	32	56	64
