MIC5017AJB

Description
Buffer/Inverter Based MOSFET Driver, MOS, CDIP14, CERDIP-14
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size444KB,9 Pages
ManufacturerMicrochip
Websitehttps://www.microchip.com
Download Datasheet Parametric Compare View All

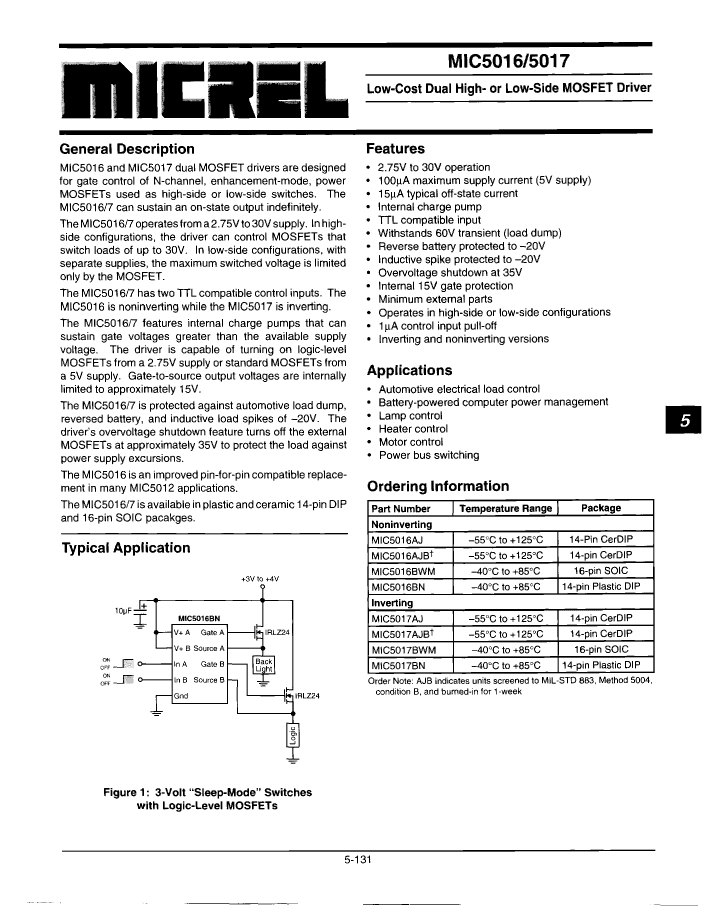

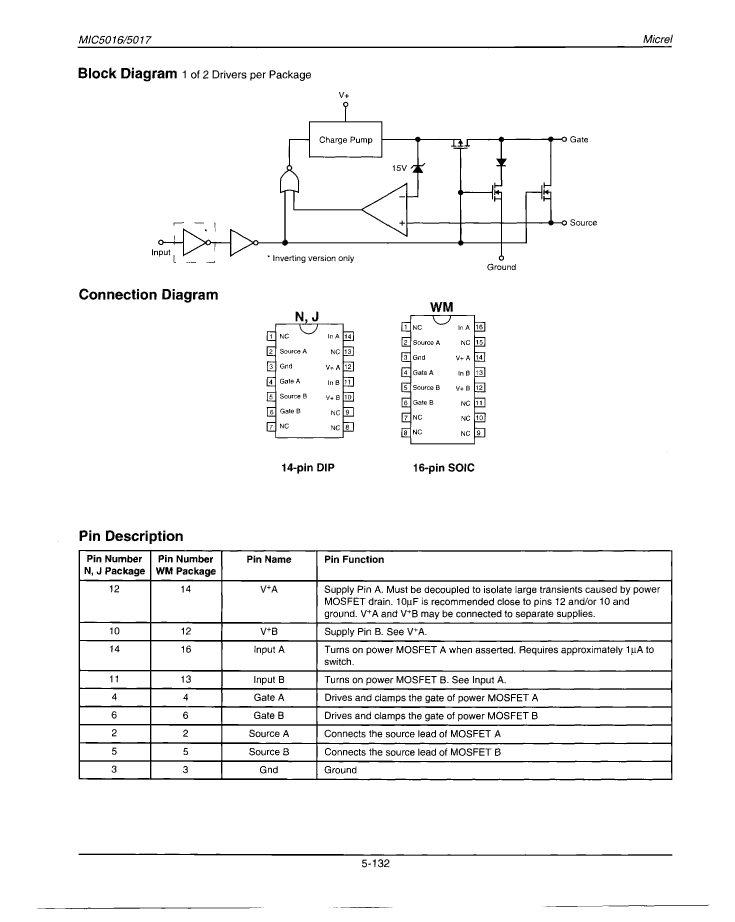

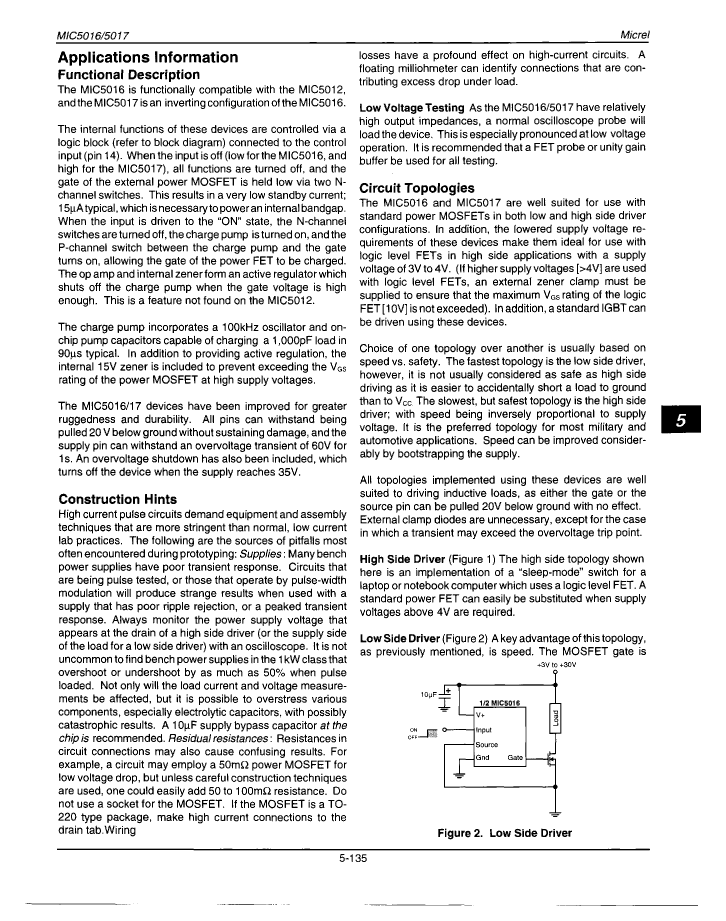

MIC5017AJB Overview

Buffer/Inverter Based MOSFET Driver, MOS, CDIP14, CERDIP-14

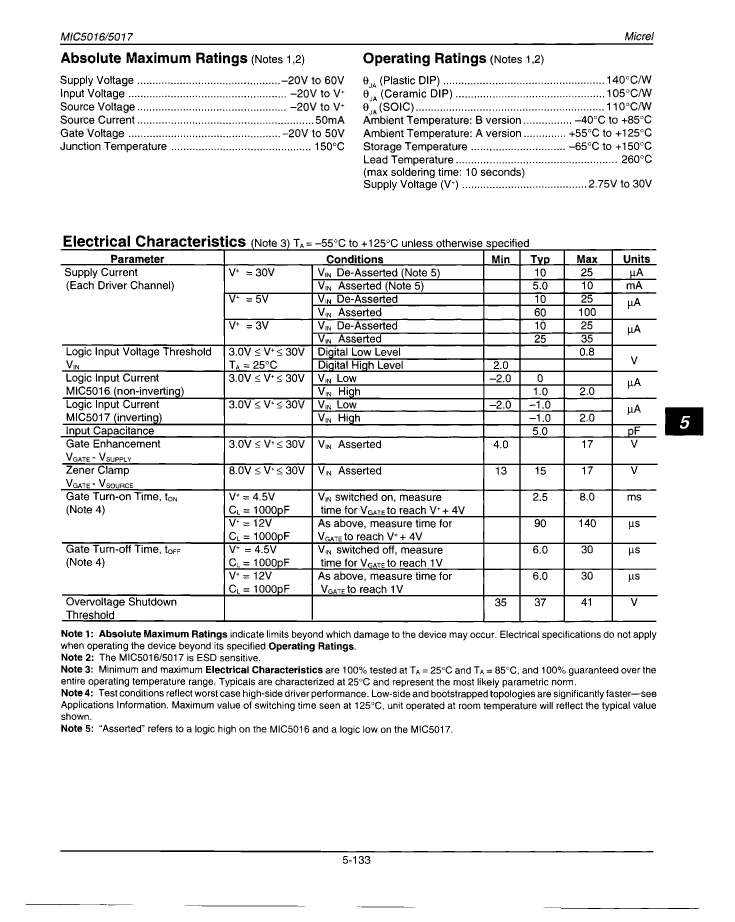

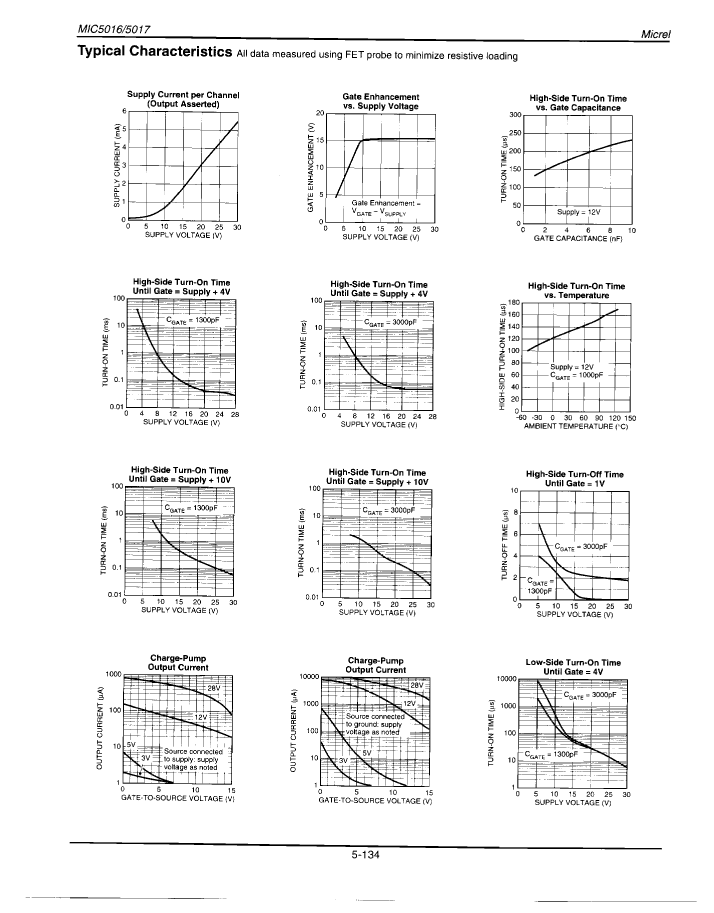

MIC5017AJB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMicrochip
Parts packaging codeDIP
package instructionDIP, DIP14,.3
Contacts14
Reach Compliance Codeunknown
ECCN codeEAR99
high side driverYES
Input propertiesSTANDARD
Interface integrated circuit typeBUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 codeR-GDIP-T14
JESD-609 codee0
length19.304 mm
Number of functions2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsTOTEM-POLE
Output polarityINVERTED
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply2.75/30 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height5.08 mm
Maximum slew rate20 mA
Maximum supply voltage30 V
Minimum supply voltage2.75 V
Nominal supply voltage12 V
surface mountNO
technologyMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Disconnect time30 µs
connection time8000 µs
width7.62 mm

MIC5017AJB Related Products

MIC5017AJB MIC5017AJ
Description Buffer/Inverter Based MOSFET Driver, MOS, CDIP14, CERDIP-14 Buffer/Inverter Based MOSFET Driver, MOS, CDIP14, CERDIP-14
Is it Rohs certified? incompatible incompatible
Maker Microchip Microchip
Parts packaging code DIP DIP
package instruction DIP, DIP14,.3 DIP, DIP14,.3
Contacts 14 14
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
high side driver YES YES
Input properties STANDARD STANDARD
Interface integrated circuit type BUFFER OR INVERTER BASED MOSFET DRIVER BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code R-GDIP-T14 R-GDIP-T14
JESD-609 code e0 e0
length 19.304 mm 19.304 mm
Number of functions 2 2
Number of terminals 14 14
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output characteristics TOTEM-POLE TOTEM-POLE
Output polarity INVERTED INVERTED
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED
encapsulated code DIP DIP
Encapsulate equivalent code DIP14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 2.75/30 V 2.75/30 V
Certification status Not Qualified Not Qualified
Maximum seat height 5.08 mm 5.08 mm
Maximum slew rate 20 mA 20 mA
Maximum supply voltage 30 V 30 V
Minimum supply voltage 2.75 V 2.75 V
Nominal supply voltage 12 V 12 V
surface mount NO NO
technology MOS MOS
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Disconnect time 30 µs 30 µs
connection time 8000 µs 8000 µs
width 7.62 mm 7.62 mm
