MC1489AD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MC1489AD

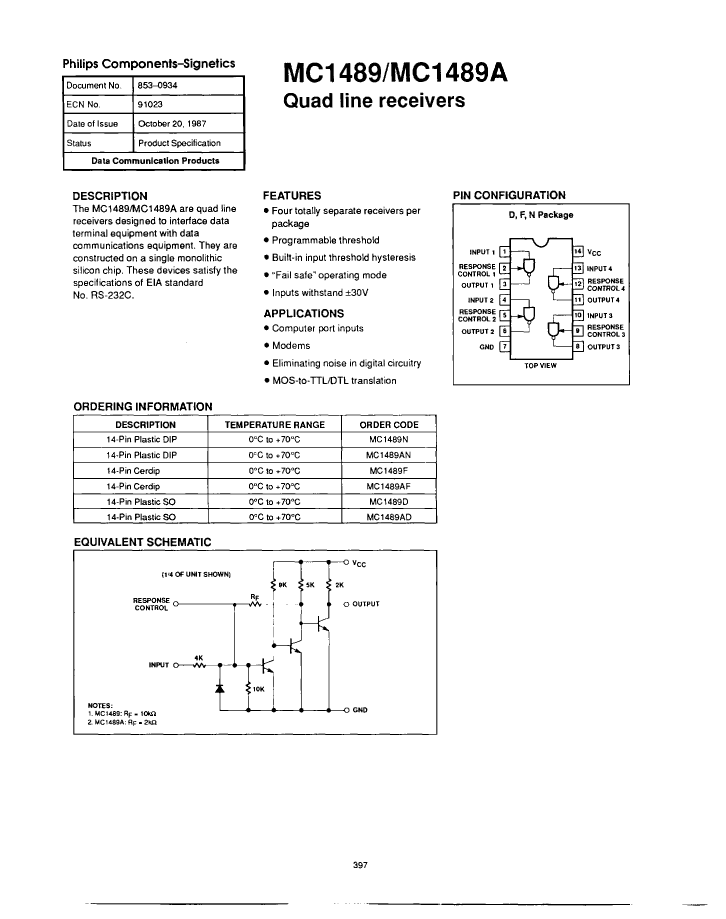

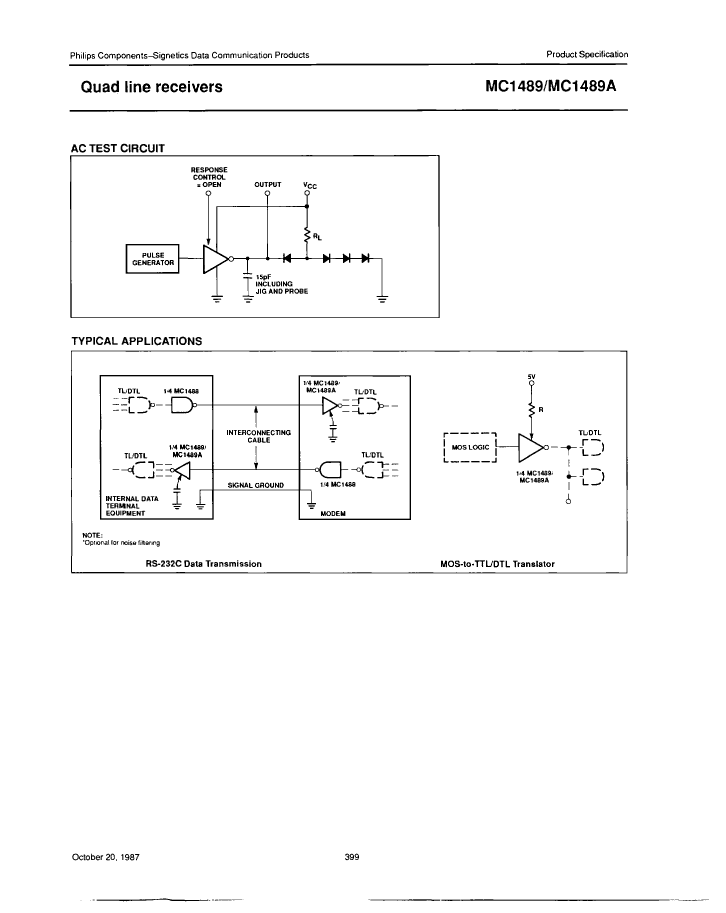

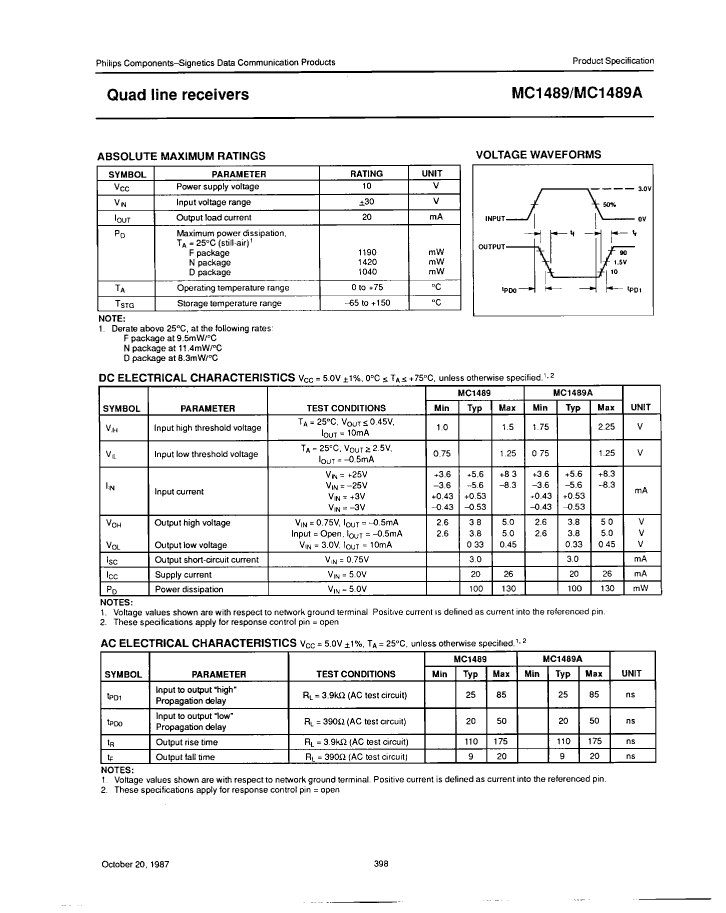

MC1489AD: DescriptionLine Receiver, 4 Func, 1 Rcvr, BIPolar, PDSO14; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size71KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Related ProductsFound19parts with similar functions to MC1489AD

Download Datasheet Parametric Compare View All

MC1489AD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC1489AD	-	-	View	Buy Now

MC1489AD Overview

Line Receiver, 4 Func, 1 Rcvr, BIPolar, PDSO14

MC1489AD Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-232-C
JESD-30 code	R-PDSO-G14
Number of functions	4
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum receive delay	85 ns
Number of receiver bits	1
Maximum slew rate	26 mA
Maximum supply voltage	5.05 V
Minimum supply voltage	4.95 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

MC1489AD Related Products

	MC1489AD	MC1489AN	MC1489D	MC1489N	MC1489AF	MC1489F
Description	Line Receiver, 4 Func, 1 Rcvr, BIPolar, PDSO14	Line Receiver, 4 Func, 1 Rcvr, BIPolar, PDIP14	Line Receiver, 4 Func, 1 Rcvr, BIPolar, PDSO14	Line Receiver, 4 Func, 1 Rcvr, BIPolar, PDIP14	Line Receiver, 4 Func, 1 Rcvr, BIPolar, CDIP14	Line Receiver, 4 Func, 1 Rcvr, BIPolar, CDIP14
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-GDIP-T14	R-GDIP-T14
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	85 ns	85 ns	85 ns	85 ns	85 ns	85 ns
Number of receiver bits	1	1	1	1	1	1
Maximum slew rate	26 mA	26 mA	26 mA	26 mA	26 mA	26 mA
Maximum supply voltage	5.05 V	5.05 V	5.05 V	5.05 V	5.05 V	5.05 V
Minimum supply voltage	4.95 V	4.95 V	4.95 V	4.95 V	4.95 V	4.95 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
