PNP-1623-
P22-GPlug-n-
play Synthe-
sizer module
PNP-1623-P22-G
PLUG-N-PLAY WIDEBAND SYNTHESIZER
Package: P22, 15.24mm x 15.24mm x 5.58mm
Features
Internal Microcontroller
Programmable
START/STOP/Step Size
SPI BUS Compatible
Frequency: 1550MHz to
1825MHz
Resonator: Microstrip
PCB: Rogers
Package Size: 15.24mm x
15.24mm x 5.58mm (0.6in x
0.6in x 0.22in)

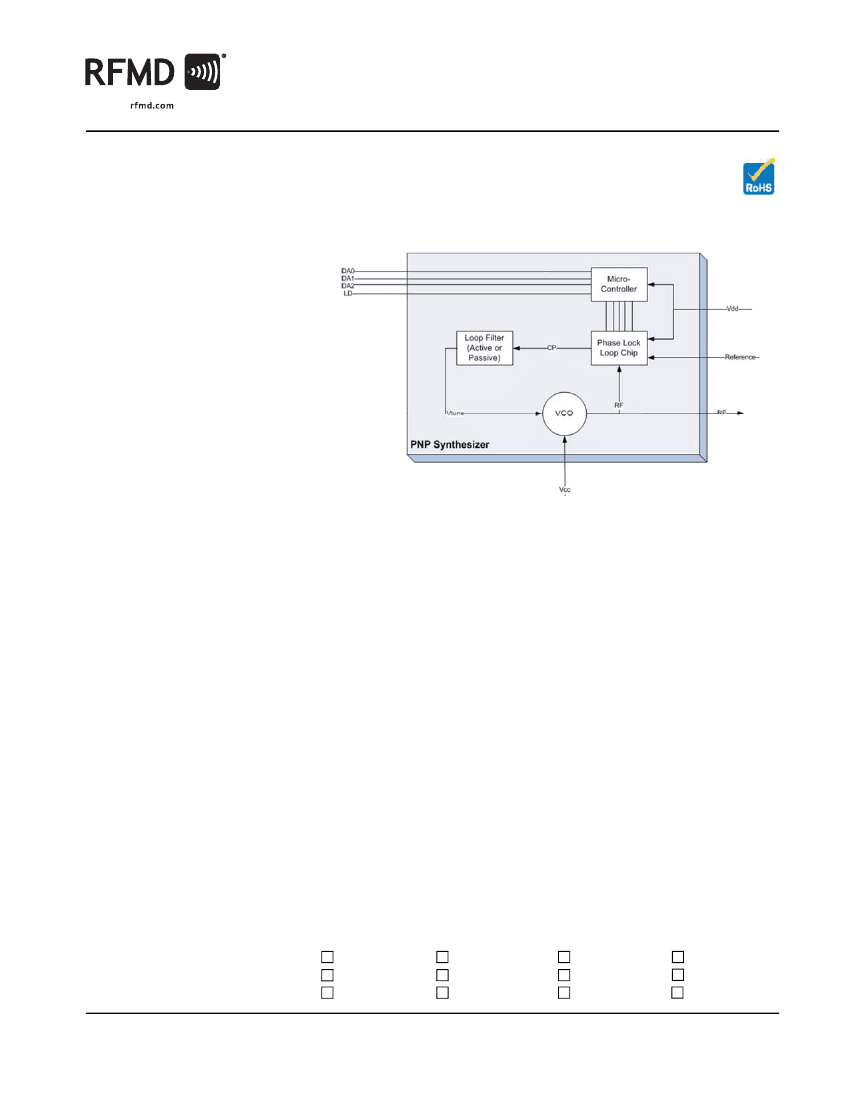

Functional Block Diagram
Applications
Highly Integrated Radio Designs
High-Performance Radios
Mircrowave Radio IF Conversion
Instrumentation
Frequency Synthesizers
Product Description
RFMD offers complete Plug-N-Play Synthesizers (PNPs) for low noise frequency syn-
thesizer applications consisting of a VCO, PLL, loop filter and Micro-controller inter-
face. The PNP family of RF signal sources is the world's first family of truly
configurable frequency synthesizer modules. These synthesizers can make quick
adjustments with amazing accuracy, speed, and performance.
Ordering Information
PNP-1623-P22-G
Contact us at 1-480-756-6070
Optimum Technology Matching® Applied
GaAs HBT
GaAs MESFET
InGaP HBT
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
BiFET HBT
LDMOS
RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2012, RF Micro Devices, Inc.
DS121109
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
1 of 3
PNP-1623-P22-G
Absolute Maximum Ratings
Parameter
Operating Ambient Temperature
Storage Temperature
Rating
-40 to +85
-55 to +125
Unit
°C
°C
Caution! ESD sensitive device.
Exceeding any one or a combination of the Absolute Maximum Rating conditions may
cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability. Specified typical perfor-
mance or functional operation of the device under Absolute Maximum Rating condi-
tions is not implied.
The information in this publication is believed to be accurate and reliable. However, no
responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any
infringement of patents, or other rights of third parties, resulting from its use. No
license is granted by implication or otherwise under any patent or patent rights of
RFMD. RFMD reserves the right to change component circuitry, recommended appli-
cation circuitry and specifications at any time without prior notice.
RoHS (Restriction of Hazardous Substances): Compliant per EU Directive
2002/95/EC.
Parameter
Overall
Frequency Range
Step Size
Output Power
Output Phase Noise
Min.
1550
5000
-2.5
Specification
Typ.
Max.
1825
10000
Unit
MHz
kHz
dBm
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc
dBc
dBc
MHz
Frequency
V
P-P
V
V
mA
mA
1kHz
10kHz
100kHz
1000kHz
Condition
0
-93
-100
-126
-146
2.5
-88
-95
-121
-141
-60
-70
-10
3.3
Spurious Product
Reference Feedthrough
Second Harmonic
Reference Oscillator Signal
0
-70
-80
-15
10
5000kHz step size
Amplitude - DC coupled
V1
V2
I1
I2
Power Supply
Operating Voltage
Supply Current
12.3
2.7
12.5
3
54
25
12.7
3.3
68
35
Notes:
1) Reference Input Level: -5dBm minimum, +5dBm maximum, AC coupled.
2) Specification Test Conditions: V1 = 12V, V2 = 3V, REF = 10MHz.
2 of 3
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS121109
PNP-1623-P22-G

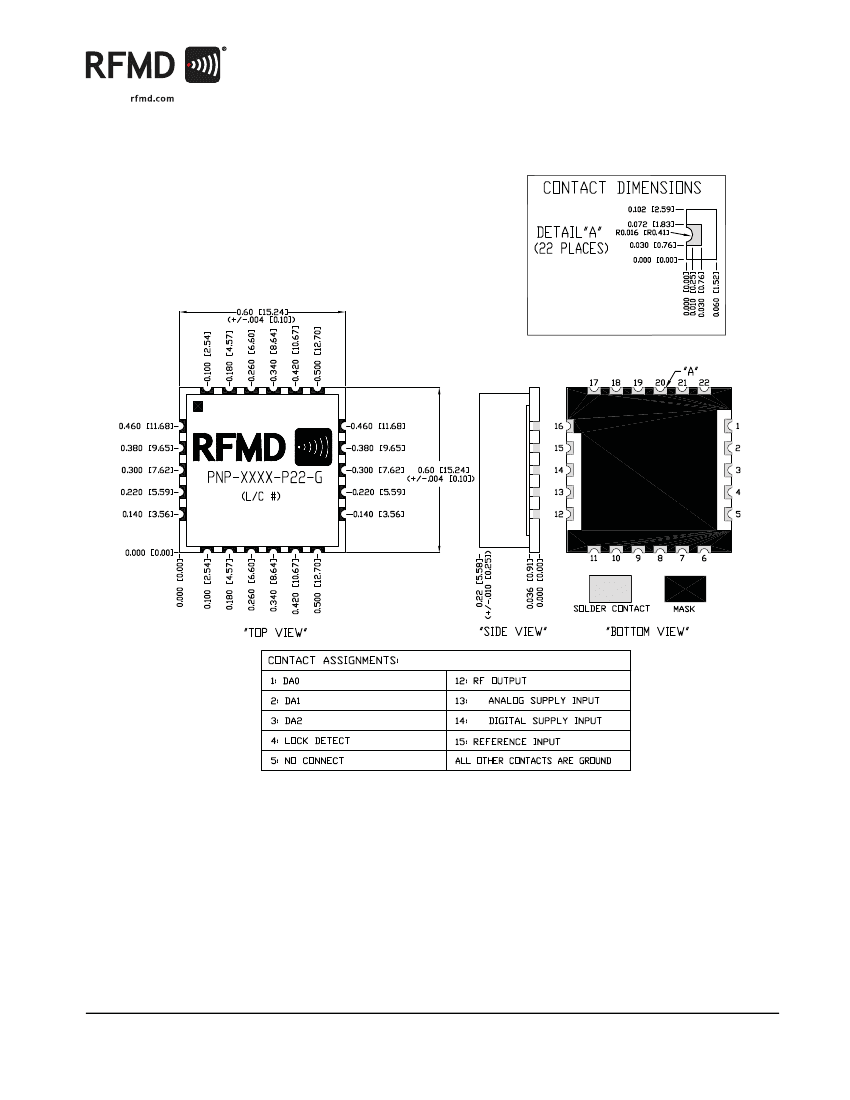

Package Drawing & Pin Outs
15.24mm x 15.24mm x 5.58mm (0.6in x 0.6in x 0.22in)
V1,
V2,
DS121109
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
3 of 3
