UPD42S4260ALG5-A70 datasheet, PDF

Datasheet> All Categories > storage> storage> UPD42S4260ALG5-A70

UPD42S4260ALG5-A70: DescriptionIC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC; Categorystorage storage; File Size790KB，43 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD42S4260ALG5-A70 Overview

IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC

UPD42S4260ALG5-A70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-PDSO-G40
length	18.41 mm
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	1.2 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm

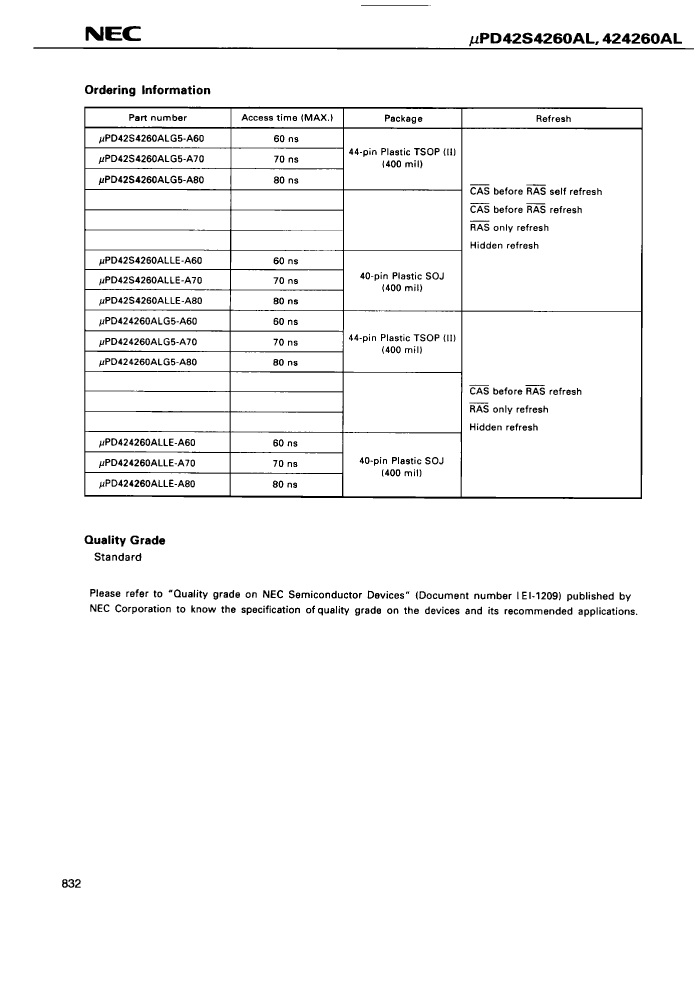

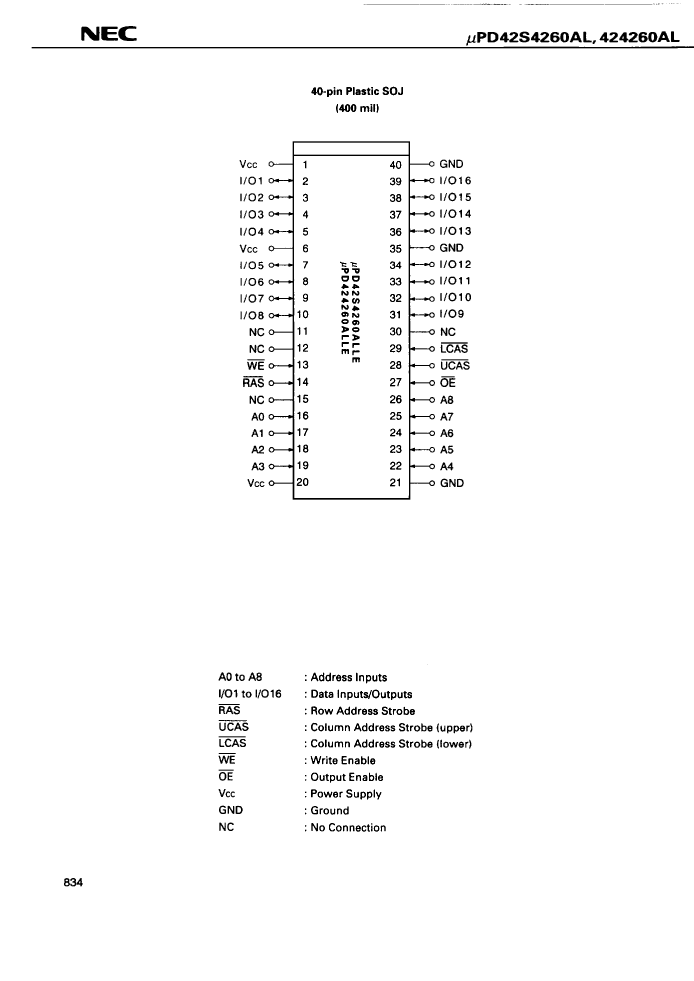

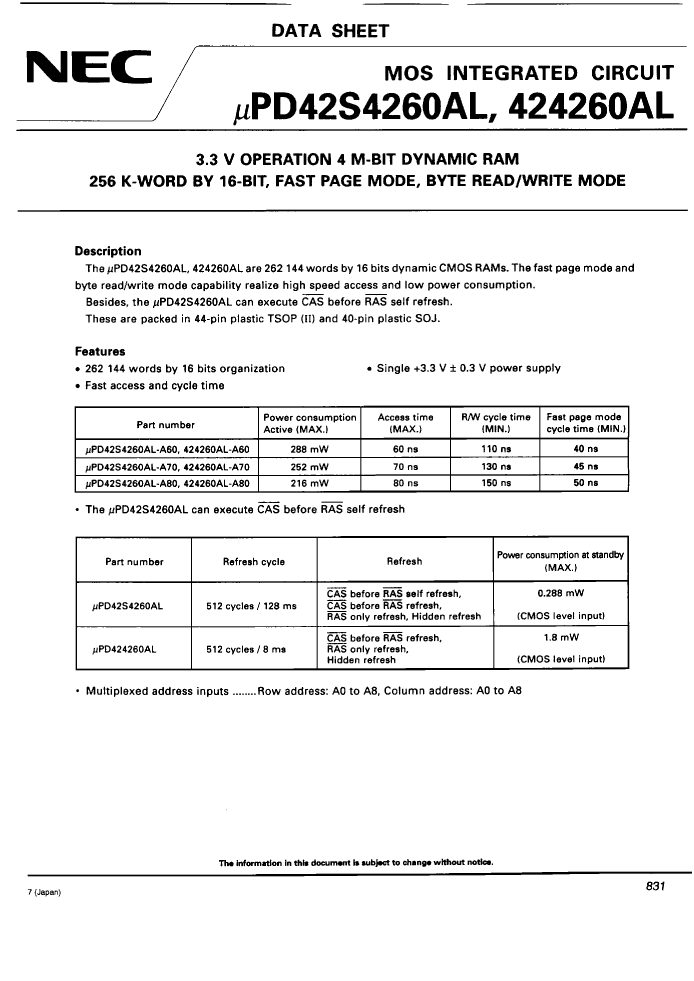

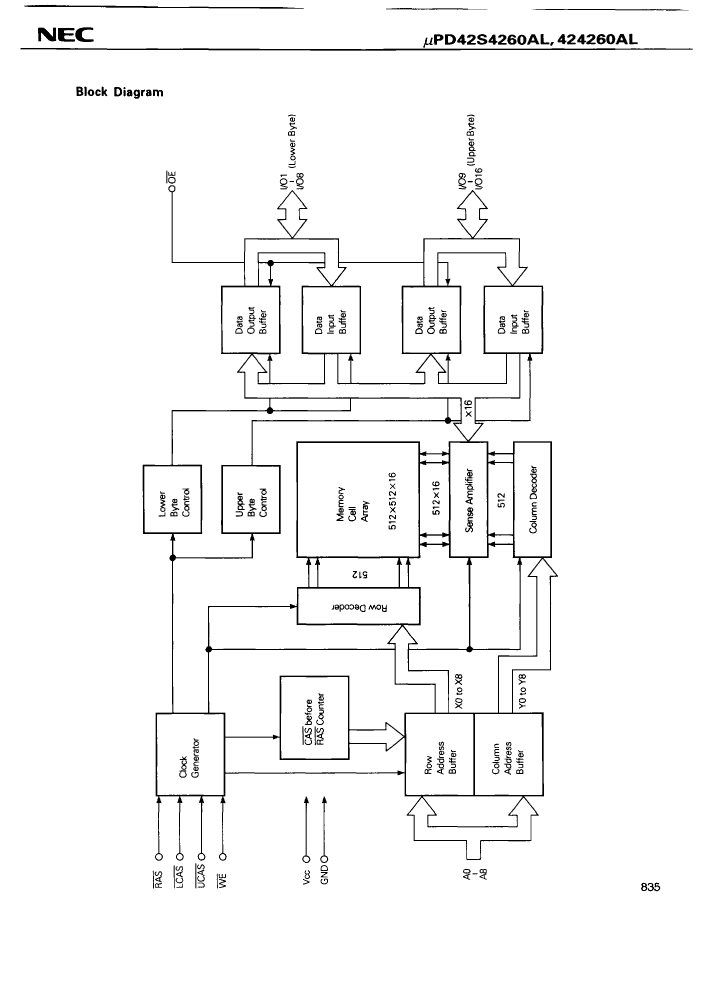

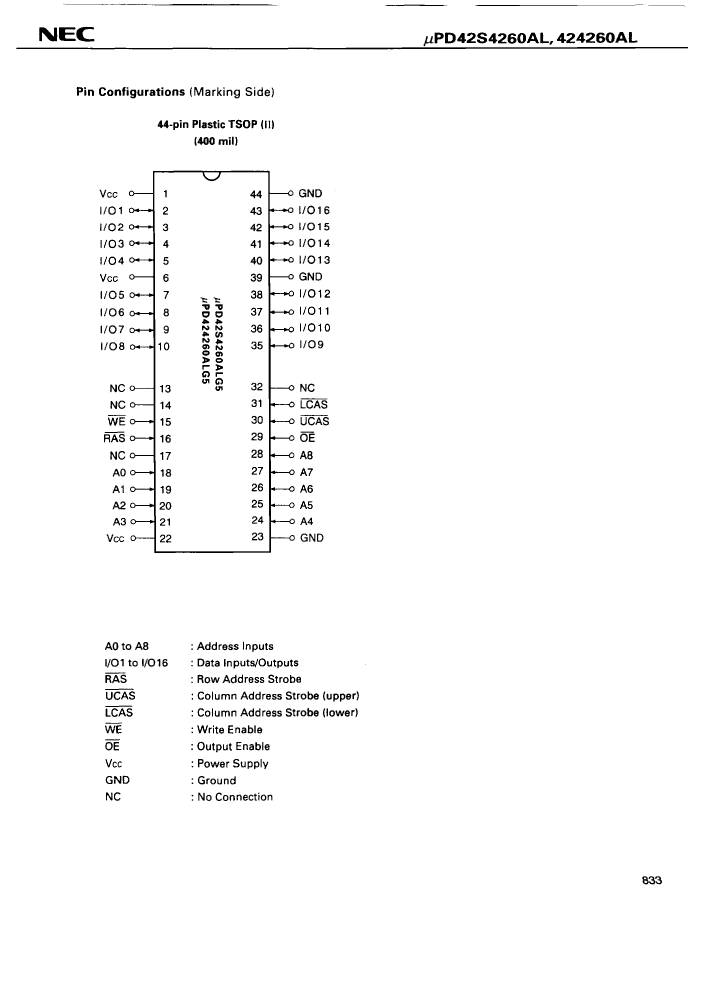

Preview

Download Datasheet

View All

UPD42S4260ALG5-A70 Related Products

	UPD42S4260ALG5-A70	UPD424260ALG5-A80	UPD424260ALLE-A80	UPD42S4260ALG5-A60
Description	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,SOJ,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	TSOP2	TSOP2	SOJ	TSOP2
package instruction	TSOP2,	TSOP2,	SOJ,	TSOP2,
Contacts	44	44	40	44
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	80 ns	80 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PDSO-J40	R-PDSO-G40
length	18.41 mm	18.41 mm	26.29 mm	18.41 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	16	16	16	16
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	SOJ	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512
Maximum seat height	1.2 mm	1.2 mm	3.7 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	J BEND	GULL WING
Terminal pitch	0.8 mm	0.8 mm	1.27 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm
