NJM12903E-(T1) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJM12903E-(T1)

NJM12903E-(T1): DescriptionComparator, 2 Func, 4000uV Offset-Max, 500ns Response Time, BIPolar, PDSO8, EMP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size139KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric View All

NJM12903E-(T1) Overview

Comparator, 2 Func, 4000uV Offset-Max, 500ns Response Time, BIPolar, PDSO8, EMP-8

NJM12903E-(T1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.2 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output type	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Nominal response time	500 ns
Maximum seat height	1.9 mm
Supply voltage upper limit	15 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm

Preview

Download Datasheet

View All

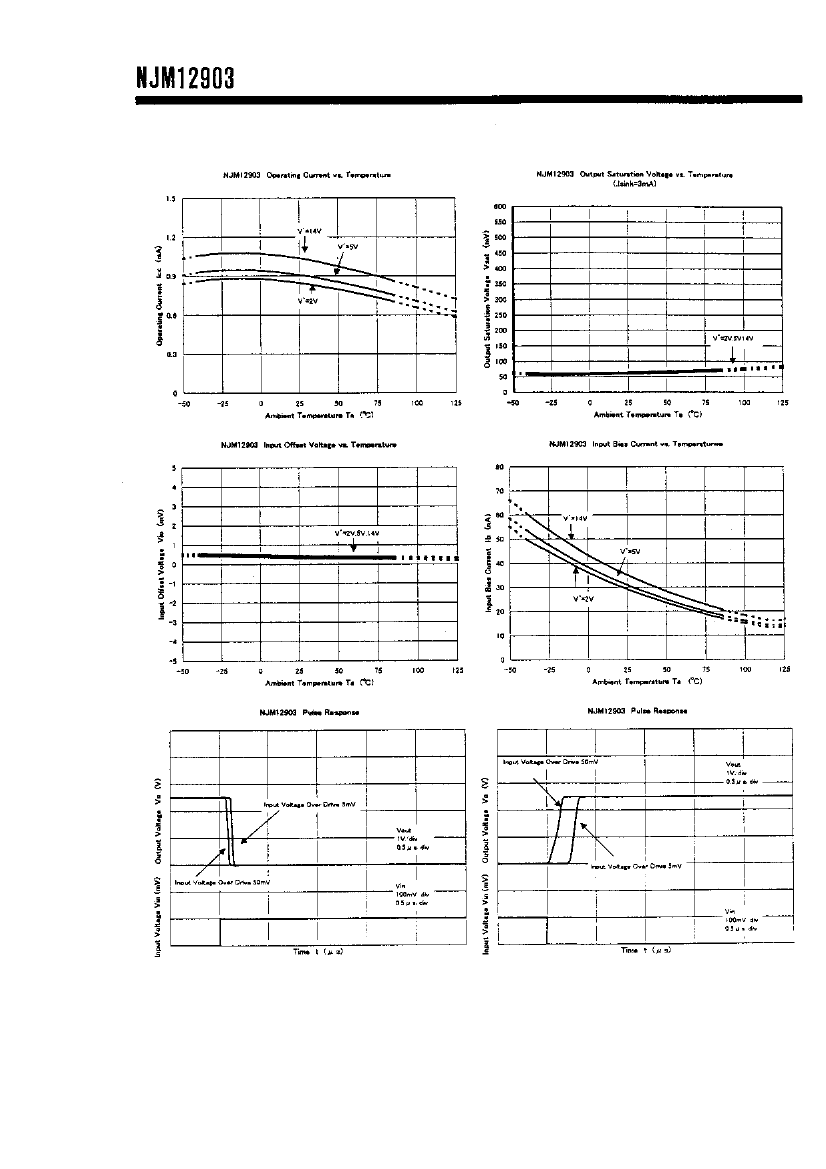

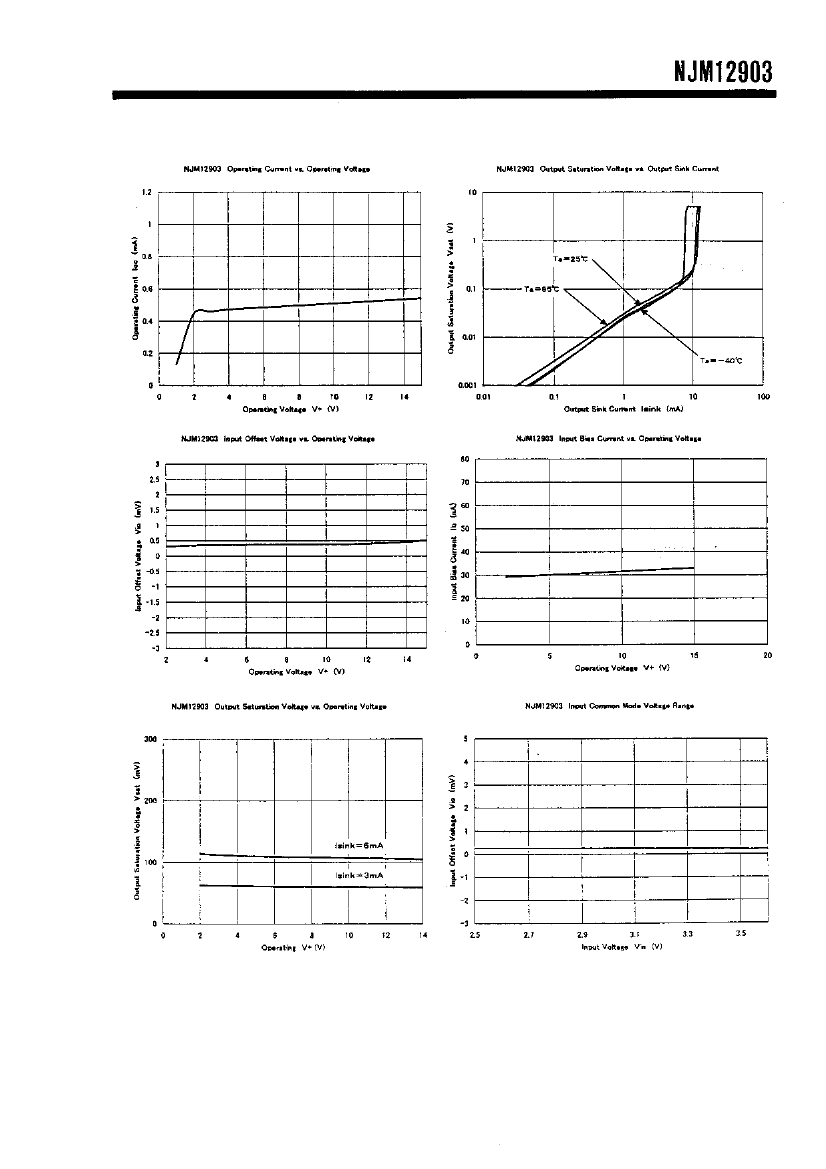

NJM12903

SINGLE SUPPLY DUAL COMPARATOR

■

GENERAL DESCRIPTION

The NJM12903

is single-supply dual voltage comparator,

which can operate from 2V supply. The features are input

offset voltage, input bias current and low current consumption.

The NJM12903

compare the input signal to 0V(ground)

due to the Darlington PNP input stage. The package lineup is

DIP, DMP and others compact, which is SON, so that the

NJM12903

is suitable for any kind of signal comparator.

■

PACKAGE OUTLINE

NJM12903D

NJM12903M

■

FEATURES

●

Operating Voltage

(+2V to +14V)

●

Open Collector Output

●

Bipolar Technology

●

Package Outline

DIP8,DMP8,EMP8,SSOP8,

VSP8,SIP8

NJM12903E

NJM12903V

NJM12903R

NJM12903L

■

PIN CONFIGURATION

－＋

＋－

－＋

＋－

1 2 3 4 5 6 7 8

NJM12903L

PIN FUNCTION

A OUTPUT

2. A -INPUT

3. A +INPUT

4. GND

5. B +INPUT

6. B -INPUT

7. B OUTPUT

8. V

NJM12903D/12903M

NJM12903E/12903V/12903R

■

EQUIVALENT CIRCUIT

(1/2Shown)

+INPUT

- INPUT

OUTPUT

GND
