FCA-150
FCAC-150
Series Relay
PERFORMANCE DATA
Specifications
Contact Data
Contact Form
FCA-150: 1 Form X (SPST-NO-DM)
FCAC-150: 1Form X (SPST-NO-DM) with 1 Form C (SPDT) Auxiliary Contacts
Contact Rating in Amps (Continuous Duty)
Type of
Load
Resistive
Inductive (L/R=5ms)
Motor
None
Overload Current (Resistive)
Max. Contact Drop at 10A
Operate Time at Nominal Voltage
Release Time
Bounce Time
Life (Min.)
Cycles
50,000
20,000
20,000
100,000
115 Vac
400Hz
50
20
20
–
200 A, 50 cycles
Initial 150mV; After Life 175mV
15ms
15ms
1ms
28 Vdc
50
20
20
–
Coil Data
Coil Code
1
2
12
14.5
9
11.25
0.75 – 4.5
.26
N/A
70Ω
3
28
29
18
22.5
1.5 – 7.0
.15
N/A
290Ω
4
28
29
18
22.5
1.5 – 7.0
.15
-42
290Ω
Nominal Operating Voltage (Vdc)
6
Maximum Operating Voltage (Vdc)
7.3
Maximum Pick-Up Voltage at +125°C
4.5
Maximum Pick-Up Voltage at +125°C, continuous current test (Vdc) 5.7
Drop-Out Voltage at +125°C
0.3 – 2.5
Maximum Coil Current at +25°C (mA)
.50
Back EMF Suppressed to (Vdc)
N/A
Coil Resistance
18Ω
Electrical Data
Initial Insulation Resistance (note 1)
Insulation Resistance After Life or Environmental Test (note 1)
Dielectric Strength At Sea Level
Contacts to Ground and Between Contacts
Coil to Ground
Dielectric Strength at 80,000 ft (25,000m), All Points (note 4)
1,250Vrms, 60 Hz.
1,000Vrms, 60 Hz.
500Vrms, 60 Hz
100 megohms, minimum, at 500Vdc, between each pin and case
50 megohms, minimum, at 500Vdc, between each pin and case
Environmental Data
Ambient Temperature Range, Operating
Altitude
Shock Resistance
Vibration Resistance, Sinusoidal
-70°C to +125°C
300,000 feet
50 G’s, 11 ms.
20 G’s, 75-3000Hz.
Mechanical Data
Approximate Weight
3.2 oz. (90g) Max.
NOTES
1. All wired terminals must be connected together during this test. Dielectric withstanding voltage and insulation resistance are measured between all mutually
insulated wired terminals and between all these terminals and case.
Tyco Electronics
I FCA-150 & FCAC-150

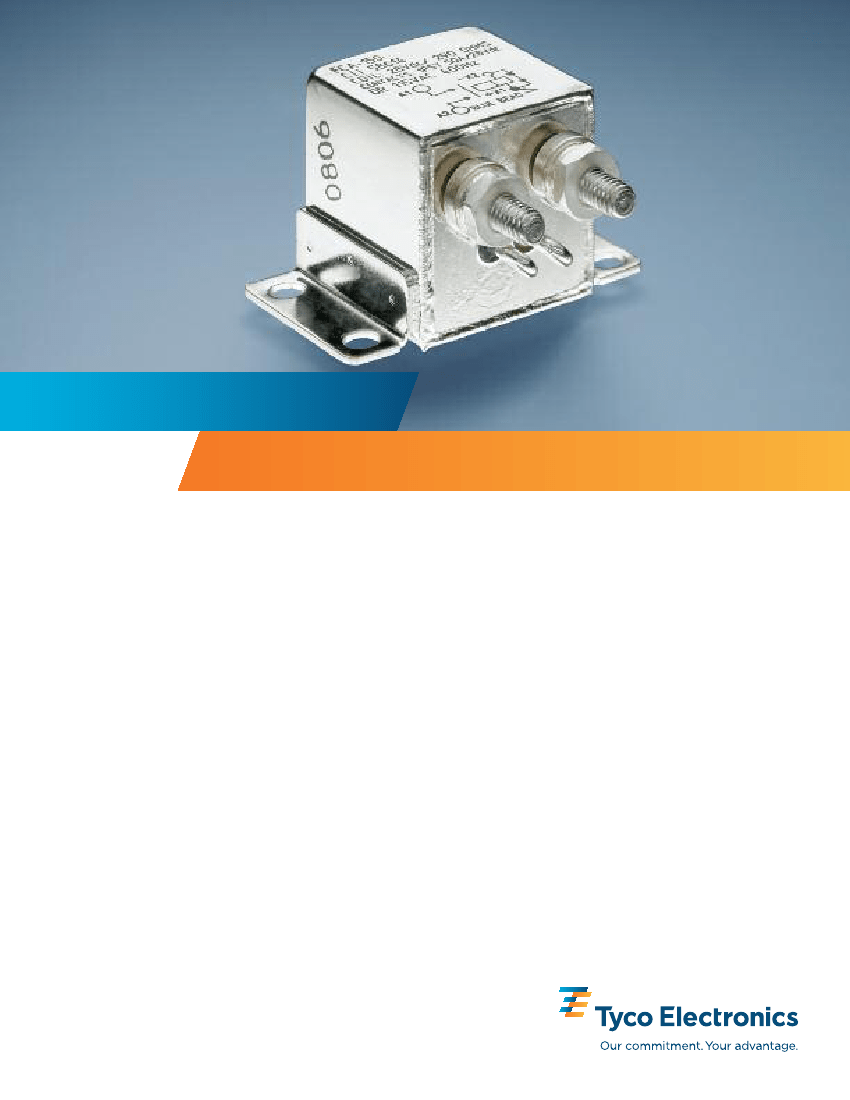

FCA-150
FCAC-150
Series Relay
KEY FEATURES
Non-latching relay
Balanced force design
Corrosion protected metal
enclosure
All welded hermetically
sealed enclosure occupies
about 1 in3
1 Form X (SPST-NO-DM)
Auxiliary versions available
with 1 Form C (SPDT) aux.
6, 12 and 28 Vdc coils
available
Weight: 90 grams
DESCRIPTION
The FCA-150 series relay is a polarized, single-side stable design, where the flux
from a permanent magnet provides the armature holding force in the deactivated
state, and its flux path is switched and combined with the coil flux in the
operated state. This results in appreciably increased contact pressure in both
states over that of a spring return non-polar design. The FCAC-150 series has a
1 Form C (SPDT) auxiliary contact set rated at 2 Amps available.
Designed and built to perform under the most demanding environmental
conditions and can withstand such changing environmental factors as temperature,
altitude, shock, vibration, and salt spray.
Minimum mechanical life expectancy is 50,000 cycles under resistive load.
3 available coil voltages (6, 12 and 28 Vdc) with optional transient suppression.
APPLICATIONS
Used in military, aerospace, and associated ground support electrical and
electronic systems. Principle areas of application include:
- Aircraft
- Missiles
- Power Distribution
- Fuel Pumps
– Avionics Main Power Feed
– Weapons Systems
- Ground Support Equipment
Designed and built in
accordance with
MIL-PRF-6106
Typical Part Number
PART NUMBERING SYSTEM
FCA-150 or
FCAC-150
Rated for altitude up to
300,000 ft.
Available with optional
terminals and mounting
styles
-A
Y
3
Series and Contact Arrangement:
FCA-150 = Relay with 1 Form X Main Contacts
FCAC-150 = Relay with 1 Form X Main Contacts and 1 Form C Auxiliary Contacts

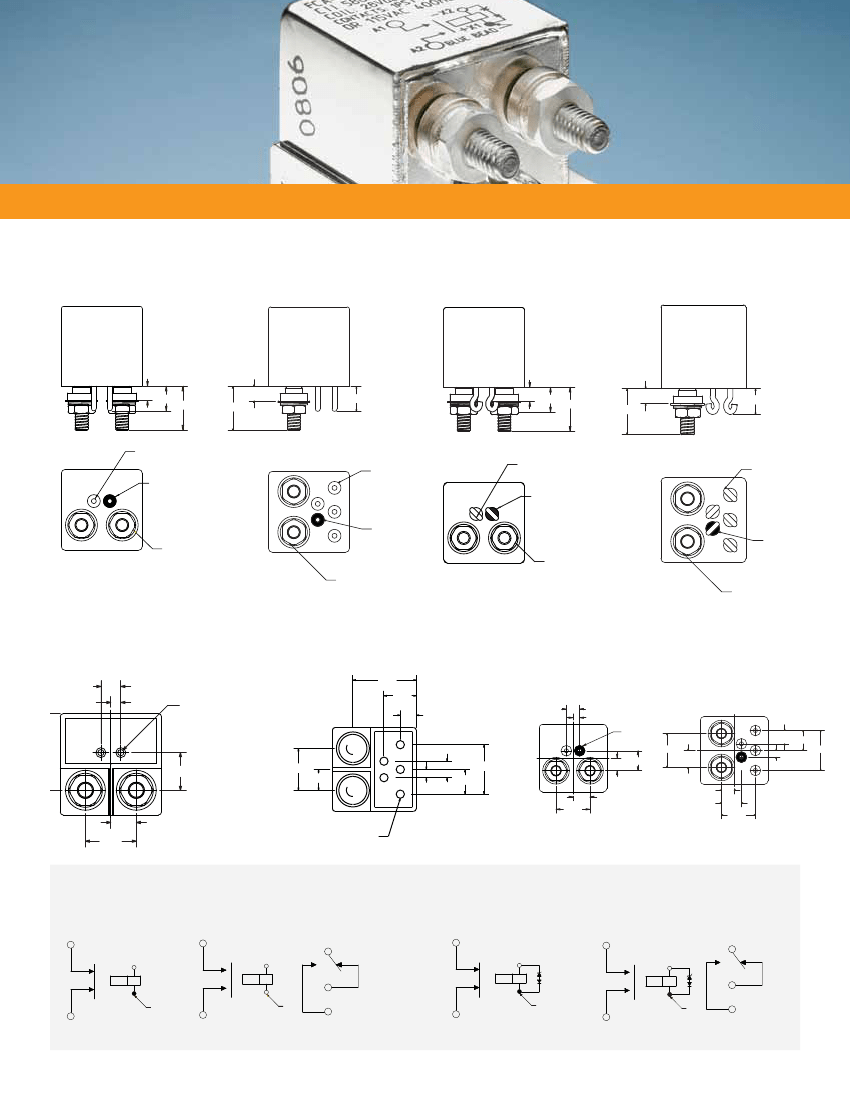

Terminals (see drawings for details):
B = Solder Pin Coil Terminals, Stud Power Terminals
C = Solder Hook Coil Terminals, Stud Power Terminals
K = Terminal Block, Stud Power Terminals
Enclosure (see drawings for details):
R = Horizontal Flange Mount, Rotated
U = Flush Vertical Flange Mount
X = Horizontal Flange Mount
Y = Raised Vertical Flange Mount
Z = No Mount
Coil:
1 = 6Vdc nominal
2 = 12Vdc nominal
3 = 28Vdc nominal
4 = 28Vdc nominal, with back EMF suppression
Tyco Electronics
I FCA-150 & FCAC-150
