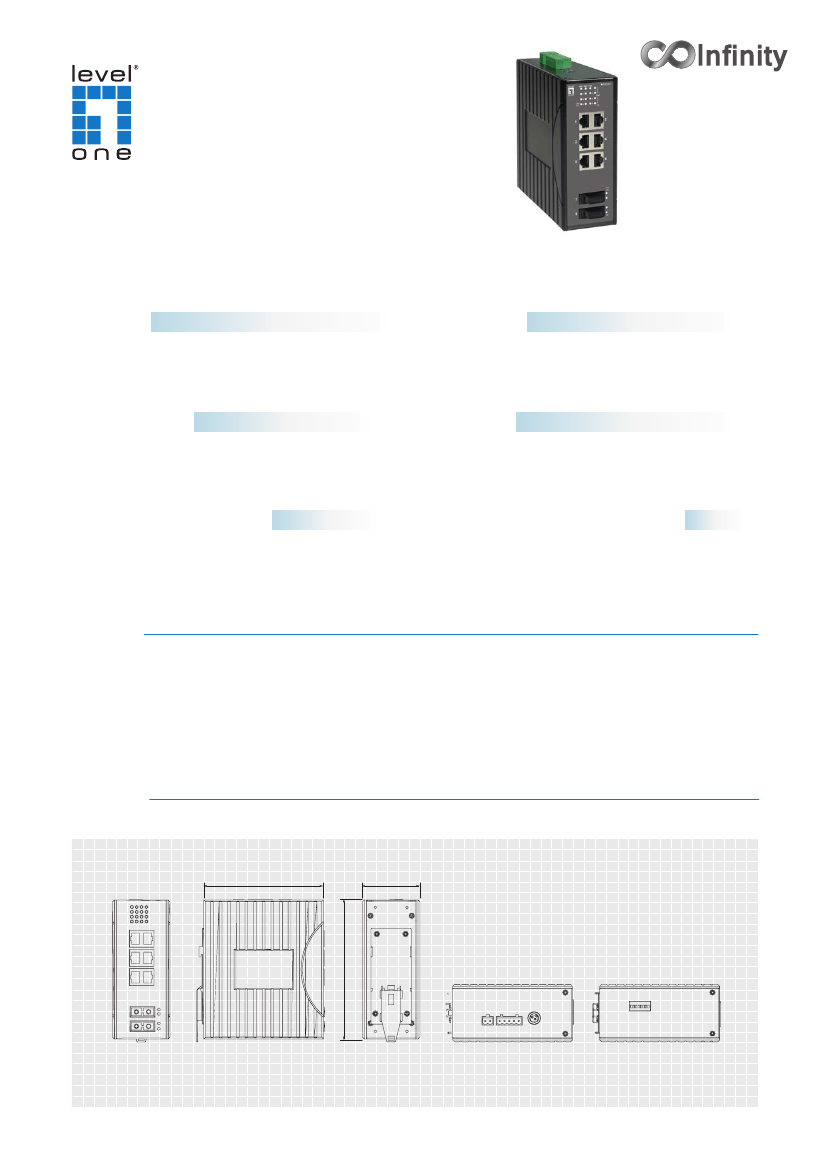

IES-0831
Overview
6 FE + 2 MM SC Unmanaged Switch
-40 to 75, DIN-rail, IEC61850
LevelOne IES-0831 Industry Ethernet Switch provides 8 ports of
10/100Base-TX Ethernet plus 2 ports of 100Base-FX SC MM ber to
enable high speed network at mission-critical environment. This device
is designed to be mounted on an industry standard DIN-rail, plus the
clearly visible status LEDs provide simple monitoring of port link activity.
Redundancy
This redundant power system is designed to meet the challenge of
power failure to ensure reliability and constant availability. Single power
design works ne in non-critical network applications, but it falls short
drastically for network applications in transportation, automate
production or banking.
High Reliability
All components are built to withstand harsh environment applications
without compromise where humidity, temperature variation and even
shock vibration are concerns, including Electric & Utility, Critical
Infrastructure, Transportation and Surveillance Security. This device
operates under -40 to 75 Celsius (-40 to 167 Fahrenheit) temperature.
Plug & Play
This unmanaged Industrial Ethernet Switch is designed for the
demanding industrial environments at businesses in need of instant
connectivity with no setup or con gure required, truly plug and play.
Tra c Control Application
This device is certi ed by NEMA (National Manufacturers Association)
TS2 Environmental requirements for the Tra c Control Equipment that
withstand extreme temperatures, operating voltage and humidity
uctuation, vibration and shock commonly experienced in severe
outdoor environments.
Substation & Railway Applications
This device is complied with IEC 61850-3 / IEEE 1613 for the power
substations and EN 50121-4 for the railway applications. IEC 61850-3 is
an international standard for electrical substation systems. The standard
enables integration of all control, measurement, monitoring and
protection functions within a substation.
Features
- Provides exibility of 6 10/100BASE-TX ports and 2 100BASE-FX ports
- Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation,
Auto-MDI/MDIX
- Redundant power inputs(12-48VDC) with Terminal Block and DC
Jack(12VDC)
- Alarms for power and Link Down failure by relay output
- Supports DIP switch con guration for link down alarm
- -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for
functional operation @ -40°C to 85°C (-40°F to 185°F)
- Provides DIN-rail or panel mounting
- Complies with NEMA TS2 Environmental requirements for Tra c
control equipment
- Complies with IEC61000-6-2 EMC Generic standard immunity for
Industrial environment
- Complies with IEC61850-3 and IEEE1613 Environmental requirements
for power substation automation systems
- Complies with EN50121-4 environmental requirement for Railway
application
Diagrams
Unit: mm
125
60
Front
Side
145
Back
Top
Buttom
Speci cations
Technology
Standards
Environment
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX,
IEEE802.3x
Operating
Temperature
Storage
Temperature
Ambient
Relative
Humidity
MTBF
-40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
-40°C to 85°C (-40°F to 185°F)
5% to 95% (non-condensing)
Forward and
Filtering Rate
Packet Buffer
Memory
Processing
Type
14,880pps for 10Mbps
148,810pps for 100Mbps
448K bits
38.89 years
Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex
flow control
2048 MAC addresses
Regulatory Approvals
ISO
Safety
EMI
Manufactured in an ISO9001 facility
UL508 (Pending)
FCC Part 15, Class A
EN61000-6-4
- EN55022
- EN61000-3-2
- EN61000-3-3
EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 8KV; Criteria B
Air: + / - 15KV; Criteria B
- EN61000-4-3 (Radiated FRI Standards)
35V/m, 80 to 3G; 80% AM Criteria A
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV
D.C. Power Ports: + / - 4KV; Criteria B
A.C. Power Ports: + / - 4KV; Criteria B
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 2KV; Line-to-Line; Criteria B
D.C. Power Ports: + / - 4KV; Line-to-Earth; Criteria B
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10V @ 0.15 - 80MHz; Criteria A
D.C. Power Ports: 10V @ 0.15 - 80MHz; Criteria A
A.C. Power Ports: 10V @ 0.15 - 80MHz; Criteria A
Earth Ground Ports: 10V @ 0.15 - 80MHz; Criteria A
- EN61000-4-8 (Magnetic Field Standards)
1000A/m @ 50, 60Hz; Criteria A
- IEC61000-4-10 (Oscillatory wave magnetic field test)
100kHz and 1MHz: 30A/m
- IEC 61000-4-16 (Power frequency immunity test) 50Hz: 300V
- IEC 61000-4-18 (oscillatory wave immunity test):
100 kHz, 2.5kV CM and 2.5kV DM
1MHz , 2.5kV CM and 2.5kV DM
- IEEE1613:
power frequency withstand voltage: 2KV, Insulation
resistance >550 MOhm
RJ45 Port 500V, Insulation resistance >550 MOhm
Impulse voltage: 5Kv, Insulation resistance >550 MOhm
IEC 60870-2-1: AC/DC power supply voltage variations
IEC60068-2-6 (Vibration Resistance)
5G @ 150Hz; Criterion 3 (Operation/Storage/Transport)
IEC60068-2-27 (Shock)
25G @ 11ms (Half-Sine Shock Pulse; Operation)
50G @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 (Free Fall)
1M (3.281ft.)
Address Table
Size
Power
Input
Input Voltage: 12VDC (DC Jack); 12 to 48VDC (Terminal
Block)
EMS
Power
Consumption
Reverse
Polarity
Protection
6W Max. 12VDC @ 0.5A, 24VDC @ 0.25A, 48VDC @
0.125A
Present
Mechanical
Casing
Aluminum case
Dimensions
60mm (W) x 125mm (D) x 145mm (H)
(2.36" (W) x 4.92" (D) x 5.7" (H))
Weight
1Kg (2.2lbs.)
Installation
DIN-Rail, Panel Mounting
Interface
LED Indicators
Per Unit: Power Status: Power 1, 2, 3 (Green), Fault (Red)
Per Port: 10/100TX, 100FX: Link/Activity (Green)
10/100TX: 100 (Green)
Environmental
Test
Compliance
Alarm Contact
One relay output with current 1A @ 24VDC
Order Information
IES-0831
-
6 FE + 2 MM SC Unmanaged Switch -40 to 75, DIN-rail, IEC61850
Package Contents
IES-0831
Quick Installation Guide
www.level1.com
