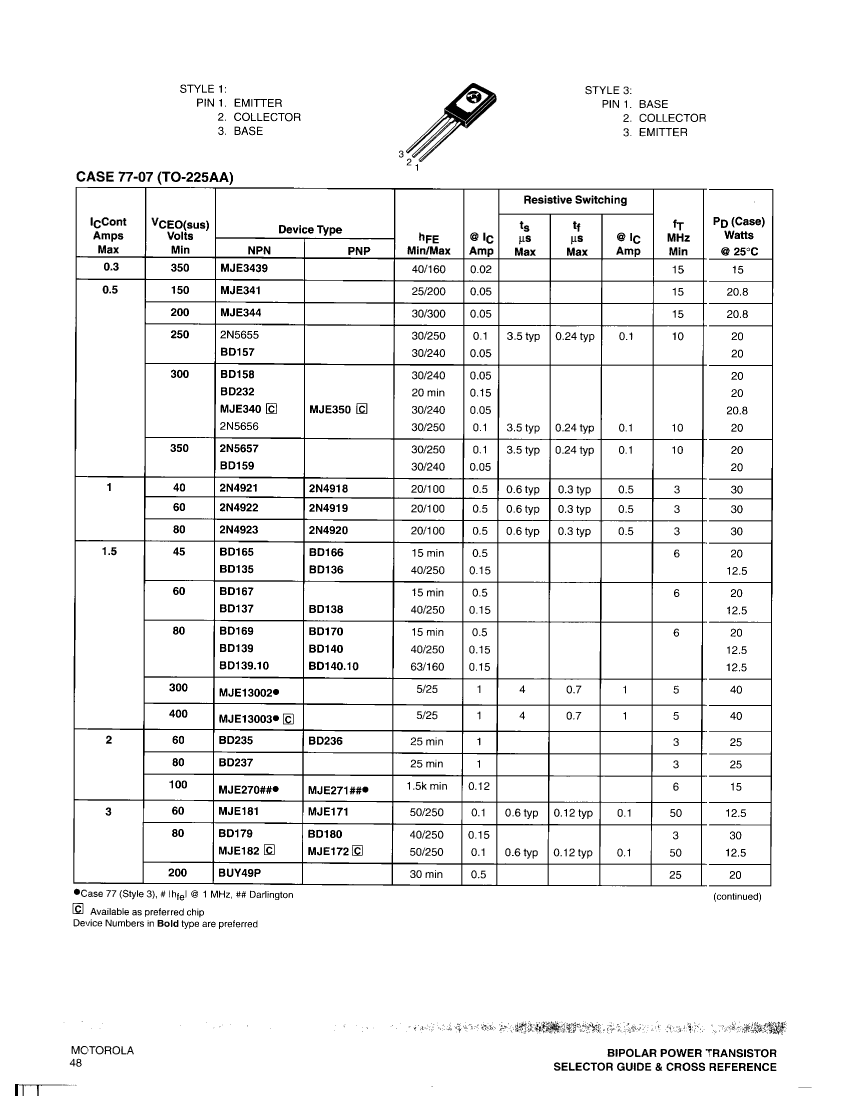

1.5A, 80V, PNP, Si, POWER TRANSISTOR, TO-225AA

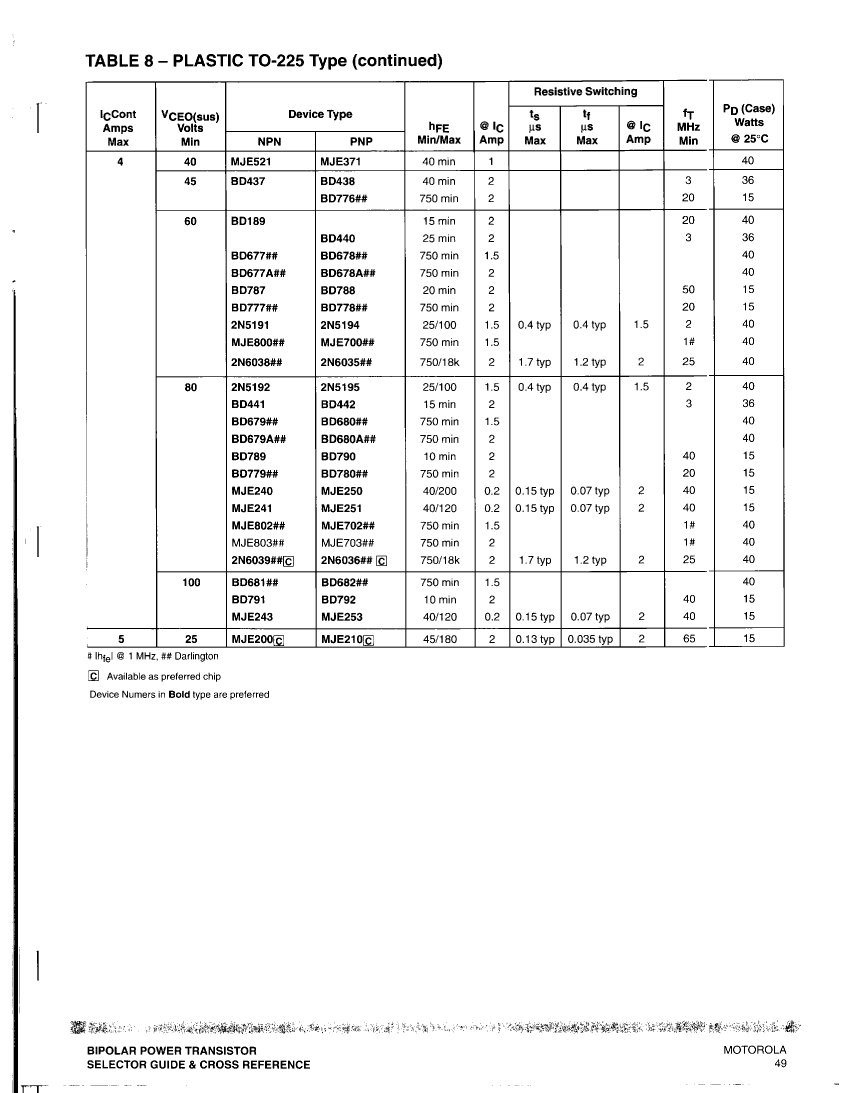

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Reach Compliance Code | unknown |
| Maximum collector current (IC) | 1.5 A |
| Collector-emitter maximum voltage | 80 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 63 |
| JEDEC-95 code | TO-225AA |
| JESD-30 code | R-PSFM-T3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | PNP |
| Maximum power consumption environment | 12.5 W |
| Maximum power dissipation(Abs) | 8 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 75 MHz |
| BD140.10 | BD170 | BD232 | MJE241 | BD139.10 | |
|---|---|---|---|---|---|
| Description | 1.5A, 80V, PNP, Si, POWER TRANSISTOR, TO-225AA | 1.5A, 80V, PNP, Si, POWER TRANSISTOR, TO-225AA | 0.5A, 300V, NPN, Si, POWER TRANSISTOR, TO-225AA | 4A, 80V, NPN, Si, POWER TRANSISTOR, TO-225AA | 1.5A, 80V, NPN, Si, POWER TRANSISTOR, TO-225AA |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Maximum collector current (IC) | 1.5 A | 1.5 A | 0.5 A | 4 A | 1.5 A |
| Collector-emitter maximum voltage | 80 V | 80 V | 300 V | 80 V | 80 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 63 | 15 | 20 | 40 | 63 |
| JEDEC-95 code | TO-225AA | TO-225AA | TO-225AA | TO-225AA | TO-225AA |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | PNP | PNP | NPN | NPN | NPN |
| Maximum power consumption environment | 12.5 W | 20 W | 20 W | 15 W | 12.5 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 75 MHz | 6 MHz | - | 40 MHz | 250 MHz |
| ECCN code | - | EAR99 | EAR99 | EAR99 | - |
