A-70400-1208 Overview

19 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0014562198
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,
Single Row, Version G, Positive Lock, Wire Size 24, 0.76µm (30µ") Gold (Au), 19
Circuits
Documents:
3D Model

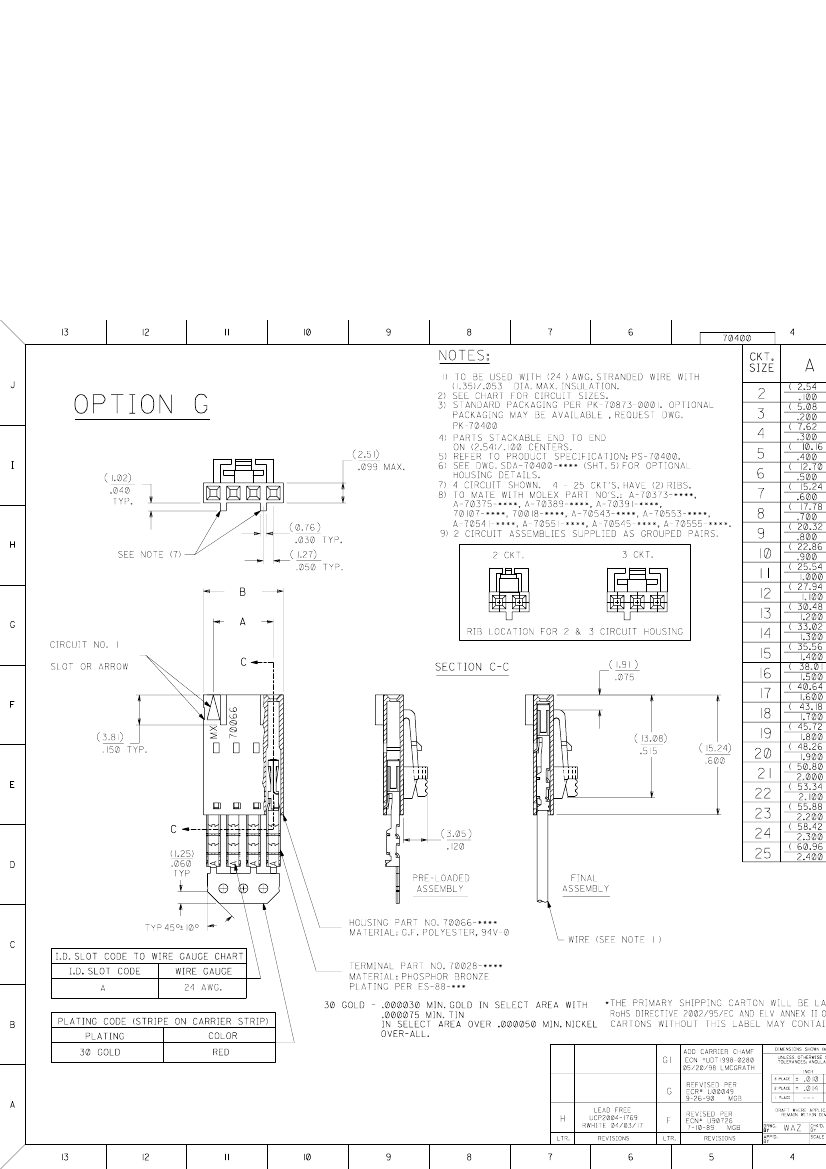

Drawing (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Overview
Product Name
Ribbon Cable / Wire Trap Connectors
70400
Terminals Preloaded
Housing
No
cgrid__sl_products
SL™
EU RoHS
ELV and
Complia
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
19
Black
50
Vertical
94V-0
Yes
Phosphor Bronze
Gold
Tin
Polyester Alloy
1
None
Tube
0.100 In
2.54 mm
30
0.75
75
1.875
Yes
Yes
N/A
-40°C to +105°C
IDT or Pierce
1.35mm (.053") max.
24
Discrete Wire, Ribbon Cable
Email pro
For a mu
Complian
Please vi
non-prod
Search
70400S
Mates
70018
70555
Use W
7307 T
28AWG
Topcoa
8997 T
26AWG
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Hawk S
Automa
