BD826 Overview

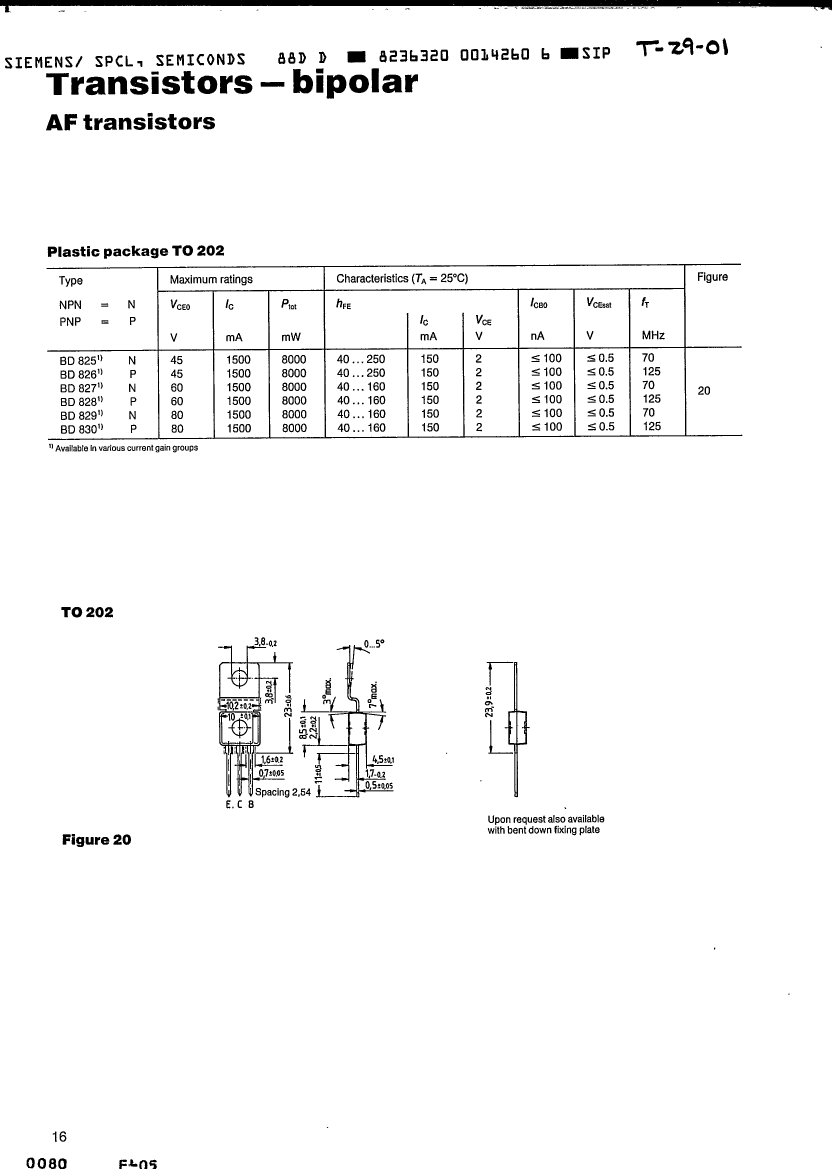

Transistor,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	1 A
Configuration	Single
Minimum DC current gain (hFE)	40
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	2 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	75 MHz

	BD826	BD827	BD830	BD828	BD825
Description	Transistor,	Transistor,	Transistor,	Transistor,	Transistor,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A
Configuration	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	40	40	40	40	40
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	NPN	PNP	PNP	NPN
Maximum power dissipation(Abs)	2 W	2 W	2 W	2 W	2 W
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	75 MHz	250 MHz	75 MHz	75 MHz	250 MHz
