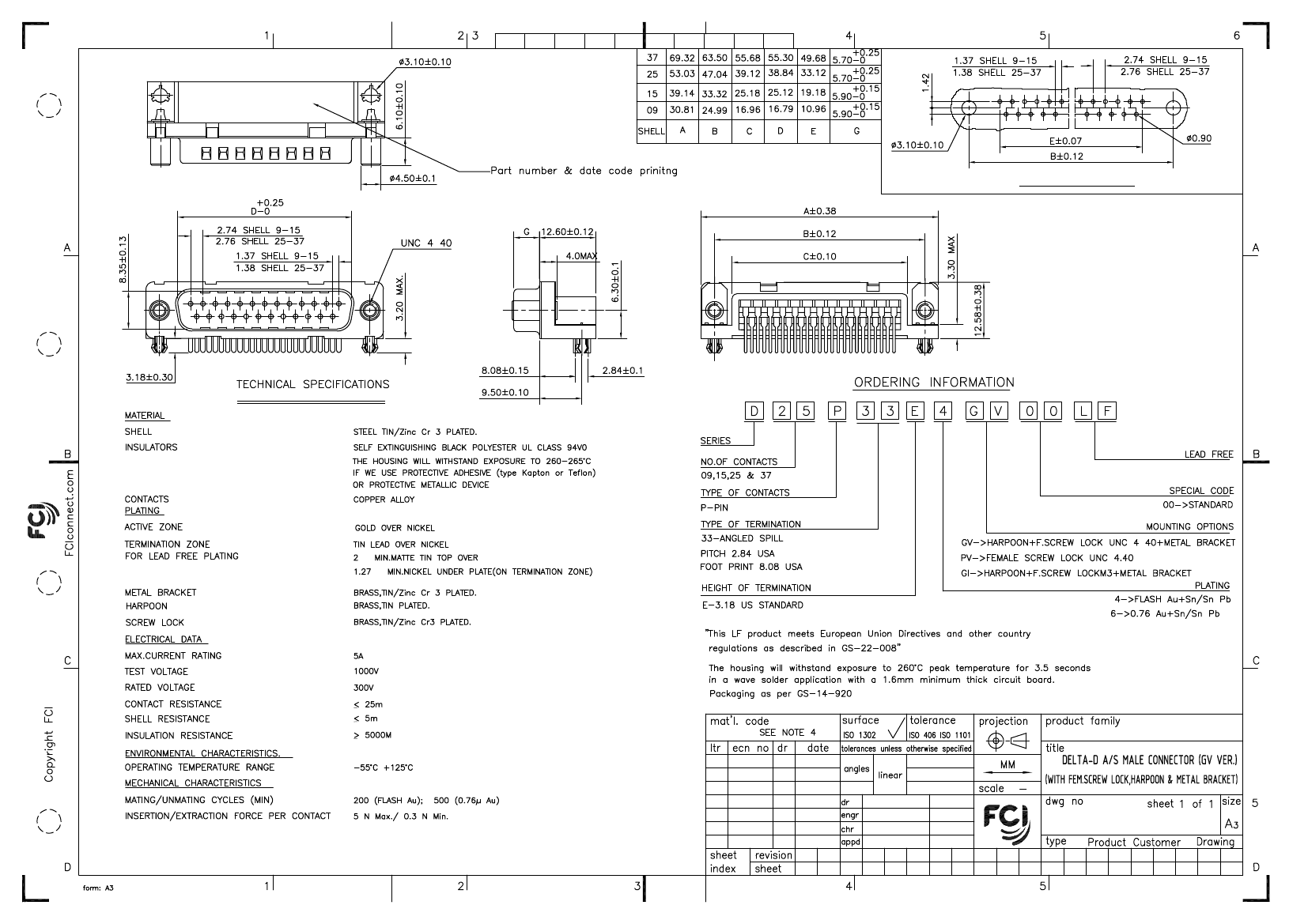

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| body width | 0.495 inch |
| subject depth | 0.496 inch |
| body length | 2.088 inch |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER NICKEL |
| Contact completed and terminated | TIN LEAD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYESTER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | D |
| Plug contact pitch | 0.109 inch |
| Mixed contacts | NO |
| Installation option 1 | M3 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN/ZINC CHROMIUM |
| Shell material | STEEL |
| Housing size | 3/B |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .30024 N |
