52043-1910: DescriptionCard Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size126KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52043-1910 Overview

Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal

52043-1910 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	ZIF, STAGGERED CONFIGUARATION
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	19
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

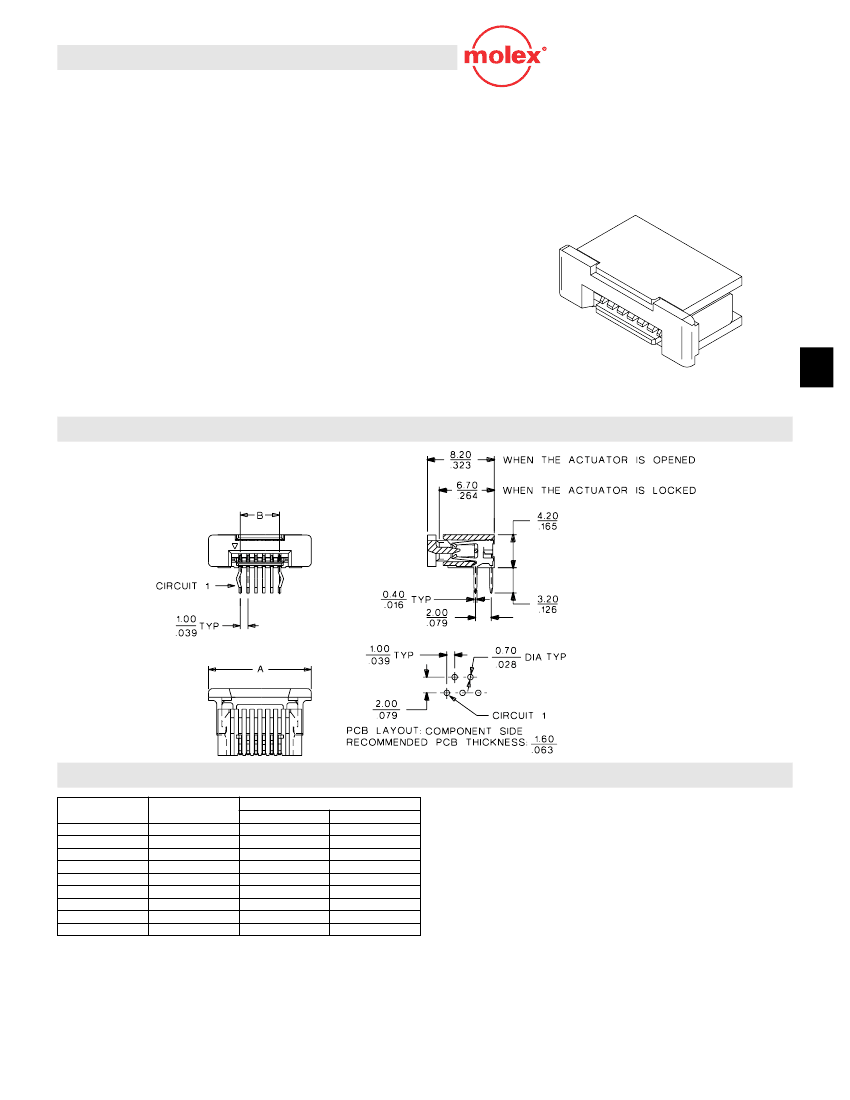

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 4 to 20 circuits

s

For 0.30mm thick FFC/FPC

s

Kinked outer solder tails for PCB retention

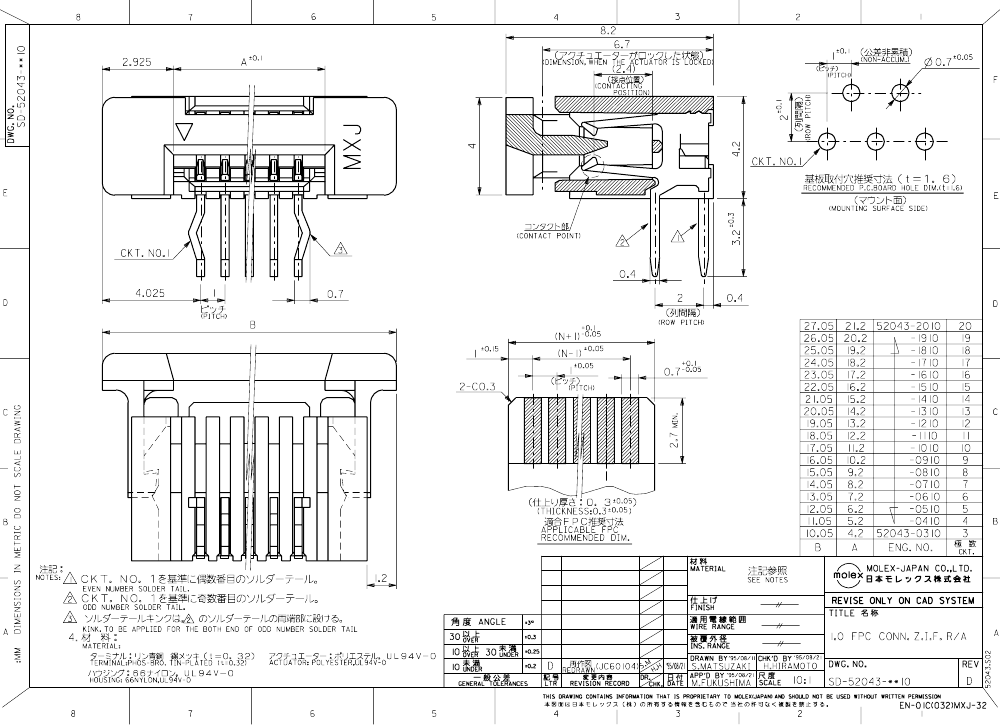

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

4

6

8

10

12

14

16

18

20

Order No.

52043-0410

52043-0610

52043-0810

52043-1010

52043-1210

52043-1410

52043-1610

52043-1810

52043-2010

11.05

13.05

15.05

17.05

19.05

21.05

23.05

25.05

27.05

Dimension

A

(.435)

(.514)

(.593)

(.671)

(.750)

(.829)

(.907)

(.986)

(1.065)

3.00

5.00

7.00

9.00

11.00

13.00

15.00

17.00

19.00

B

(.118)

(.196)

(.275)

(.354)

(.433)

(.511)

(.590)

(.669)

(.748)

Note: For cable speciﬁcation dimensions, see cable pages at end of section

MX01

G-31

FFC/FPC Connectors

Reference Information

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.5A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 Min.

Insulation Resistance: 100 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-0

Actuator: PBTP, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Operating Temperature: -20 to +80˚C

1.00mm (.039") Pitch

FFC/FPC Connector

52043

Right Angle, ZIF

Bottom Contact Style

G

52043-1910 Related Products

	52043-1910	52043-0310	52043-1510	52043-1710
Description	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal	Card Edge Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal	Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ZIF, STAGGERED CONFIGUARATION	ZIF, STAGGERED CONFIGUARATION	ZIF, STAGGERED CONFIGUARATION	ZIF, STAGGERED CONFIGUARATION
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	19	3	15	17
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
