D37P82C4GL00LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D37P82C4GL00LF

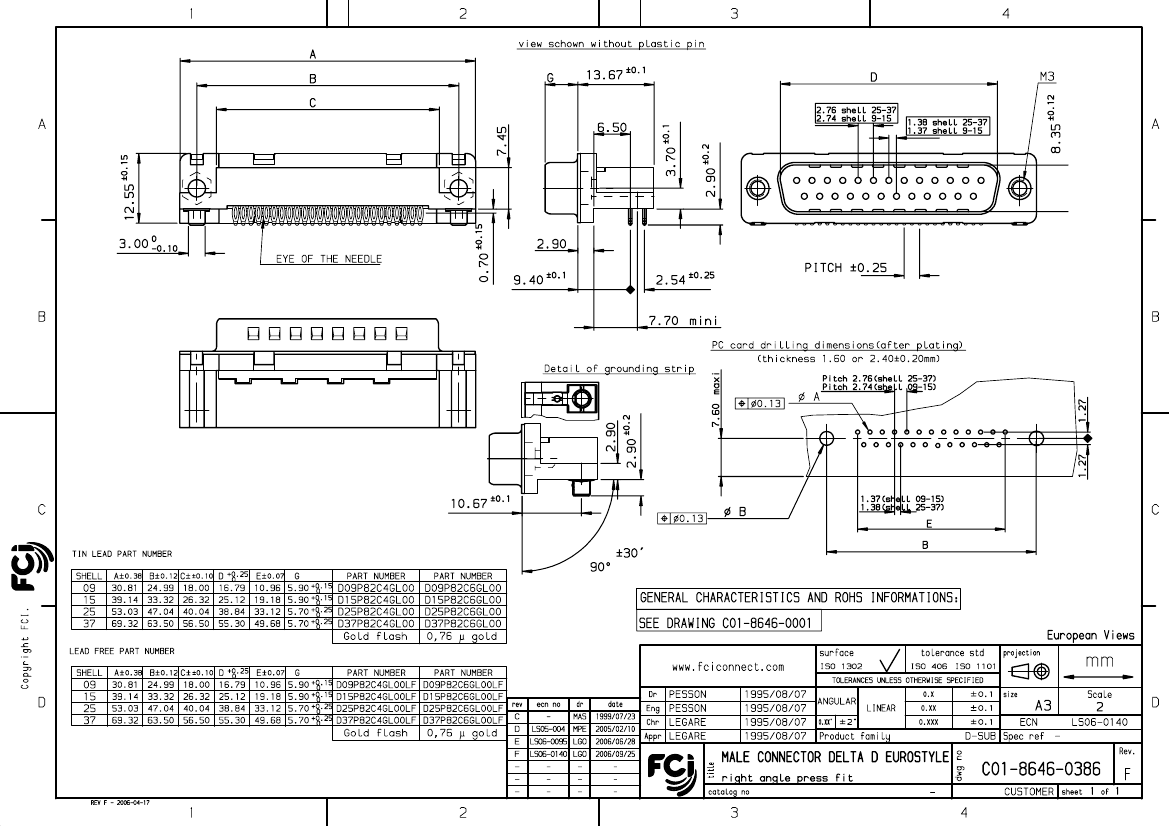

D37P82C4GL00LF: DescriptionD Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, M3, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D37P82C4GL00LF Overview

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, M3, Receptacle, LEAD FREE

D37P82C4GL00LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.538 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	M3
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	37
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

PDM: Rev:F

STATUS:

Released

Printed: Jan 18, 2011

D37P82C4GL00LF Related Products

	D37P82C4GL00LF	D15P82C4GL00LF	D25P82C4GL00LF	D25P82C6GL00
Description	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, M3, Receptacle, LEAD FREE	D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Press Fit Terminal, M3, Receptacle, LEAD FREE	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, M3, Receptacle, LEAD FREE	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD (30)
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	2/A	3/B	3/B
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	37	15	25	25
Is it lead-free?	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	-
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	-
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
body width	0.494 inch	0.494 inch	0.494 inch	-
subject depth	0.538 inch	0.538 inch	0.538 inch	-
body length	2.729 inch	1.541 inch	2.088 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
contact mode	STAGGERED	STAGGERED	STAGGERED	-
Contact resistance	10 mΩ	10 mΩ	10 mΩ	-
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	-
maximum insertion force	4.8928 N	4.8928 N	4.8928 N	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	-
Manufacturer's serial number	D	D	D	-
Plug contact pitch	0.109 inch	0.108 inch	0.109 inch	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	-
Installation option 1	M3	M3	M3	-
Installation option 2	LOCKING	LOCKING	LOCKING	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
PCB row number	2	2	2	-
Number of rows loaded	2	2	2	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	-
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	-
Plating thickness	FLASH inch	FLASH inch	FLASH inch	-
Rated current (signal)	5 A	5 A	5 A	-
Guideline	UL	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	0.114 inch	0.114 inch	0.114 inch	-
Terminal pitch	2.7686 mm	2.7432 mm	2.7686 mm	-
Evacuation force-minimum value	.3058 N	.3058 N	.3058 N	-
